AD8336 voltage-controlled gain amplifier module controllable gain 60dB wide dyna

Product Description

Shipping list

KW_VCA8336 module delivery list

Physical module + module parameter index data + after-sales technical support + electrostatic bag packaging + shockproof foam

Kind tips:

(1) The module interface of our store is clear and the performance is stable. Please do functional verification in the corresponding experimental conditions in combination with the information provided by our store.

(2) The basic parameters of this module are all in the details page. The PDF document of the module schematic diagram is provided, and the engineering file is not provided. Please be informed by the buyer. If you have any operational problems, you can consult customer service.

(3) Before using the module, please read the details page of this module in detail to understand the power supply and usage restrictions to avoid damage to the module due to improper operation.

(4) Our modules are guaranteed to provide real module parameters, functions and pictures, and all modules are shipped after testing.

Module parameters

Parameter name；parameter value；Remark

Module model；KW_VCA8336

Module type；Voltage Controlled Gain Amplifier

Module power supply；±5V--±15V；Dual power supply

Quiescent Current；±25mA；for reference only

Module bandwidth；DC--25MHz；For compatible DC signals, the default input and output 0R resistors are directly connected. If there is no need for DC signal amplification or spectrum testing, the input and output resistances can be changed to 0.1uF capacitors.

Input resistance；high resistance；Soldering R2 changes the input impedance

Output current；±20mA(MAX)

Gain control range；0 to +60(dB)

Control voltage；1.8V--3.2V

Maximum unsaturated output；6.4Vpp@±5V power supply；±12V power supply output up to 20Vpp

Module protection；Power reverse polarity protection

Module Features；various；Amplifies DC signal, with power indicator

Module application；various；Industrial process control, high performance AGC systems, I/Q signal processing, video, industrial and medical ultrasound, radar receivers, etc.

Module weight；12g

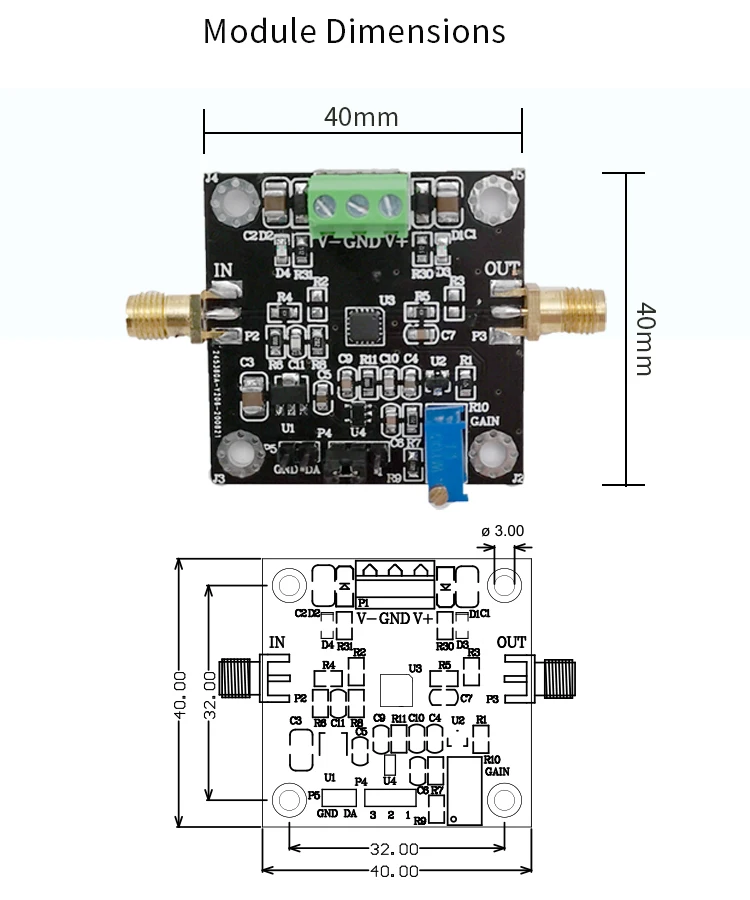

Module size；40*40*13；L*W*H(mm)

Operating temperature；-25—+75℃

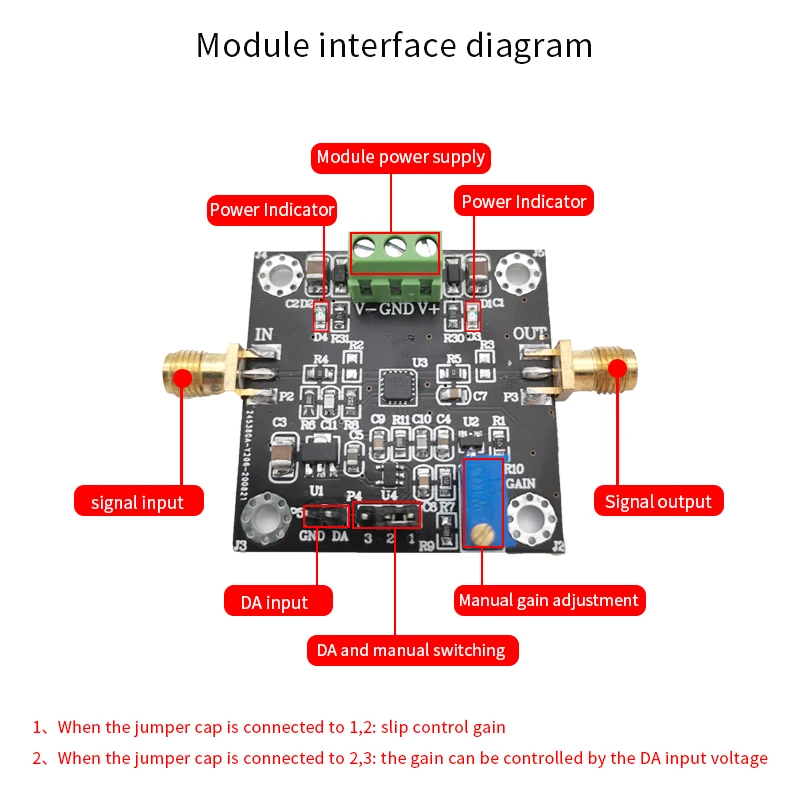

Module interface；SMA；SMA, 3.81-3P

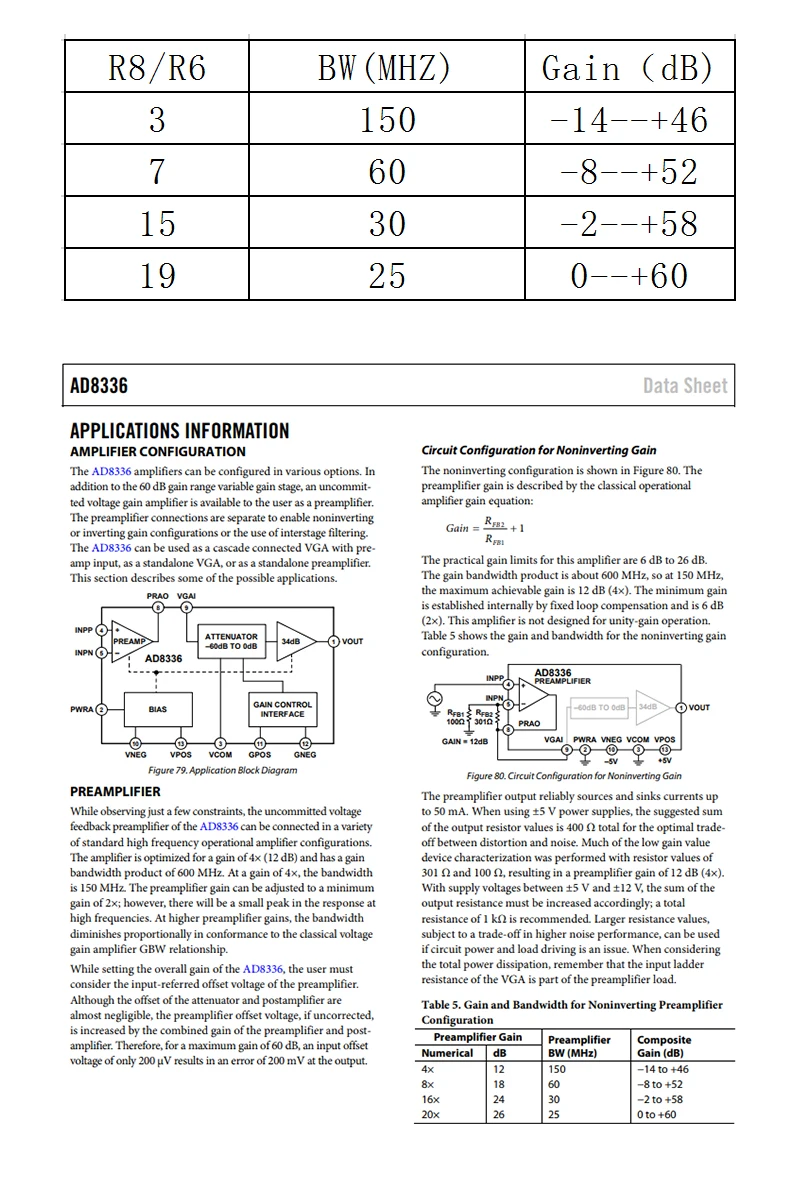

The default VGA gain range of our AD8336 module is configured to be 0 to 60dB. At this time, the bandwidth is 25M. If users need other gain ranges and bandwidths, please refer to the table below and the chip manual 20-23 pages.

Module description

The KW_VCA8336 module adopts AD8336 low noise, single-ended, linear dB, general-purpose variable gain amplifier, which can work in a wide supply voltage range. It has a built-in non-dedicated preamp with a usable gain range of 6 dB to 26 dB. The module default VGA gain range is 0 dB to 60 dB. The wide supply voltage range makes the AD8336 suitable for industrial, medical applications and video circuits. Dual-supply operation supports bipolar input signals, such as those generated by photodiodes or photomultiplier tubes. The modules are small in size, easy to install, perform well, and easy to use.

Module usage precautions

(1) The power supply of the module is a dual power supply, and the voltage cannot exceed ±15V.

(2) Since the module is a high-precision device, in order to avoid unnecessary interference, it is recommended to use a linear power supply.

(3) It is recommended to use a good wire for the output signal to input and output the signal, and use an oscilloscope to observe the effect. Poor contact or poor quality wire may cause signal attenuation or excessive noise.

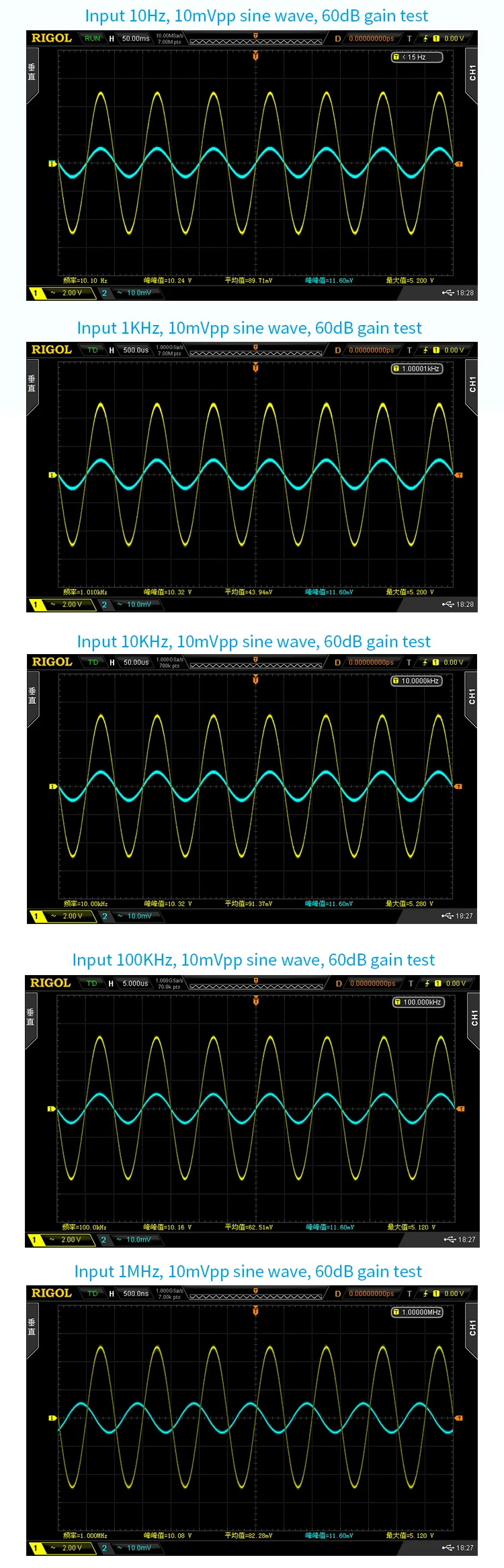

Module Test Diagram

FAQ

Q: Adjust the slip, why the gain does not change?

A: Please make sure the jumper cap is in the correct position (2,3) and then adjust the slip.
