Tuya App Control WiFi Smart Door Lock Gate Digital Passcode RFID Card Keyless En

Product Description

Tuya App Control WiFi Smart Door Lock Gate Digital Passcode RFID Card Keyless Entry Double Side Fingerprint Rim Lock

Noted: Tuya WiFi version support 8 languages voice, TTLock version support English voice only.

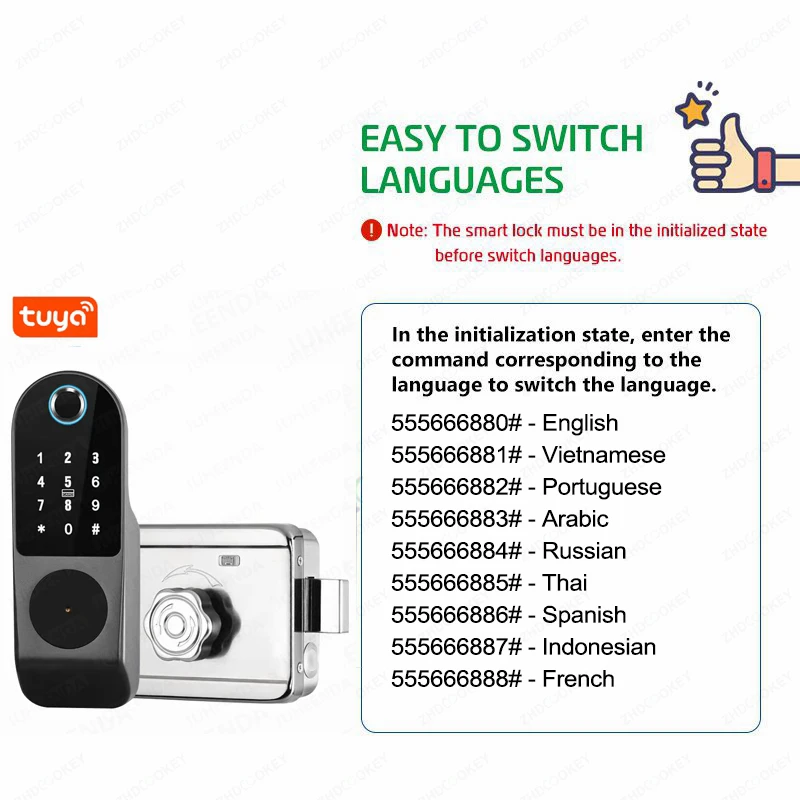

9 languages voice to switch freely, easy to set up

English, Vinetnamese, Portuguese, Arabic, Russian, Thai, Spanish, Indonesian, French

Model:G21

Material: Zinc Alloy

Available color: Black+Grey

Panel Sizes: 170(mm)*34(mm)*60(mm)

Unlock modes: Fingerprint /Password /IC Card / APP / Mechanical Key

Supported App: Tuya app or TTlock app

Fingerprint Recognition time: 0.25S

Fingerprint Users: 100pcs

Card Users: 100pcs

Password Users: 100pcs

Power supply1: 4 x AA 1.5V batteries

Power Supply2:DC 12V adapter for Power supply(Not included, 12V/3-5A)

Operating temperature: -25 to 55 Centigrade

Suitable door thickness: 20-65mm( Wooden door, Steel door, Iron door, other metal doors)

Emergency Charging: 1xMicro USB port

About the remote control

Provides a remote door opening function. The door lock will be locked automatically after closing the door.

The maximum recognition distance is 30m without any obstacles.

The maximum numbers of remote controllers that can be added to each door lock is 20pcs.

Tuya APP Functions:

1.Press 9# on lock panel to request open, unlock remotely by phone App

2.Copy password to unlock

3.Send temporary password unlock remotely

4.Checking the unlock records remotely

5.Connect to the WIFI directly, no need any gateway

TTLOCK APP Functions:

1. Open lock by phone App remotely

2. Add fingerprint, password, IC card, ekey on phone app, no need operate on lock.

3.Send temporary password/ ekey unlock remotely

4. Savethe unlock records

5.Connect to the lock by bluetooth

If add a gateway that can connect to Wifi, can delete users, open locks, checking unlock records remotely without distance limitation.

(Gateway buy extra). Click below picture to buy ttlock gateway.

1x front lock panel
1x rear lock panel
1 x lock mortise
2 x RFID cards
2 x mechanical keys
1 x user manual
1 x cutting template
1 x screws kits

If you want more cards, pls click this picture for the link to buy it.

FAQ(Frequently Asked Questions):

Q1:Is the G21 lock waterproof?

A:The G21 lock isnot waterproof, but you can choose the upgraded version G23 lock(waterproof) in our store or contact us for G21 waterproof kit.

Q2:How to connect Power supply?

A: There are two ways of Power supply:

1) Install 4pcs AA batteries;

2) DC 12V adapter for Power supply (External power supply:12V, 3-5A).

Q3:What should I look for before setting up Tuya WiFi?

A:1) Whether the smart lock inserted a Tuya WiFi module correctly,

2) Whether change the original administrator password before setting Tuya WiFi.

3)Please note it has no APP function on rear panel, you need to set Tuya APP on front panel.

Q4:Does it support connecting Alexa and Google Assistant?

A:Yes! You need to select TTLock version and G2 TTLock Gateway.

Q5:How to set remote control?

A:1) Install batteries inside the smart lock and remote control,

connect the cable of front panel and the receiver module of the remote control to the main PCB;

2) Press the set button of the remote control for 5 seconds (5 beeps will be emitted),

then the red indicator light will flash and enter the configuration mode.

Press the red button of the remote control for 2 seconds to make the remote control pair with the smart lock;

3) Wait for the red indicator light to stop flashing, use the magnet to suck out the latch,

press the button on remote control to try to open the lock.

Q6:How to choose Tuya and TTlock version? What're the difference between Tuya and TTlock?

A:Generally, Tuya version needs to press 9#, then the APP will receive a request to open the door remotely;

TTlock version can open the door by Phone APP directly.
