High speed IV conversion of transimpedance amplifier Hamamatsu PIN photocell sig

Product Description

Delivery list

Physical module * 1+supporting low ripple precision power supply YK_ DCNP05L * 1+30CM length SMA to BNC high frequency wire * 2+10CM length BNC girdling tin wire * 1+photoelectric adapter board * 2+low-speed photocell (PN502) * 1+BNC to SMA to revolution connector * 1+resistance test board * 1+after-sales technical support+electrostatic bag packaging+shockproof foam

Reminder:

(1) The module interface of our store is clear and the performance is stable. Please verify the function under the corresponding experimental conditions in combination with the user manual provided by our store.

(2) The basic parameters of this module are in the detail page. The user manual of the module is provided, but the engineering document is not provided. The buyer should be informed. If there is any operation problem, you can consult the customer service.

(3) Before using the module, please read the details page of this module in detail to understand the power supply and use restrictions, so as to avoid damage to the module due to improper operation.

Module parameters

Parameter name；Parameter value；remarks

Module model；IV-AMP1615L

Module Type；Transimpedance amplifier

Module power supply；Distribution of low ripple precision power supply

Input signal form；Single terminal current

Input signal interface；BNC female

Input current range；±33uA

Minimum resolution of input current；10nA

Gain coefficient；100kV/A

Linearity；1%

Gain bandwidth；DC-1MHz@HI-Z

Rise time；0.3uS

Output impedance；Low resistance

Output voltage range；±3.3V（Hi-Z）

Output current；±1mA（MAX）

Bias voltage regulation range；±3V

Module weight；68g

Module protection；nothing；No reverse connection protection, infinite current protection

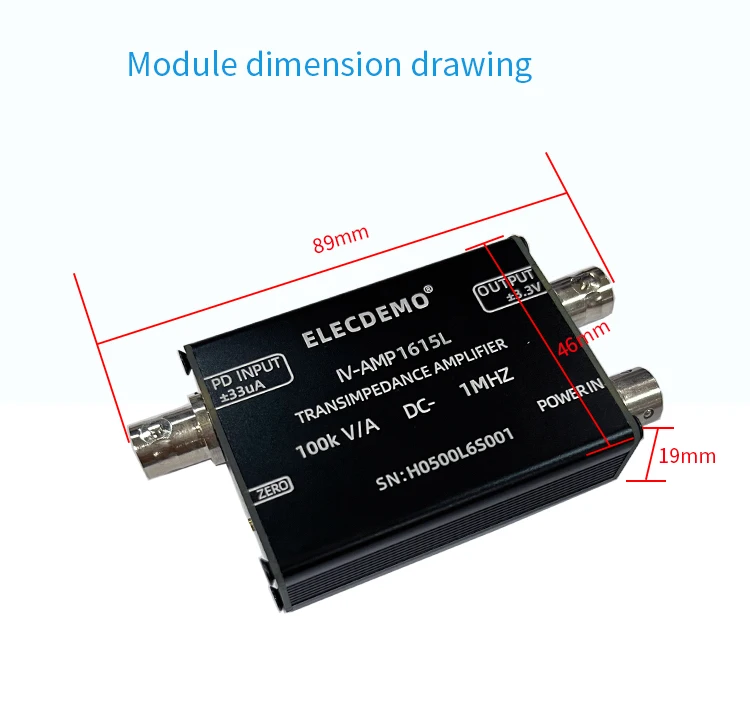

Module specifications；89*46*19mm；Length * width * height - PCB size

Module heating；No heat sink；No heat dissipation required for normal operation

Module operating temperature；-25℃--+75℃

Module Features；High speed current to voltage, zero point adjustable

Scope of application；Photoelectric detector, data acquisition front-end, weak signal detection, etc

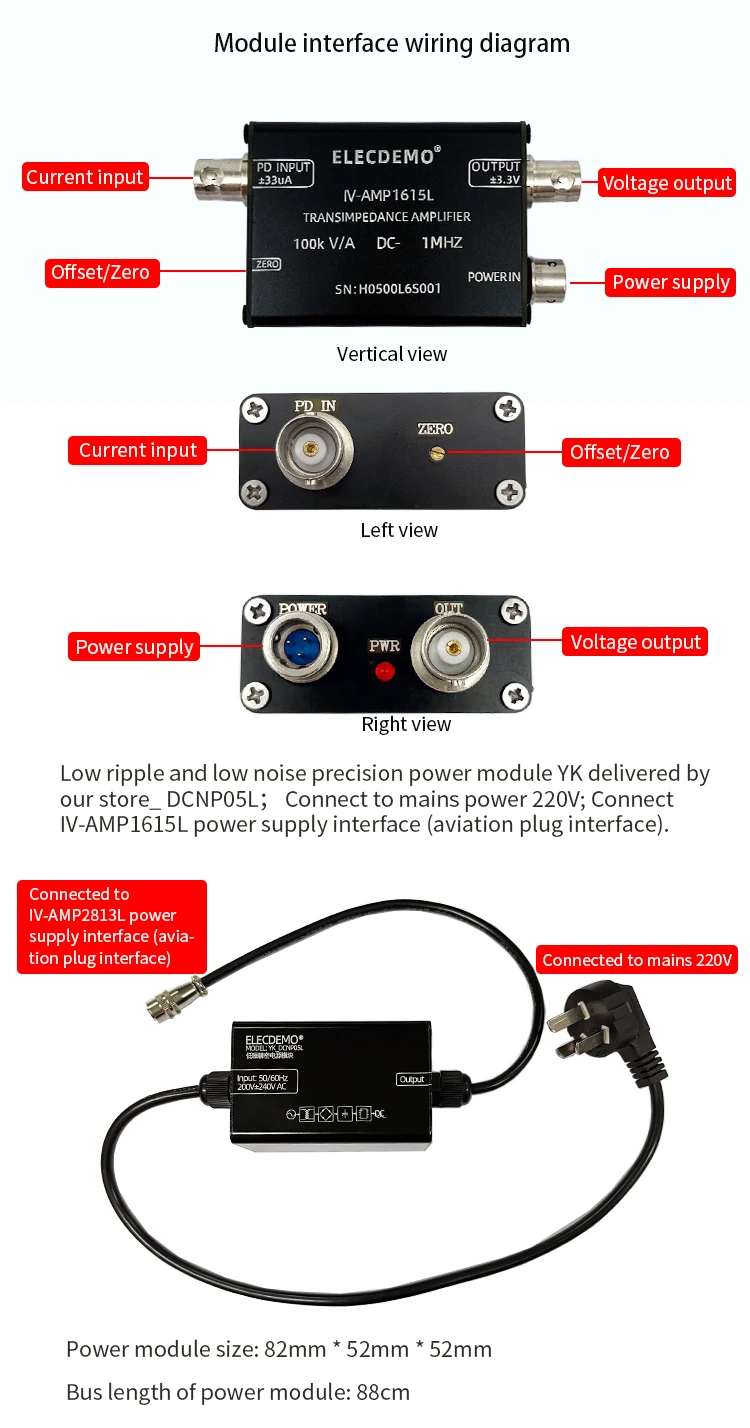

Module interface type；3PIN aviation socket, BNC female

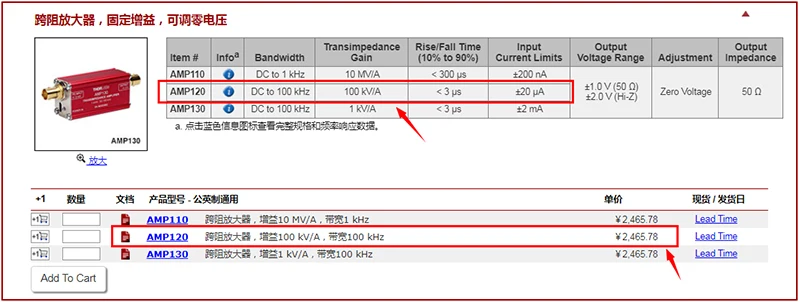

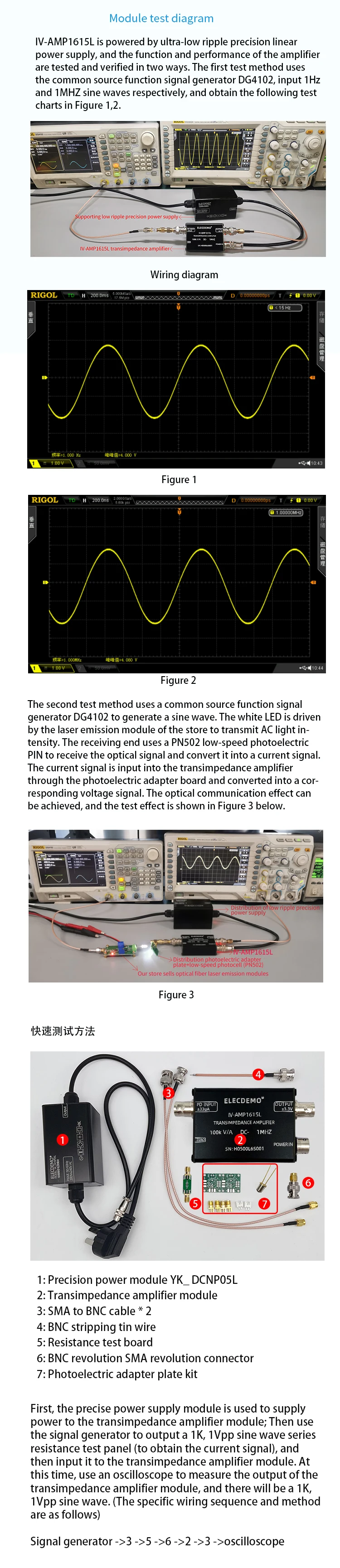

Benchmark Thorlabs transimpedance amplifier AMP120. The bandwidth of our transimpedance amplifier IV-AMP1615L can reach 1MHz, the gain coefficient is 100kV/A, and the output voltage range is ± 3.3V. The price is more cost-effective. If the transimpedance gain is not enough, a voltage type high-speed amplifier can be added at the next stage to amplify again.

Module Description

IV-AMP1615L is a band width transimpedance amplifier with a gain coefficient of 100KV/A and a gain bandwidth greater than 1MHZ. It has the characteristics of high bandwidth and high magnification. The minimum current resolution of the transimpedance amplifier is 10 nA, which is compatible with and adaptable to most high-speed photodiode PDs. The low ripple precision power supply matched with the amplifier ensures the excellent noise performance of the amplifier within 1MHz bandwidth. It is usually used in weak signal detection, pulse light conversion, laser ranging, high-speed photoelectric detection and fluorescent material detection.

Precautions for module use

(1) The power supply of the amplifier is a precision low ripple power supply. The aero plug should ensure stable insertion to ensure normal power supply.

(2) As the amplifier is a high-precision high-speed device, in order to avoid unnecessary interference, it is recommended to use matching wire.

(3) The input signal shall not be over range or over voltage input, and the module has no protection circuit.

(4) Poor contact or poor quality wire may cause signal attenuation or excessive noise.

Frequently asked questions

Q: When the photocell is connected, the output is almost unresponsive after light irradiation?

A: First, confirm how much current the photocell generates under the current light intensity. You can use a multimeter to measure the current of the two pins of the photocell. According to the photocurrent, you can calculate the output voltage. If the input current is too small, the output will almost have no response.

The weak photocurrent is usually very small, so that the multimeter cannot be measured. You can choose to purchase an endothelial ammeter in the shop to measure pA, nA, uA current (search for a picoammeter in the shop or consult customer service)

Q: Is the input current signal and output voltage noisy?

A: First of all, we should use our matching wire for wiring and measurement. The input wire should not be too long or unshielded, which is easy to introduce external noise. The input current line should be as short as possible and shielded.

Q: Is there an amplifier with higher trans impedance gain?

A: All kinds of modules in our store are being developed in succession, which can provide customers with customized services for function customization and size customization. For details, please consult customer service.
