Avalanche diode drive APD drive Photodetection APD dedicated power supply High e

Product Description

Shipping list

Module shipping list
APD high voltage drive module physical module + after-sale technical support + electrostatic bag packaging + shockproof foam
Tips:
(1) The module interface of our shop is clear and the performance is stable. Please use the information provided by the shop to do functional verification under the corresponding experimental conditions.
(2) The basic parameters of this module are in the details page, no information and engineering documents are provided, please be aware of the buyer, if you have any operational problems, please contact customer service.
(3) Before using the module, please read the details page of this module to understand the power supply and usage restrictions, so as to avoid damage to the module due to improper operation.
(4) All modules in our shop guarantee to provide real module parameters, functions and pictures. All modules are tested and shipped.

Module parameters

Module model: KW-3482 (chip model is not disclosed)
Module type: switching power supply (boost power supply)
Input voltage: 2.5V-16V
Output voltage: 90V (MAX) module with potentiometer, output voltage ADJ
Output current: 10mA (MAX)@50V; 5mA (MAX) @9OV
Shut-off current: 0.0luA
Static power consumption: within 30mA.
Switching frequency: 1. 1MHz
Output ripple: better than 15mV
Module enable: None (enabled by default)
Module protection: input reverse connection protection
Module features: multiple (low noise, low ripple; ultra-small size)
Module application: multiple (APD bias, PD bias, photodetection, digital camera CCD bias, LCD bias, GaAs, FET bias,)
Module weight: 7.2g
Module size: 41*38*8 length X width X height (mm)
Module heating: no need for heat dissipation
Working temperature: 0~70℃ (civilian grade)
Module interface: XH2. 54- 2PIN

Module description

This module is specially designed for PD, APD, MPPC and other special optical devices such as avalanche voltage power supply module. The package positioning can be used with our shop’s OPA847, OPA657 and other high-speed IV conversion modules. This module has high conversion efficiency, wide voltage range input, and ultra-low ripple. Features such as wave noise, applied to sensitive detection signal power; It has strong practicability in photoelectric detection, DTS measurement and control, photon signal detection, APD avalanche quenching, etc.;

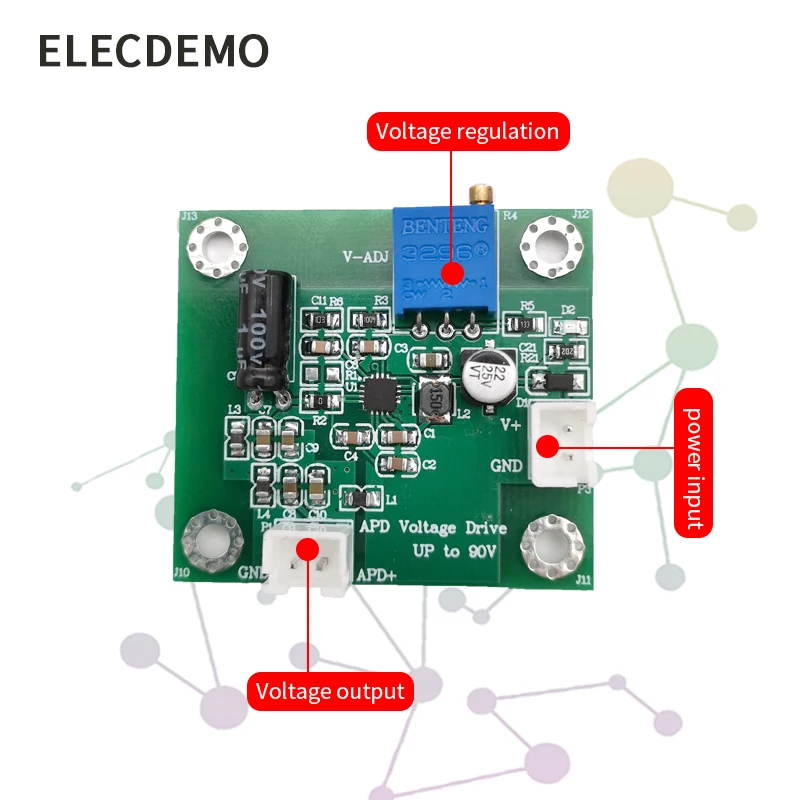

Module interface diagram

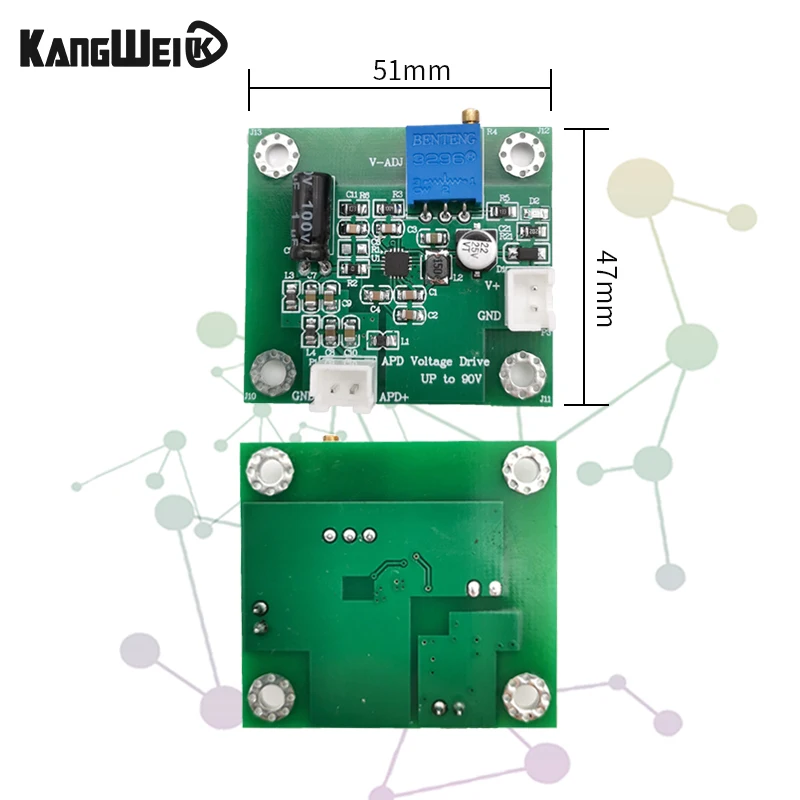

Module size chart

Precautions

Precautions:
1. Please pay attention to personal safety when testing high voltage;
2. The output current of the module is very small, please do not load high-power devices, it is only suitable for excitation
Voltage;
3. When the module is in use, it needs to use a stable linear power supply without surge and pulse
Otherwise, the module will be easily damaged;
4. The output voltage of the module is up to 95V, please do not over-regulate;
5. The module of this shop does not allow output short circuit or connection of small impedance devices, please let buyers know
Notice.

Matching use case

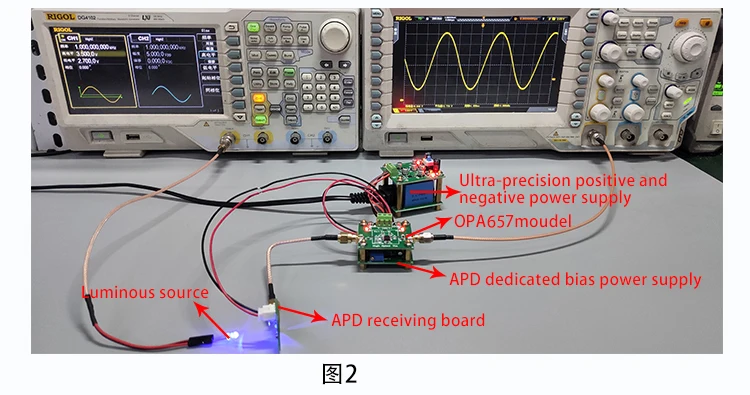

Adopt our AD500-8 avalanche diode, with APD special bias power supply, provide APD bias voltage, the desktop function signal generator generates 1K AC sine wave signal to directly drive the light-emitting diode to generate alternating light signal, the avalanche diode will be alternating The optical signal is converted into a current signal and input into the OPA657 (OPA847) module, and the OPA657 (OPA847) module converts the photocurrent into a voltage signal. The effect is as follows
