Product Description
Voltage Controlled Constant Current Source Module High Power Current Source High Linearity Laser LED Constant Current Drive Elec
Voltage Controlled Constant Current Source Module High Power Current Source High Linearity Laser LED Constant Current Drive ElecShipping list
KW_VCCS1000 module delivery list.
Physical module + after-sales technical support + electrostatic bag packaging + shock-proof foam.
Kind tips:
(1) The module interface of our store is clear and the performance is stable. Please verify the function in the corresponding experimental conditions in combination with the product details of our store.
(2) The basic parameters of this module are in the details page, and the schematic diagram of the module is not provided. Please let the buyer know, if you have any operational problems, you can consult customer service.
(3) Before using the module, please read the details page of this module in detail to understand the power supply and usage restrictions to avoid damage to the module due to improper operation.
(4) Our modules are guaranteed to provide real module parameters, functions and pictures, and all modules are shipped after testing.

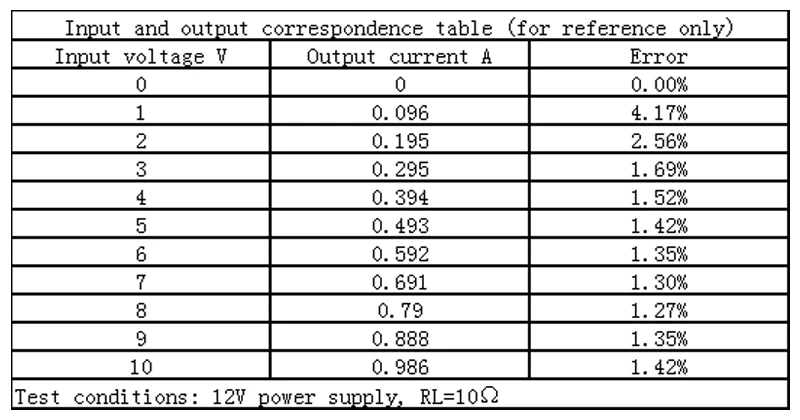

Module parameters
Parameter name；Parameter value；Remark
Module model；KW-VCCS1000；Voltage Controlled Constant Current Source
Supply voltage；12V-24V；Different power supply, different maximum output current
Output current；less than 1.2A；Different loads, different maximum output current
Module bandwidth；100Khz
Current response speed；2uS
Input resistance；High resistance
Static power；6mA
Module cooling；Passive cooling；Greater than 0.5A, please strengthen heat dissipation
Module protection；Power supply reverse polarity protection；
Module application；Various；Laser constant current drive, LED constant current drive, sensor constant current drive
Module weight；25g
Module size；42×42×28mm；length x width x height
Operating temperature；0—70℃
Module interface；3.81-2P*3
Module introduction
KW-VCCS1000 uses TI low-noise precision amplifiers, and high-speed high-power transistors to
Realize high-precision and high-current output of the module, while being compatible with the 12-24V power supply range. Can be matched DAC is used to realize laser, LED constant current drive and sensor excitation control.

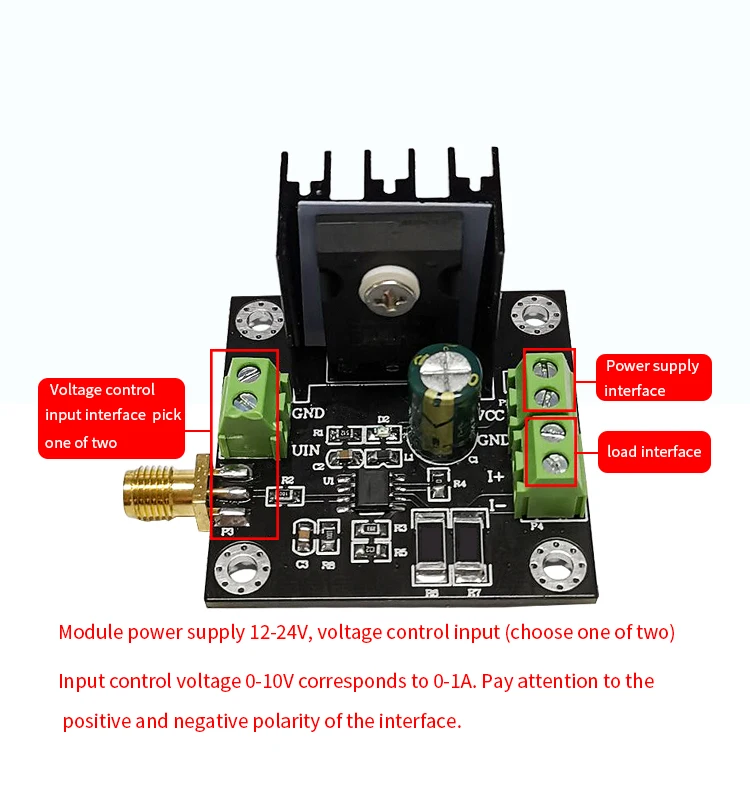

Module interface diagram

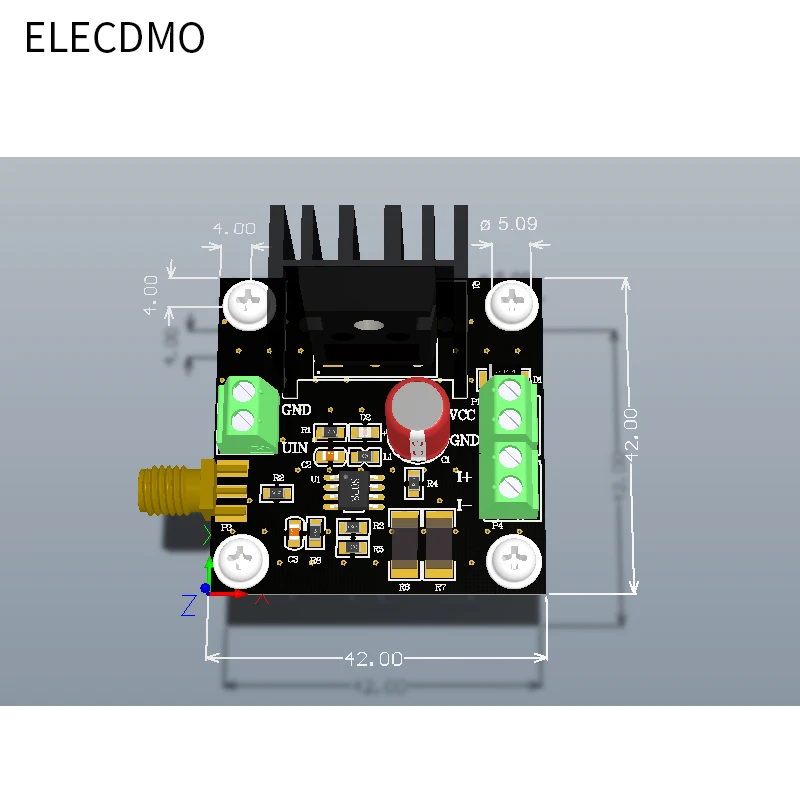

Module Dimensions
