Product Description

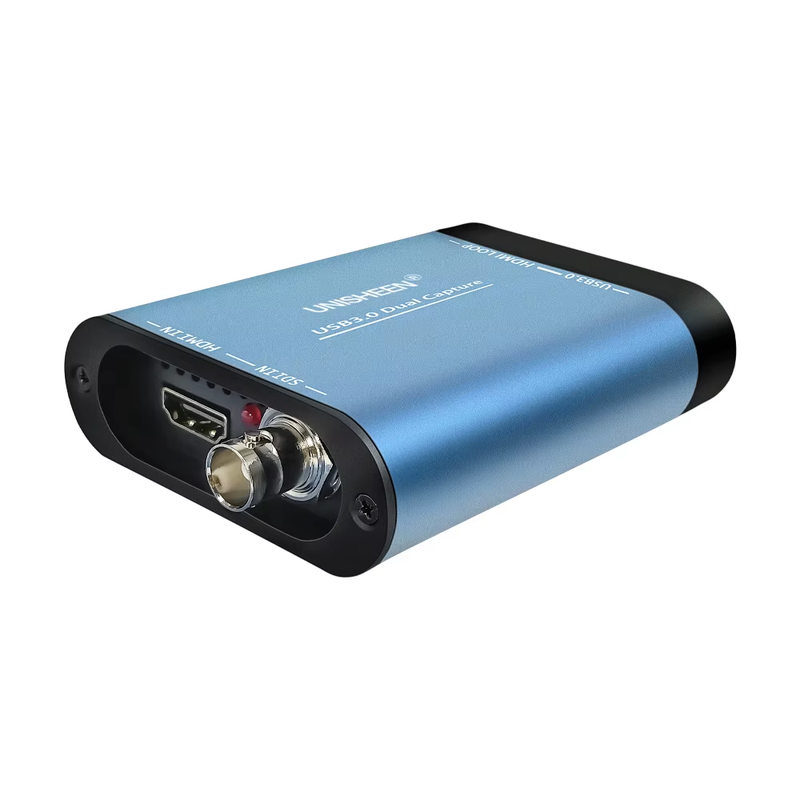

2 Channel SDI HDMI VIDEO CAPTURE Card Box USB3.0 60FPS FPGA Grabber Dongle Game Streaming Equipment 1080P OBS vMix VJ
2 Channel SDI HDMI VIDEO CAPTURE Card Box USB3.0 60FPS FPGA Grabber Dongle Game Streaming Equipment 1080P OBS vMix VJQ&A 1.Does this device support dual-channel simultaneous capture?
Yes, this device supports simultaneous capture of two video streams,
inputting to the computer through the USB 3.0 interface.
It can output up to two 1080p30 streams to the computer at the same time,
and when capturing a single stream, it supports up to 1080p60.
Q&A 2.What are the differences between different models?
UC3300H 2 Channel HDMI input
UC3300S 2 Channel SDI input
UC3300HS 1 Channel hdmi and 1 Channel SDI input
3.Is it plug-and-play, and which operating systems does it support?
It is a standard UVC/UAC device, compatible with Windows 7, 8, 10, 11,
and Linux systems. Due to the limitations of the Mac system,
it currently only recognizes one signal on Mac.
Our Capture Product is compatible with a variety of software, such as Resolume
Arena, OBS, vMix, Zoom, VJ, Potplayer, VLC, Wirecast, and AMCAP etc.
Due to the limitation of the Apple system ( It just allocates only one divice's name ) , the SDI can not be shown on the Apple computer. So if you use it on Apple computer , Please update to MacOS Monterey 12.0 beta above .but on Windows and Linux systems , it works pretty well !If you just have Mac system please don't order, thank you ~
Features:
1. Connect multiple dongles to one machine2. Enable the up/down conversion of video resolution, frame rate and audio sampling rate3. Support brightness, contrast, hue, saturation, and other screen adjustment functions4. The HDMI video capture meets UVC standard, support YUV 4:2:2 (YUY2) or RGB 4:4:4 (RGB24) video output5. The HDMI video capture meets UAC standard and 48KHz PCM stereo audio output6. The video processing engine can be updated via firmware without changing the hardware.7. Automatically detect and de-interlace signals8. Reliable and Stable: 64MB DDR2 Onboard memory, it can effectively conduct video frame buffer and USB transfer flow control to avoid interruption or error images when the USB transmission bandwidth is occupied.Pass through 7x24h continuous high load tests in high and low temperatures (0-50 degrees)9. Easy to Use: No need to install drivers in Windows, Linux, and OS X, real plug and play.Compatibility:1. Compatible with various USB 3.0 chipsets (Intel, Renesas, ASMedia, Fresco Logic), compatible with expended USB 3.0 via PCIe Gen1.1 x12. Compatible with USB 2.03. Compatible operating systems: Windows (7, 8, 8.1), Linux (kernel version 2.6.38 and above), OS X (10.8 and above)4. Support APIs, such as Windows: DirectShow, DirectSound, Linux: V4L2, ALSA, OS X: QuickTime5. Support software including Windows Media Encoder (Windows), Adobe Flash Media Live Encoder (Windows, OS X), Real Producer Plus (Windows), VLC (Windows, OS X, Linux), QuickTime Broadcaster (OS X), QuickTime Player (OS X), Wirecast (Windows, OS X) and etc.Excellent Video Processing:1. Support up to 1920x1200p60 (CVT-RB) Video Input2. Video output support up to 1920x1200p60 in YUY23. Video output support up to 1920x1200p60 in RGB244. The process of video and audio is done by the dongle and will not occupy CPU.Specifications:
Connection | |
Host Interface | USB3.0, *300-350MB/s throughput |
Input Interface | 1 HDMI interface/1 SDI interface |
HDMI Video Input | 1 1080P/60HZ HD HDMI signal or SDI signal |
HDMI Audio Input | 1 LPCM audio signal |
Standard | |
HDMI Input Formats | It meets HDMI 1.4a standard and supports 1080p/60Hz 8-bit, (RGB, YUV) or HD-SDI/3G-SDI |
Output Formats | Up to 48KHz, 85db, 24-bit |
Video Sampling Rate | HDMI: 165MHz |
Audio and Video Capture | It meets the standards of UVC (USB video class) and UAC(USB audio class) |
Output Color Space | YUY2, RGB24 |
Video Processing | |
Switch of Color Space | Hardware Color Switch |
Image Scale | Hardware Scale |
Image Adjustment | The image adjustment of brightness, contrast, hue, saturation |
Others | |
OS Support | It supports the following operating systems (x86 and x64 versions): |
Software Compatibility | Windows Media Encoder (Windows) |
Pacakge:
1 x HDMI+SDI Capture Dongle1 x USB Cable1 x User ManualInterface | |
USB interface | USB3.0，360MB/s Bandwidth(Compatiable USB2.0) |
Input interface | 1xSDI,1xHDMI(Dual Channel Input) |
Output interface | Only 1xHDMI Loop（this loop output don't support SDI in) |
Video input | 1080P50/60,1080I50/60,720P50/60,576P,576I,480P,480I |
Audio input | HDMI/SDI embedded |
Standard | |
HDMI input format | HDMI 1.4a compliance，Support 1080P/60HZ 8-bit,(YUV)SD/HD/3G-SDI，SMPTE-259/274/296/372/424/425/292 compliance |
Transmission speed | HDMI:165MHZ,SDI:1.485Gb/s，2.97Gb/ |
Video capture | UVC (USB video class) compliance |
Audio capture | UAC (USB audio class) compliance |
Output color space | YUV2 NV12 |
Recording Mode | Software Compression, Real-Time Mode |
General | |
Operation system | Supportversion x86 & x64 from Windows 7、8.1、10，Windows Server 2008 R2Linux |
Compatible software | Windows Media Encoder, ,Adobe Flash Media Live Encoder, Real Producer Plus, VLC, Wire cast, AMCAP etc.… |
Compatible development interface | DirectShow (Windows), DirectSound (Windows) |
Update | Firmware can be updated by USB port |
Dimension | 69x90x24mm |
Box Dimension | 100x146x53mm |
Net/Gross Weight | 0.2/0.3kg |
Consumption | <= 3.5 W |
Working Temperature | 0-50 degree |
Storage temperature | -20-70 degree |
Storage humidity | 5%-90% |
Included in package | *USB Grabber 1pcs *USB3.0 Cable 1pcs *User Manual 1pcs |
Note: Due to the limit of the USB3.0 Bus speed in chipset ,when you take HDMI and SDI input at the same time,it can only run 1080p30. |
