Product Description

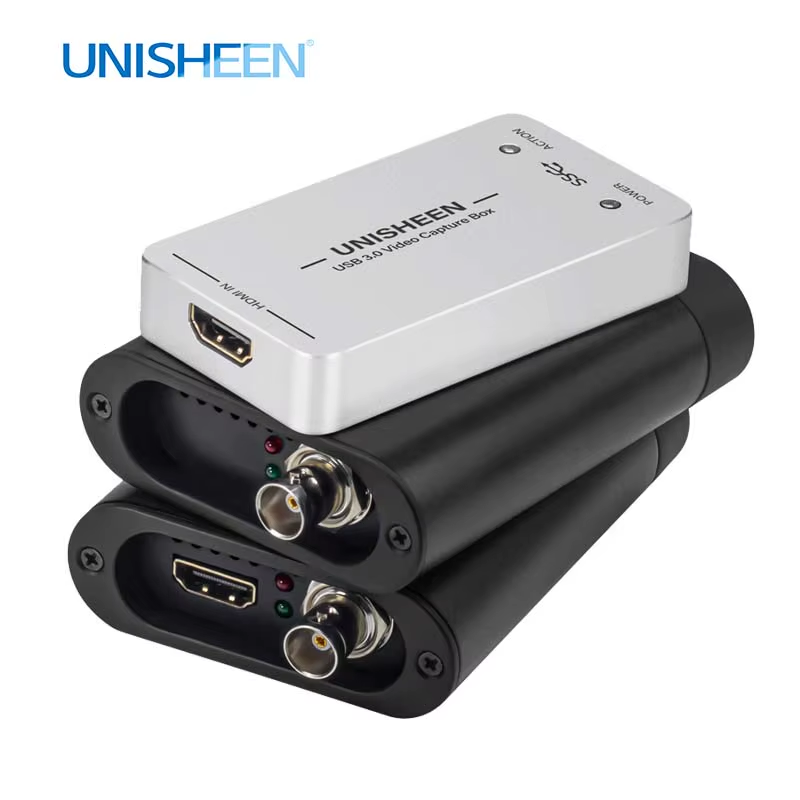

Portable USB 60FPS SDI HDMI VIDEO CAPTURE Card Box Grabber Dongle Adapter TYPE C Free Driver win11 Linux Mac
Portable USB 60FPS SDI HDMI VIDEO CAPTURE Card Box Grabber Dongle Adapter TYPE C Free Driver win11 Linux MacQ&A 1 What is this device for?
A video capture box is a device that collects video sources from cameras,
computers, set-top boxes, etc., and connects to a computer. You can
play, broadcast, and record videos on the computer.
Q&A 2 What is the primary function of this box
A video capture box can capture HDMI, SDI, VGA, DVI, and other video
signals, transmitting them to the computer system through lossless
capture technology. It is compatible with Windows 11, Mac, and Linux
systems and can be used without the need for drivers. Compatible
software includes Zoom, OBS, VJ, vMix, and so on.
Q&A 3 What are the differences between different models?
UC3200H HDMI Input/1080p60
UC3200S SDI Input/1080p60
UC3200HS SDI or HDMI Input /1080p60
UC3200D DVI-D or HDMI Input/1080p60
Q&A 4 Is this product difficult to use?
Our product is plug-and-play and driver-free, compatible with Mac,
Windows 11, and Linux systems. It can work by simply connecting to a USB
3.0 port.
Our Capture Product is compatible with a variety of software, such as Resolume
Arena, OBS, vMix, Zoom, VJ, Potplayer, VLC, Wirecast, and AMCAP etc.
Compatible with Windows10/11, Mac, and Linux operating systems
Interface | |
USB interface | USB3.0，360MB/s Bandwidth(Compatiable USB2.0) |
Input interface | 1xSDI,1xHDMI |
Output interface | Only 1xHDMI Loop（this loop output don't support SDI in) |
Video input | 1080P50/60,1080I50/60,720P50/60,576P,576I,480P,480I |
Audio input | HDMI/SDI embedded |
System | Windows (7, 8, 8.1,10), Linux (kernel version 2.6.38 and above), OS X (10.8 and above) |
Standard | |
HDMI input format | HDMI 1.4a compliance，Support 1080P/60HZ 8-bit,(YUV)SD/HD/3G-SDI，SMPTE-259/274/296/372/424/425/292 compliance |
Transmission speed | HDMI:165MHZ,SDI:1.485Gb/s，2.97Gb/ |
Video capture | UVC (USB video class) compliance |
Audio capture | UAC (USB audio class) compliance |
Output color space | YUV2 |
General | |
Operation system | Supportversion x86 & x64 from Windows 7、8.1、10，Windows Server 2008 R2 |
Compatible software | Windows Media Encoder, ,Adobe Flash Media Live Encoder, Real Producer Plus, VLC, Wire cast, AMCAP etc.… |
Compatible development interface | DirectShow (Windows), DirectSound (Windows) |
Update | Firmware can be updated by USB port |
Dimension | 70x100x24mm |
Box Dimension | 100x146x53mm |
Net/Gross Weight | 0.2/0.3kg |
Consumption | <= 3.5 W |
Working Temperature | 0-50 degree |
Storage temperature | -20-70 degree |
Storage humidity | 5%-90% |
