Product Description

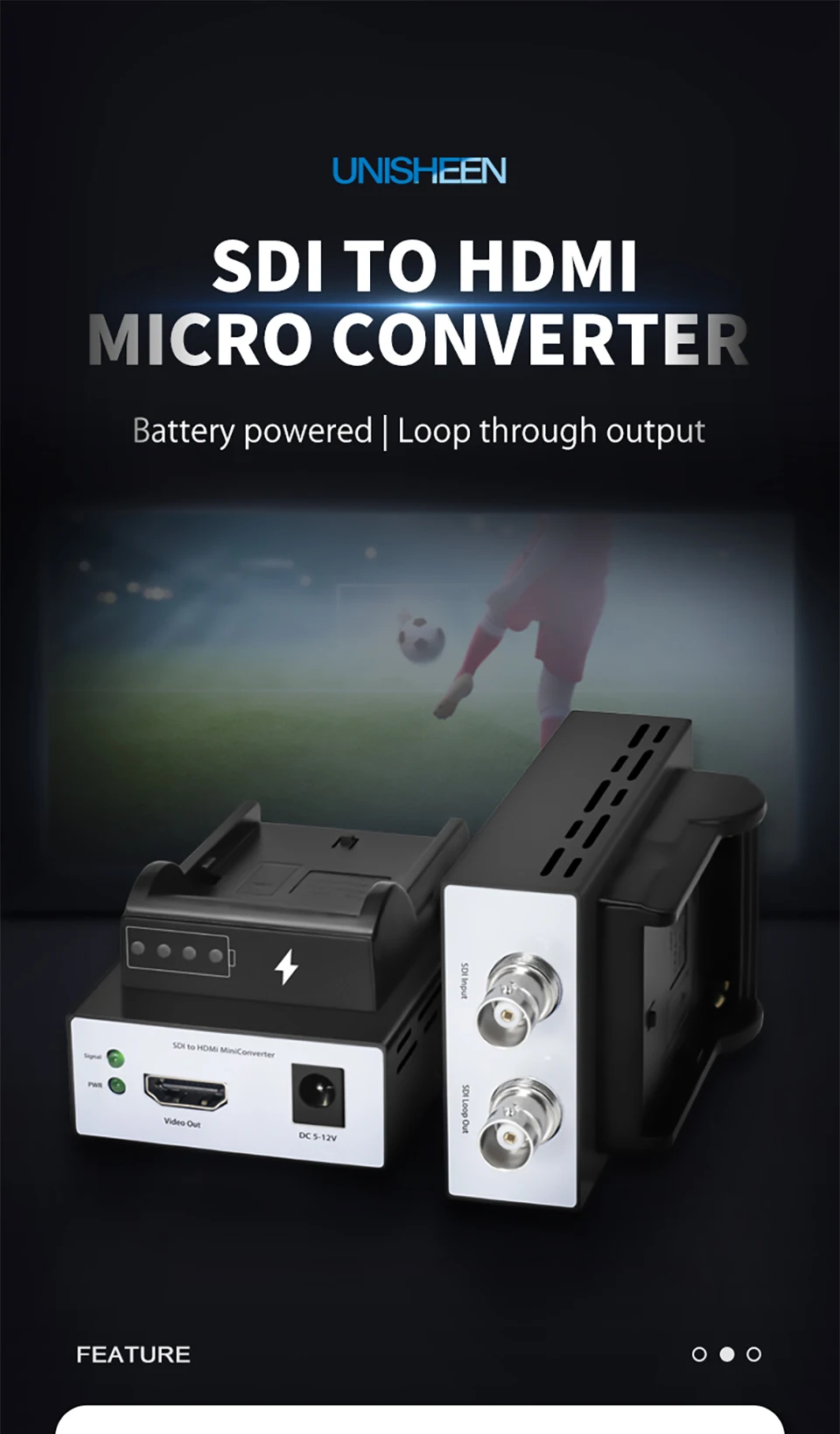

Hot-Sale Level-B 1080p Camera Transmmiter 3G SDI Converter to HDMI Video Capture Card Box with Battery Socket
Hot-Sale Level-B 1080p Camera Transmmiter 3G SDI Converter to HDMI Video Capture Card Box with Battery SocketNote：
1.There have four model
* SDI to HDMI(UCT100B) with Battery Socket
* SDI to HDMI(UCT100)
* HDMI to SDI(UCT101B) with Battery Socket
* HDMI to SDI(UCT101)
Please select model before shipping
2.The package without battery

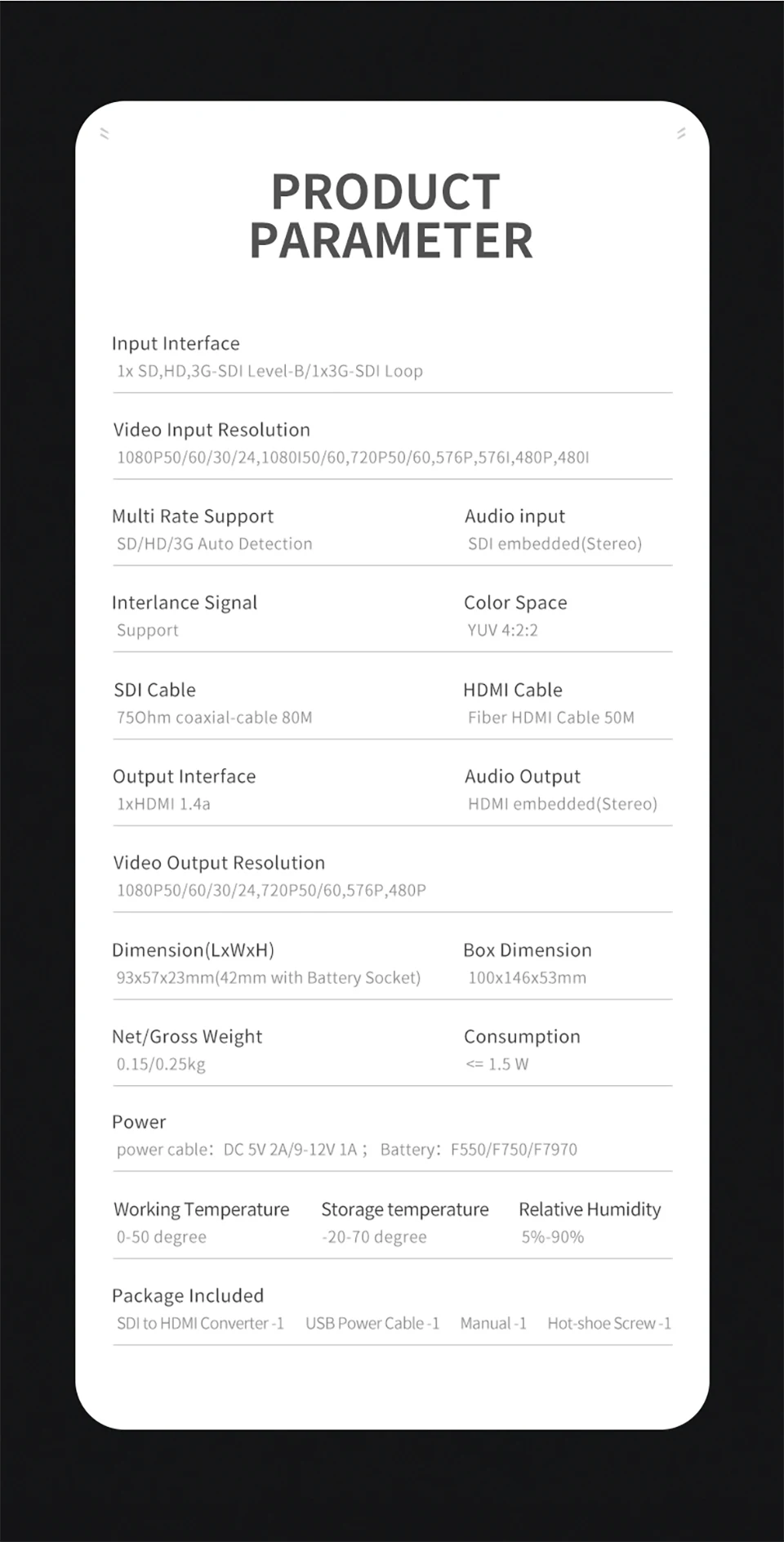

Signal Input | |

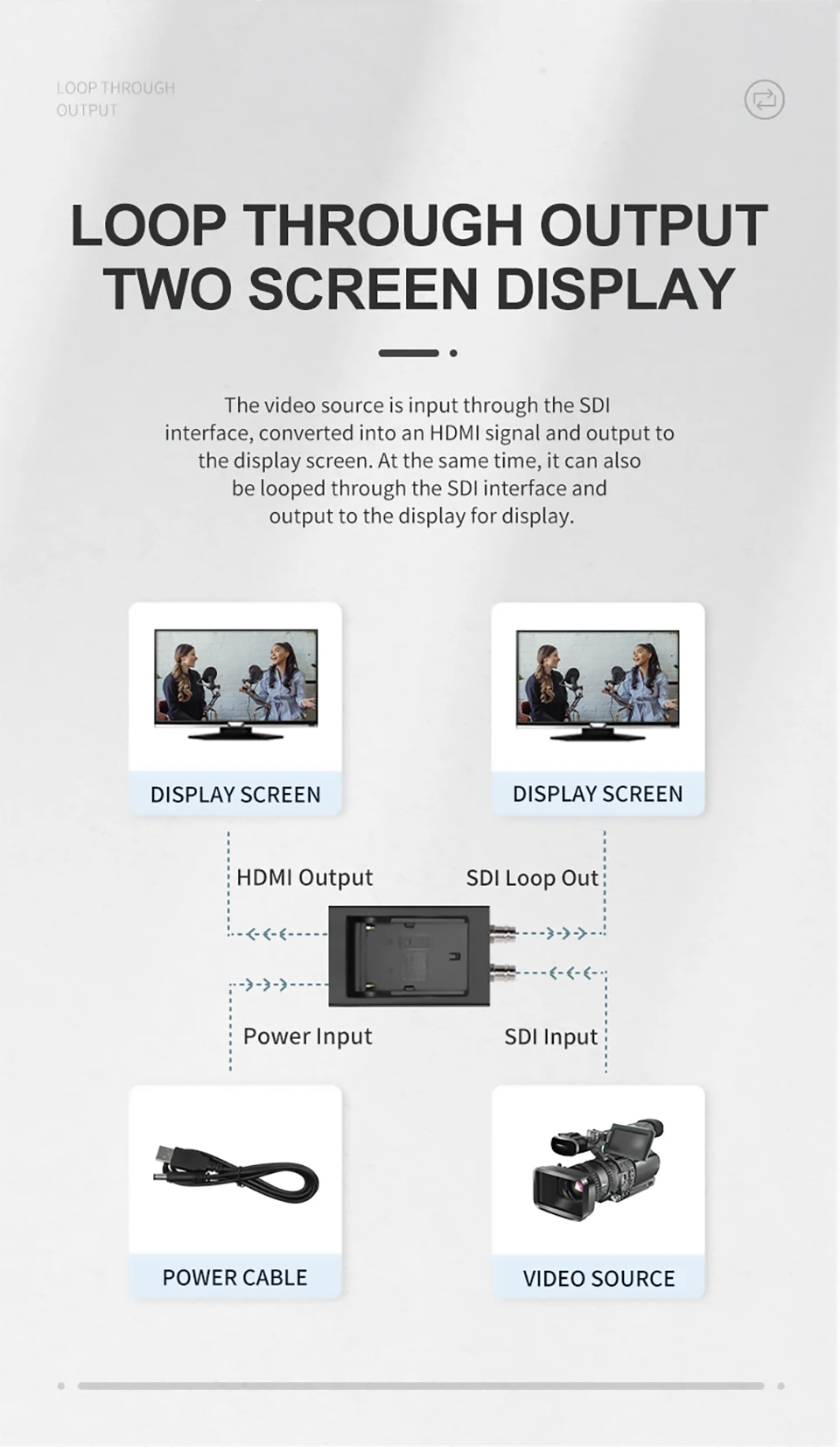

Input Interface | 1x SD,HD,3G-SDI Level-B/1x3G-SDI Loop |
Video Input Resolution | 1080P50/60/30/24,1080I50/60,720P50/60,576P,576I,480P,480I |
Multi Rate Support | SD/HD/3G Auto Detection |
Audio input | SDI embedded(Stereo) |
Interlance Signal | Support |
Color Space | YUV 4:2:2 |

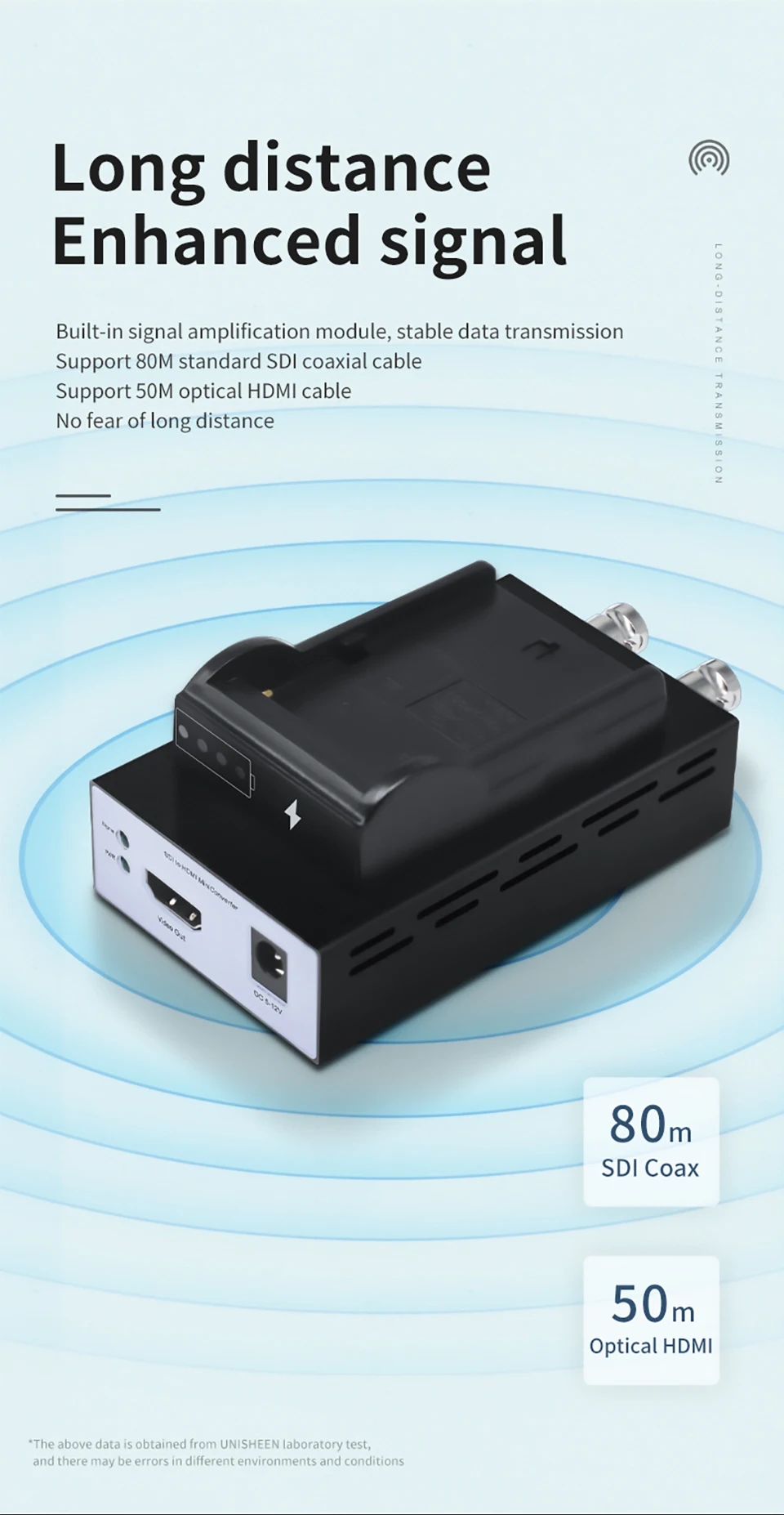

SDI Cable | 75Ohm coaxial-cable 80M |
Signal Output | |
Output Interface | 1xHDMI 1.4a |
Video Output Resolution | 1080P50/60/30/24,720P50/60,576P,480P |
Audio Output | HDMI embedded(Stereo) |
Output color space | YUV 4:2:2 |
HDMI Cable | Fiber HDMI Cable 50M |
General | |
Dimension(LxWxH) | 93x57x23mm(42mm with Battery Socket) |
Box Dimension | 100x146x53mm |
Net/Gross Weight | 0.15/0.25kg |
Consumption | <= 1.5 W |

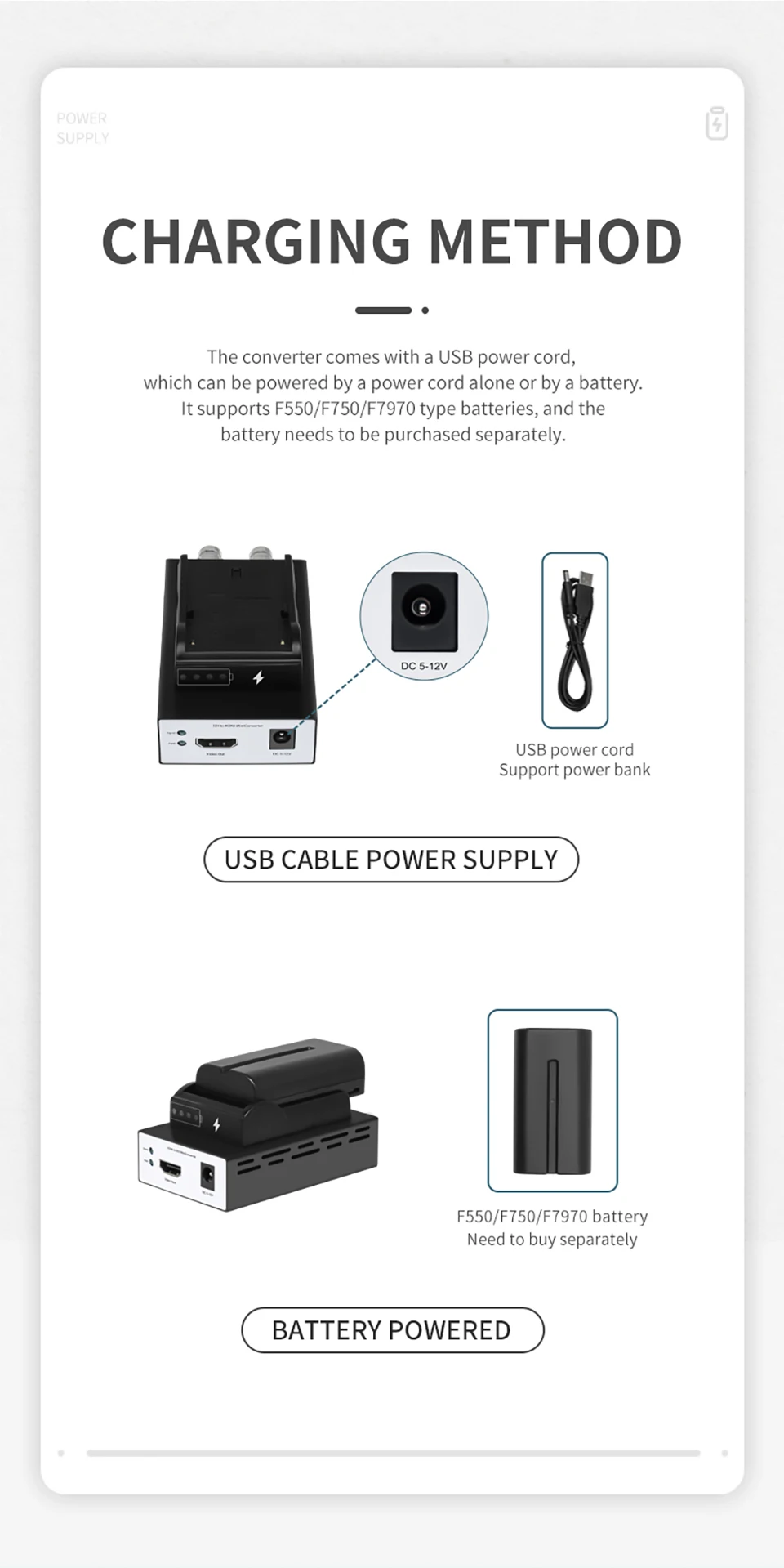

Power | DC 5V 2A/9-12V 1A or Battery F550/F750/F7970 |
Working Temperature | 0-50 degree |
Storage temperature | -20-70 degree |
Relative Humidity | 5%-90% |
Package Included | |
SDI to HDMI Converter | 1PCS |
USB Power Cable | 1PCS |
Manual | 1PCS |
Hot-shoe Screw | 1PCS |
Signal Input | |
Input Interface | 1xHDMI 1.4awith EDID Learn Function |
Video Input Resolution | 1080P50/60/30/24,1080I50/60,720P50/60,576P,576I,480P,480I |
Multi Rate Support | SD/HD/FHD Auto Detection |
Audio input | HDMI embedded(Stereo) |
Interlance Signal | Support |
Color Space | YUV 4:2:2 |
HDMI Cable | Fiber HDMI Cable 50M |
Signal Output | |
Output Interface | 2x SD,HD,3G-SDI Level-B |
Transmission speed | 1080P50/60/30/24,720P50/60,576P,480P |
Audio Output | SDI embedded(Stereo) |
Output color space | YUV 4:2:2 |
SDI Cable | 75Ohm ,80M |
General | |
Dimension(LxWxH) | 93x57x23mm(42mm with Battery Socket) |
Box Dimension | 100x146x53mm |
Net/Gross Weight | 0.15/0.25kg |
Consumption | <= 1.5 W |
Power | DC 5V 2A/9-12V 1A or Battery F550/F750/F7970 |
Working Temperature | 0-50 degree |
Storage temperature | -20-70 degree |
Relative Humidity | 5%-90% |
Package Included | |
HDMI to SDI Converter | 1PCS |
USB Power Cable | 1PCS |
Manual | 1PCS |
Hot-shoe Screw | 1PCS |
