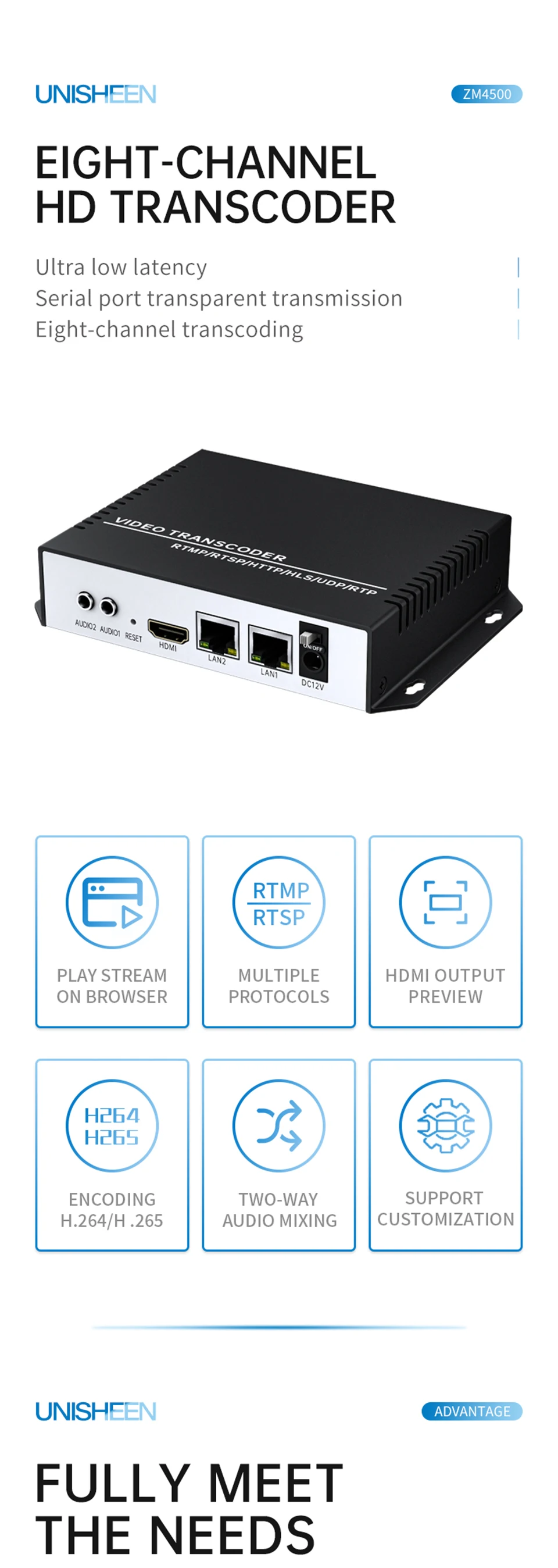

1080p 8 Channel HDMI SDI SRT UDP TS 4K RTSP to RTMP Video Capture Box Encoder Transcoder
1080p 8 Channel HDMI SDI SRT UDP TS 4K RTSP to RTMP Video Capture Box Encoder TranscoderThe function of this product is to re encode the input video stream and convert the protocol to output the video stream, supporting up to 8 channels of 1080p input and output. Suitable for monitoring, live streaming, and industrial fields. Please note that if your video source is an interlaced video stream from a television system, this product does not support it. You can choose ZM4500 Plus (up to 9 channels) or JM3200 (single channel) to support interlaced input. If you encounter any problems while using, please contact us for resolution.
Input protocol support: HTTP TS/UDP/RTMP (Pull)/RTP/SRT (Pull)
Output protocol support: HTTP TS/UDP/RTMP (Pull&Push)/RTP/SRT (Pull&Push)/M3U8/FLV

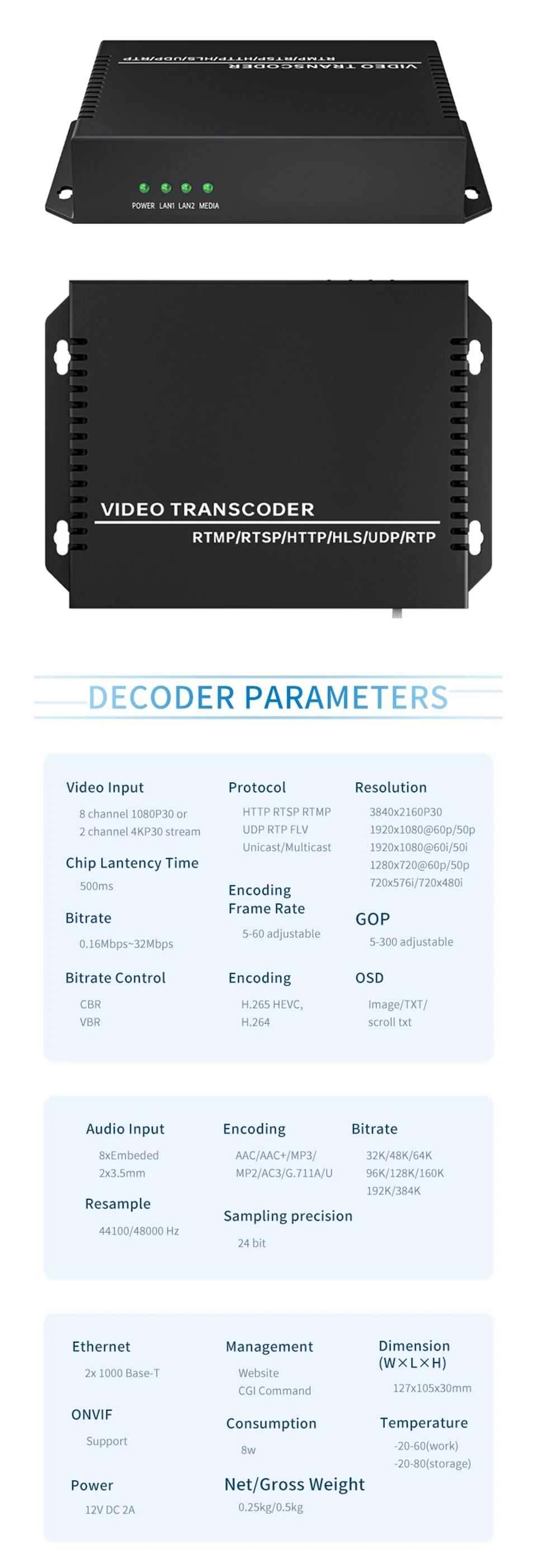

Video | |
Input | 8 channel1080Por2channel4KP30stream |
Input Protocol | H.265 Main/H.264/AVC Baseline/Main/High Profile Level 4.2 |
Resolution | 3840x2160P30,1920x1080@60P/50p,1280x720@60p/50p |
Encoding | H.265 Main/H.264 |
Frame Rate | 2160P30 |
Bitrate | 0.16Mbps~32Mbps |
Bitrate Control | CBR/VBR |
GOP | 5-300 adjustable |
Advanced | Video or Audio Only |
Lantency | 500ms |
Audio | |
Encoding | AAC/AAC+/MP3/MP2/AC3/G711A |
Resample | 44100/48000 Hz |
Bitrate | 32K/48K/64K/96K/128K/160K/192K/384K |
Sampling precision | 24 bit |
System | |
Network | 2x 1000Base-T |
Protocol | HTTPRTSP RTMP UDP RTP Unicast/Multicast |
ONVIF | Support |
Manager | Website/CGICommand |
Gernal | |
Dimension(L×W×H) | 127(148)x105x30mm |
Net Weight | 0.25kg/0.5kg |
Temperature | -20~60(work),-20~80(Storage) |
Power | 12V DC 2A |
Consumption | 8w |
