Product Description
2023 Best eARC HDMI 2.0 Audio Extractor 4K 120Hz RGB8:8:8 HDR HDMI Splitter Audio Converter 4K HDMI to Optical TOSLINK SPDIF 7.1
2023 Best eARC HDMI 2.0 Audio Extractor 4K 120Hz RGB8:8:8 HDR HDMI Splitter Audio Converter 4K HDMI to Optical TOSLINK SPDIF 7.1
If you like our products please you add to cart or add to Favorites,Surprise coupons is waiting for you to extract,
more refined small gifts free to send, please contact customer service.
If you follow our store and become our fans, you can get extra 5% discount for some designated products.
Description:

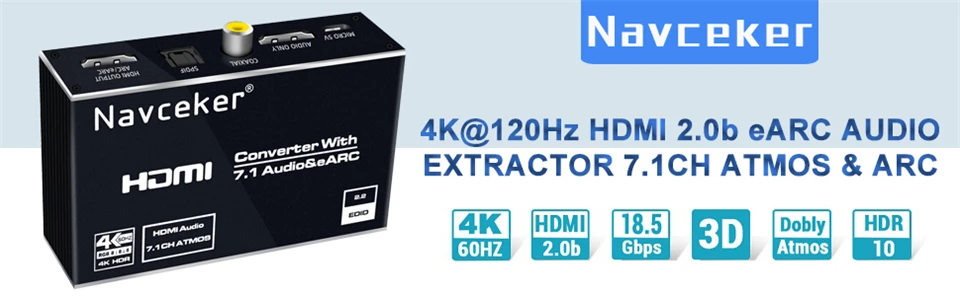

ZY-AV8E,Navceker 4K 120Hz HDMI 2.0 eARC Audio Extractor is a high performance 1 HDMI input and 1 HDMI output switch with audio out .HDMI /Toslink/3.5mmjack audio output support audio extract function , AUDIO ONLY HDMI /Toslink /Coaxial support ARC (Audio Return Channel),AUDIO ONLY HDMI support eARC (Enhanced Audio Return Channel).The system supports all 3D TV formats in addition to all HDTV formats up to 4Kx2K@60Hz RGB 8 :8 :8 .
There are 2 models optional, different model has different interface and appearance, please choose suitable model before purchase:
(1) The Red color is ZY-AV8E,HDMI 2.0b and HDCP 2.2,4K @120Hz 4K@60Hz 1080P/1440P@120HzHDMI audio extractor with eARC for 7.1CH AUDIO ONLY & ARC for 5.1CH coaxial and optical Toslink.support RGB 8:8:8(7.1CH Dolby atmos),EDID,HDR 10 .
(2) The White color is ZY-AV2E,HDMI 2.0b and HDCP 2.2,4K@120Hz 4K@60Hz 1080P/1440P@120Hz2x1 HDMI switch audio extractor with eARC for 7.1CH AUDIO ONLY & ARC for 5.1CH coaxial and optical Toslink.support RGB 8:8:8(7.1CH Dolby atmos),EDID,IR remote control,HDR 10 .Important Note before buy it:1.When you use eARC or ARC soundbar,please you use HDMI INPUT of soundbar connect with AUDIO ONLY HDMI port of our audio extractor,please DO NOT use HDMI eARC/ARC Input of soundbar that can not get any audio.because eARC port of Soundbar ONLY could connect HDMI eARC INPUT of HDMI TV directly,it can not add another device between eARC soundbar and HDMI eARC TV2.When you use Navceker eARC audio extractor with 4K@120Hz (YUV 4:2:0 with New Version XBox One and PC/computer),please you use all of HDMI cable with 19 pin HDMI 2.1 version Cable(Less than 3 meter HDMI 2.1 Cable).we suggest that you use Navceker HDMI 2.1 Cable that works well with Navceker eARC audio extractor.
Features:
Excellent Quality
There are 1 HDMI input ,1 port HDMI output ,1 port Toslink audio output ,1 port coaxial audio output,1 port 3 .5mm audio jack ,1 port HDMI audio output .
HDMI(AUDIO ONLY)/coaxial /optical toslink SPDIF audio output support audio return channel function (ARC)
AUDIO ONLY HDMI support eARC (Enhanced Audio Return Channel)
3.5mm Jack port output support audio extract function ,it does not support ARC/eARC
support 480p/576i/576p/720p@60Hz/1080p@60/120Hz/1440P@60/120Hz/4Kx2K@30/60Hz with 24bit RGB/YcbCR 4:4:4/YcbCR 4:2:2,4K@120Hz YUV 4:2:0 with new version XBox and PC(Not support RGB4:4:4).
Max bandwidth per channel :600MHz.Max baud rate per display :18.5Gbps
Compatible with HDR 10,HDMI 2.0b,HDCP2.3/2.2/1.4/1.3/1.2/1.1.
Navceker HDMI Switch support LPCM 7.1CH ,Dolby True -HD,DTS -HD,AC 3,DTS ,DSD, Dolby Digital Plus and Dolby Atmos audio format ,But can 't decode these audio formats .If your Amplifier or soundbar not support these audio formats ,there will be no audio out from your soundbar or amplifier .At this situation ,please set the audio format to PCM /LPCM on your HDMI source .
HDMI Audio Extractor -with Optical TOSLINK SPDIF+Coaxial+3.5mm+HDMI audio out allow you to extract the sound from the HDMI input source (like PS5/4,Xbox one etc .)to your soundbar or amplifier ,no need connecting TV or Monitor .
HDMI ARC/eARC Adapter - Extractor the Audio from IV to Soundbar or Amplifier .Connect your TV HDMI (ARC/eARC)Port to this switch HDMI Output Port with HDMI Cable ,then optical/Coaxial /HDMI cable to the soundbar ,Speaker ,home theater ,AV receivers etc ,then open “ARC/eARC” button.
HDMI Input compatible with any HDMI device :such as PS 4/Roku/Fire TV /Blu -ray players /Apple TV /Xbox/Nintendo Switch /PS4Pro /Xbox 3 60/Xbox One X / PS 3/Beamer/Laptop and other HDMI signal source .HDMI video /audio Output :Monitor ,TV ,Projector .HDMI audio /SPDIF/Coaxial/3.5mm audio output :Receiver ,Amplifier ,Speaker ,headphone and other audio device .
Support 24bit deep color per channel ( Kindly Note :It does not compatible with DVI ,we do not recommend you use HDMI to DVI cable connect to your projector /monitor)
Highly recommend use AWG 26(19+1) standard HDMI 2.0 cable .the distance could reach up to 5 meters before and after when the resolution is 4K@60Hz,can reach up to 8 meters before and after if the resolution is below 4K@30Hz.
PACKAGE:
5V/2A DC Power Adapter...............................1 pcs
User Manual........................................................1 pcs
HDMI eARC Audio Extractor Splitter.......................1 pcs
SPECIFICATIONS
Input ports..............................................................................1XHDMI
Output port........................................................... 1 XHDMI(Female type )
1 XHDMI Audio output...........................support ARC/eARC function
1 XToslink Audio output........................support audio return channel function
1 XCoaxial Audio output........................support audio return channel function
1 x3.5mmJack output .............................support audio extract function
Audio support.....................LPCM 7 .1CH,Dolby TrueHD ,and DTS -HD Master Audio
Video Resolution........................................up to 4k@60/120Hz RGB 8 :8:8
Operating Temperature...................................0 C to 40 C/ 32Fto 104F
Storage Temperature.......................................- 20 C to 6 C/ -4F to 104F
Dimensions...........................................................60X82X22MM
CONNECTION DIAGRAM
Notes :
1 .ARC/eARC :First ,Please make sure your display support ARC/eARC function .Second ,Using HDMI cable plug into HDMI ARC/eARC port on your display .and the other side plug into the HDMI output on the switch .( warm tips :3 .5mm audio does not support ARC/eARC function )
2 .You should operate it properly when the switch is working ,If you find the switch is not working ,we suggest you unplug the power supply and plug it again .
3 .When turn on the switch ,By default ,the input 1led indicator will light on at the start when disconnect HDMI source .
4 .It supports Optical /3.5mm/HDMI audio out cable up to 1 0meters(max),If you choose HDMI audio out ,you can enjoy 7 .CH,5 .1CH,2 CH or audio copy ,If you choose optical audio out ,you can enjoy 5 .1 CH or 2 CH or audio copy .If you choose 3 .5 mm audio out ,you can enjoy 2 CH or audio copy .
5 .5 seconds to change next source .This is normal ,please don 't worry .
