Description:

ZY-HA001,Navceker 4K HDMI 2.0 Audio Extractor is a high performance 1 HDMI input and 1 HDMI output switch with audio out .HDMI /Toslink/3.5mmjack audio output support audio extract function , The system supports all 3D TV formats in addition to all HDTV formats up to4Kx2K@60Hz RGB 8 :8 :8 .

There are 3 models optional, different model has different interface and appearance, please choose suitable model before purchase:

Features:

Excellent Quality

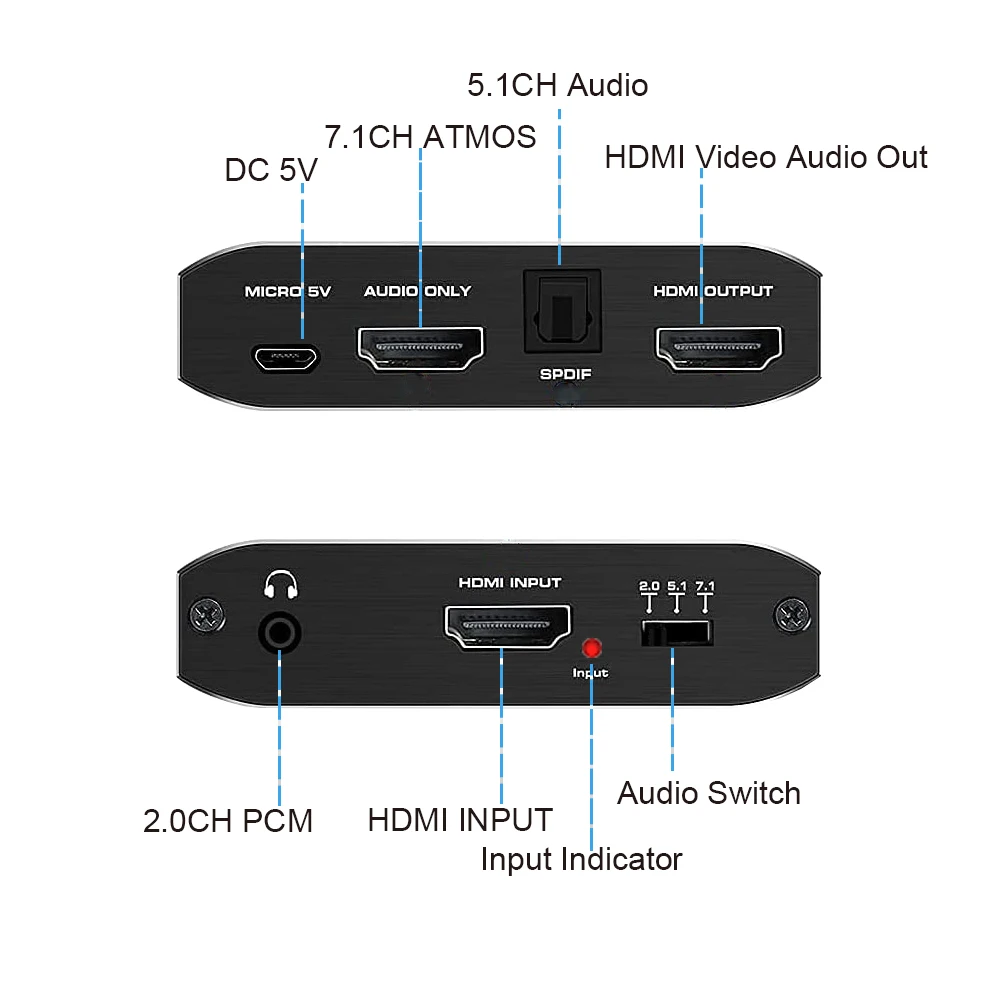

• There are 1 HDMI input ,1 port HDMI output ,1 port Toslink audio output .1 port 3 .5mm audio jack ,1 port HDMI audio output .

• HDMI(ONLY AUDIO) /optical toslink SPDIF audio output support audio extract function

• 3.5mmJack port output support audio extract function ,it does not support ARC

• support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@30/60Hz With 24bit RGB 8 :8 :8 /YcbCR4 :4 :4 (4k@60hzYUV 4:4:4).

• Max bandwidth per channel :600MHz.Max baud rate per display :18.5Gbps

• Compatible with HDR 10,HDMI 2.0b,HDCP2 .2/1.4/1.3/1.2/1.1.

• Navceker HDMI Switch support LPCM 7.1CH ,Dolby True -HD,DTS -HD,AC 3,DTS ,DSD, Dolby Digital Plus and Dolby Atmos audio format ,But can 't decode these audio formats .If your Amplifier or soundbar not support these audio formats ,there will be no audio out from your soundbar or amplifier .At this situation ,please set the audio format to PCM /LPCM on your HDMI source .

• HDMI Audio Extractor -with Optical TOSLINK SPDIF +3.5mm+HDMI audio out allow you to extract the sound from the HDMI input source (like PS4,Xbox one etc .)to your soundbar or amplifier ,no need connecting TV or Monitor .

• HDMI Input compatible with any HDMI device :such as PS 4/Roku/Fire TV /Blu -ray players /Apple TV /Xbox/Nintendo Switch /PS4Pro /Xbox 3 60/Xbox One X / PS 3/Beamer/Laptop and other HDMI signal source .HDMI video /audio Output :Monitor ,TV ,Projector .HDMI audio /SPDIF/3.5mm audio output :Receiver ,Amplifier ,Speaker ,headphone and other audio device .

• Support 24bit deep color per channel ( Kindly Note :It does not compatible with DVI ,we do not recommend you use HDMI to DVI cable connect to your projector /monitor)

• Highly recommend use AWG 26(19+1) standard HDMI 2.0 cable .the distance could reach up to 5 meters before and after when the resolution is 4K@60Hz,can reach up to 8 meters before and after if the resolution is below 4K@30Hz.

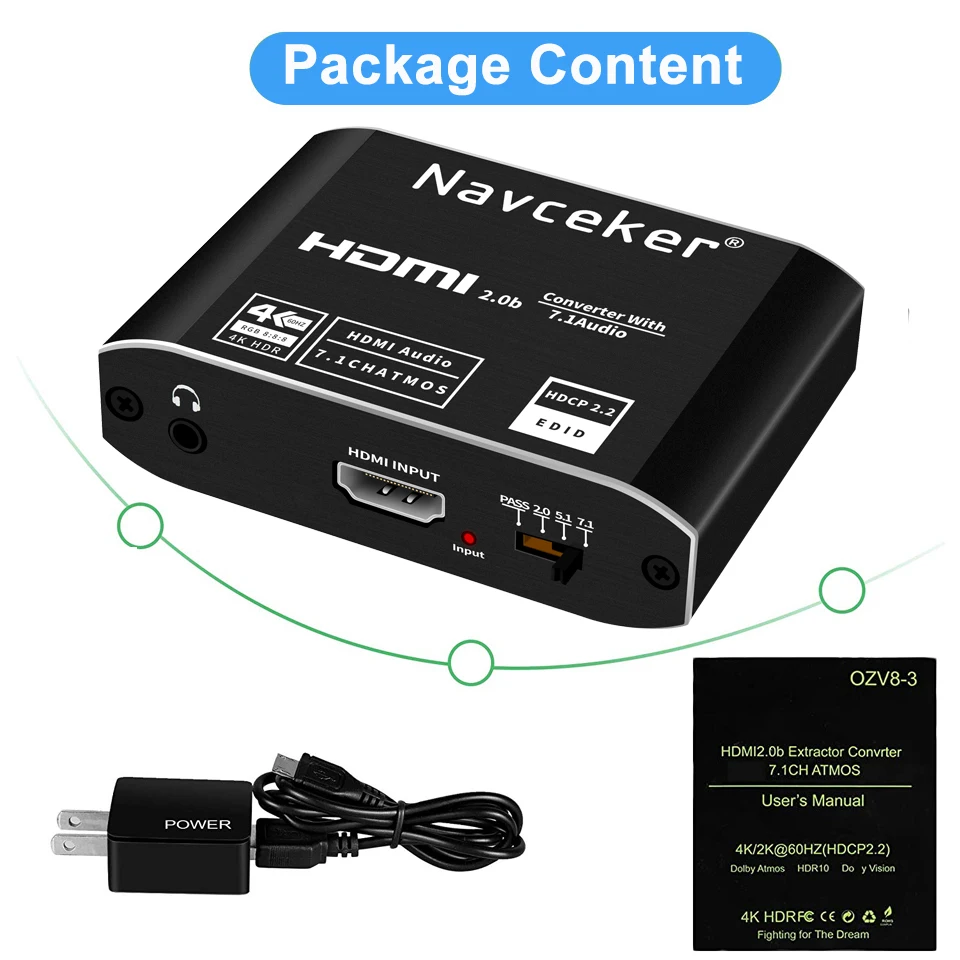

PACKAGE:

• 5V/1A DC Power Adapter...............................1 pcs

• User Manual........................................................1 pcs

• HDMI Audio Extractor Splitter.......................1 pcs

SPECIFICATIONS

Input ports..............................................................................1XHDMI

Output port........................................................... 1 XHDMI(Female type )

1 XHDMI Audio output...........................support audio extract function

1 XToslink Audio output........................support audio extract function

1 x3.5mmJack output .............................support audio extract function

Audio support.....................LPCM 7 .1CH,Dolby TrueHD ,and DTS -HD Master Audio

Video Resolution........................................up to 4k@60hz RGB 8 :8:8

Operating Temperature...................................0 C to 40 C/ 32Fto 104F

Storage Temperature.......................................- 20 C to 6 C/ -4F to 104F

Dimensions...........................................................60X82X22MM

CONNECTION DIAGRAM

Notes :

1 .You should operate it properly when the switch is working ,If you find the switch is not working ,we suggest you unplug the power supply and plug it again .

2 .When turn on the switch ,By default ,the input 1led indicator will light on at the start when disconnect HDMI source .

3 .It supports Optical /3.5mm/HDMI audio out cable up to 1 0meters(max),If you choose HDMI audio out ,you can enjoy 7 .CH,5 .1CH,2 CH or audio copy ,If you choose optical audio out ,you can enjoy 5 .1 CH or 2 CH or audio copy .If you choose 3 .5 mm audio out ,you can enjoy 2 CH or audio copy .

4 .5 seconds to change next source .This is normal ,please don 't worry .
