60m HDMI to HDMI Extender 1080P HDMI UTP Extender Cat6 POE IR Extensor HDMI RJ45

Product Description

If you like our products please you add to cart or add to Favorites,Surprise coupons is waiting for you to extract,
more refined small gifts free to send, please contact customer service.
If you follow our store and become our fans, you can get extra 5% discount for some designated products.

Description:

ZY-AD1,Navceker HDMI extender provides extension of HDMI signals long distances over a single CAT5e/6 cable, it supports high resolution up to 1920x1080@60Hz, 3D,POC. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

There are 2 models optional, different model has different interface and appearance, please choose suitable model before purchase:

Features:

60M HDMI Extender over Single Rj45 Cat6 Cable 1080P HDMI Ethernet Extender Video Transmitter Adapter for PC Loptop HDTV Monitor

• Long range transmission:up to 60m/196ft over a single CAT6 cable;

• Video resolution:Up to1920x1080P@60Hz,3D;

• Audio sampling rate:32kHz, 44.1kHz and 48kHz ;

• Audio Format:DTS-HD/Dolby-true HD/LPCM7.1/DTS/DSD ;

• Uncompressed mode:ZERO Delay,No loss

• Male to male:one TX to one RX applicataion;

• Copy EDID:It is extended display identification data , Press the button 3seconds, the TX will copy the signal data, like auto-match.They remember the EDID information if you plug them off the power adapter and them turn them back again;

• Video standard:compliance with HDMI 1.4 and HDCP 1.4 standard;

• Built-in automatic adjustment system:make the image smooth, clear and stable;

• Built-in ESD protection system：make transmission much safer. Perfect hdmi extension adapter for large homes, factories, construction sites, data control centers etc;plug and play

• Simple to install, plug and play

Specifications:

NEW 60M HDMI Over Network Extender 1080P HDMI Transmitter by RJ45 CAT5e CAT6 LAN Extensor

Video
Standards----------HDMI 1.4; HDCP 1.4
Maximum pixel clock------165MHz
Maximum data rate-------10.2Gbps
Resolution ------1920X1080P@60Hz
Connector-----HDMI-A
Impedance--------100Ω

UTP
Interface-----RJ45/IEEE-568B
Transmission distance--------CAT5e:50m/164ft,CAT6:60m/196ft

Other
Power supply-----The power adapter: DC 5V/1A
Power dissipation------MAX 3W
Temperature-------Operating: -5℃ ~ +70℃
Humidity-------Operating: 5% ~ 90%
Dimension-------94*71*25mm
The warranty--------1 year free warranty

Package List:

HDMI extender Transmitter...............................1 piece

HDMI extender Receiver...................................1 piece

Power Adapter..................................................1 piece

User Manual..................................................1 piece

Navceker HDMI Extender over Cat6 cable

• 60meter over AWG23 UTP Cat6 cable;

• 50 meter over AWG23 UTP Cat5E cable;

• 3D ,1080P@60Hz HDR,POC,Copy EDID

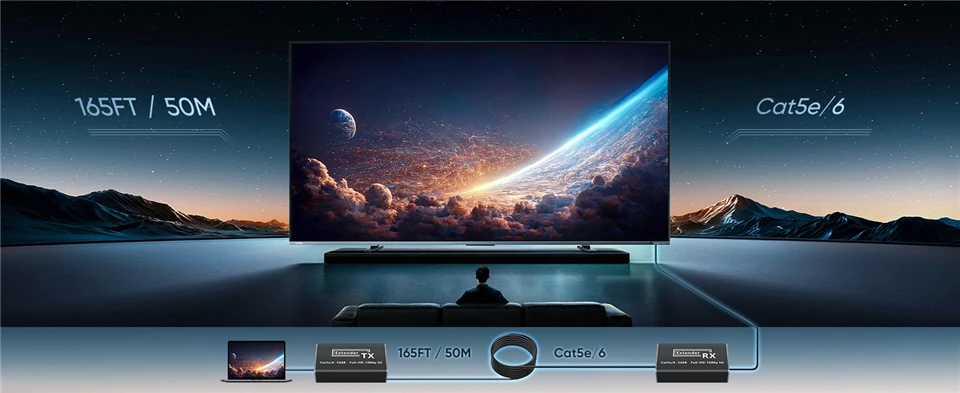

Long distance

• Connect single Cat6 cables up to 196ft instead of HDMI cable between TX and RX Extender

• Our equipment supports 3D effects to give you an immersive experience

• Note: Requires both your input and output to support 3D functionality

Perfect Resolution

Support resolution:3D/1080p/1080i/720p/576p/576i/480p/480i/Up to 1920x1080@60Hz

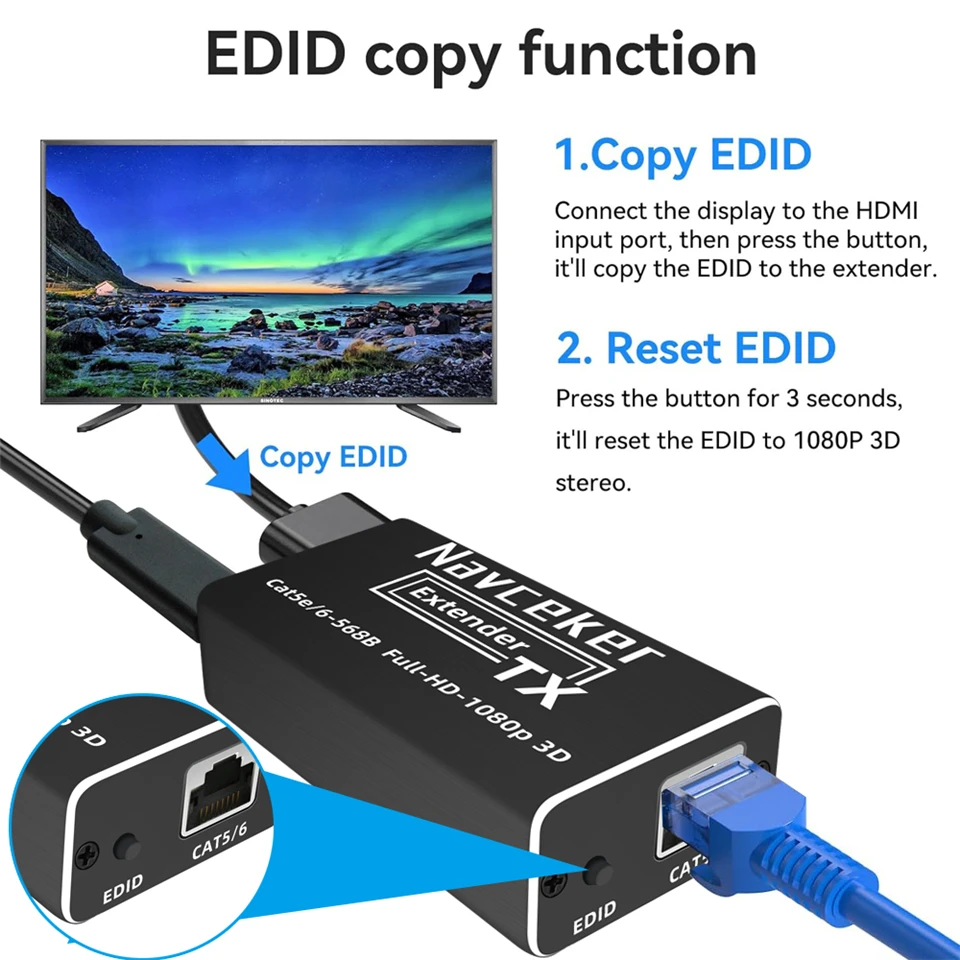

EDID copy

• Connect the sender and the monitor with an HDMI cable.

• Connect the power and press the EDID button,indicator will flash 3 times.

• After 3 seconds, the operation is completed and will be permanently remembered, unless the sender is EDID again set operation.

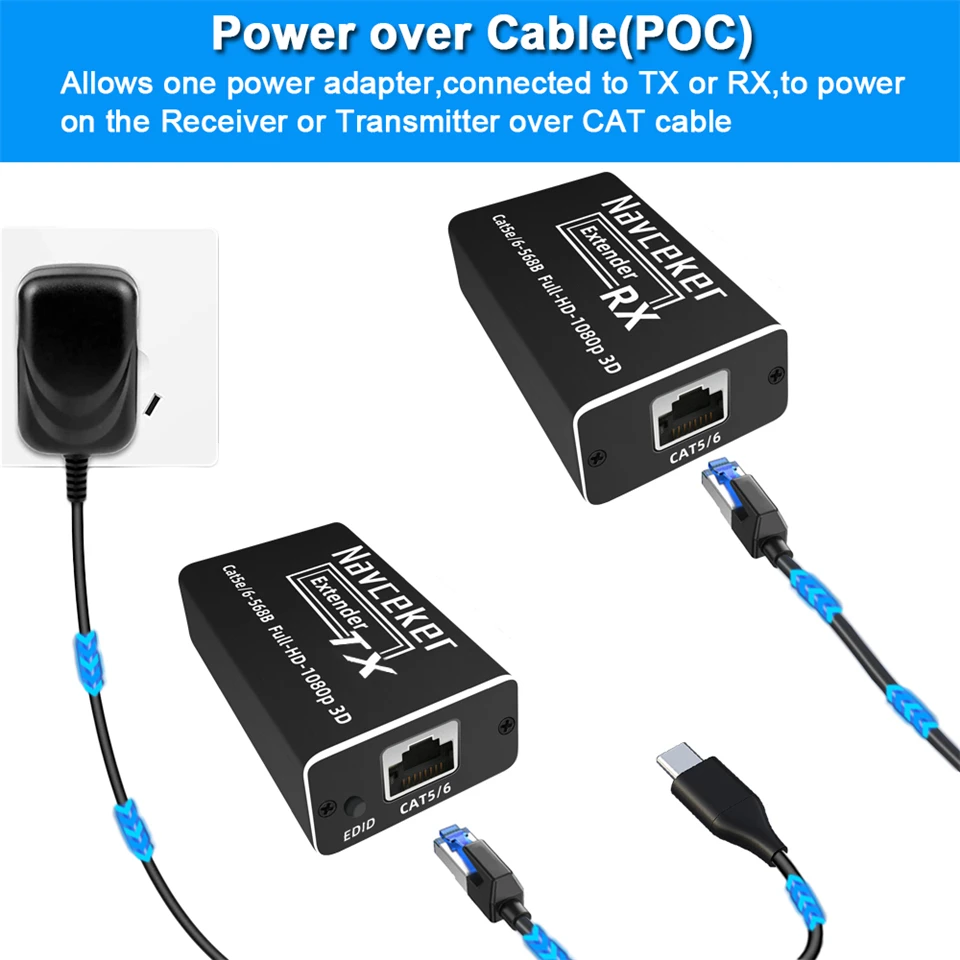

Power Over Cable

Only need one power adapter to power on HDMI transmitter,the transmitter and receiver could work well.
