Navceker HDMI USB KVM Extender over Network RJ45 Cat6 4K 60Hz USB HDMI Extender 60m No Loss RJ45 to HDMI Extender Transmitter Receiver with POC Loop Out

Description:

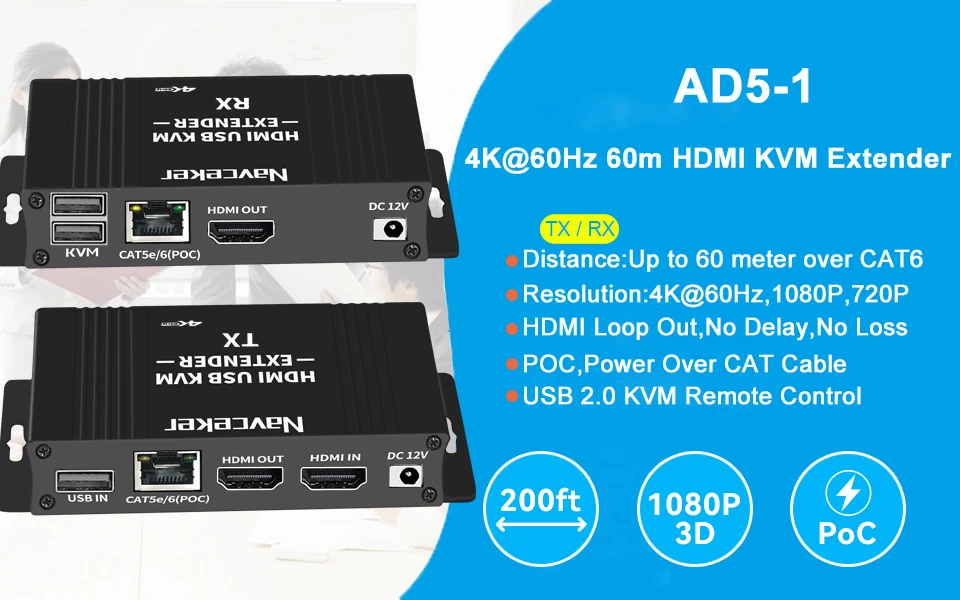

ZY-AD5-1,Navceker 4K@60Hz HDMI KVM extender provides extension of HDMI signals long distances over a single CAT5e/6 cable, it supports high resolution up to 3840x2160@60Hz, POC,HDMI loop out and KVM Remote control. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Features:

2024 4K 60Hz HDMI KVM Extender RJ45 HDMI USB Extender 60m over Cat5e/Cat6 POC HDMI Extender Mouse Transmitter Receiver for PC Computer

• Long range transmission:up to 60m/196ft over a single AWG23 CAT6 cable;

• Video resolution:Up to 576P,720P,1920x1080P@60Hz,3840x2160@60Hz;

• HDR 10+,3D,Dolby Vision,Dolby ATMOS,Deep Color:8/10/12/24 Bit;

• Audio format:LPCM2/5.1/7.1,Dolby Digital,DTS 5.1,Dolby Digital+ ;

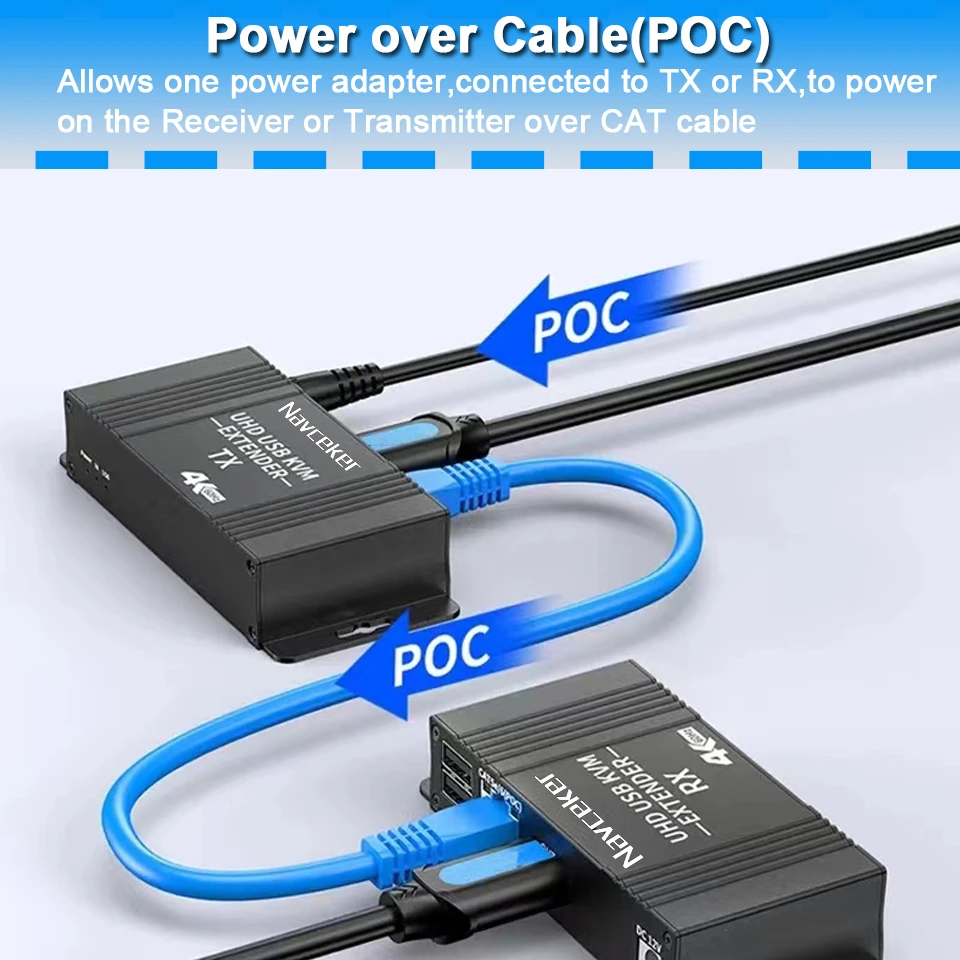

• POC function:Power over CAT cable,only need one power adapter;

• HDMI loop out function:The transmitter with one HDMI local loop out;

• Uncompressed mode:ZERO Delay,No loss;

• KVM Rmote Control:keyboard and mouse remote control transmitter from long distance;

• Male to male:one TX to one RX applicataion;

• Video standard:compliance with HDMI 2.0 and HDCP 2.2 ,and compliant DVI standard;

• Built-in automatic adjustment system:make the image smooth, clear and stable;

• Built-in ESD protection system：make transmission much safer. Perfect hdmi extension adapter for large homes, factories, construction sites, data control centers etc;plug and play

• Simple to install, plug and play

Specifications:

60M HD USB KVM Network Extender splitter over Ethernet 1080P Extender for Mouse Keyboard for DVD Camera Laptop PC To TV Monitor

Video
Standards----------HDMI 2.0; HDCP 2.2 and DVI compliant
Maximum pixel clock------300MHz
Maximum data rate-------18Gbps
Resolution ------4K@60Hz
Connector-----HDMI-A
Impedance--------100Ω

USB
Interface-------PC: Type B USB interface; connect to pc;

K/M: connect wired or wireless USB keyboard and mouse
USB signal----------HID Signal

CAT
Interface-----RJ45/IEEE-568B/AWG23
Transmission distance--------CAT5:40m/131ft,CAT5e:50m/164ft,CAT6:60m/196ft

Other
Power supply-----The power adapter: DC 12V/1A
Power dissipation------TX:1.92W,RX:1.68W(Max)
Temperature-------Operating: -5℃ ~ +70℃
Humidity-------Operating: 5% ~ 90%
Dimension-------118*50*25mm
The warranty--------1 year free warranty

Note:

1.the K/M USB port only support wired or wireless keyboard and mouse,not support Mechanical keyboard，USB camera,Scanner,USB flash driver ,printer etc.

2.For CAT cable,please you use AWG23 CAT5e/6 cable with IEEE-568B connection.
