Spectrum Analyzer 100kHz to 5.4GHz TinySA Ultra+ ZS406 2-in-1 Signal Generator T

Product Description

SeeSii Spectrum Analyzer 100kHz to 5.4GHz TinySA Ultra+ ZS406 2-in-1 Signal Generator Tiny Frequency Analyzer MF/HF/VHF UHF

•

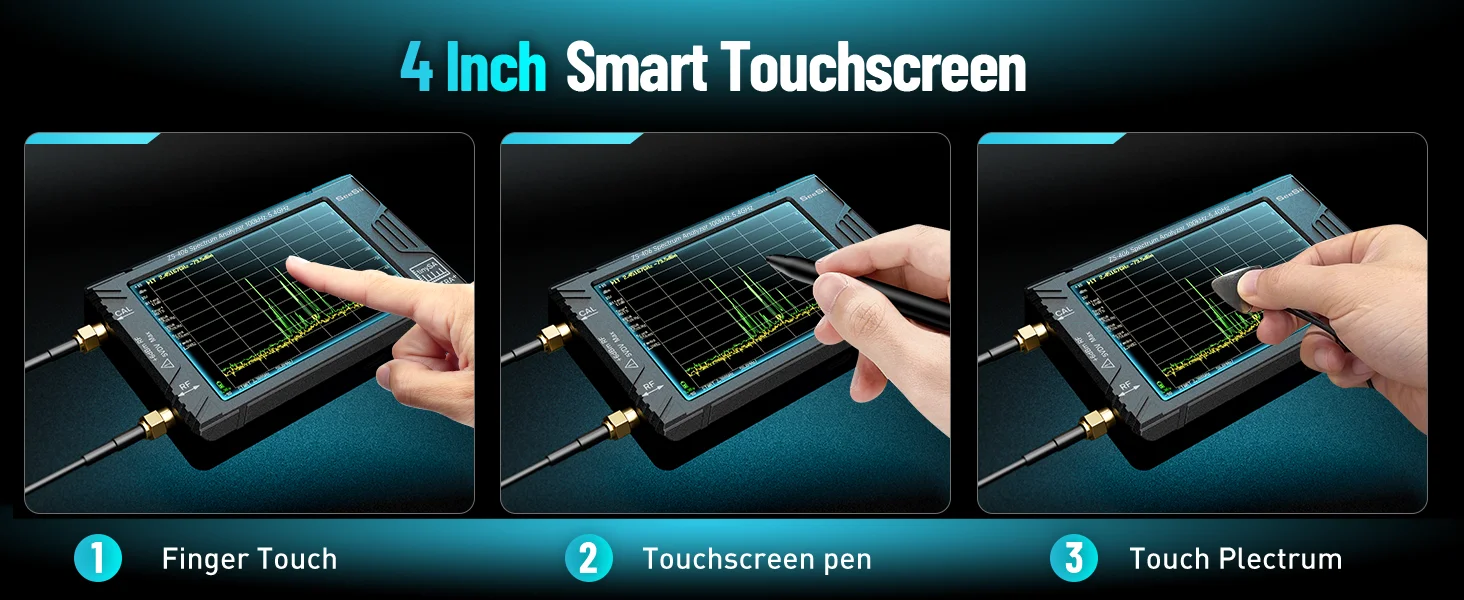

  • Upgraded ZS406 TinySA Ultra+:This New Version V0.4.6.1 Spectrum Analyzer is developed by Hugen, with 4.0 inch 480 x 320 large touchscreen display, 100kHz to 5.4GHz widely measure range, with the new ESD protection function, the product has a higher anti-static level and a longer service life, and built-in 32Gb micro SD card, can directly record data to the card ,which is convenient for your data sharing and storage

  • Widely Frequency Range: Compared to the tinysa (100kHz to 960MHz), the upgraded tinysa ULTRA+ has 100kHz to 5.4GHz ultra-wide measuring frequency range, spectrum analyzer for 0.1-800MHz, with Ultra mode up to 0.1MHz-6GHz.Switchable resolution band pass filters for both ranges between 200Hz to 850kHz. Color display showing 450 scan points covering up to the full low or high frequency range. Faster and more accurate measurement performance, you can easily cope with measurement testes in various fields

  • 2 in 1 Multifunctional Frequency Analyzer & Signal Generator:When not used as Spectrum Analyzer it can be used as Signal Generator,with sine wave output between 0.1-800MHz or square wave or dual tone output up to 4.4GHz.Built-in calibration signal generator that is used for automatic self test and low input calibration

  • PC Control: Connected to a PC via USB it becomes a PC controlled Spectrum Analyzer or Signal Generator.Tinysa-APP transfers data directly to the computer.The USB interface implements CDC protocol and there is a large set of commands that can be invoked over the serial interface. These command can be used to perform measurements or update internal settings. The driver for Windows will install automatically after connecting to a Windows PC. The driver for Linux is built into the kernel

  • Ultra-long Battery Life: The upgraded tinysa analyzer built-in 5000m-ah rechargeable battery,with type-C charging cable and LED charging indicator,it can be fully charged within 3 hours,no need to charge frequently

  • Excellent Phase Noise Performance: With advanced spectrum analyzer, especially tinysa ultra, outstanding phase noise performance is shown. At 30MHz, phase noise is -108dB/Hz at 100kHz offset and -115dB/Hz at 1MHz offset. DANL is -166dBm/Hz. There's an LNA in the level menu, which offers 20dB extra gain for low - level signals (LNA in tinysa ultra works only below 3.5GHz). The default max frequency is 800MHz. No need to switch frequency ranges, and you can monitor the whole range in one sweep

  • Package Contents: 1x ZS406 Tinysa ULTRA+ Spectrum Analyzer (built-in 5000mah rechargeable battery), 1x 32GB Micro SD card (plugged in the host) 2x 30cm ALSR100 SMA cables,1 x USB Type-C data cable, 1x SMA-SMA barrel connector,1x TLanyard and touch plectrum; 1x Antenna with SMA connector, 1x stylus touch pen

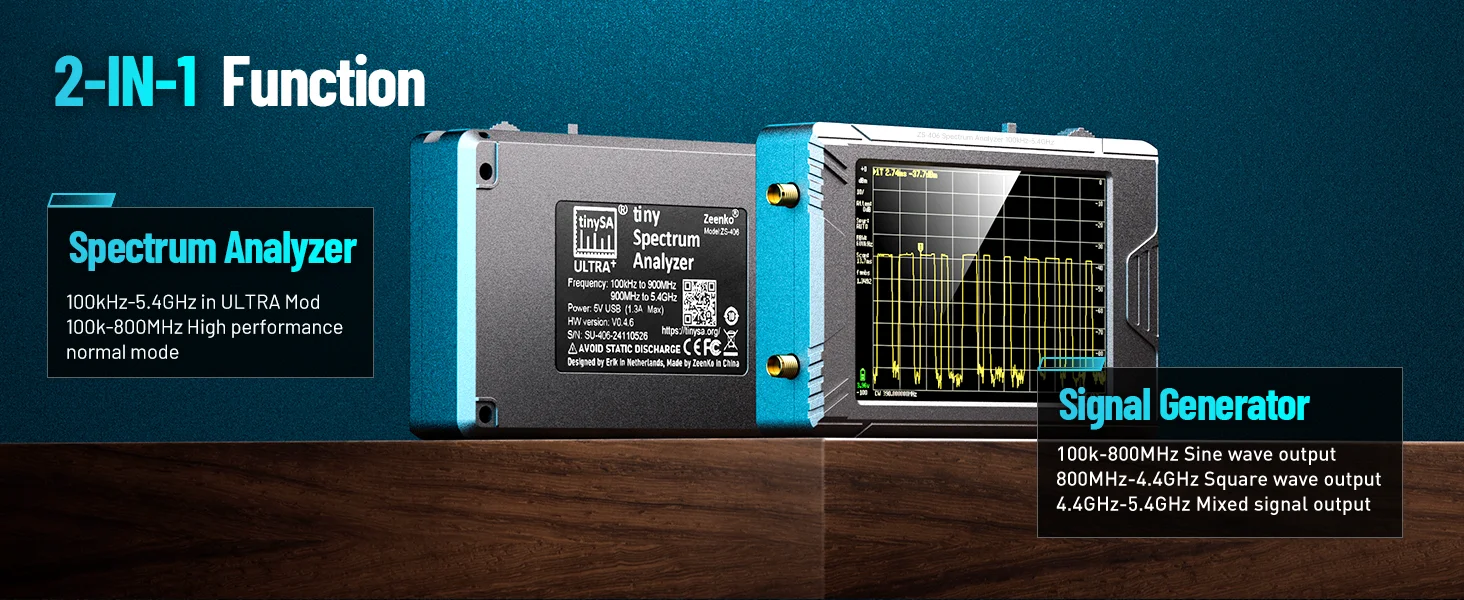

2-in-1 Function

Integrates a 100kHz-5.4GHz spectrum analyzer (Ultra Mode and High-Performance Normal Mode) and a signal generator (sine wave, square wave, mixed signal output)

50W N-to-SMA attenuator for TinySA/TinySA ULTRA+ and NanoVNA Opitonal
