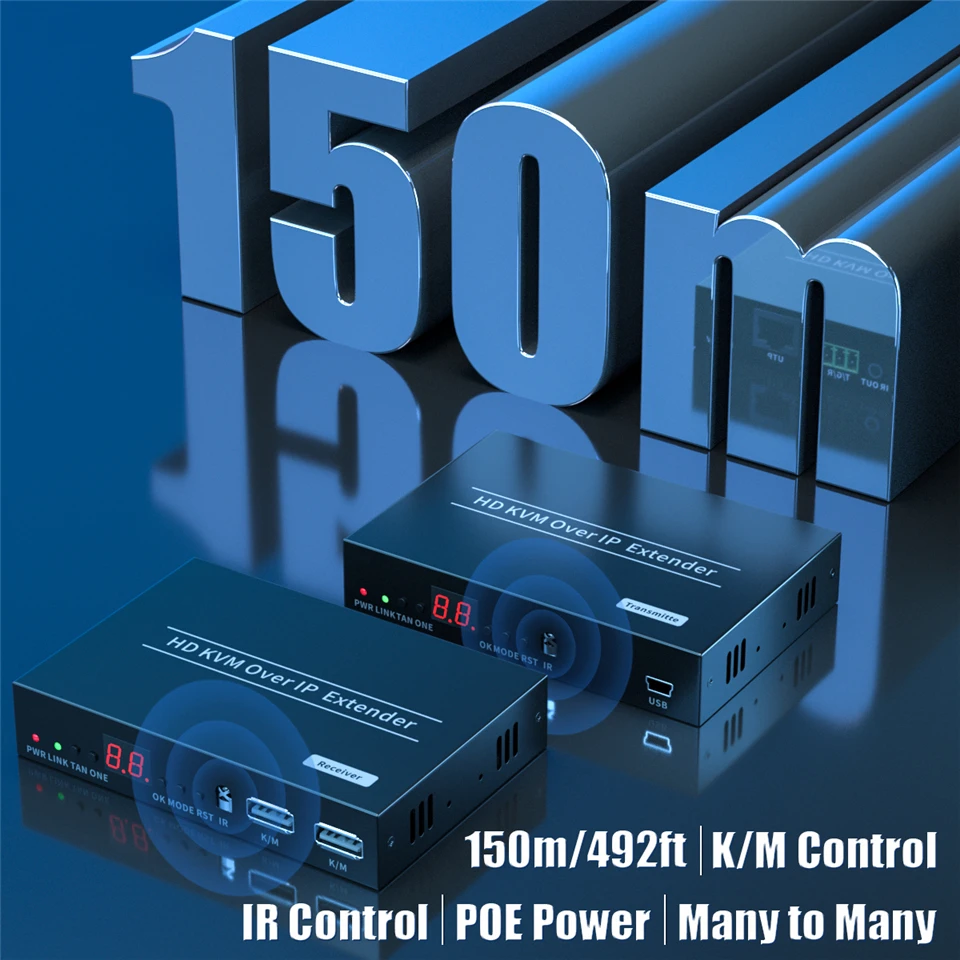

IP Network USB 2.0 KVM Extender RJ45 Ports 1080P HDMI Over LAN KVM Extender 200m

Product Description

If you like our products please you add to cart or add to Favorites,Surprise coupons is waiting for you to extract,
more refined small gifts free to send, please contact customer service.
If you follow our store and become our fans, you can get extra 5% discount for some designated products.

Description:

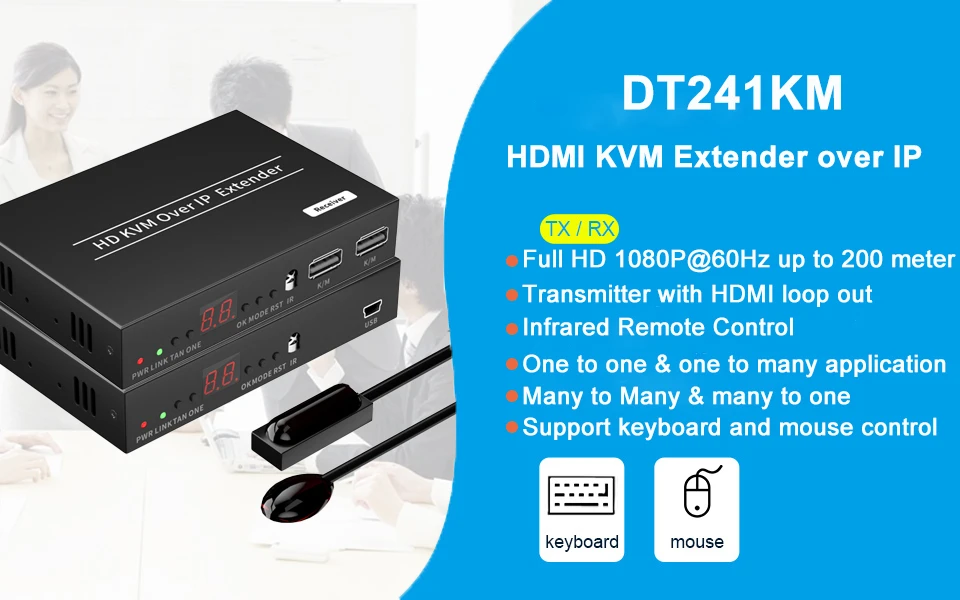

ZY-DT241KM,Navceker hdmi extender provides extension of HDMI signals long distances over a single CAT5e/6/7 cable, it supports high resolution up to 1080P@60Hz, Keyboard and mouse signal,IR and hdmi loop out transmission.It supports one to one,one to many,many to one,many to many application. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Features:

• Transmission Distance:up to 200m over a single CAT5e CAT6 cable;

• Video resolution:up to 480P,720P,1920*1080@60Hz;

• Audio sampling rate:32kHz, 44.1kHz and 48kHz ;

• Audio Format:DTS-HD/Dolby-true HD/LPCM7.1/DTS/DSD ;

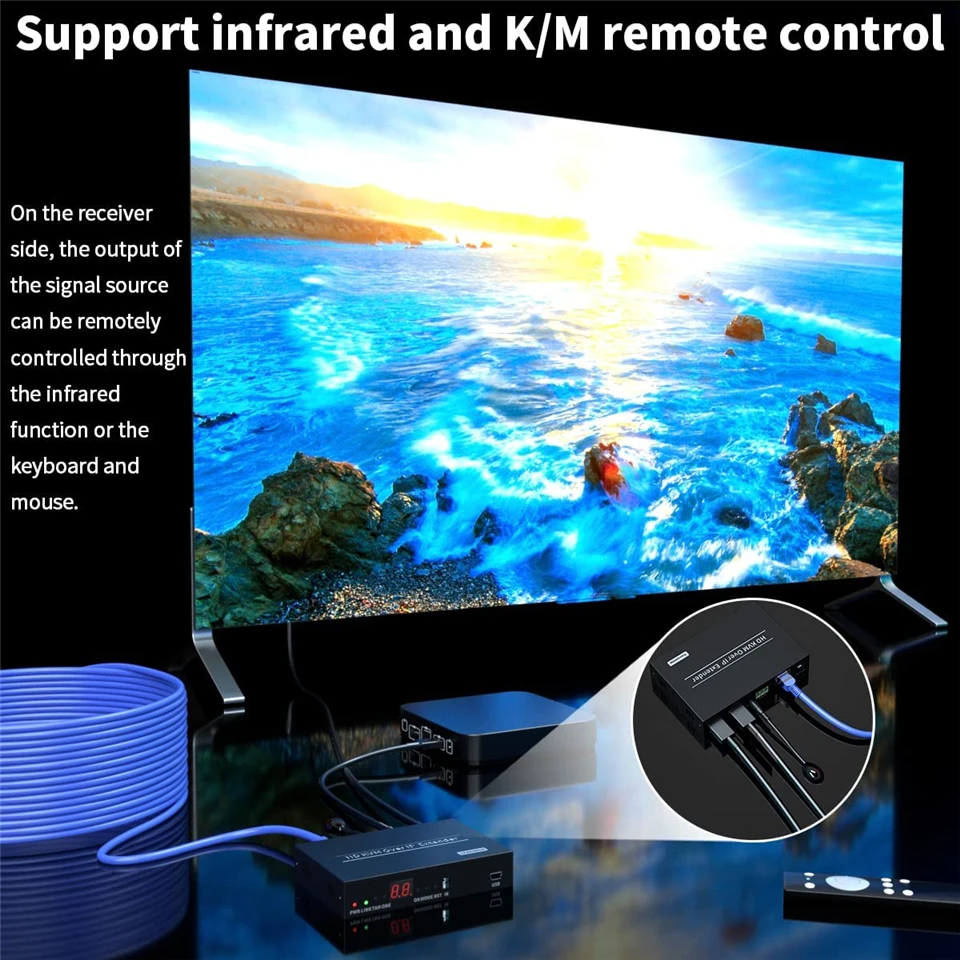

• USB KVM function:Support keyboard and mouse romote control;

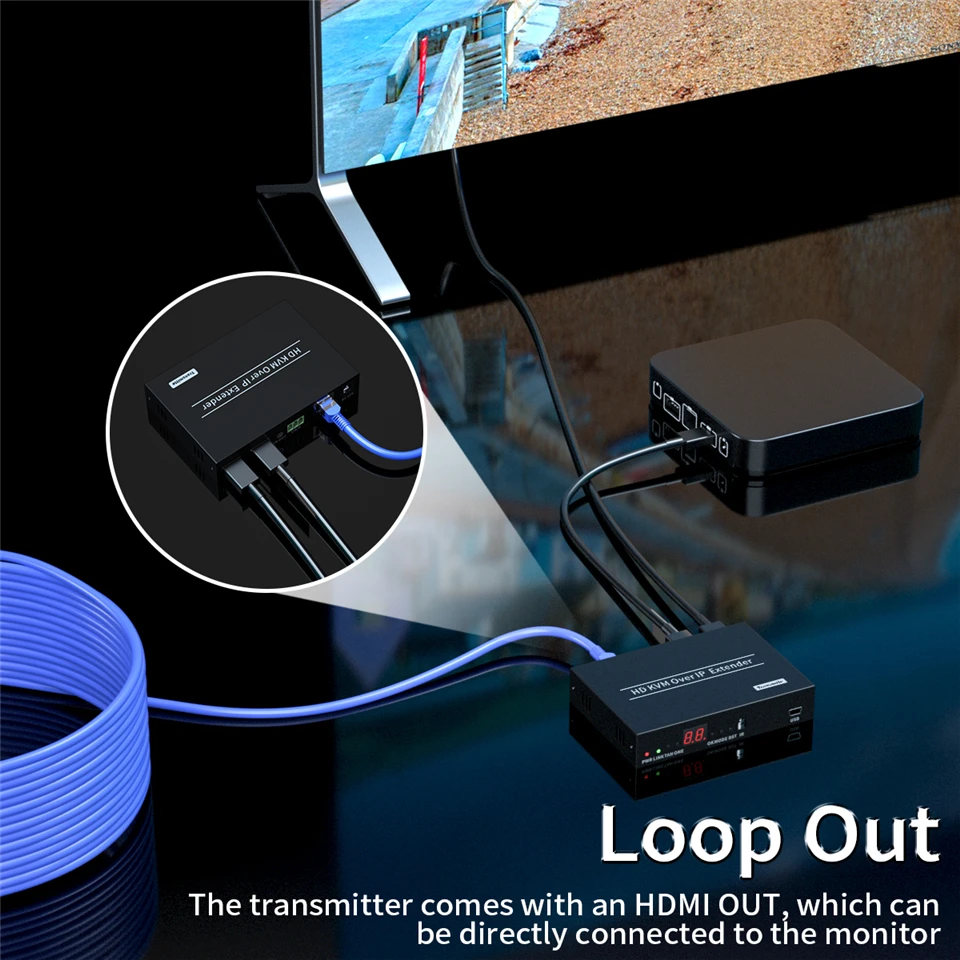

• HDMI Loop out:The transmitter with one HDMI local output;

• Infrared control:directional 20~60 KHz IR romote control;

• H.264 compressed Technology,less than 50ms delay;

• Male to male:one TX to one RX applicataion;

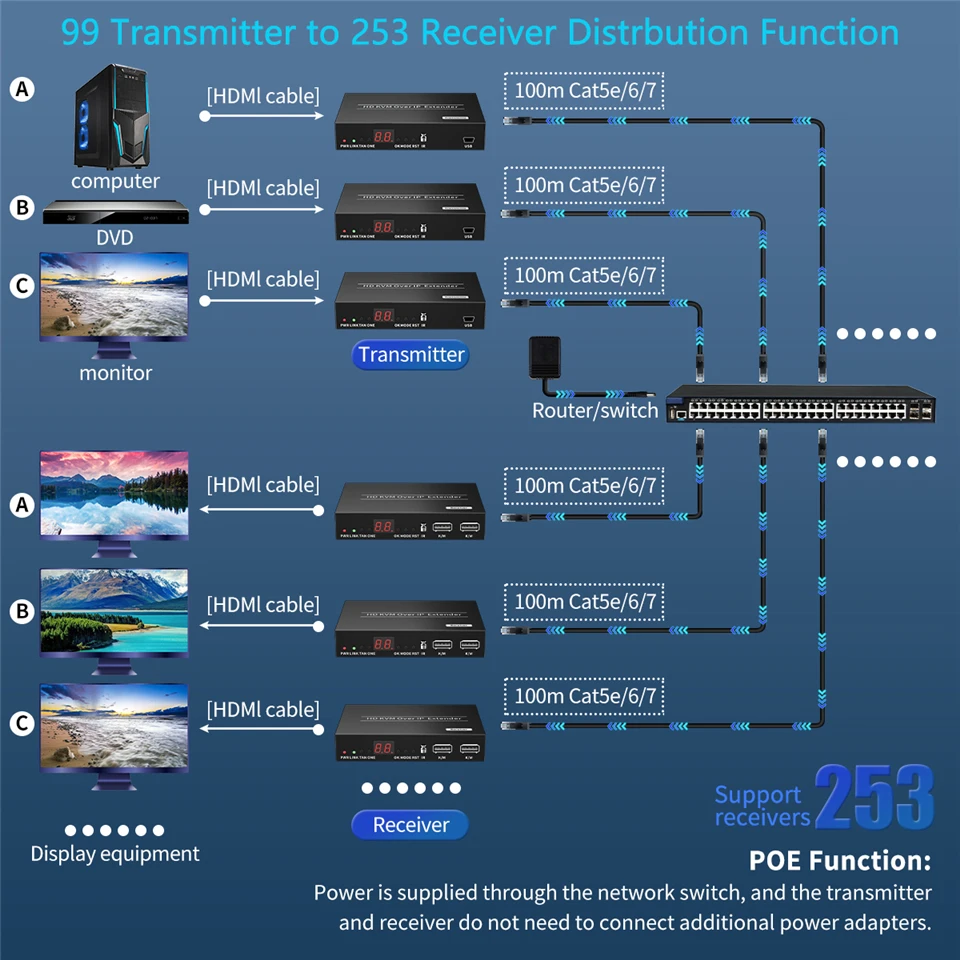

• Male to female:TCP/IP,one TX to N RX(Max:253 pcs RX) application with Ethernet switch/Router;

• Female to male:TCP/IP,N TX (Max:99 pcs TX)to one RX application with Ethernet switch/Router;

• Female to female:TCP/IP,N TX (Max:99 pcs TX)to N RX (Max:253 pcs RX)application with Ethernet switch/POE switch/Router;

• IEEE-568B:standard 802.3 Ethernet 10/ 100/ 1000Mbps;

• Video standard:compliance with HDMI 1.3 and HDCP 1.2 standard;

• Copy EDID function :match many kinds of display devices;

• Built-in automatic adjustment system:make the image smooth, clear and stable;

• Built-in ESD protection system：make transmission much safer. Perfect hdmi extension adapter for large homes, factories, construction sites, data control centers etc;plug and play

• Simple to install, plug and play

Specifications:

Video
Standards----------HDMI 1.3; HDCP 1.2
Maximum pixel clock------165MHz
Maximum data rate-------6.75Gbps
Resolution ------1920X1080P@60Hz
Connector-----HDMI-A
Impedance--------100Ω

IR
Interface----3.5mm seat
Signal direction--------directional
Signal type----------Digital
IR frequency--------20~60 KHz ;

USB
Interface-------PC: Type B USB interface; connect to pc;K/M: connect USB keyboard and mouse
USB signal----------HID Signal

UTP
Interface-----RJ45

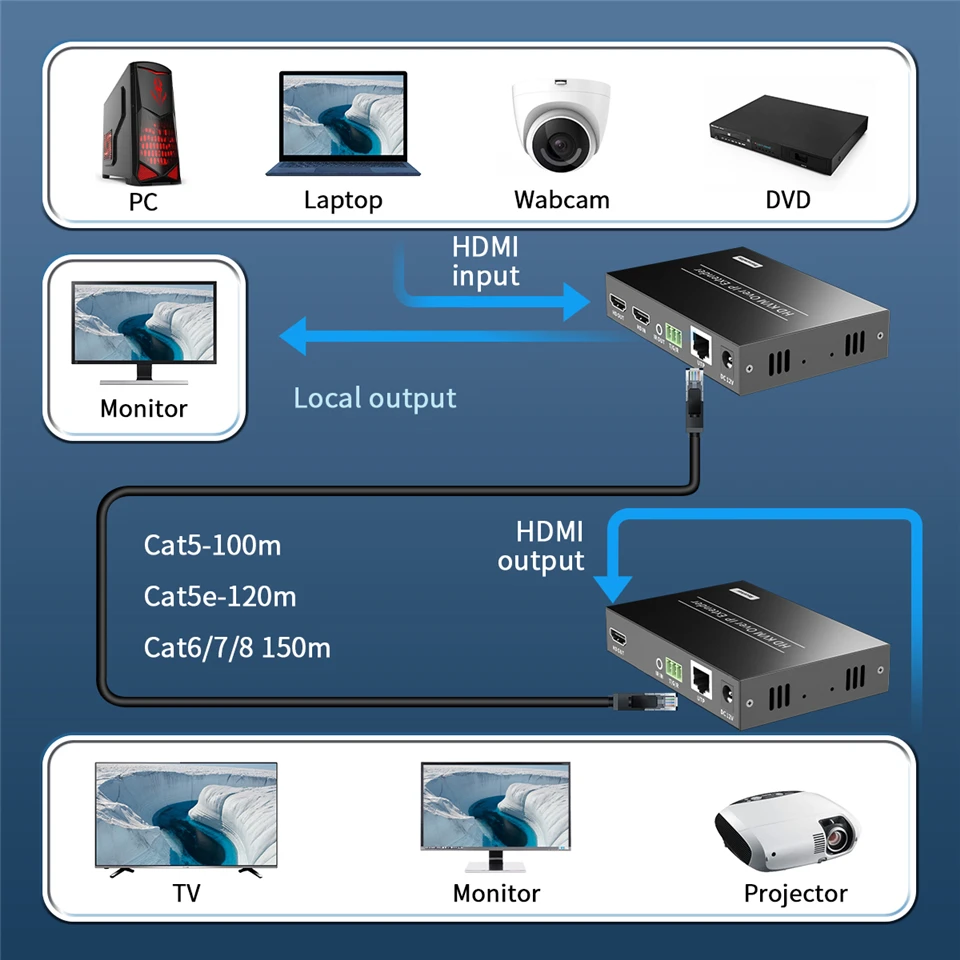

Transmission distance--------CAT5:100m,CAT5e:150m,CAT6:200m

Other
Power supply-----The power adapter: DC 12V/1A
Power dissipation------MAX 3W
Temperature-------Operating: -5℃ ~ +70℃
Humidity-------Operating: 5% ~ 90%
Dimension-------100*60*25mm
The warranty--------1 year free warranty

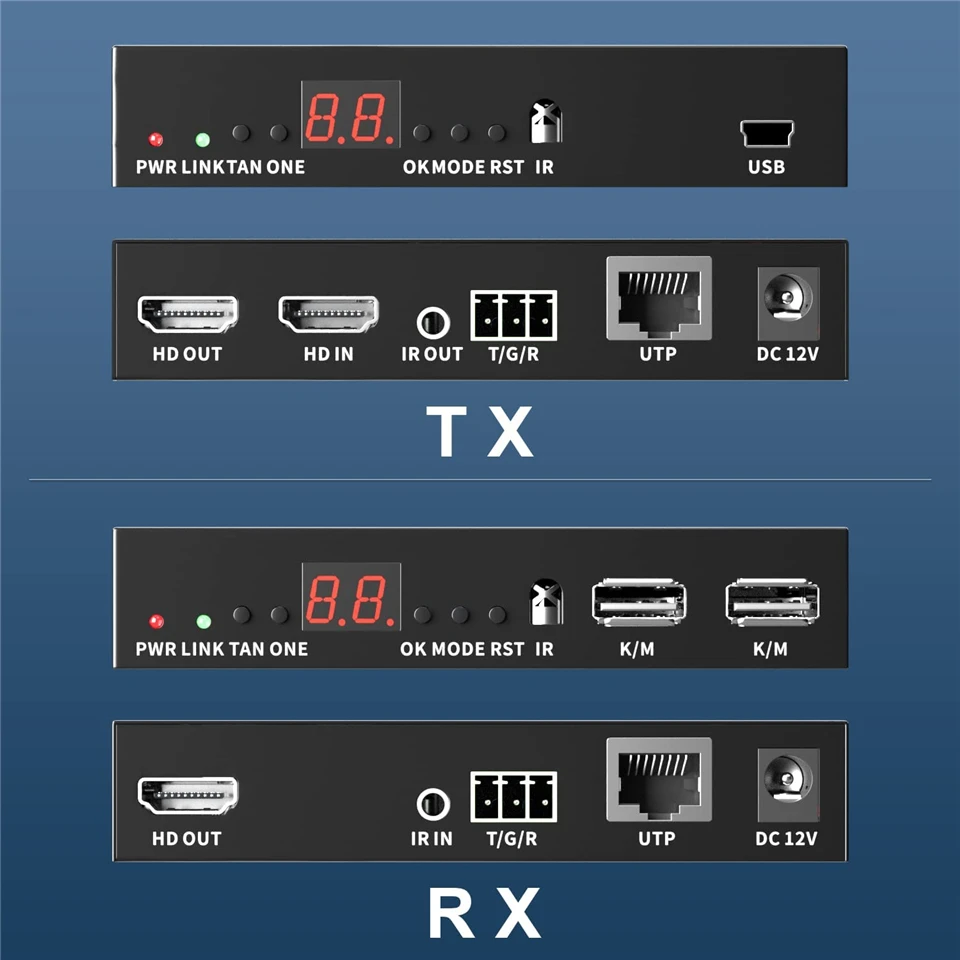

How to set：

Red light: Indicates power

Green light: Indicates signal

Many-to-many setup: CANNOT set the same ID number on the TX. RXs searches for TX signal automatically, such as 02 matches 02. Set the ID number by "TAN" and "ONE" buttons, then press "OK".

One-to-many setup: Multiple RXs match one TX, such as four "03" matches one "03".

Remind:

1）Directly connect your signal source and monitor before connecting HDMI Extender Matrix, and check the signal status.

2）If the ethernet cable within 10 feet has no signal while testing, try a longer cable.

3）No adapter is required when connecting to a POE Switch.

4）Two adapters need to be connected to TX and RX for the devices to work properly if NOT over POE Switch.

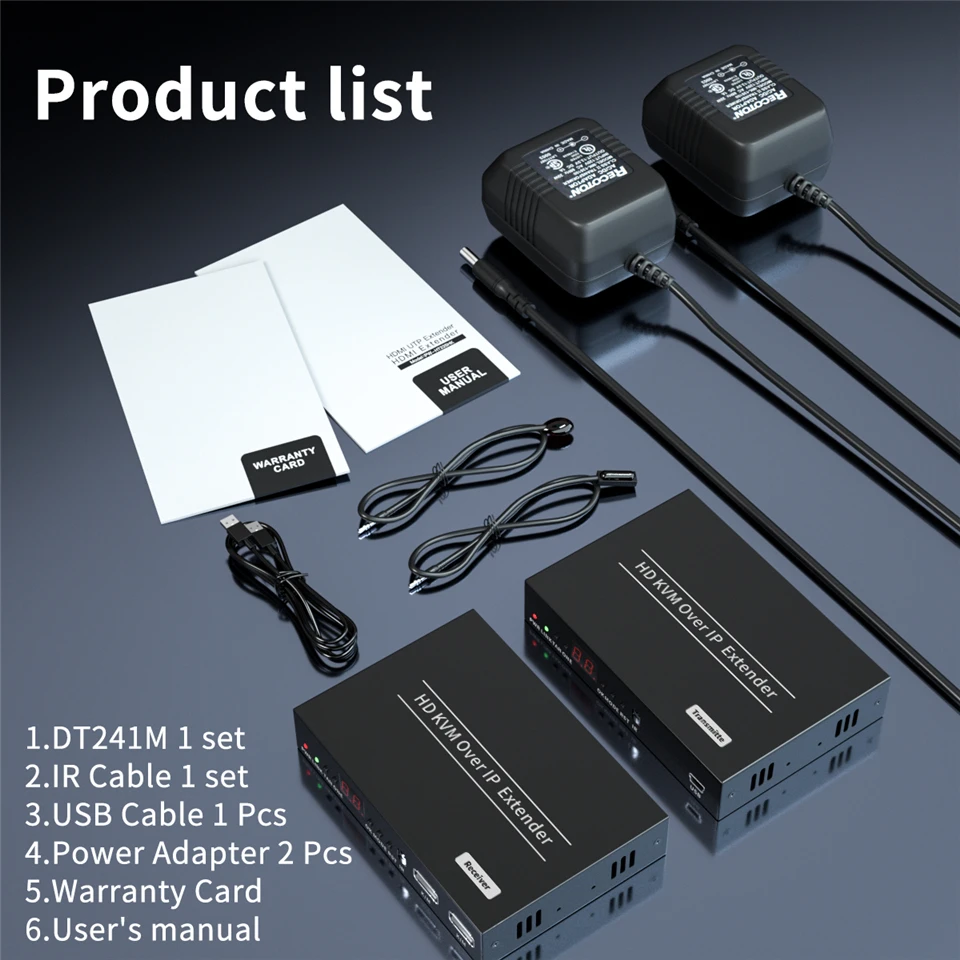

Packing list:

1x HDMI Transmitter

1x Receiver

1x USB-A to USB-MINI Cable

2x Power Adapter

1x Manual

1x IR Cable(set)
