4K Wireless HDMI Video Transmitter and Receiver 5G 200M 1080P HDMI KVM Extender

Product Description

If you like our products please you add to cart or add to Favorites,Surprise coupons is waiting for you to extract,
more refined small gifts free to send, please contact customer service.
If you follow our store and become our fans, you can get extra 5% discount for some designated products.

Description:

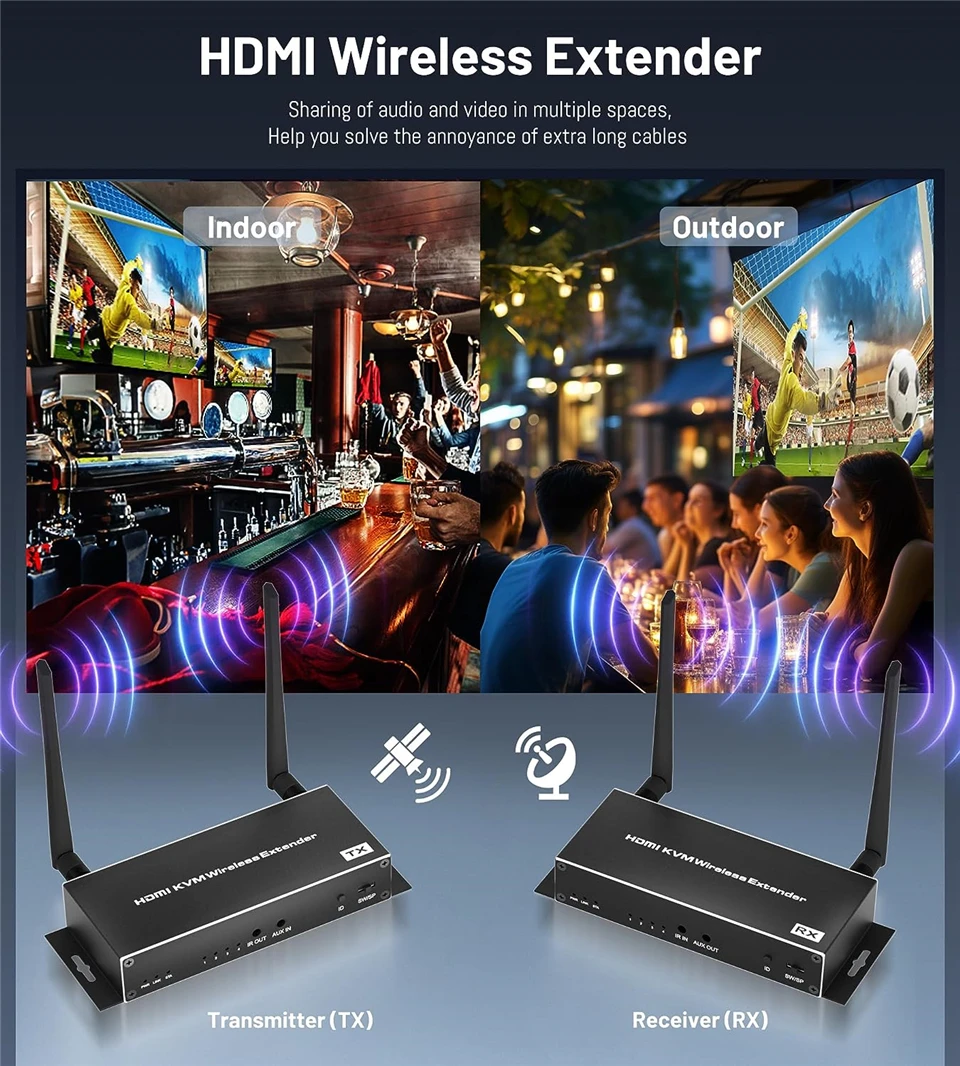

ZY-AD9,Navceker Wireless HD Video Solution enables wireless transmission of video/audio from any HDMI video source such as PC/HDTV to display devices includes HDTV/HD Monitor over the 5.8GHz band, with very low latency.
It does not require any special configuration of software driver installation-simply connect the transmitter to the HDMI output of the video source and the receiver to the HDMI input of the Panel/TV/Monitor. Its Plug & Play operation makes it the ultimate solution for the most demanding indoor/outdoor professional environments.
This Wireless HD Video Transmission Solution is widely applicable to family entertainments, office presentation, lecture, education, medical treatment, party, conference etc.

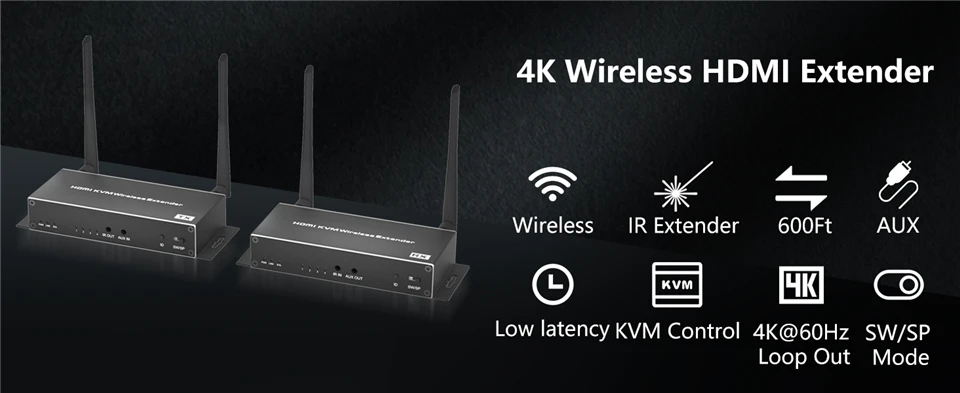

Features:

• Effective Range:656ft(200 meters no obstruction);

• Audio sampling rate:32kHz, 44.1kHz and 48kHz ;

• Audio Format:DTS-HD/Dolby-true HD/LPCM7.1/DTS/DSD ;

• Video resolution:up to 720P,1920*1080P@60Hz,4K@24/30Hz;

• frequency: 5.8 GHz;

• Radio Frequency power :13dbm;

• Male to male:Unicast,one TX to one RX applicataion;

• Male to female:Splitter mode,one TX to N RX application;

• Female to male:Switch mode,N TX to N RX application;

• Wide band Infrared control:unidirectional 20~60 KHz IR romote control;

• Support transmitter with one HDMI loop out;

• Support keyboard and mouse (KVM) remote control;

• Support 3.mm Jack audio transmission function;

• Low latency:Less than 60 ms;

• Compressed mode:H.264 technology;

• No cable:between sender (TX) and receiver (RX);

• Video standard:compliance with HDMI 1.4b and HDCP 1.4 standard;

• High compatibility :match many kinds of display devices;

• Built-in automatic adjustment system:make the image smooth, clear and stable;

• Built-in ESD protection system：make transmission much safer. Perfect hdmi extension adapter for large homes, factories, construction sites, data control centers etc;plug and play

• Simple to install, plug and play

Note:

Transmission distance will be different due to the environment
Wall, brick or glass will shorten the signal cover range or cause big signal loss.

We simulated complex environment of different temperature, humidity and obstacles etc , obtain a series of real testing data,

Specifications:

Video
Standards----------HDMI 1.4b; HDCP 1.4
Maximum pixel clock------300MHz
Maximum data rate-------10.2Gbps
Resolution ------4K@30Hz
Connector-----HDMI-A
Impedance--------100Ω

Compress Formats-----H.264 technology

IR
Interface----3.5mm seat
Signal direction--------Unidirectional
Signal type----------Digital
IR frequency--------20~60kHz

WIFI

Frequency-----5.8GHz
Transmission distance--------200m

Wireless Standard------802.11ac

Radio Frequency power -------13dbm

Other
Power supply-----The power adapter: DC 5V/2A
Power dissipation------MAX 8W
Temperature-------Operating: -5℃ ~ +70℃
Humidity-------Operating: 5% ~ 90%
Dimension-------97*97*20mm
The warranty--------1 year free warranty

Trouble shooting ：

1.Contact our customer service for installation guide.
2.Make sure power adapter is working fine by checking the power led in the front of the unit.
3.Audio Sync Issue: The sound should be from receiver. Do not directly connected to the source.
4.Power Issue: Please make sure the DC plug is secure in the units
5.Signal Issue: Our extenders use 5.8GHZ Channel. Please make sure your home WiFi is not on the same channels.
6. IR issue:1,Check if the IR emitter head is secured over the center of the IR window of source device. This position maybe discrepant if you use different sources, try to adjust the position if the signal is weak. 2,The control signal will be better when your controller is pointed at the IR receiver head directly.

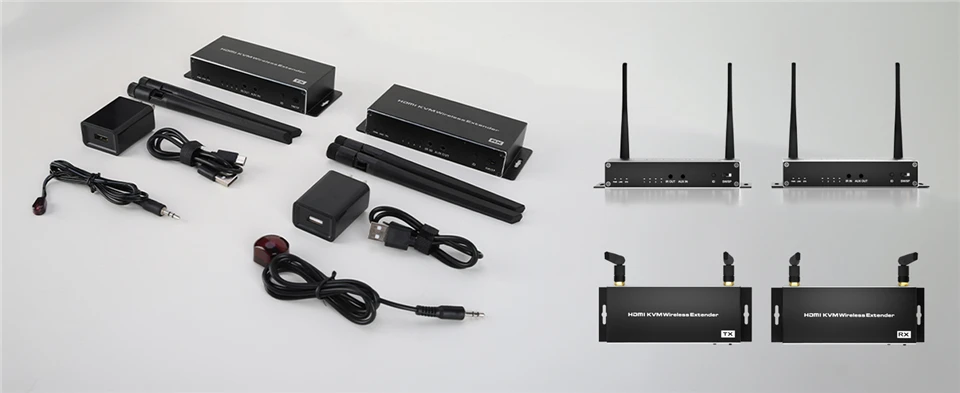

Package:

Wireless HDMI transmitter-------- 1 pcs

Wireless HDMI receiver ----------- 1 pcs

WIFI atenna-------------------------4pcs

Power adapter----------------------2 pcs

User manual------------------------1 pcs

⚡Wireless HDMI Extender：The wireless HDMI extender creates it's own wireless network, as such it does not interfere with your current wireless networks. The longest transmission distance can be up to 600ft without obstruction or interference.

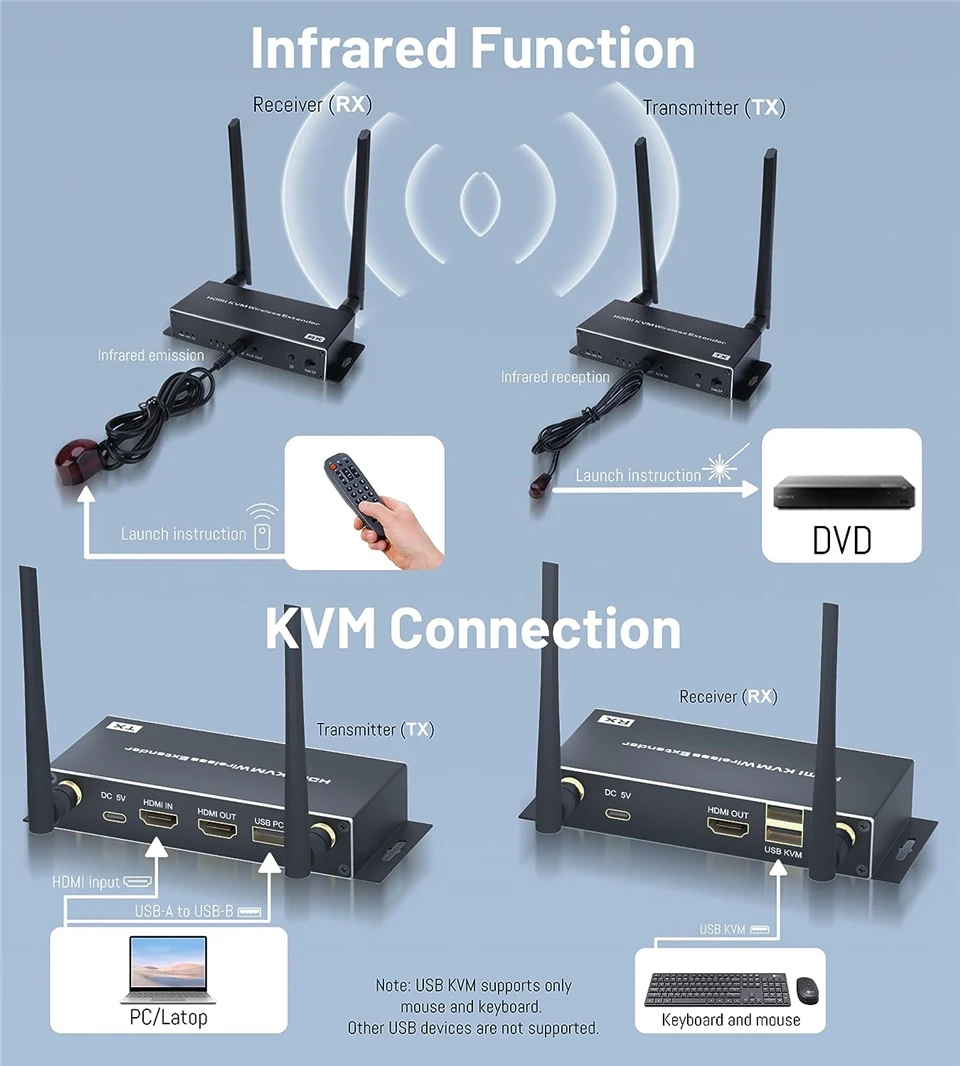

⚡IR Remote Control Extension：The HDMI extender 4K support IR 20KHz~60KHz

extension. You can do anything with the remote control of the input device.

Change DVD channels through the infrared sensor of the HDMI extender,

operate menu functions for Settings, and even control volume.

⚡Premium Performance：This HDMI wireless transmitter and receiver can loop out

4K@24/30Hz resolution for crystal clear pictures. The HDMI USB KVM extender

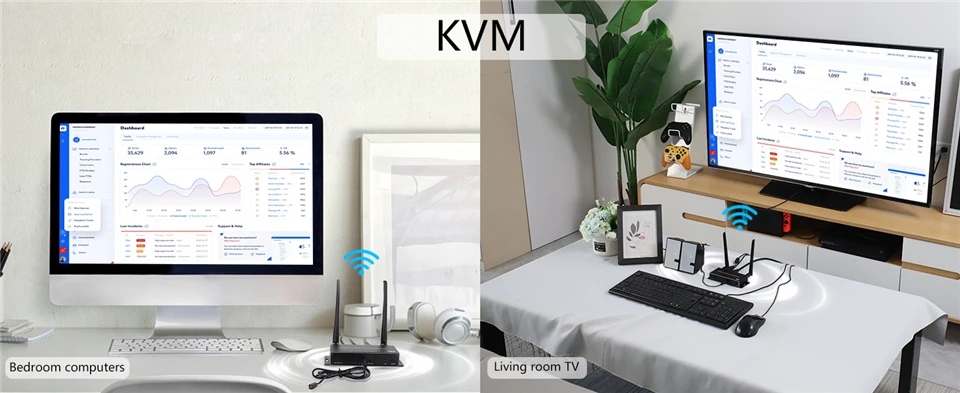

1080P@60Hz can be connected to a mouse and keyboard to control the PC/laptop.

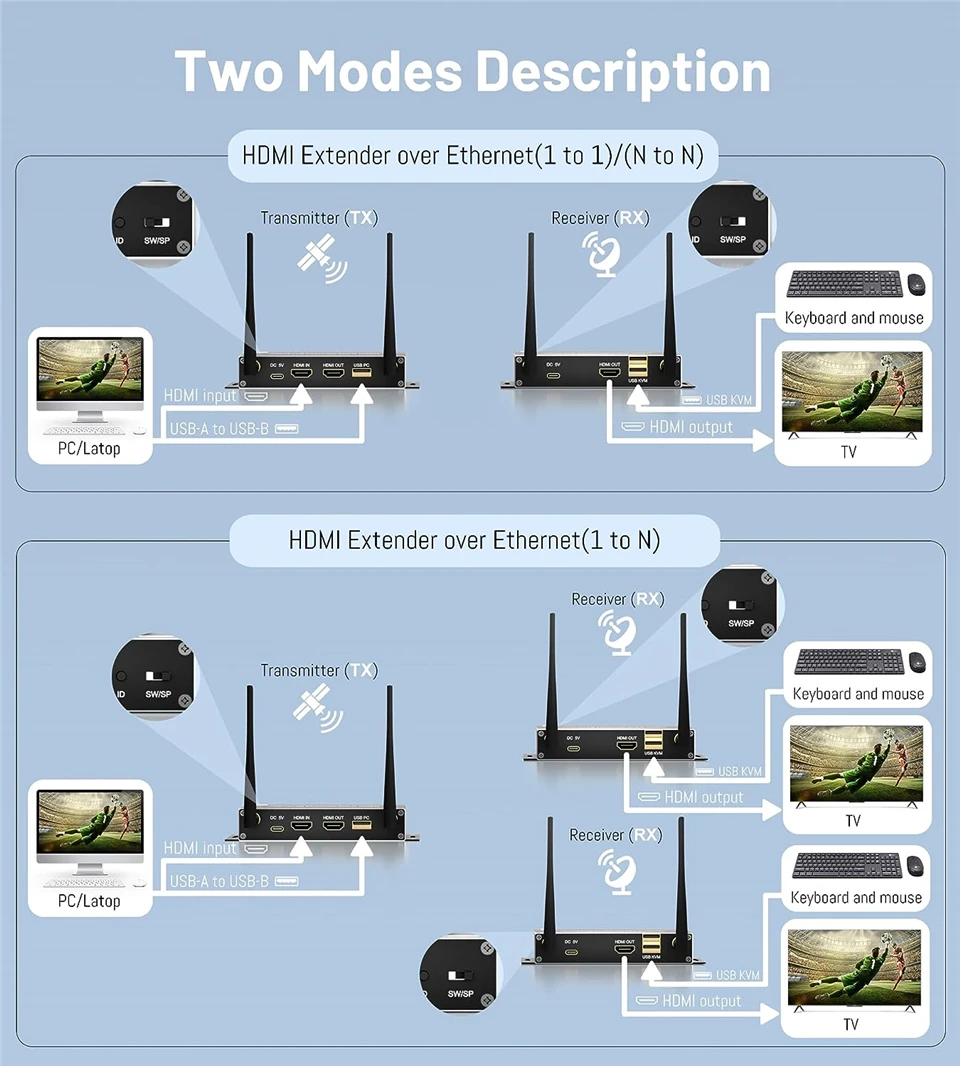

Ultra-low latency is between 0.06-0.1s. There are two connection pairing modes

SW and SP. SW:1 to 1/N mode. SP:N to N mode.

⚡Easy Set Up：Extremely easy hook up, plug and play. No need to install any apps

or software. Just plug in your HDMI cables and power cords and HDMI wireless

extender synch themselves. You can now watch TV in your bedroom and patio

without tripping over HDMI cables.

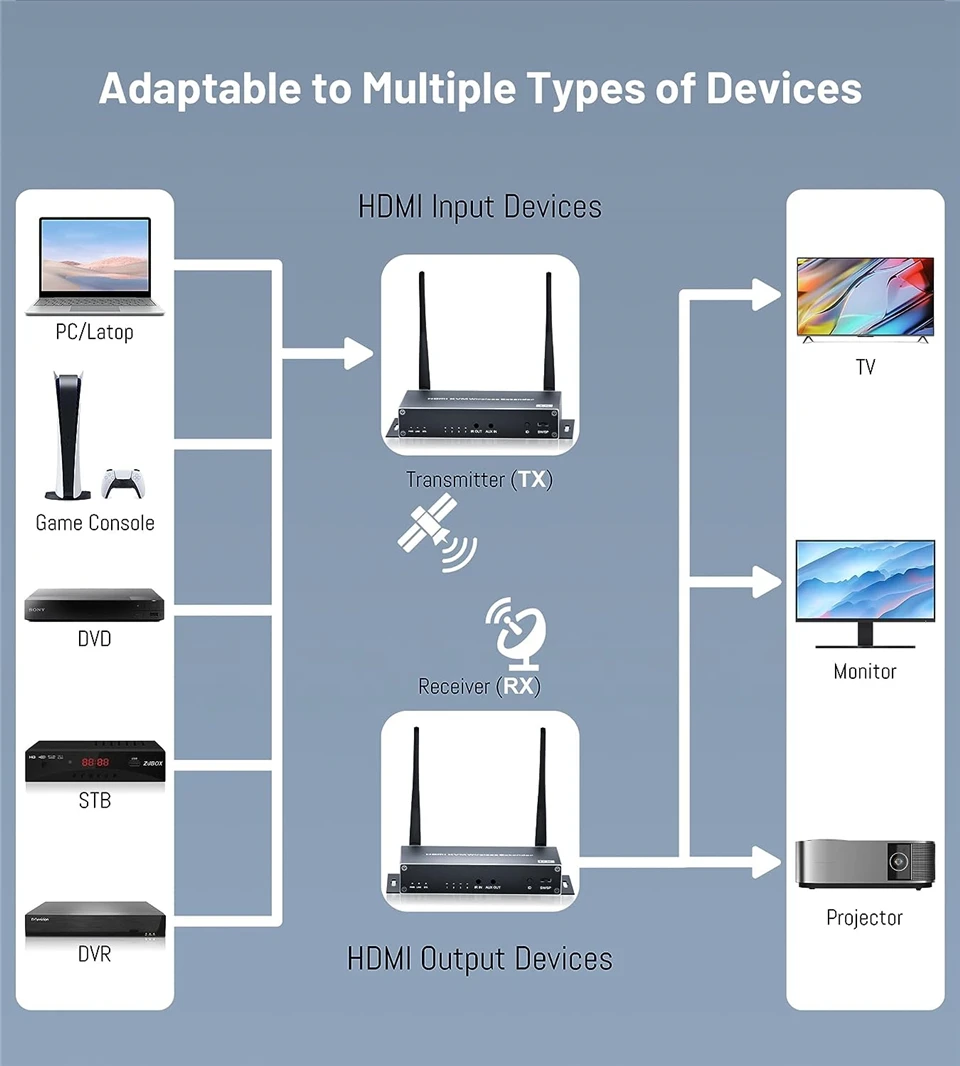

⚡Wide Compatibility: This HDMI extender adapter works effectively with the HDMI

Input of any other device such as PC/Laptop , DVD, PS5, PS4, Xbox Series X,

TV Box, Blu-ray Player, Fire Stick and HDTV etc. The HDMI KVM USB extender

allows you to share an image indoors and outdoors at the same time. The wireless

HDMI transmitter and receiver 4K can be used at home in the kitchen, church,

office, or even outdoor camping.
