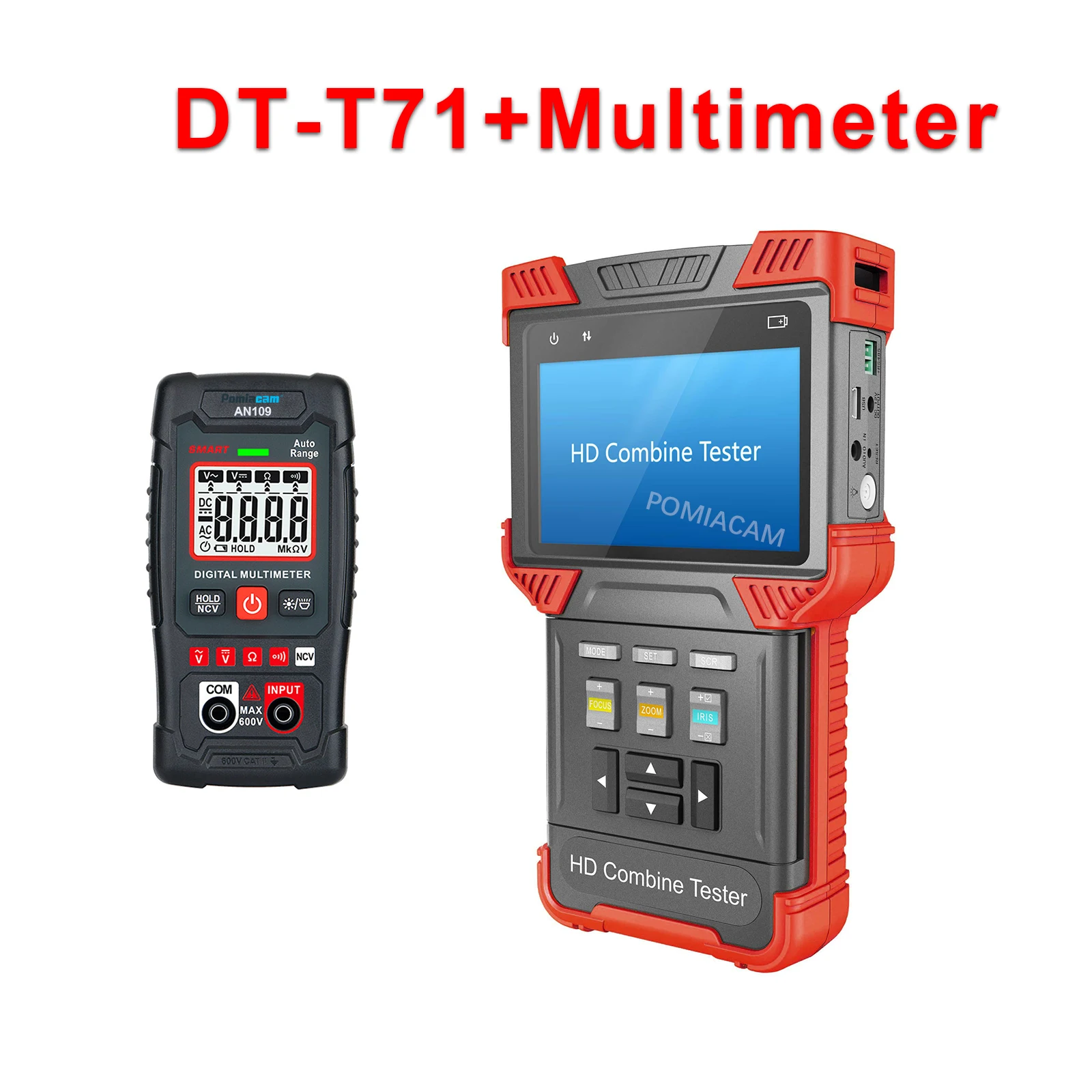

4.0 inch IP Camera Tester DT-T71 CCTV Tester,4K H.264/H.265,AHD/TVI/CVI/CVBS ,12

Product Description

HD Combine Tester specification cctv monitor IP with TDR RJ45 Cable Test 12V/1A power output,

T71 Support IPC(H.264/ H.265/ 4K) Camera+AHD+TVI+CVI+CVBS +12V/1A power output +TDR RJ45 Cable Test + 12V/1A power output+ 100M network port

Brief Product Introduction:

This device is designed for video surveillance installation and maintenance. It can be applied to analog SD video, analog HD video, HD IP CCTV systems, RS485 PTZ control testing, IP camera testing, Ethernet testing, TDR cable testing(optional), video screen shots, video recording, playback, and other functions, and combined with analog camera testing. This device is powerful, easy to carry, very suitable for video security engineering installation and the maintenance of front-end camera equipment. It greatly improves engineering and installation efficiency, reducing the cost of maintenance.

General description:

1.Support Analog, IPC(H.264/ H.265/ 4K) Camera for DT-T70, H.264 Camera for DT-T60

2. Step by step IPC test, quickly locate failure

3. ONVIF highly compatible

4. Ergonomic design, operate with single hand.

5. Real time operation prompt

6.12V/1A power output

7. Dual 100M network port,capable of detecting packet lost, monitoring network flow

8.TDR RJ45 Cable Test (optional)

9.4.0 inch all viewing angle display,800X480 resolution, 16.7M color

10. Swing keyboard input, QWERTY.

11.Changeable Li-polymer battery, battery working time 5 hours

12. With rubber protection layer

13. Dual LED torch

14. Software upgrade online

Main Features:

1.4.0 inch all viewing angel screen, DC12V/1A Output

2.Support H.264& H.265& 4K Camera or H.264 Camera;

3.ONVIF test (IPC Test): IP Configuration, Modify IP Address, IP Password Notebook, LAN DHCP client; LAN static IP.

4.Ethernet test:100M Ethernet link test; Packet loss test; Ethernet loop detection; etc.

5.HD IP & Analog Camera Testing: PTZ control, Viewing camera video, configure camera parameters. Video snapshot, video recording and Playback.

6.Signal generator

7.S485 Data monitor; Playback.

8.Network tools: Ping IP/ Set IP, Sniff, List subnet,

9.System Setting: Setting the automatic shutdown time, Setting the screen language System upgrade , USB storage

10.Linux operated system: More stable operation.

11.TDR Function: Cable length Testing; 0~200m net cable detection, resolution 0.1m. Cable Quality Test: connection state and attenuation for the connected RJ45 cable(optional)
