2024 New 4K 60Hz HDMI 2.0 Splitter 1x2 Splitter HDMI 2.0 4K Support HDCP 1.4 UHD

Product Description

If you like our products please you add to cart or add to Favorites,Surprise coupons is waiting for you to extract,
more refined small gifts free to send, please contact customer service.
If you follow our store and become our fans, you can get extra 5% discount for some designated products.

Description:

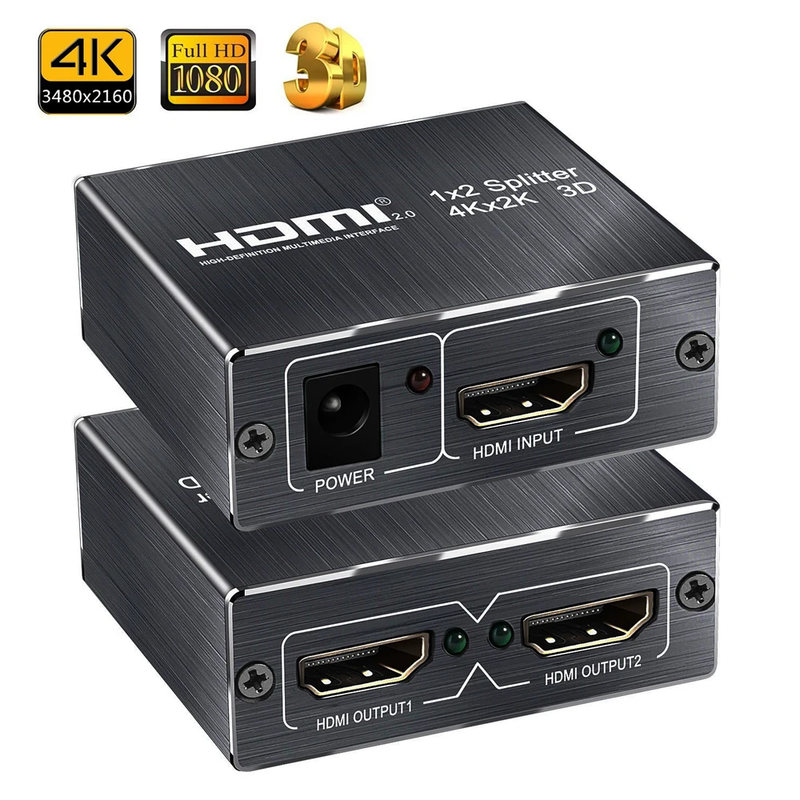

ZY-HS20A, 1x2 HDMI 2.0 Splitter uses a single HDMI source,accessing to multiple HDMI sinks. It allows one HDMI device to be split easily to 2 HDMI compatible monitors or projectors. In addition，it can be placed at the end of a long HDMI cable to regenerate the HDMI signal. The resolution of this hdmi splitter can be up to 4K*2K@60Hz.

Features:

• Fully HDMI2.0 Specification compliant. It is applicable to source device and high definition display terminaldevice such as Blu-ray Players HDTV which have HDMI interfaces or digital interfaces.

• On-chip HDMI Receiver and Transmitter core which are compliant with DVI 1.0,HDMI1.4 and HDMI 2.0specification ON-chip HDCP RX/TX ciphers which are compliant withHDCP1.4specification.

• Wide Frequency Range: 25MHz-600MHz.

• Supports high resolutions up to 4K×2K @60Hz including 480i, 480p, 576i, 576p,720p,1080i,1080p,2160p.

• Supports jitter Clean capability for more cascadable stages.

• Supports 12-bit Deep Full HD, Full 3D and 4Kx2K@ 60Hz video.

• Supports standard Audio,DSD Audio and HD(HBR)Audio.

• Supports 1 DVI/HDMI input port and 2 DVI/HDMI output ports.

• Supports conversion of HDMI signal to DVI/HDMI signal.

• SupportsHDMI 2.0,HDCP 1.4.

• Supports on-chip 512 byte E-DDC EDID RAM for input port.

• Supports hot plug-play.

• Support Mode：LED indicates signal and power mode

• Support Audio Format: DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD

• Support AWG26/AWG28 HDMI 2.0 cable length: Up to 39 ft

• Cascadable to make more than 2 output ports.

• Provide companion HDCP 1.4 Controller(EPF025R)with integrated HDCP keys.

• Power supply(please refer to technical parameter).

Note:
For optimum performance, we recommend using high quality, certified HDMI cables (24K Golden HDMI Connector,28AWG or 26AWG) in lengths up to 11m / 39ft for all connections.
High-speed HDMI cables are required for 4K and 1080p resolutions.

Specification:

HDMI version…………………………………………….…………………….....HDMI 2.0, HDCP 1.4

HDMI resolution …………………...................24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p/2160p/4K@60Hz

Supports video color format ....………………...……..….…........24bit/deep color 30bit, 36bit, 48bit

Supports audio format…….........DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)

Max bandwidth……………………………….…….......………............……….……………600MHz

Max baud rate…………………….………………….….…………....................……………18.0Gbps

Input/Output TMDS signal ………….…………………………..…...................0.5~1.5Volts p-p(TTL)

Input/Output DDC signal …………………………………………….....................……..5Volts p-p (TTL)

Input cable distance..…... ……………………….…………………≤39ft AWG28 HDMI standard cable

Output cable distance…………………………….………...............≤39ft AWG28 HDMI standard cable

Max working current………………………………..…………...................………………1200mA

Power adapter format Input..……………........................AC100V-240V (50/60Hz) ; Output: DC 5V/2A

Operating Temperature range……..………...................…….…….………………………(-15 to +55℃)

Operating Humidity range………………………….….………................5 to 90%RH (No Condensation)

Dimension (L x W x H)………………………….….………...................…........................110x60x20(mm)

Packaging contents

1.HDMI 2.0 1x2 Splitter x1

2.Power Adaptor x1

3.User Manual x1
