Description:

ZY-201TC,Navceker 4K USB C + HDMI KVM Switch allows you to share one USB keyboard, USB mouse,2 x USB 2.0 device and one HDMI monitor to control 2 Macbook,computers, laptops, game consoles.

It is designed for multitask with two computers at your necessary, increasing productivity in the office or at home ; You can switch between 2 computers using a manual switch located on the top of the KVM unit.

There are 2 models optional, different model has different interface and appearance, please choose suitable model before purchase:

Features:

Thunderbolt USB-C 4K HDMI KVM Switch USB-C 2 Macbook Input 1 HDMI Output 4K KVM 4K@60Hz 2K@144Hz 4X USB2.0 Sharing Mouse Keyboard Printer

• 【USB-C to HDMI】This USB C KVM switch allows you to connect 1 USB-C port ad 1HDMI port computer to share mouse, keybaord and monitor. Designed for those user who has 1 TYPE-C port computer, 1 HDMI port computer and 1 HDMI port monitor.

• 【Support 87W PD Fast Charging】Designed with PD charging port to give enough power for your laptop during using. USB-C port support PD fast charging, USB 2.0 port only supply power for KVM not supply power for HDMI port computer. This is a very stable KVM switch, support the follow resolutions, 3840x2160@60Hz, 2560x1440@144hz/120hz/60hz, 1920x1440@144hz/120hz/60hz, etc.

• 【Physical Button And Wired Control】Selecting computer through a physical button or wired control. Use the 1.5m wired control, you can hide the KVM USB switch under the table and keep the table tidy. LED indicator will indicate the running computer.

• 【Good compatibility】Plug and play, compliant with laptops or computers with TYPE-C and HDMI port. This new desigh KVM switch helps you simplify your work and improve efficiency. Common scenarios include home offices, small businesses, computer rooms, server rooms, etc.

USB Type C + HDMI KVM switch for 2 Computers

• USB-C = PC1, "power" port beside USB-C port is for charging the laptop separatly, it won't affect the PC1 working if " power" port not connected, because USB-C port has charging and data transfer function.

• HDMI + USB 2.0 = PC2, USB 2.0 port must connected to the HDMI computer with the USB cable provided, otherwise USB device like keybaord or mouse can not be recoginized when switch to the HDMI computer. USB 2.0 port is for power supply for USB device.

• Mechanical illuminated keyboards are not recommended as it consum too much power and will cause unstable recognition.

• This Type-C HDMI KVM switch supports connecting 1 laptop with USB-C port and 1 PC with HDMI port share 1 HD monitor and 4 USB 2.0 devices

Advantage:

1. Supports up to 87W of power to reverse charge the USB-C laptop, completely solving the problem of the USB C charging port being occupied when using KVM.

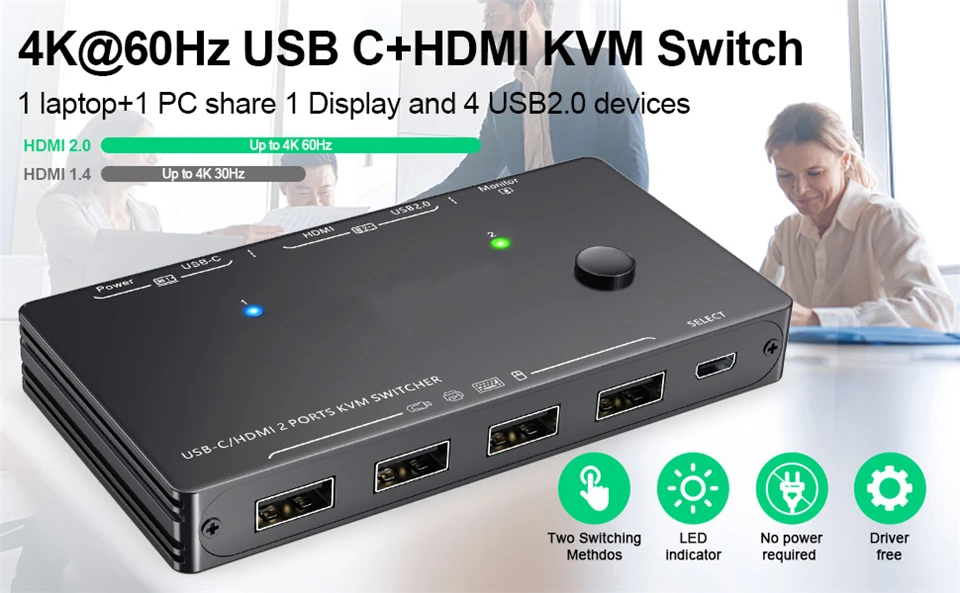

2. USB Type-C HDMI 2.0 KVM Switch output with resolution up to 4k@60Hz, 2K@120Hz, 1440P@100Hz, backward compatible with lower resolutions.

3. Switching Modes: physica button control and wired control.

Please note that power adapter not included, please use your own laptop power adapter, do not use your mobile phone power adapter for charging.

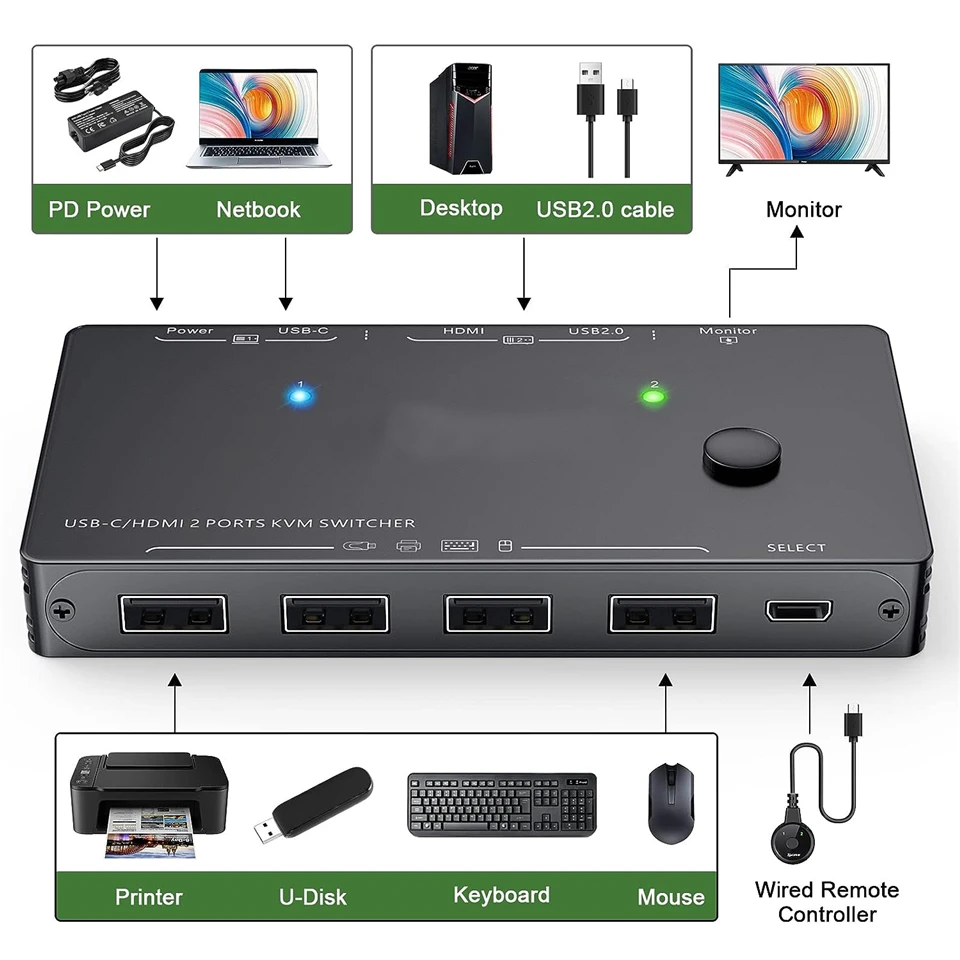

1. Connect PC 1 to the USB-C port ;

2. Connect PC 2 to the HDMI and USB2.0 port ;

3. Connect the monitor to the HDMI port labeled "monitor";

4. Connect the keyboard mouse U disk to the USB-A port;

5. Connect the power adapter to the "Power" of the KVM switch to charge the USB-C laptop, power adapter and cable are not included;

6. Connect wired remote control to switch between 2 input sources.

Connection Steps:

Come with wired remote control (1.5m), improve work efficiency

Important Notes before Purchasing

1. Video adapters for converting HDMI, DisplayPort, VGA, DVI to USB C are not recommended, so please make sure the computer / device has at least one USB Type C port（support Data＆Video＆PD） before buying this USB C KVM switch selector.

2. Connect charging cable to the " power" port, if you don't need to charge your Laptop, charging cable is not required. Without the "Power" port connected also works fine, as the "USB-C" port can also provide power to the KVM.

3. PC 2 needs to be connected to both the HDMI port and the USB2.0, USB 2.0 port is for power supply for USB device.
