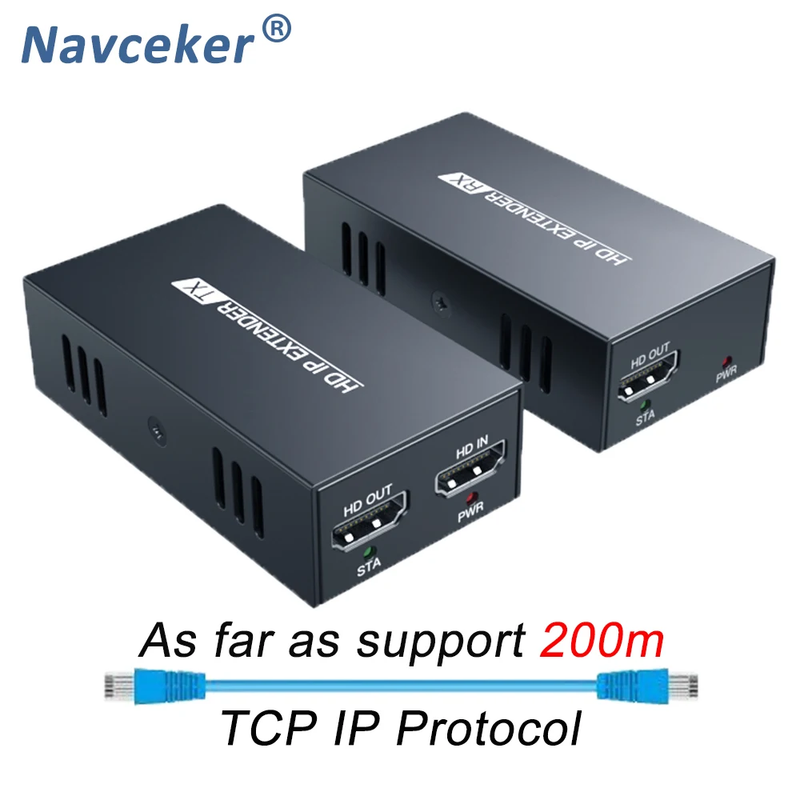

ZY-DT236 HDBitT IP HDMI Extender 200m Over UTP/STP CAT5 CAT5e CAT6 Extender HDMI

Product Description

If you like our products please you add to cart or add to Favorites,Surprise coupons is waiting for you to extract,
more refined small gifts free to send, please contact customer service.
If you follow our store and become our fans, you can get extra 5% discount for some designated products.

Description:

ZY-DT236,Navceker HDMI extender provides extension of HDMI signals long distances over a single CAT5/5e/6 cable, it supports high resolution up to 1920x1080@60Hz signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Features:

• Long range transmission:up to 200m/660ft over a single CAT6 cable;

• Video resolution:Up to 1920x1080P@60Hz;

• Audio sampling rate:32kHz, 44.1kHz and 48kHz ;

• Audio Format:DTS-HD/Dolby-true HD/LPCM7.1/DTS/DSD ;

• Compressed mode:H.264 technology;

• Low latency:less than 50 ms.

• Male to male:one TX to one RX applicataion;

• Male to female:TCP/IP,one TX to N RX(Max:253 pcs RX) application with Ethernet switch/Router;

• IEEE-568B:standard 802.3 Ethernet 10/ 100/ 1000Mbps;

• Video standard:compliance with HDMI 1.3 and HDCP 1.2 standard;

• Local EDID function :match many kinds of display devices;

• Built-in automatic adjustment system:make the image smooth, clear and stable;

• Built-in ESD protection system：make transmission much safer. Perfect hdmi extension adapter for large homes, factories, construction sites, data control centers etc;plug and play

• Simple to install, plug and play

Note:This HDMI extender need to work well with single Ethernet switch or single Router for application,It can not compliance withInternet Ethernet switch or Internet Router,Because the bandwidth is large to affect work with Internet.

Specifications:

Video
Standards----------HDMI 1.3; HDCP 1.2
Maximum pixel clock------165MHz
Maximum data rate-------6.75Gbps
Resolution ------1920X1080P@60Hz
Connector-----HDMI-A
Impedance--------100Ω

UTP
Interface-----RJ45/IEEE-568B
Transmission distance--------CAT5:120m/400ft,CAT5e:160m/525ft,CAT6:200m/660ft

Other
Power supply-----The power adapter: DC 5V/1A
Power dissipation------MAX 8W
Temperature-------Operating: -5℃ ~ +70℃
Humidity-------Operating: 5% ~ 90%
Dimension-------94*71*25mm
The warranty--------1 year free warranty
