4 Port HDMI KVM USB 3.0 Switch 4X2 Dual Monitor 4K@60Hz Extended Display DP KVM

Product Description

If you like our products please you add to cart or add to Favorites,Surprise coupons is waiting for you to extract,
more refined small gifts free to send, please contact customer service.
If you follow our store and become our fans, you can get extra 5% discount for some designated products.

Description:

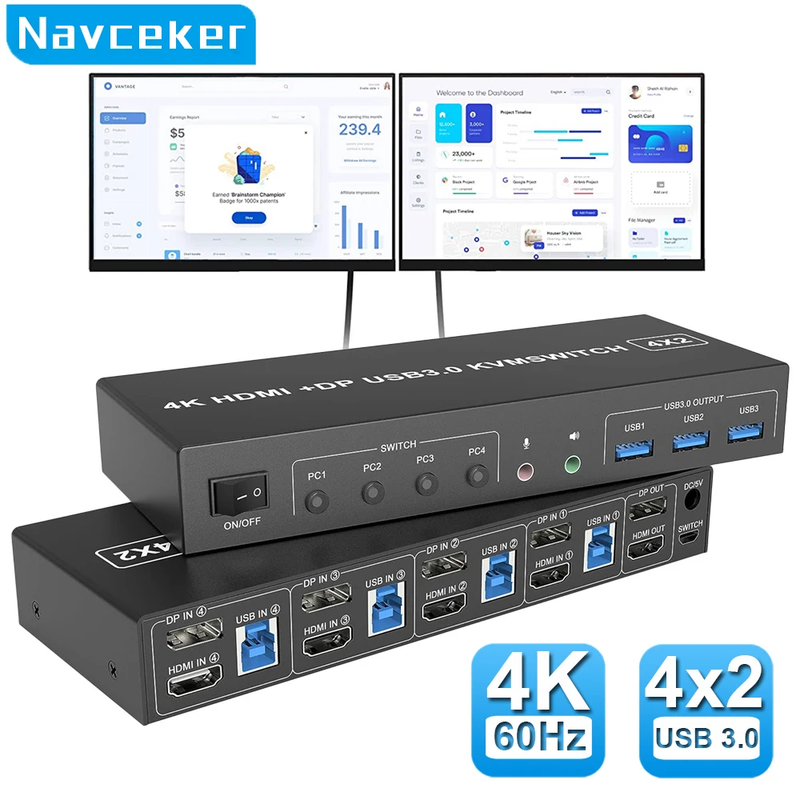

ZY-AHD42U,Navceker 4K 60Hz 4x2 HDMI + Displayport USB 3.0 KVM Switch allows you to share one USB keyboard, USB mouse, and One HDMI monotor and One DP monitor to control 4 computers, laptops, game consoles.

It is designed for multitask with four computers at your necessary, increasing productivity in the office or at home ; You can switch between 4 computers using a manual switch located on the top of the KVM unit.

There are 2 models optional, different model has different interface and appearance, please choose suitable model before purchase:

Features:

HDMI DP KVM Switch 4 Port Dual Monitor Extended Display, UHD 4K@60Hz RGB 4:4:4, USB Hub, Audio, Hotkey, Button Switching, PC Monitor Keyboard Mouse Switcher for 4 Computers 2 Monitors with Cables

• 【USB 3.0 KVM Switch Dual Monitor DisplayPort HDMI 4 Port 】This dual monitor 4 IN 2 OUT HDMI + DP KVM Switch is for you to control them using one set of keyboard, mouse and single or dual monitors to make your work space tidy and efficient, also a premium choice for working from home. Only when your computer supports dual display or multi display, you can use this KVM to achieve 4 PC to share 2 monitors. (Extended, mirrored or spliced display modes depend on your computer's graphics card).

• 【Displayport HDMI 2 Monitors KVM Switch up to 4K@60HZ】 This DP kvm dual monitor 4 port supporting high resolution max up to 4K@60Hz, and also supports 3D and 1080P@60Hz or other lower resolution (Downward Compatible). Complies with the DP 1.2 standard. Note: Only when both your computer Graphics card , monitor and DP/HDMI cable support 4K@60Hz then you can get 4K@60Hz effect, so if you want the max resolution you have to check your devices first.

• 【4 Computer 2 Monitor KVM Switch with 3 USB 3.0 Ports】Dual monitor Displayport HDMI KVM switch with 3 USB 3.0 ports which can recognize keyboard,mouse,printer,scaner and other USB devices. USB 3.0 offers data transfer speeds of up to 5Gbps, while USB 2.0 offers data transfer speeds of only 480Mbps.

• 【2 Switching Mode & LED Indicator】1. Toggle selection on front panel; 2. Wired remote switch. Compatible with a variety of computer systems,such as Windows, Linux, Mac, Unix, Ubuntu, Raspberry and most other major OS; also supports DP/HDMI devices without USB signal input like DVR, NVR etc. LED indicate the active computer.

• 【Important】After connecting the computers and the monitors through KVM, you need to set the screen output mode on the computer (press Windows+P) and select the output mode in the pop-up window on the screen.We offer 12 months warranty. Tips 1: If you encounter problems when using the KVM connection, please contact us for after-sales support in time.Tips 2: hotkey switching is not supported.

Dual Monitor 4 Port HDMI + DP USB 3.0 KVM Switch 4K@60Hz

Product Features:

• 4 computers/laptops share one set of keyboard, mouse and dual monitors, and more USB 3.0 ports;

• Support maximum resolution up to 4K 60Hz YUV 4:4:4, HDCP 2.2, HDR 10; Dual monitors output support up to 4K@60Hz for extended and mirrored display;

• Compatible with Windows 11/10/7/2000/XP/Vista, Linux, UNIX, Ubuntu, Fedora, and other systems;

• Advanced switching modes: push button and wired remote;

• No complicated installation is required, and non-professionals can easily operate it;

• The ports that need to plug in HDMI/USB cables are all hidden behind the KVM, so the desktop doesn't get cluttered;

• Audio Microphone output.

Connection steps:

1. Insert the DC/5V adapter into the KVM ;

2. Plug the DP/HDMI cable into the KVM and monitor;(Output)

3. Plug the DP/HDMI cable and USB cable into the KVM and your computer/laptop (DP cables are not included)(Input)

DP IN1 + HDMI IN1 + USB IN1=PC1

DP IN2 +HDMI IN2 + USB IN2=PC2

DP IN3 + HDMI IN3 + USB IN3=PC3

DP IN4+ HDMI IN4+ USB IN4=PC4

4. Insert the mouse and keyboard into the KVM switch

5. If needed, you can connect a microphone and audio port

USB 3.0 interface 4 PCs 2 Monitors with 5Gbps

• Supports 5Gbps data transfer speed , can transfer files in Seconds, Much faster than USB 2.0.

• 3 USB 3.0 ports, backward compatible with USB 2.0 and USB 1.1, share USB devices such as keyboard mouse scanner, printer, flash drive, etc.

3 Display Modes

• Extended Display

• Mirrored Display

• Spliced Display

Support up to 4K@60Hz for extended and mirrored display

Supports high resolution up to 4K@60Hz and downwards.

Note: Only when both your computer Graphics card and monitor support 4K@60Hz then you can get 4K@60Hz effect, so if you want the max resolution you have to check your devices first.

Support 2 Switching Modes

Quickly switch between the 4 computers with just one click of the switch button on the panel or use the wired remote controller (included in the package).

Please note: This KVM does not support hotkey switching.
