Product Description

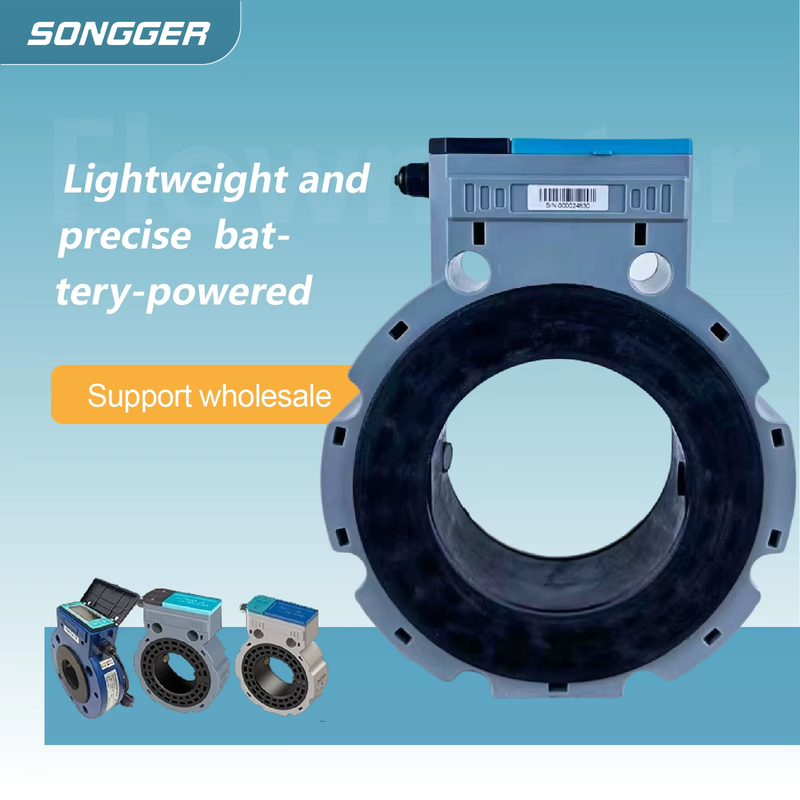

Ultrasonic Flow Meter CK-ASW-1-K Smart Battery Powered IP68 Waterproof Water Meter for Pipe Leak Detection and Irrigation
Ultrasonic Flow Meter CK-ASW-1-K Smart Battery Powered IP68 Waterproof Water Meter for Pipe Leak Detection and Irrigation1.NOTE
This Card-Type Ultrasonic Flow Meter is suitable for accurate flow measurement of liquids such as water, seawater, and wastewater, and can be customized for other corrosive liquids.
Default Configuration Includes:
Pipe Size Compatibility: DN15–DN150
Supported Pipe Materials: Steel, Stainless Steel, Aluminum, PVC
Interfaces: RS485, Infrared (Optional: M-BUS, NB-IoT Wireless Transmission.If you want to transmit data wirelessly, please get a module that supports RS485 and can work with your online system. We’re not familiar with the online platforms in your country, so we can’t recommend a specific one. However, we can provide the interface protocol to help you integrate easily. Thanks for your understanding.)
Power Supply: 3.6V Lithium Battery (Optional: DC8–24V)
Accuracy: ±2%
Order Information:
Please select the appropriate diameter based on your flow range requirements.
For customization, please contact us.
2. PARAMETERS
Color Options | DN50 to DN150 with RS485, NB wireless module, 4G |
Communication | RS485, customizable NB wireless |
Material | Plastic |
Installation Method | Flange Clamp |
Accuracy | 2% |
Standard Compliance | IS04064-2014, GBT778-2018 |
Measured Fluid | Water, Sewage, Seawater (customizable for other liquids) |
Fluid Temperature | 0.1-30°C |
Environment Temperature | -30-45°C; Humidity 100% (RH) |
Pressure Resistance | 1.6 MPa |
Pressure Loss | None |
Flow Field Sensitivity | U5 (Upstream), D3 (Downstream) |
Climate & Mechanical Class | C |
Electromagnetic Class | E2 |
Communication Interface | RS485/USART/Infrared, Optional M-BUS; NB-IoT wireless transmission |
Output Signal | Optional OCT |
Power Supply | Built-in Lithium Battery (3.6V, 4Ah) / External DC8-24V |
Protection Rating | IP68 |
Display | Dual-line local display showing 9-digit cumulative flow, 6-digit instantaneous flow, and various status indicators and units |
Data Storage | Ferroelectric memory stores parameters, automatically recording cumulative flow for the past 32 months and 31 days |
Measurement Frequency | Standard: 1/sec (adjustable), Calibration: 4/sec |
Power Consumption | <30uA, Battery lasts up to 15 years |
Material Composition | Nylon + Fiberglass for tube, PEEK sensor, UV-resistant ABS |
3.APPLICATIONS
Suitable for pipes made of steel, stainless steel, aluminum, PVC, and other dense materials.
Applicable for fluid measurements in agriculture, water resource management, and industrial usage.
Ideal for pipelines from DN15 to DN150, supporting bi-directional flow measurement.
4. FEATURES
Dual-Channel Ultrasonic Measurement: Ensures long-term accuracy and stability in various fluid conditions.
Battery Powered: Equipped with a lithium battery that lasts up to 10 years, with an option for external power supply.
IP68 Waterproof Design: Robust waterproofing makes it suitable for harsh environments.
High-Definition LCD Display: Shows 9-digit cumulative flow, 6-digit instantaneous flow, multiple unit options, and status indicators.
5. FAQ
Q: Can this meter measure seawater or wastewater?
A: Yes, this flow meter is designed for water, sewage, and seawater measurements. For other liquid types, please contact us for customization options.
