Product Description

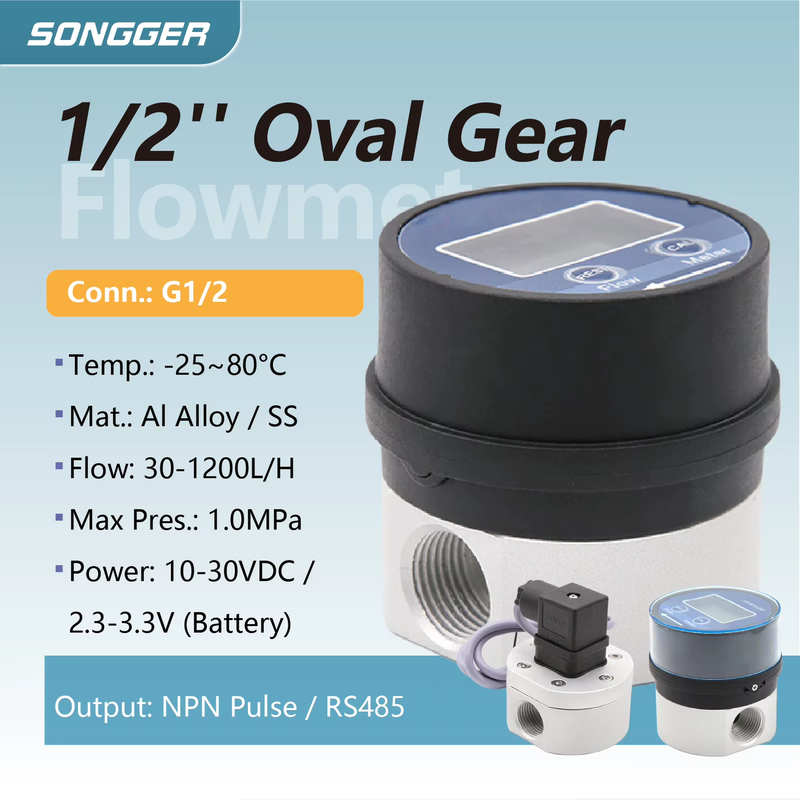

G1/2 Digital Oval Gear Fuel Flow Meter RS485 Modbus Diesel Oil Sensor Positive Displacement Stainless Steel Body
G1/2 Digital Oval Gear Fuel Flow Meter RS485 Modbus Diesel Oil Sensor Positive Displacement Stainless Steel Body
1.NOTE

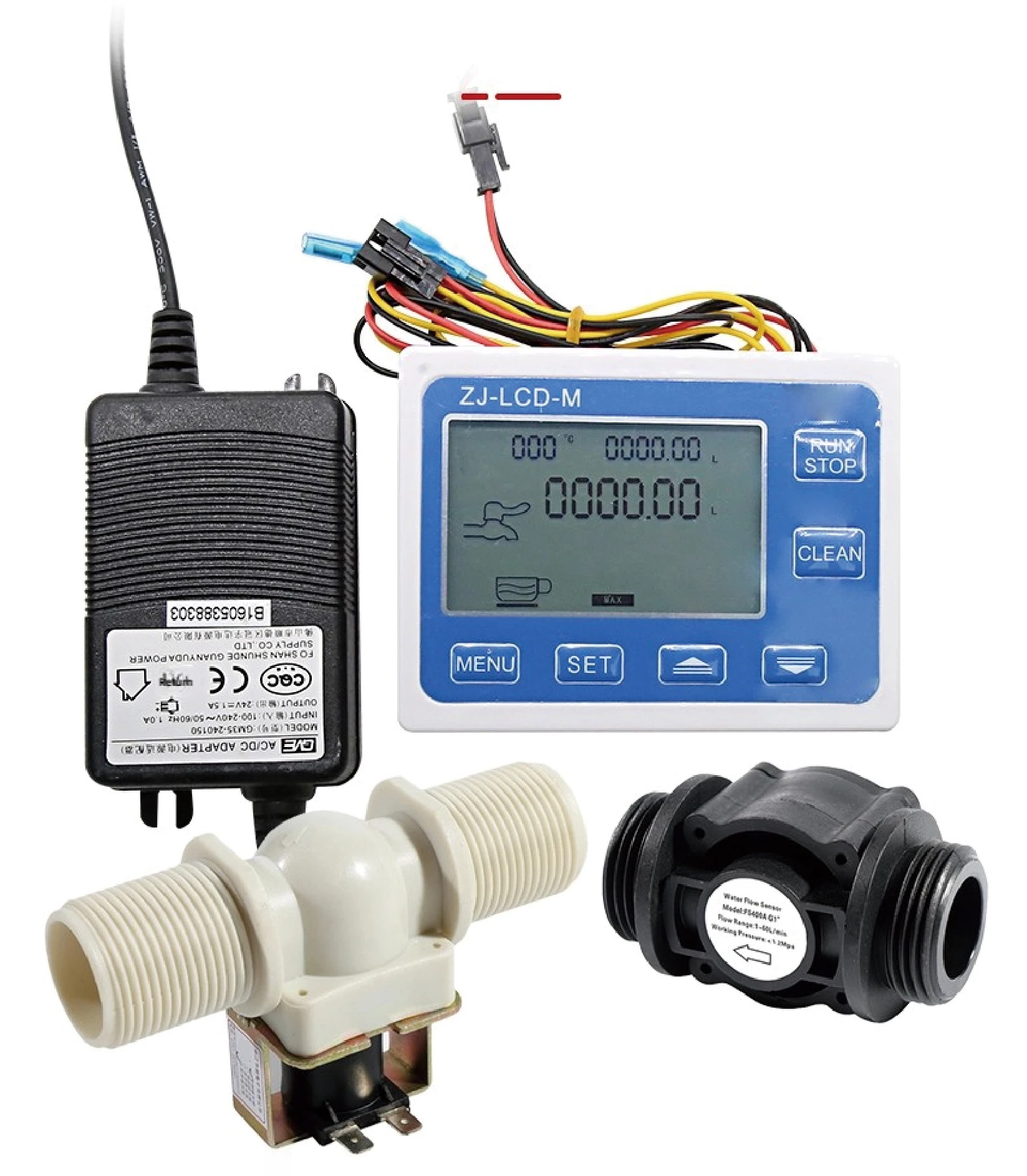

Default Configuration:

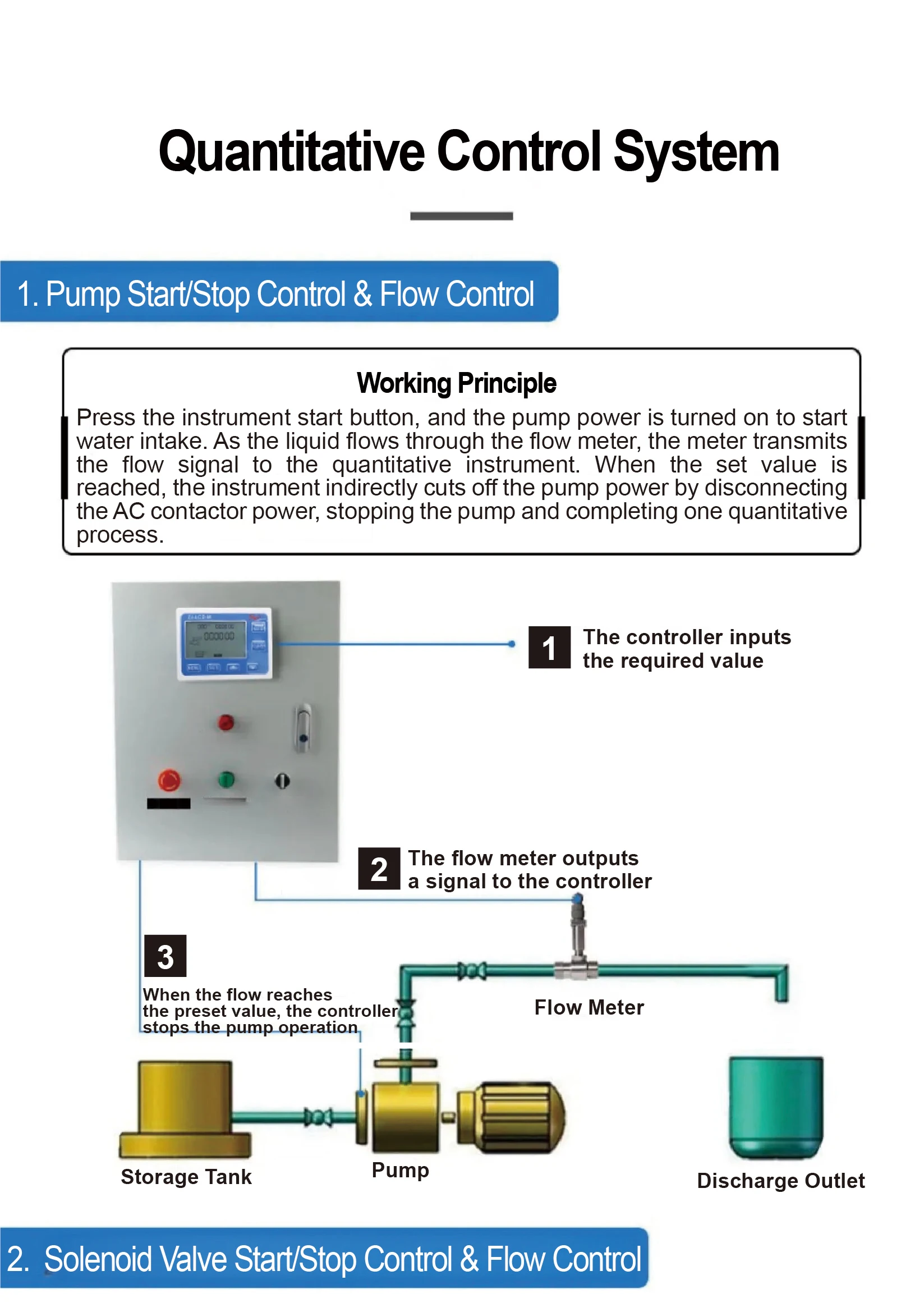

Quantitative Control + G1 Solenoid Valve + G1 Flow Meter
· Quantitative Control: DC 24V
· 1" Flow Meter: DC 5V, Flow Range:2-60L/min
· 1" Solenoid Valve: DC 12V (Normally Closed)
Reminder! Ensure you choose the correct pipe diameter and set the appropriate K-value for accurate measurement.
Note: Water pressure is required for operation. Pressure range: 0.5-8 bar. It cannot be used in a pressureless environment!
2. Parameters

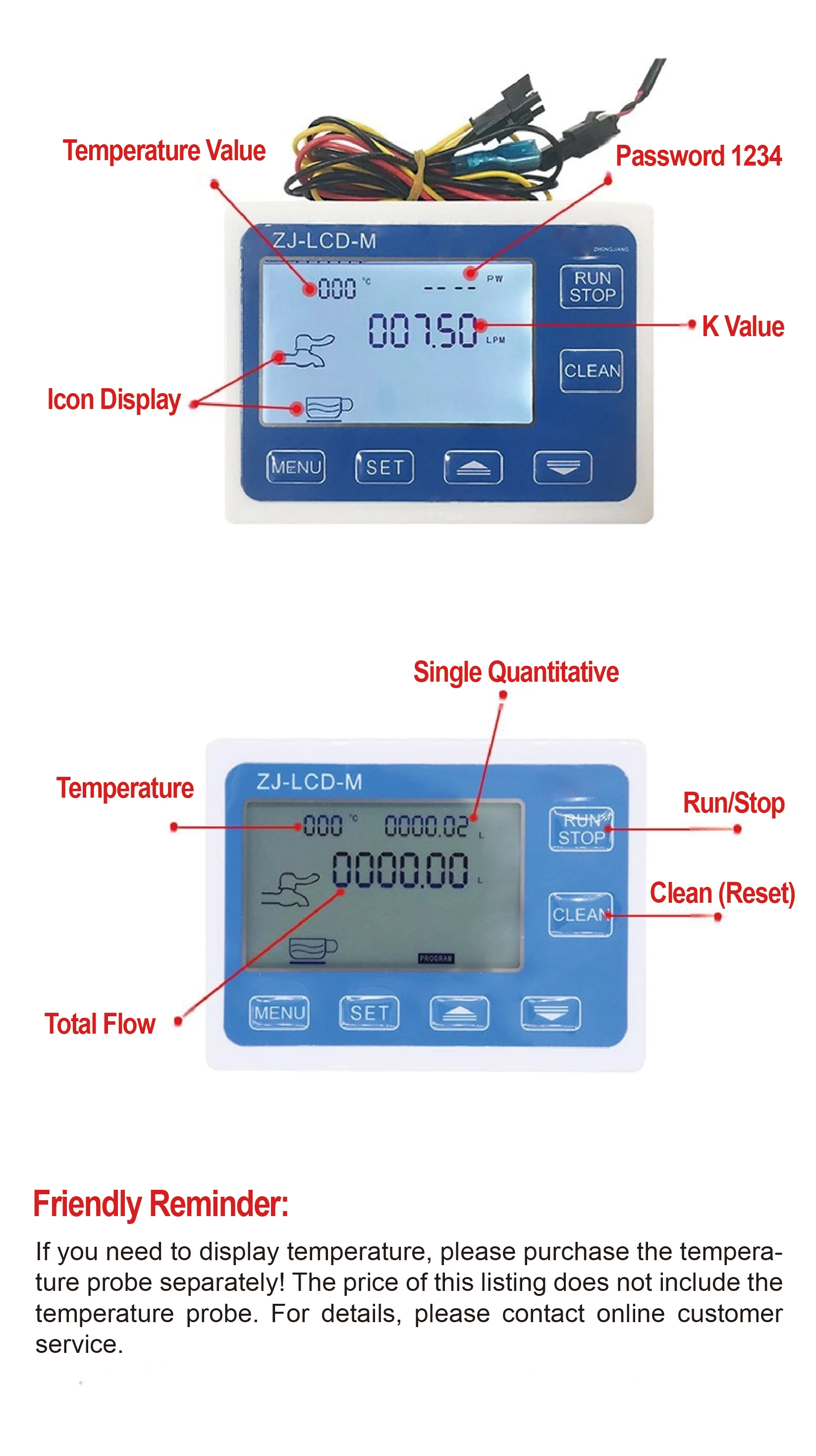

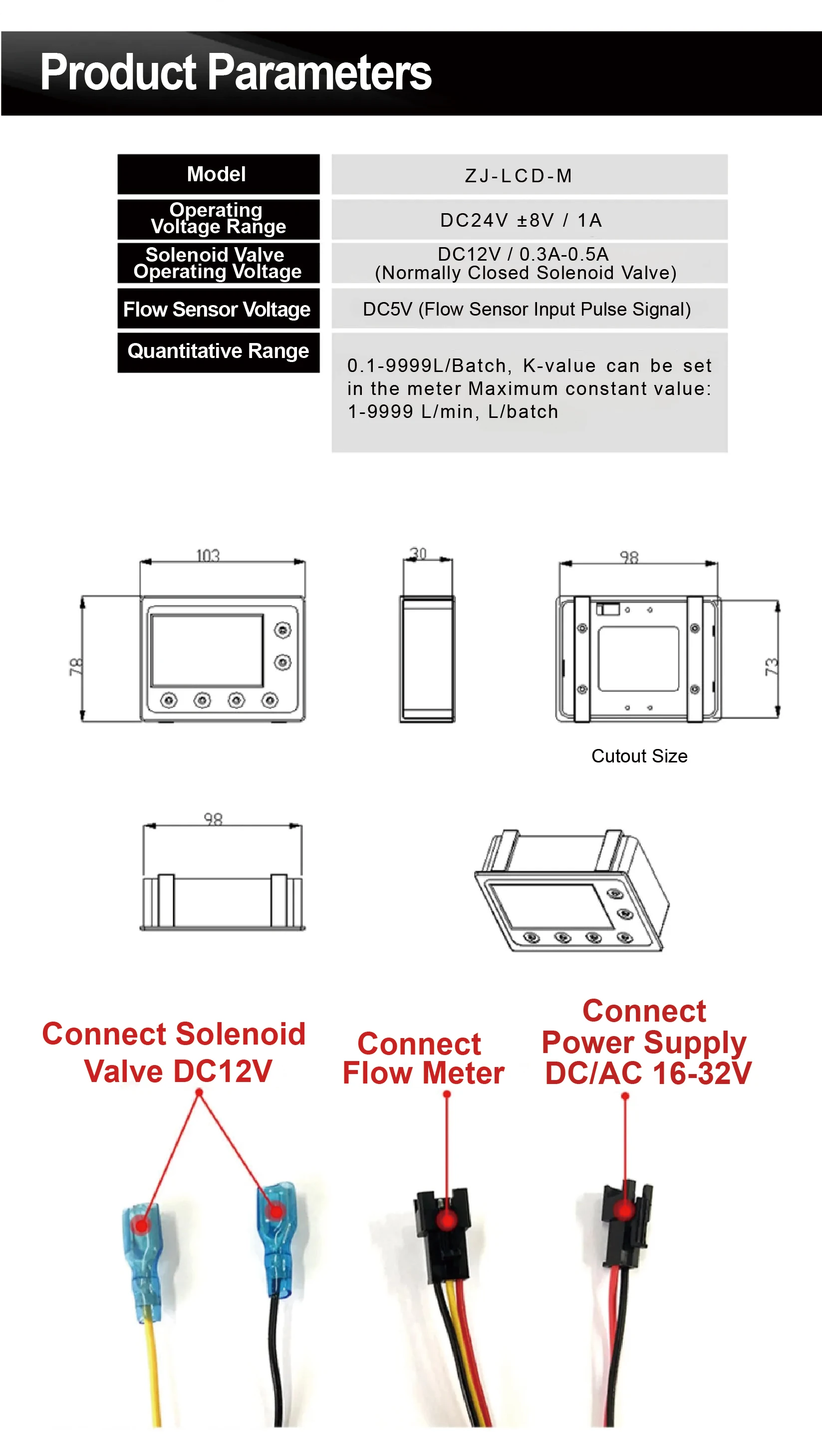

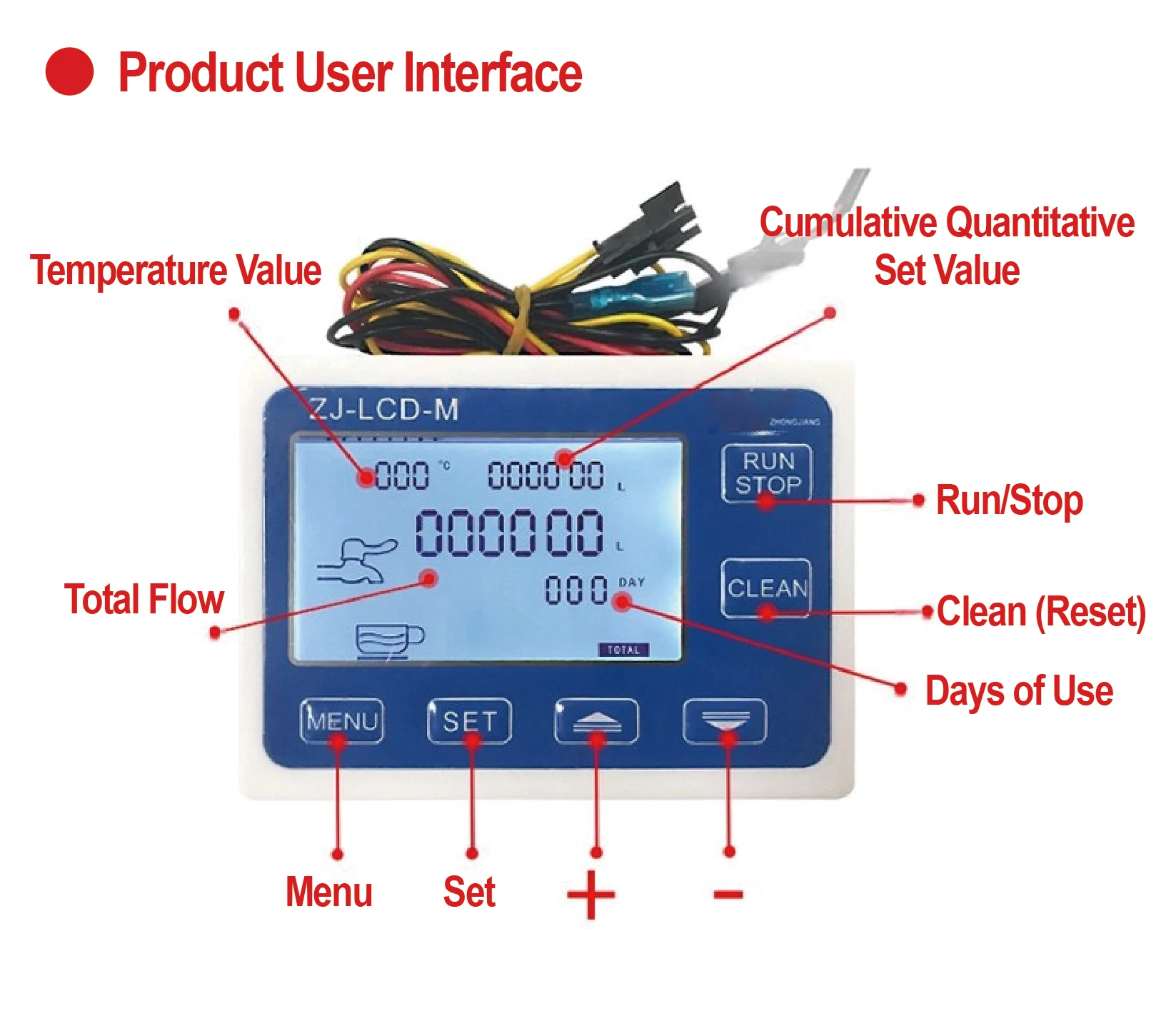

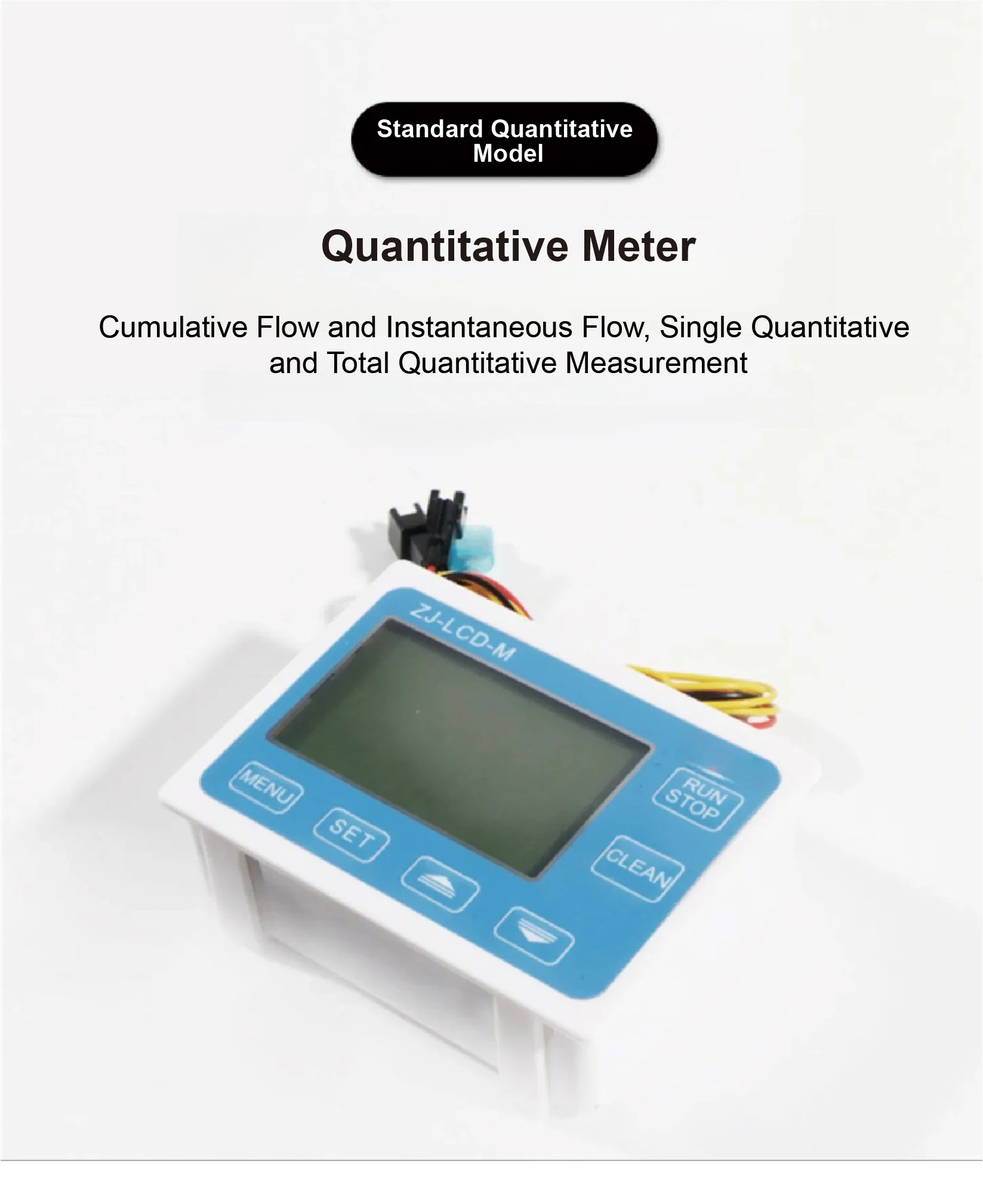

Flow Meter Controller (Model: ZJ-LCD-M)
Parameter | Specification |
Model | ZJ-LCD-M |
Operating Voltage | DC 24V ±8V / 1A |
Solenoid Valve Voltage | DC 12V / 0.3A-0.5A (Normally Closed) |
Flow Sensor Voltage | DC 5V (Pulse Input) |
Flow Control Range | 0.1 - 9999 L/Gal |
Adjustable K-Value | Yes (1-9999 L/min or Gal/min) |

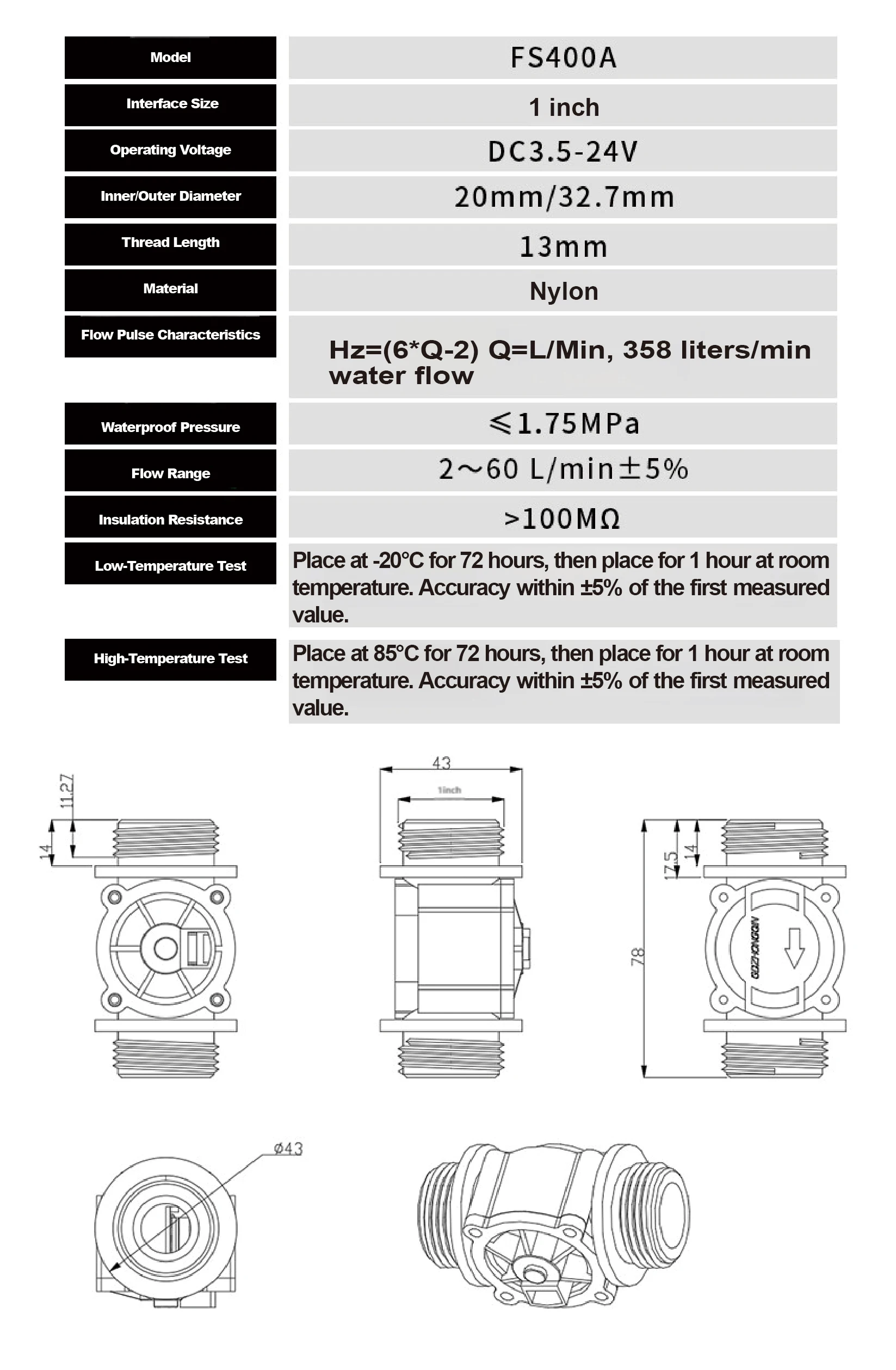

1-Inch Flow Meter (Model: FS400A)
Parameter | Specification |
Model | FS400A |
Thread Size | 1 inch (G1) |
Operating Voltage | DC 3.5-24V |
Inner/Outer Diameter | 20mm / 32.7mm |
Thread Length | 13mm |
Material | Nylon |
Pulse Characteristics | Hz = (6 × Q - 2), Q = L/min (358 pulses per liter) |
Max Water Pressure | ≤1.75 MPa |
Flow Rate | 2 - 60 L/min ±5% |
Insulation Resistance | >100MΩ |
Low-Temperature Test | -20°C for 72h, then 1h at room temperature, accuracy within ±5% |
High-Temperature Test | 85°C for 72h, then 1h at room temperature, accuracy within ±5% |

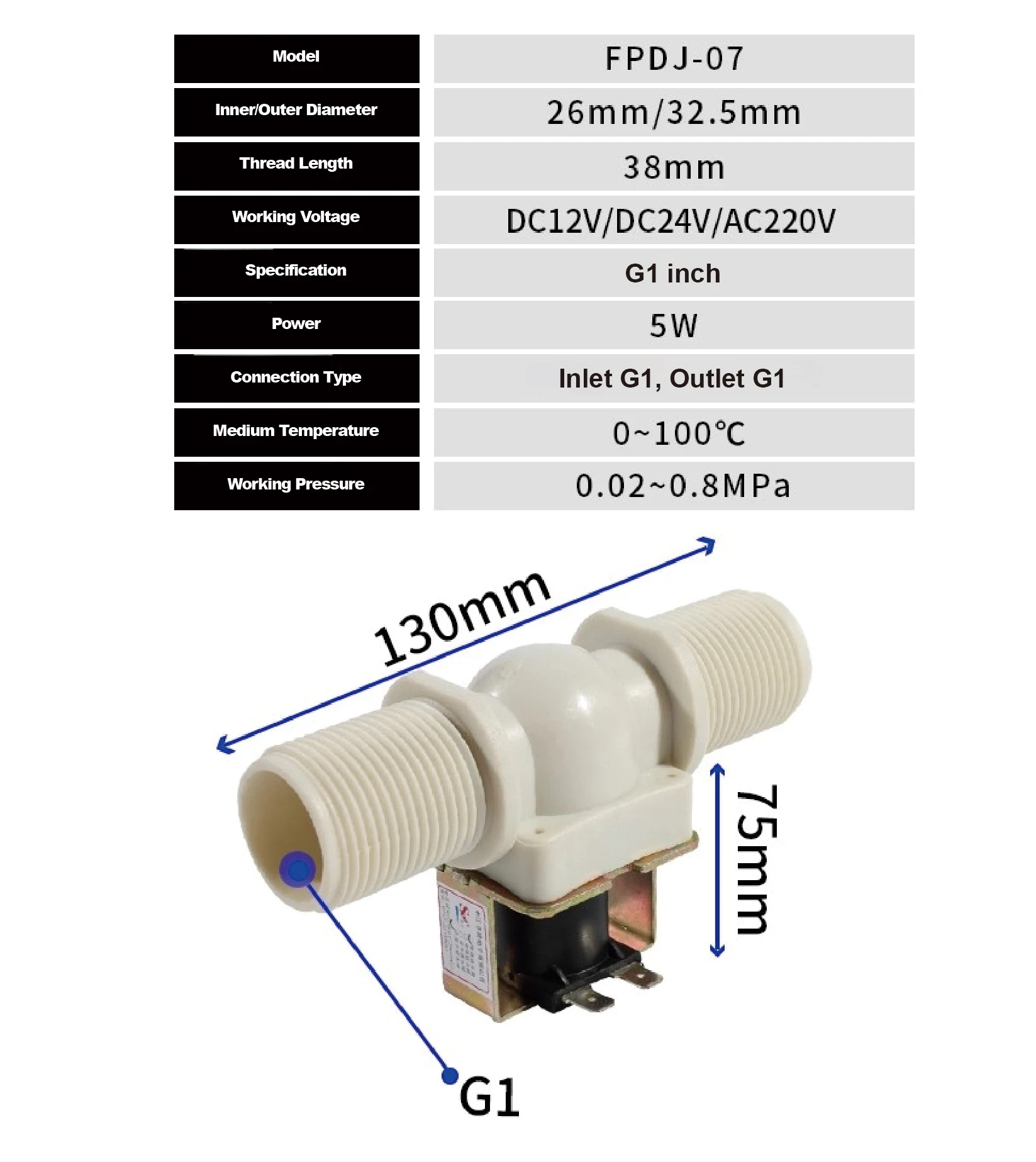

1-Inch Solenoid Valve (Model: FPDJ-07)
Parameter | Specification |
Model | FPDJ-07 |
Inner/Outer Diameter | 26mm / 32.5mm |
Thread Length | 38mm |
Operating Voltage | DC 12V / DC 24V / AC 220V |
Thread Size | G1 (1 inch) |
Power | 5W |
Connection Type | Inlet: G1, Outlet: G1 |
Medium Temperature | 0 - 100°C |
Working Pressure | 0.02 - 0.8 MPa |
3. Features
High Precision Measurement– Adjustable K-value ensures accurate liquid/gas flow measurement.
Easy Installation & Setup– Plug-and-play design with a user-friendly interface.
Multi-Industry Applications– Ideal for petroleum, chemical, and food industries.
Durable & Reliable– Made with high-quality materials for long-term stability.
Customizable Display– English default panel, Chinese panel available upon request.
4.Applications
Petroleum Industry
Chemical Processing
Food & Beverage Industry
Water Treatment Systems
Industrial Flow Control
5.FAQs
Q1:Does this flow meter require water pressure?
A1:Yes, it requires a pressure range of 0.5-8 kg. It will not work in a zero-pressure environment.
Q2:Can I adjust the K-value for better accuracy?
A1:Yes, the K-value can be set on the display for precise calibration.
Q3Is the display in English or Chinese?
A3:The default panel is in English. If you need a Chinese panel, please leave a note or contact customer service.
