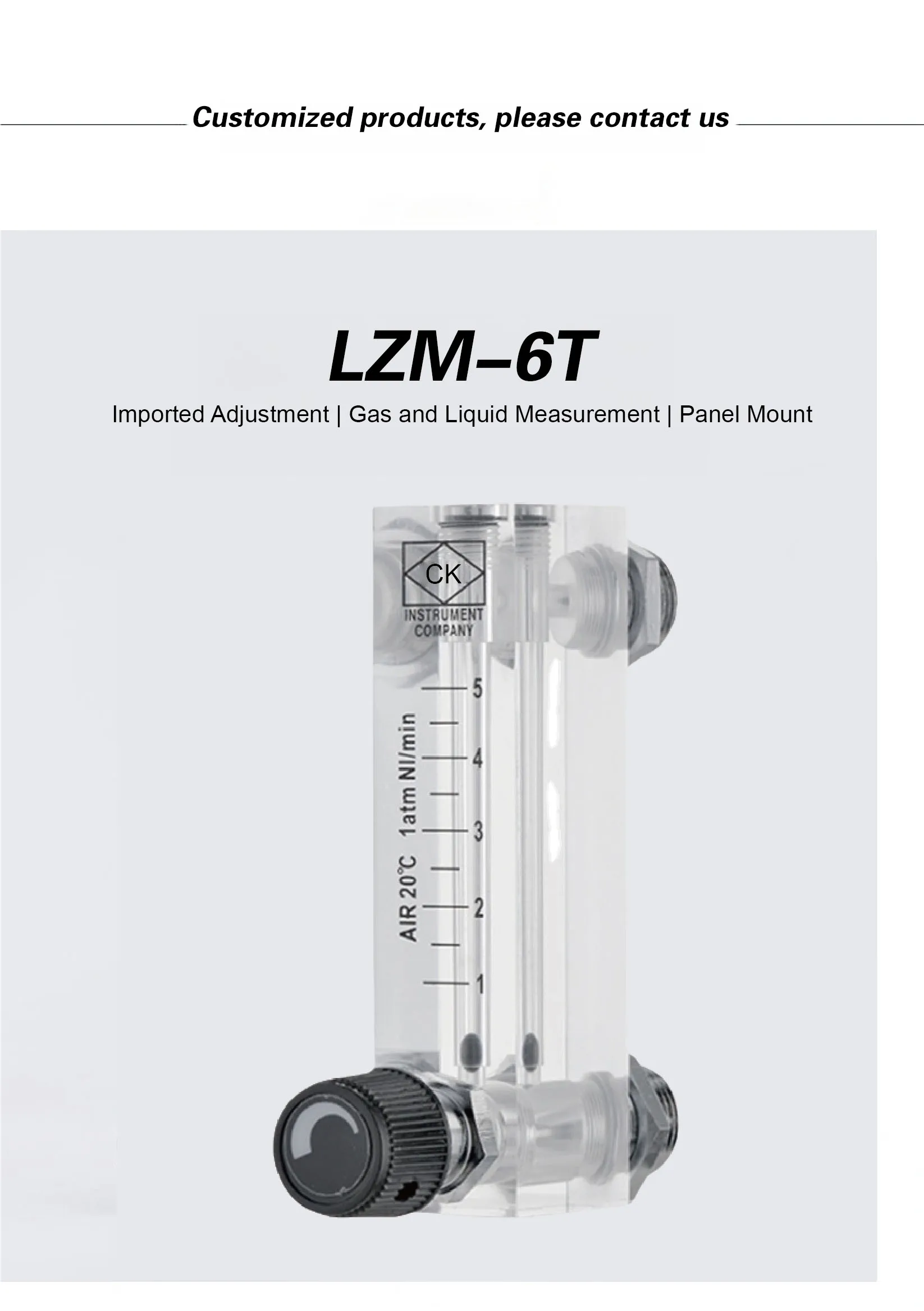

Gas Float Flow Meter LZM-6T Acrylic Rotameter Panel Mount Flowmeter w/ Valve for Air O2 CO2 Argon Small Variable Area
Gas Float Flow Meter LZM-6T Acrylic Rotameter Panel Mount Flowmeter w/ Valve for Air O2 CO2 Argon Small Variable Area
This LZM gas series is calibrated based on air density [for use with air only].
Use with other gases may result in inaccurate measurements or irreversible damage and safety issues!
The liquid series is calibrated based on water density [similarly, for use with pure water only].
Other special media (e.g., mixed gases, hydrogen, ammonia, chlorine, argon, methanol, acetone, etc.)
require a customized flow range → [Please contact customer service for customization].
1.NOTE

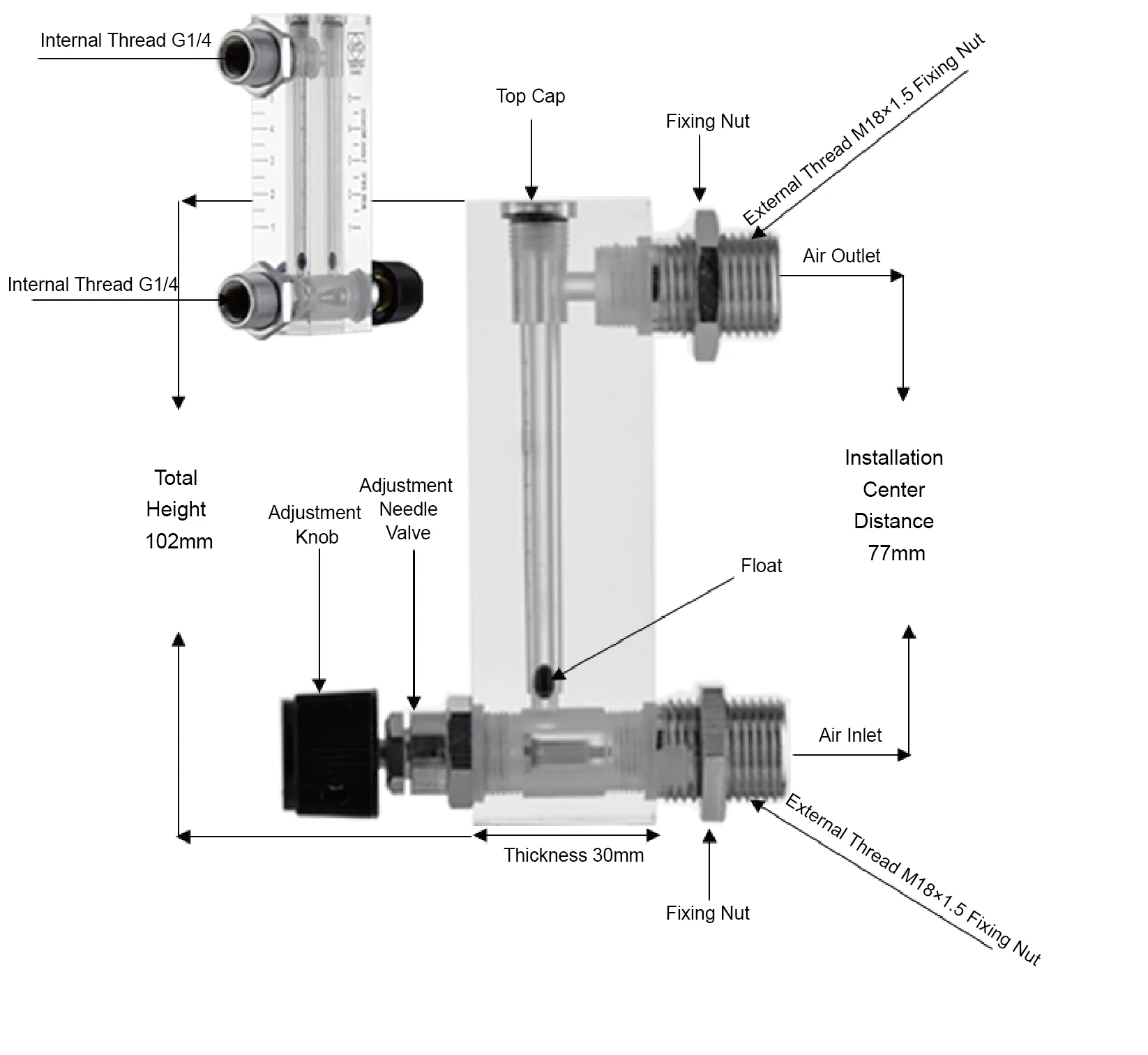

Default Configuration (LZM-6T):
· Material: Clear acrylic body with excellent visibility.
· Connection: Internal G1/4 threads.
· Measurement Range:
Gas: 0.1–100 L/min or 0.04–0.4 m³/h.
Liquid: 6–60 L/h.
· Accuracy: Class ±4%.
· Operating Conditions:≤60°C, ≤0.6MPa.
· Installation: Vertical mounting, with the float's top as the reference reading point.
Optional Configurations:
· Connection Types: Quick connectors for alternative installation needs.
· Measurement Range:
Additional options available for both gas and liquid flow rates, including:
Gas: 0.2–2 m³/h.
Liquid: 6–60 L/h.
· Pulsation Mitigation: Add a buffer upstream to stabilize readings for pulsating flows.
· Impurity Management: Include a filter for media containing solid particles.

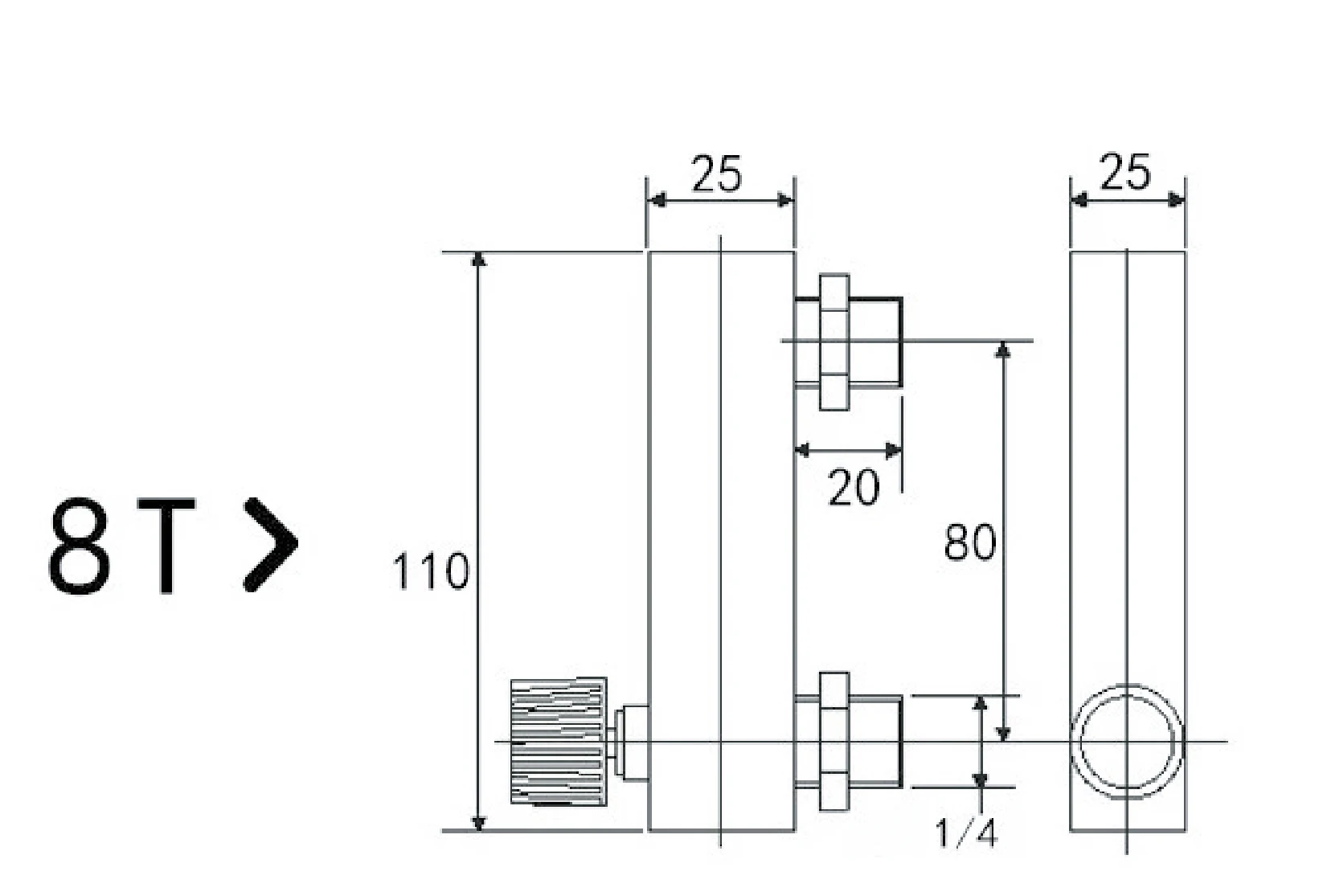

· Other Models: Choose from LZM-4T or LZM-8T for specialized flow ranges or connection options.

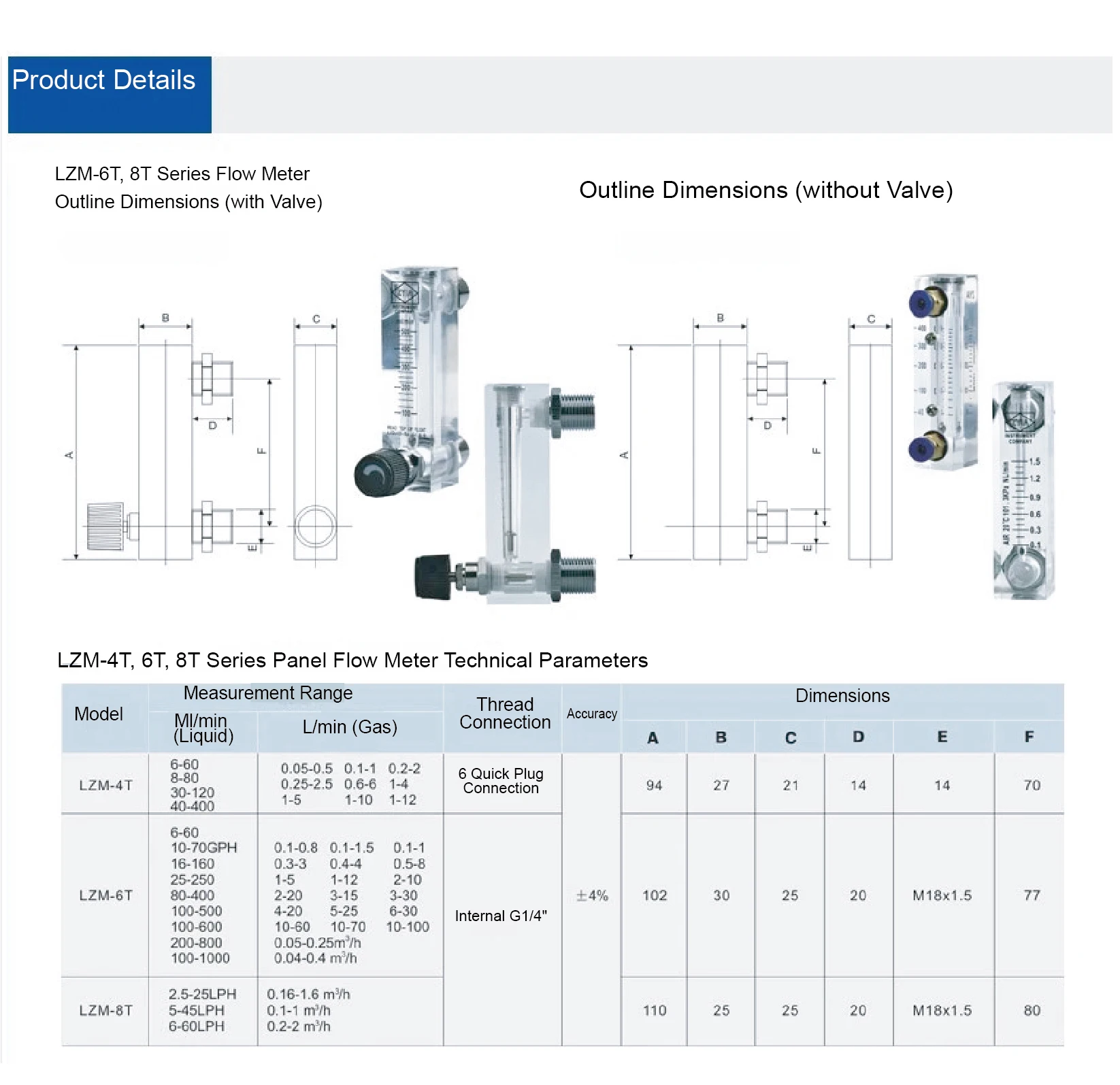

2.Parameters
Specification | Details |
Material | Acrylic (Adjustable) |
Model | LZM-6T |
Operating Temperature | 60°C |
Operating Pressure | ≤0.6 MPa |
Accuracy Level | ±4% |
Connection Thread | Inner G1/4 |
3.Features
Versatile Flow Measurement

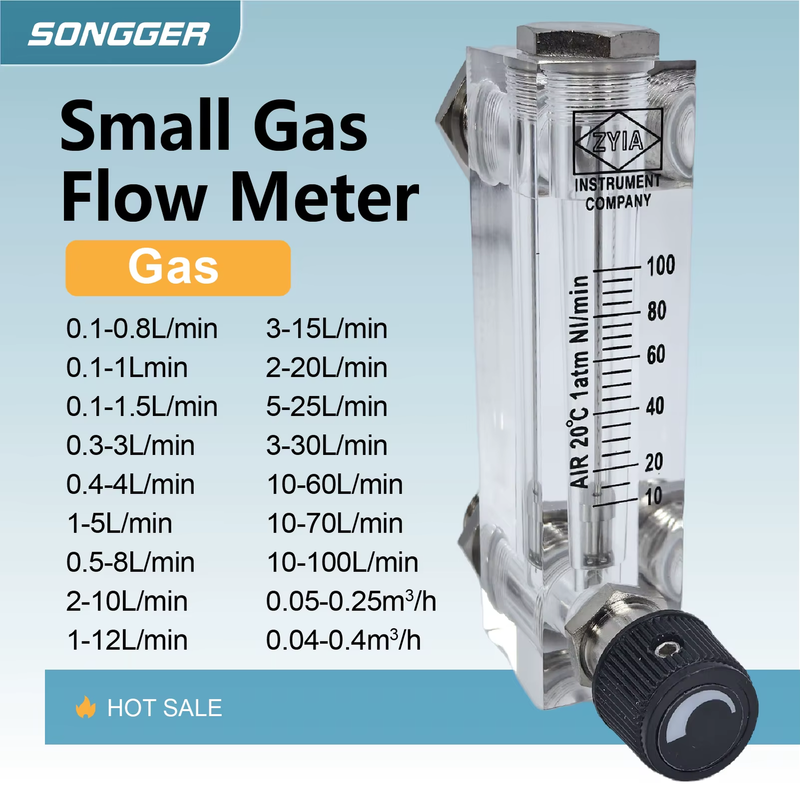

Gas flow range: 0.1-100 L/min, 0.04-0.4 m³/h.
Liquid flow range: 6-1000 mL/min.
Robust Acrylic Construction
Lightweight yet durable with excellent visibility.
Easy Installation and Use
Vertical installation with a clear scale for accurate readings.
Customizable Settings
Adjustable flow rates to meet specific application requirements.
4.Applications
Ideal for laboratory experiments, water treatment systems, gas flow monitoring, and industrial processes requiring precise flow control.
5.FAQs
Q: Can this flow meter be used for organic solvents like alcohol or acetone?
A: No, the flow meter is not compatible with alcohol, gasoline, acetone, or similar organic solvents.
Q: What is the recommended installation orientation?
A: The flow meter must be installed vertically for accurate readings.
Q: How can I prevent blockages in the flow meter?
A: Install a filter at the inlet if the medium contains particles.
