Product Description

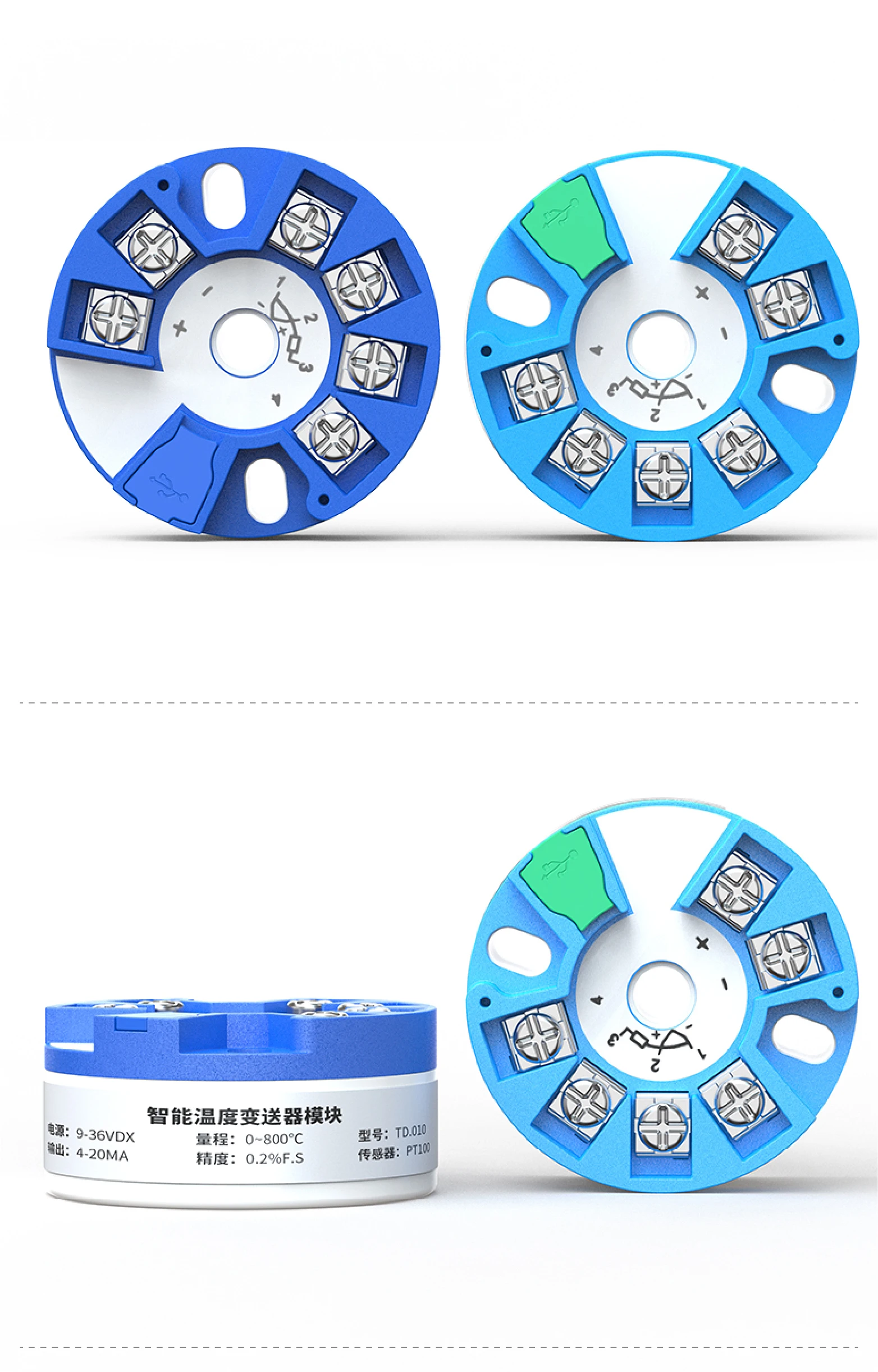

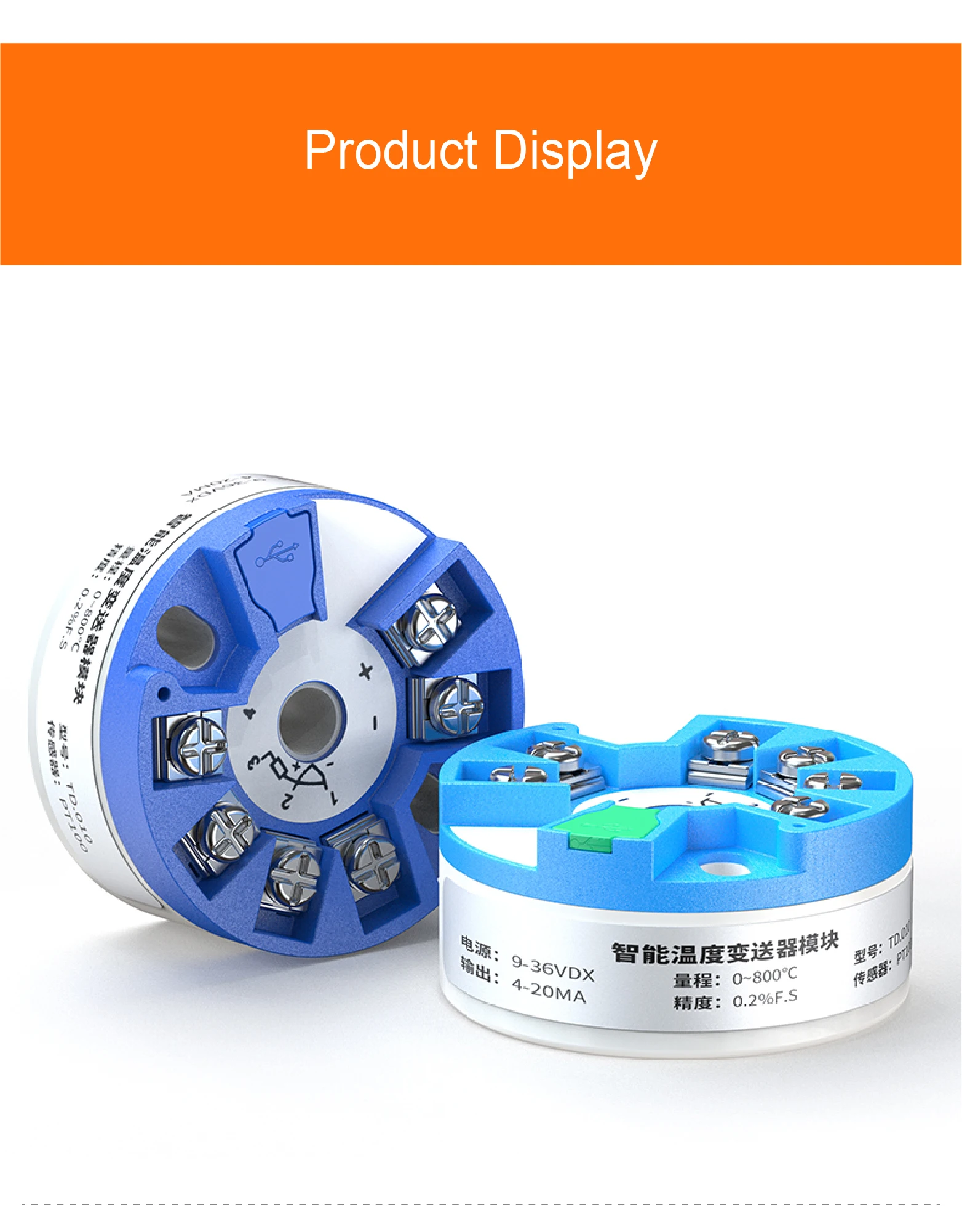

4-20mA Temperature Transmitter Module PT100 K Type Thermocouple RTD Signal Converter Head Mount Industrial Use
4-20mA Temperature Transmitter Module PT100 K Type Thermocouple RTD Signal Converter Head Mount Industrial Use1.NOTE
Due to page limitations, some temperature ranges and output options may not be listed. If you have special requirements, please contact us or leave a note during checkout.
Default Configuration Includes:
Temperature Range: 0–1300℃ (Optional: 0–100, 0–200, 0–300, 0–400, customizable)
Output Signal: 4–20mA
Power Supply: 12–35VDC

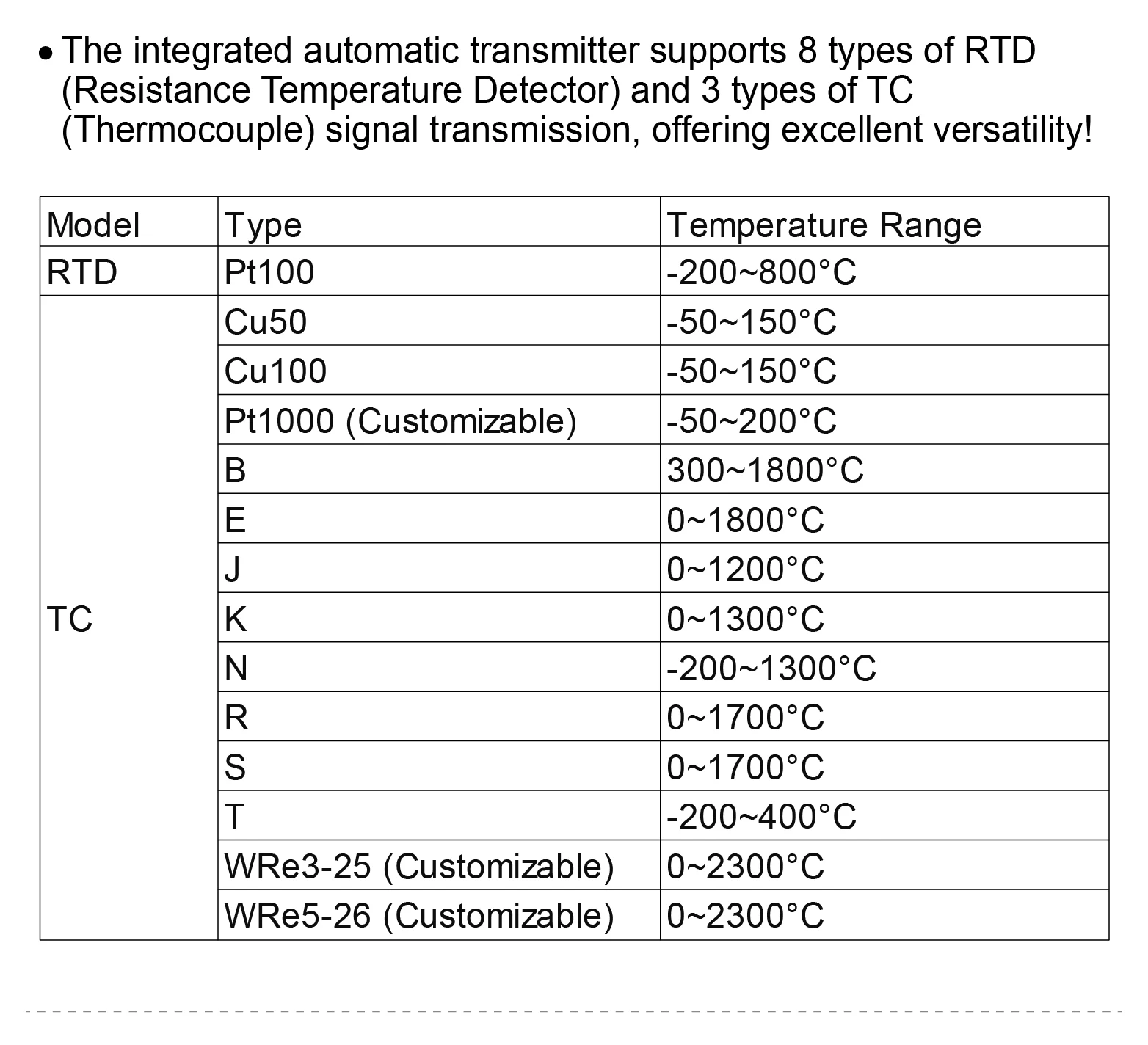

- Sensor Compatibility: Supports multiple sensor inputs, including:
RTD: PT100, PT1000, CU50
Thermocouples: K, E, J, T, S, R, N, B
Please select the appropriate temperature range before placing an order. The device supports an adjustable temperature range.
Optional configurations include extended temperature ranges and output parameter adjustments (0-10V / 0-5V / RS485).
For customization, please contact us.

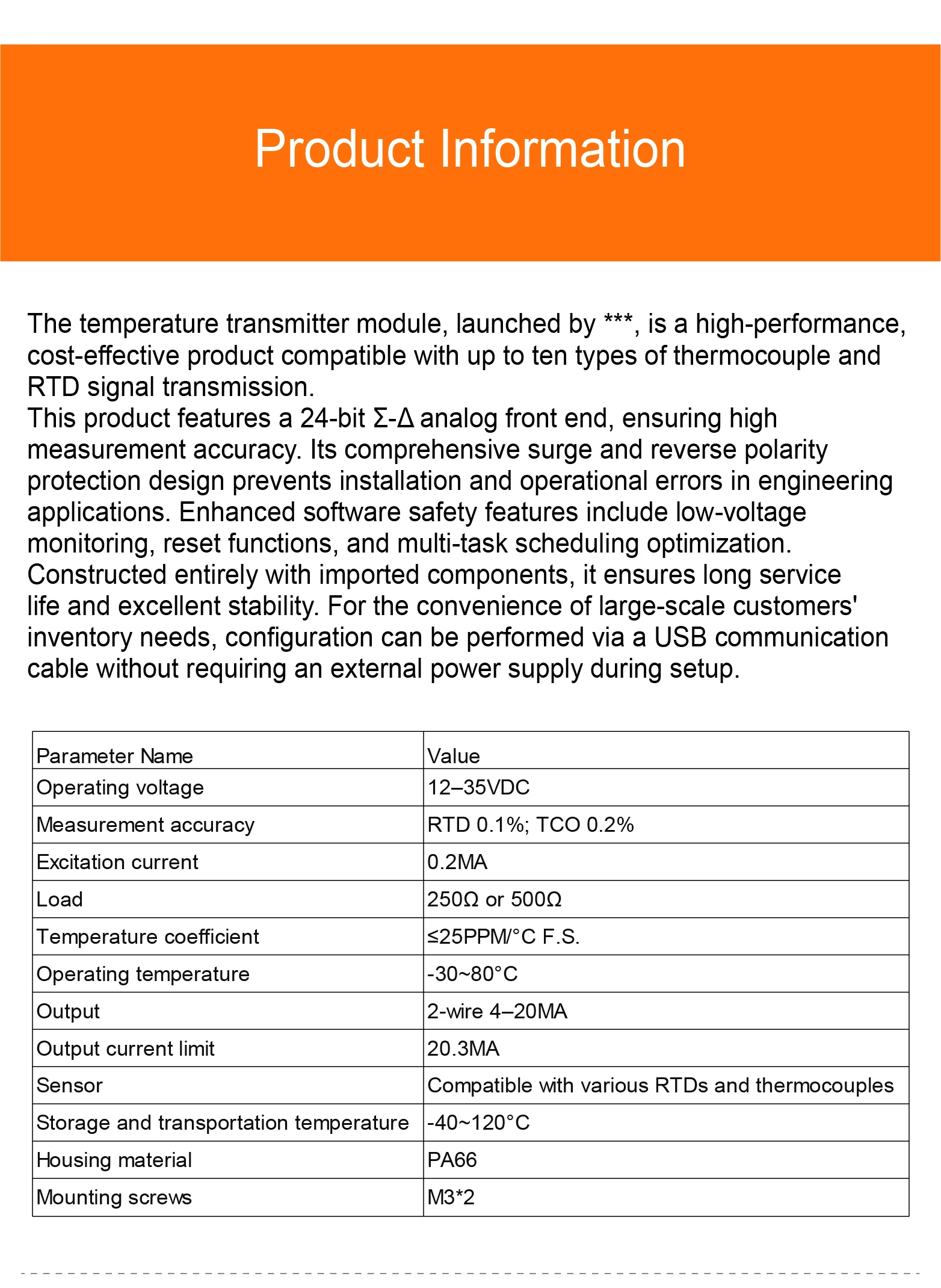

2.Parameters
Parameter | Description |
Power Supply | 12-35VDC |
Measurement Accuracy | RTD: 0.1%; TC: 0.2% |
Excitation Current | 0.2mA |
Load Resistance | 250Ω or 500Ω |
Temperature Coefficient | ≤25PPM/°C F.S. |
Operating Temperature | -30~80°C |
Output Signal | 4-20mA |
Output Current Limit | 20.3mA |
Compatible Sensors | RTD, Thermocouple |
Transport/Storage Temp. | -40~120°C |
Housing Material | PA66 |
Mounting Screws | M3*2 |

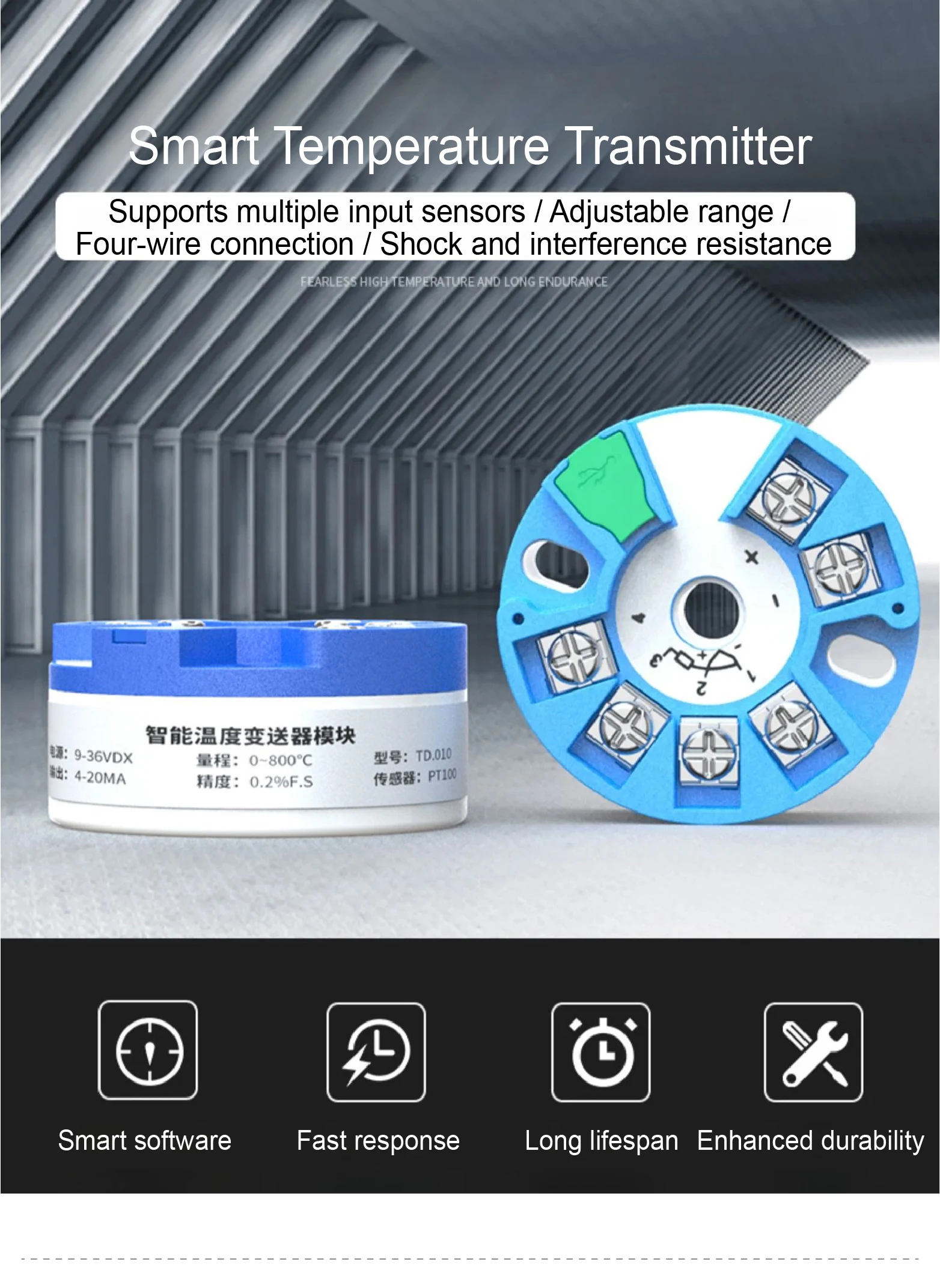

3.Features
Smart Adjustment via USB:
Easily connect to a PC through USB to customize input temperature signals and switch ranges as needed.
Fast Response and Stability:
Chip-based control ensures quick output adjustment with superior anti-vibration capabilities for long-term stability.
Long Service Life:
Offers professional-grade 0.2% FS accuracy with adjustable ranges and built-in cold junction compensation.
Enhanced Durability for Extreme Conditions:
Supports temperature adjustments for RTDs and thermocouples, enabling reliable operation in both low and high temperatures.
4.Applications
Industrial automation and control systems
Oil, gas, and chemical industries requiring precise temperature monitoring
High-demand environments needing anti-vibration and interference-resistant sensors
5.FAQs
Q1:What types of sensors are compatible with this transmitter?
A1:The transmitter supports a wide range of RTDs (e.g., PT100, PT1000, CU50) and thermocouples (e.g., K, E, J, T, S, R, N, B).
Q2:Can the output range be customized?
A2:Yes, you can adjust the output range via USB using the dedicated software.
Q3:What is the accuracy level of the transmitter?
A3:The accuracy is 0.1% for RTD and 0.2% for thermocouples
