200m IP Network VGA KVM Extender RJ45 VGA Extender USB Over Cat5 Cat5e Cat6 Cabl

Product Description

Description:

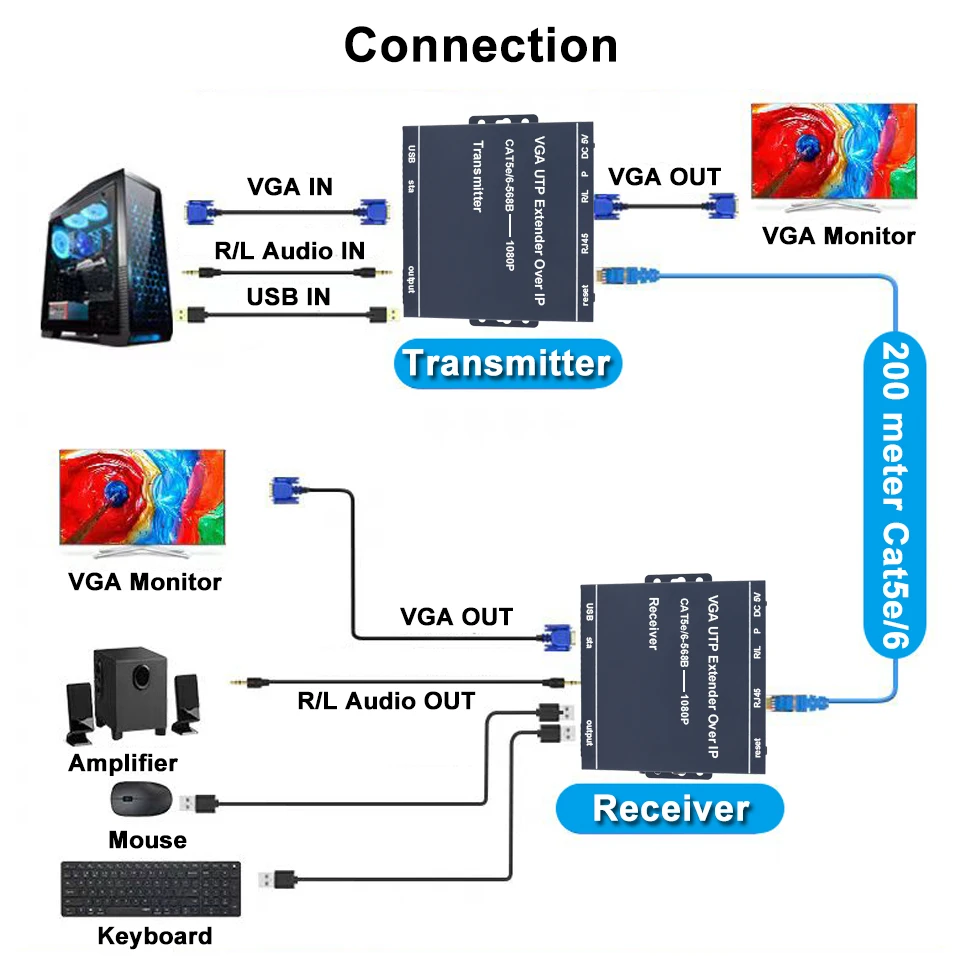

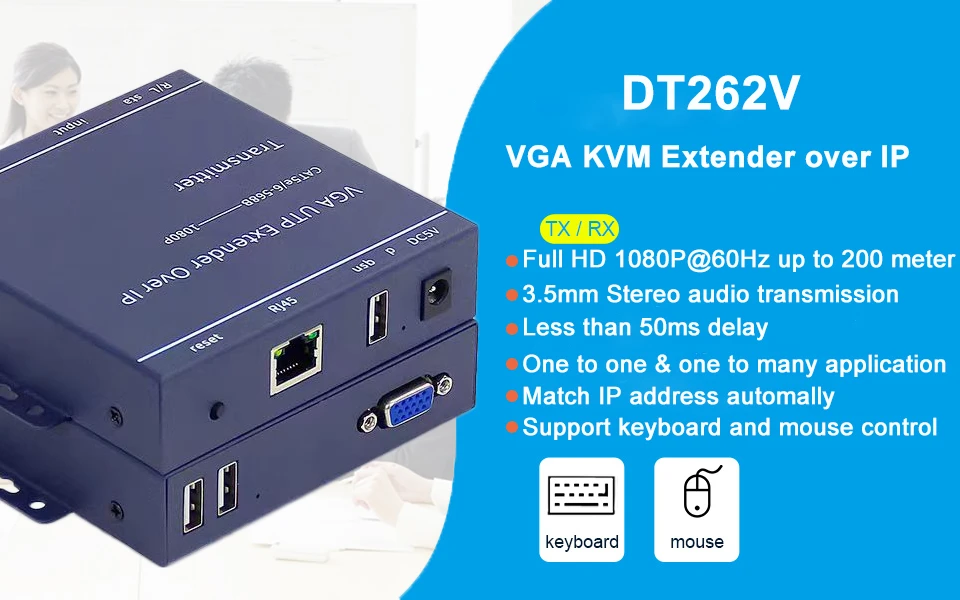

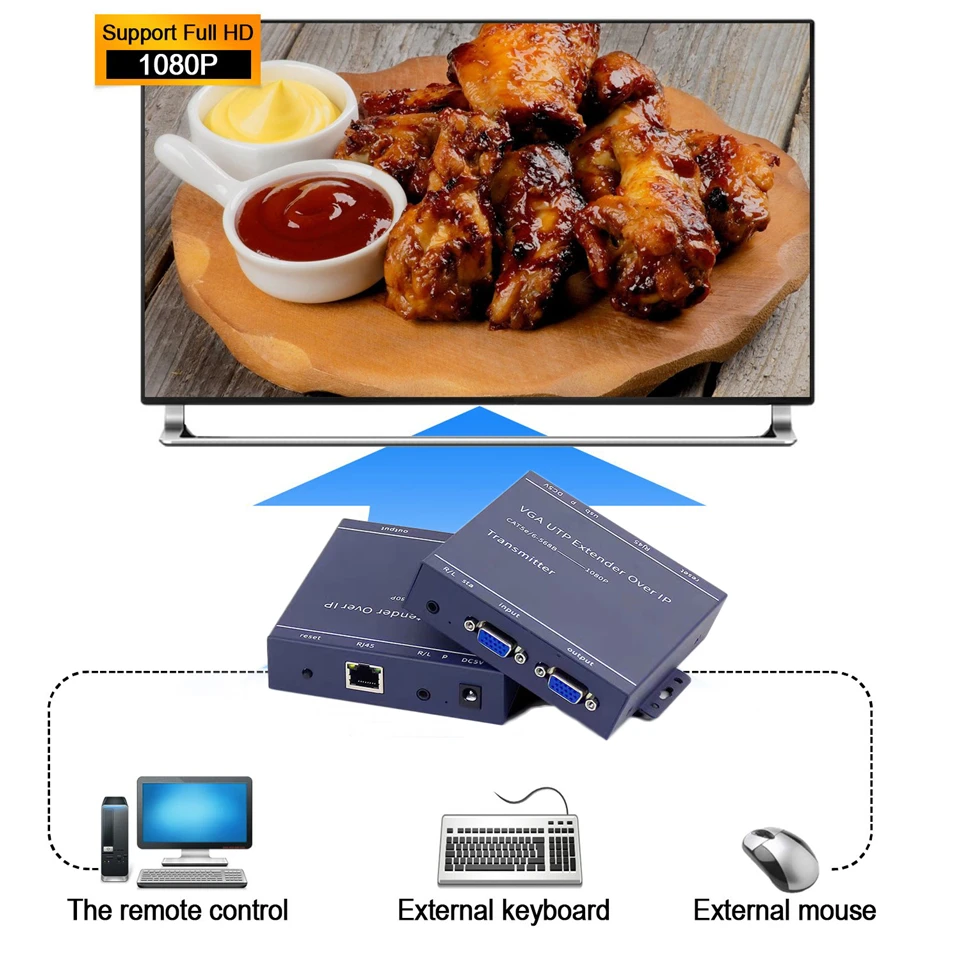

ZY-DT262V,Navceker VGA KVM extender provides extension of VGA video audio signal long distances over a single Ethernet RJ45 CAT5/5e/6 cable, it supports high resolution up to 1920*1080@60Hz and keyboard/mouse signal and 3.5mm Stereo analog signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Features:

•

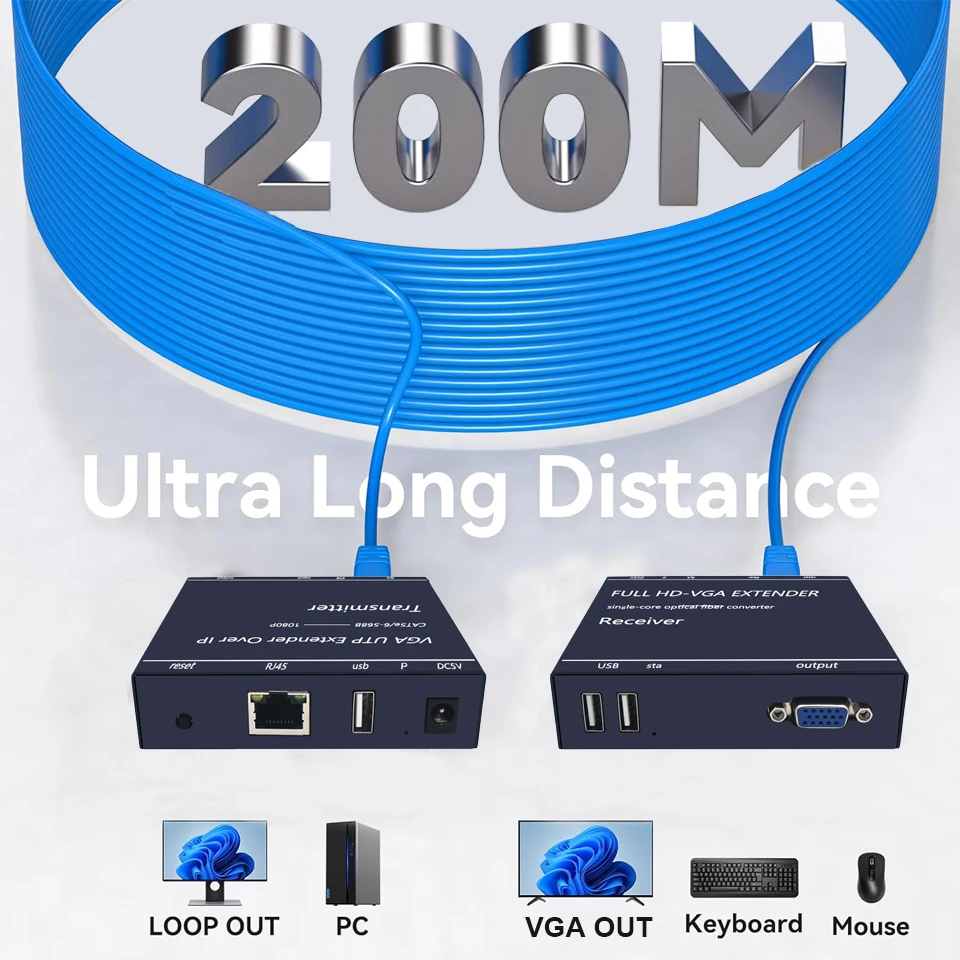

  • Transmits VGA video and audio signal up to 200m/660ft over CAT5/5e/6 cable

  • Support video resolution up to 1440x900@60Hz,1600x1050P@60Hz,1920x1080@60Hz;

  • Compliance with VGA standard.

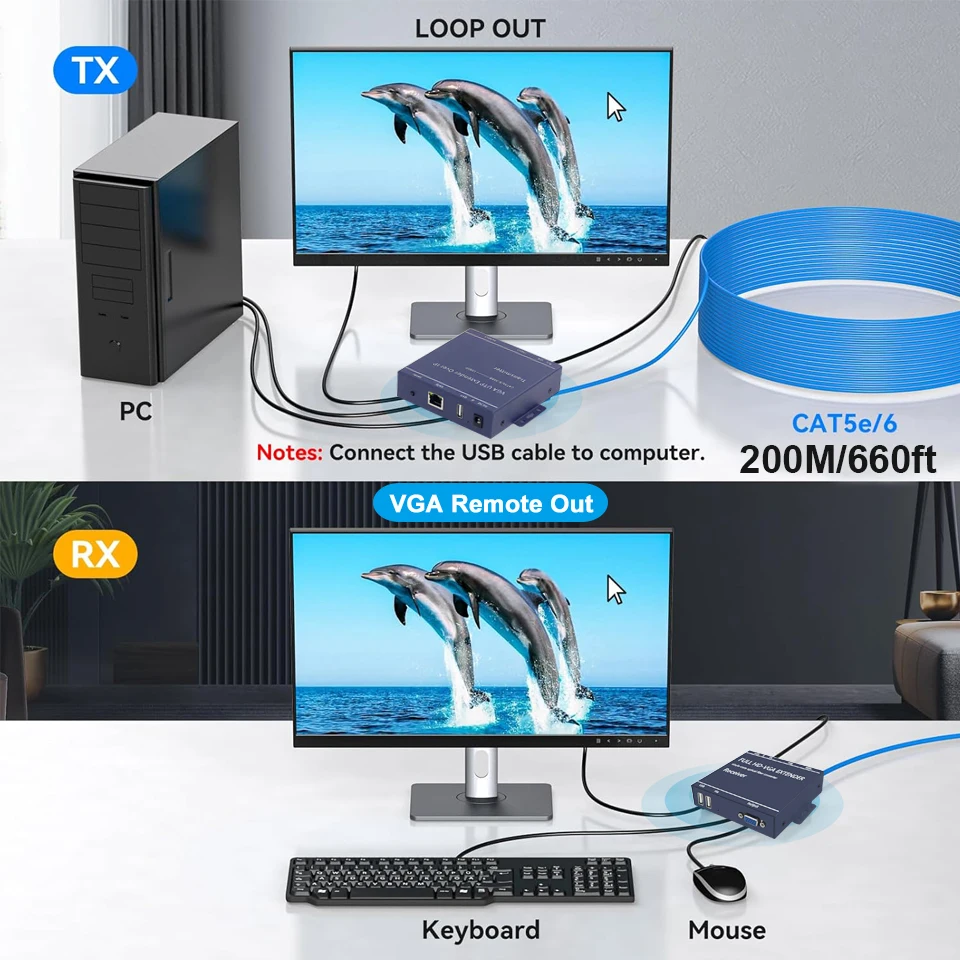

  • VGA loop out:VGA transmitter with local VGA out;

  • H.264 Technology,less than 50ms latency.

  • Support 3.5mm Jack R/L stereo analog audio transmission.

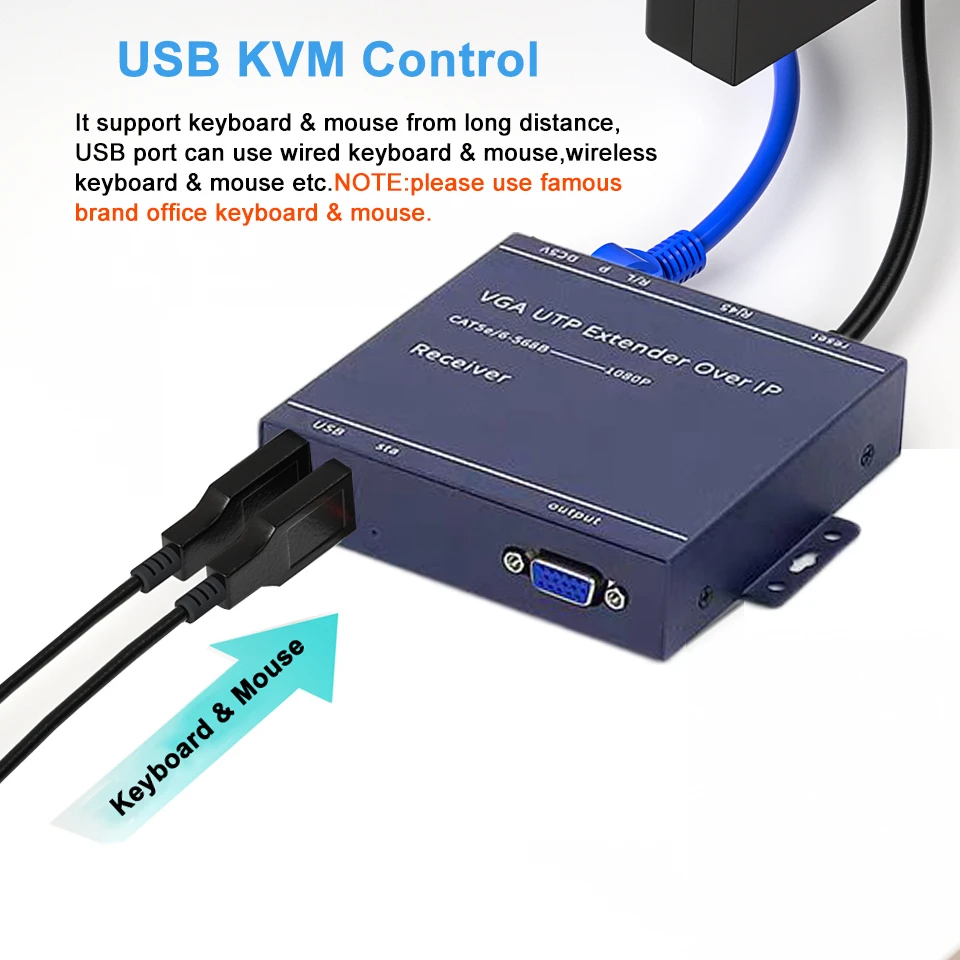

  • Support keyboard and mouse signal transmission

  • Support one to one application;

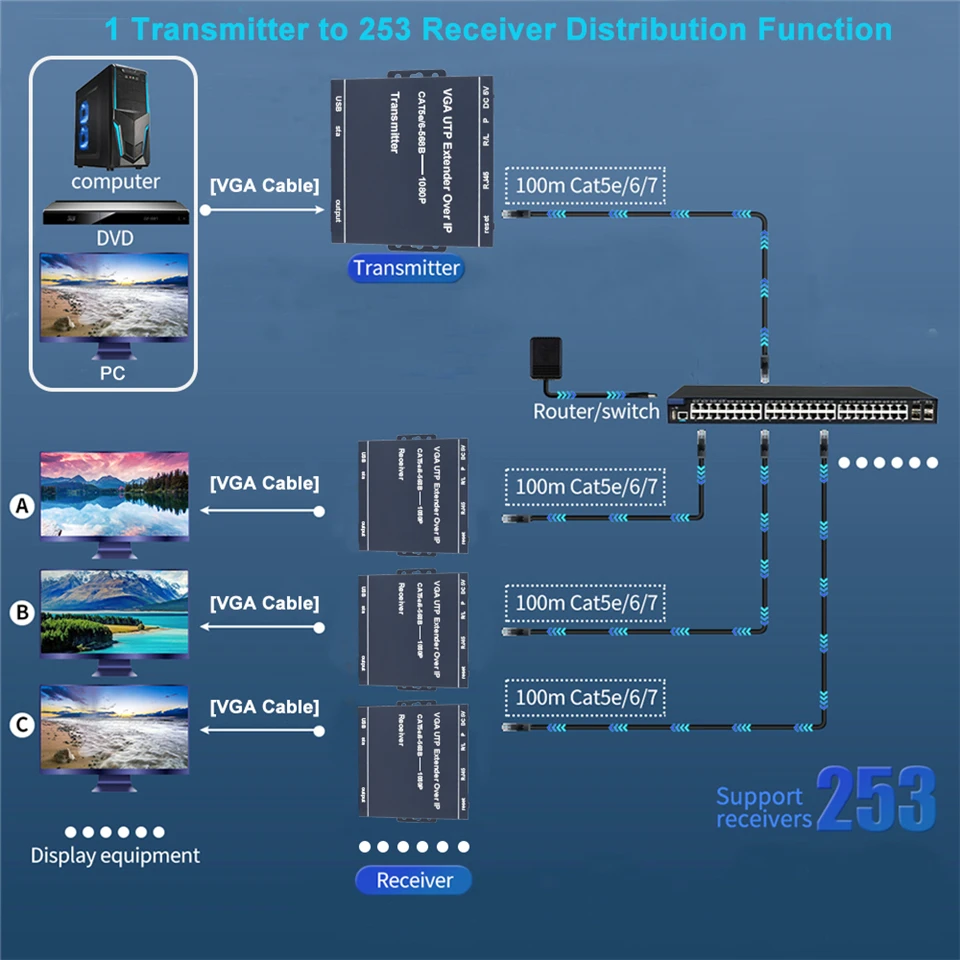

  • Support TCP IP;one to many application over Ethernet switch / Router;

  • High compatibility, can auto-match source and display device.

  • Built-in automatic adjustment system, make the image smooth, clear and stable.

  • Built-in ESD protection system.

  • Simple to install, plug and play.

Note:

1.The USB port only support famous brand office keyboard and mouse,Not support printer,USB flash driver,USB camera etc.

2.please you use high quality 8 core cat5e/6 cable with IEEE-568B connection

Specifications:

Parameter Description
Video Standards VGA
Maximum Pixel Clock 380MHz
Maximum Data Rate 6.75Gbps
Resolution Max: 1920X1080@60Hz
Connector VGA
Audio Interface 3.5mm stereo earphone seat
Audio Signal Type stereo
USB Interface USB,HID signal
UTP Interface IEEE 568B
Transmission Distance Cat5e Max: 150m Cat6 Max: 200m
Other Power Supply The power adapter: DC 5/1A
Power Dissipation Max: 4W
Temperature Operating: -5 ~ +70
Humidity Operating: 5% ~ 90%

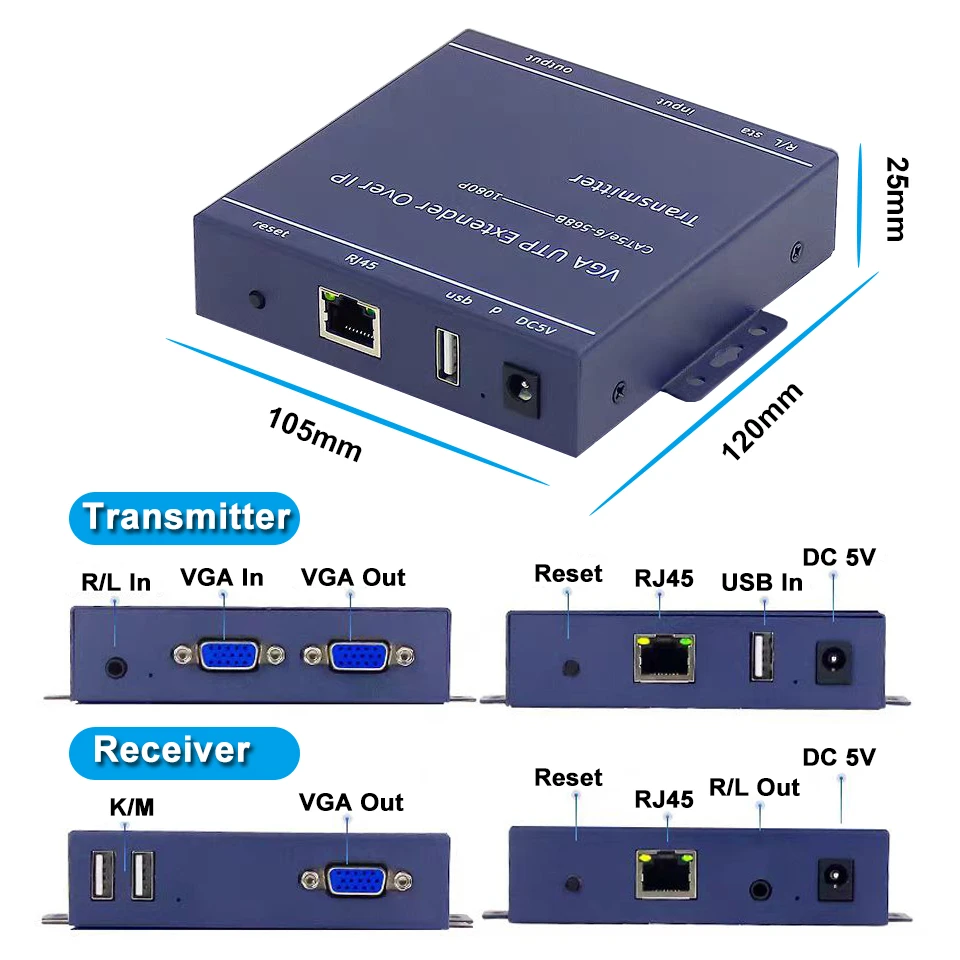

Dimension 120*105*25 mm
The Warranty 1 Year Free Warranty

Package:

VGA KVM transmitter ……………………….……. 1 pcs

VGA KVM receiver …………………………………. 1 pcs

USB Cable …………………………….…………. 1 pcs
Power adapter ……………………………….... 2 pcs
User manual …………………………………..… 1 pcs
