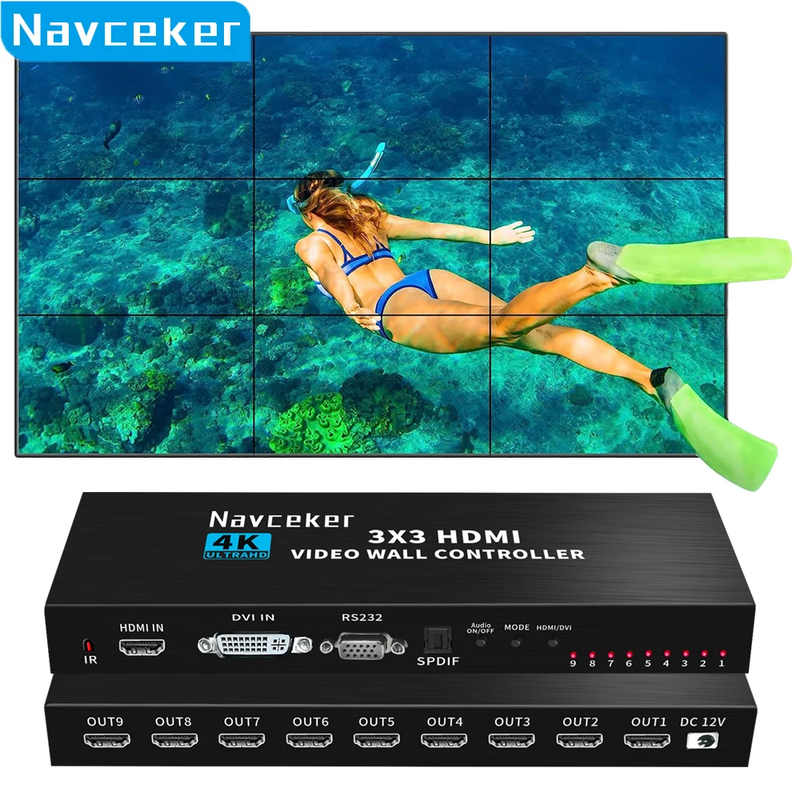

4K HDMI Video wall controller 3x3 HDMI DVI Video wall Processor 1X2 1X4 1X3 2X1

Product Description

If you like our products please you add to cart or add to Favorites,Surprise coupons is waiting for you to extract,
more refined small gifts free to send, please contact customer service.
If you follow our store and become our fans, you can get extra 5% discount for some designated products.

Description:

ZY-AP2,Navceker 3x3 Video Wall Controlle support 1-way HDMI /DVI input and 9 HDMI Output,the main function is to divide a complete HDMI HD image signal into 9 blocks and assign to 9 video display unit(such as Rear projection unit,LCD TV,etc),Complete with 9 HDMI hign-definition video display units to form a large dynamic image screen

There are 2 models optional, different model has different interface and appearance, please choose suitable model before purchase:

Features:

3X3 Video wall controller 4K 30Hz DVI HDMI 1X9 Screen splitter video wall mount TV matrix controller HDMI Video wall Processor

• 🌈【Eye-catching video walls 】HDMI video processor allows you to create a gorgeous large-scale video walls and digital signage displays via LCD splicing screens.HDMI signal interface with audio decoding, audio and video perfect synchronization, so stunning!

• 🌈【1 Input and 9 outputs】Display HDMI/DVI input 4K@30Hz ,output 1920x1080P@60Hz. Be ompatibled with laptop,computer, set-top box, DVD player etc. Supports one 4K@30Hz signal input and nine 1080P@60Hz signal outputs, with a total output resolution of 4K.

• 🌈【Plug and play,180° Rotation】No need any app,quick and easy set up.Support 180°screen rotation function,the output device requires no more than 1080p @ 60 Hz.

• 🌈【13 Display Modes】Support 1x1,1x2, 1x3, 1x4, 2x1, 2x2, 2x3, 2x4, 3x1, 3x2, 3x3, 4x1, 4x2 modes for your choice. Can control it fastly via remote control or push button directly. Ideal for television broadcasting,video conferencing, security monitoring and other indoor and outdoor large screen splicing display.

• 🌈【Specification】 ◆HDMI/DVI input: 3840x2160P 24/30Hz and below input. Support input HDMI 1.4, HDCP 1.4; ◆HDMI outputs: 1920 x 1080P@60Hz HD resolution output;

• 🌈【5.1 CH Audio Out Ports】5.1 CH Audio is an optical audio output for lossless digital sound,it can be connected to external speakers, sound bars, amplifiers, etc. To ensure work well, plz set the resolution of all screens to 1080p.

• 🌈【3-years warranty】Customer satisfaction is our top concern.If any questions about our product, please feel free to contact us, we will offer you full refund or send you new item, thanks for your trust!

Specifications:

3X3 Video Wall Controller 4K HDMI DVI TV Wall Controller Processor 3x3 2x3 2x4 4x2 LCD 9 Screen Splicing Splicer Box with RS232

Support 1 HDMI-Compatible input

Support input HDMI-Compatible / DVI

Support 9 HDMI-Compatible outputs

Support 1 x Optical SPDIF audio with 5.1CH audio

Support input 4K 30Hz,1920x1080P,24/30/50/60HZ,and lower resolution

Support output resolution 1920x1080P

Support multiple splicing modes, easy to operate, plug and play

Support Panel switch,IR remote control and RS232 remote control

Multi screen splicing "seamless mixing

Porous design convection heat dissipation

Non slip design is stable and non slip

How I could use the 180-degree rotation on it?

If you want to use the 180° rotate, there are two conditions. 1. 2x2 mode, it means you need 4 screens. 2. your input and output devices need to be no more than 1080P@60HZ. If your output devices are 4K, please adjust it to 1080P.

Why is there no sound？

Please make sure that your input and output device is 1080P.

Our product has updated the software and it can support the audio out to any kind of TV.

It does really work with the audio out.

Why is the remote not work？

Please check your input and output device’s resolution is 1080P. It can work properly in the resolution of 1080P.

How to do if it doesn’t work with the 1x3 portrait mode？

Please adjust the resolution to 1080P of the input and output device.

Note that：Please use the 2x2/3x3 mode if you want to use on the game. It will show great on the 2x2 /3x3mode.

Package List:

1xTV Video wall controller 3x3

1x 12V DC Power adapter

1xRemote control(without battery)

1xUser manual
