Product Description

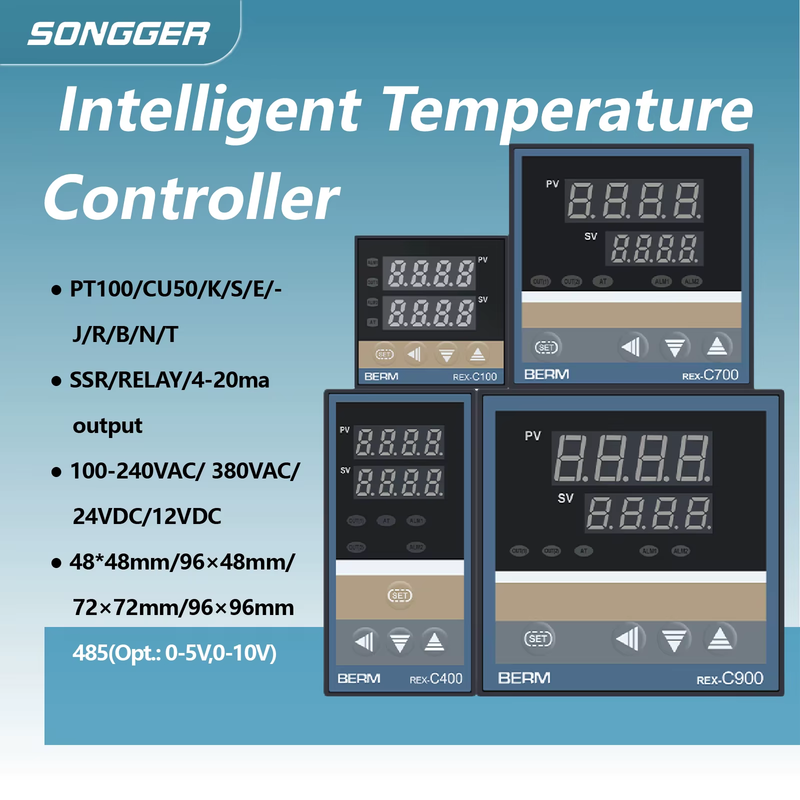

Digital Temp Thermostat REX-C100 C400 C700 C900 PID Temperature Controller SSR Output Thermocouple Input Industrial Heating
Digital Temp Thermostat REX-C100 C400 C700 C900 PID Temperature Controller SSR Output Thermocouple Input Industrial HeatingThis controller does not measure temperature directly — it reads external sensor inputs. The universal input version supports up to 1200°C, while the default K-type input supports up to 999°C.
1NOTE
Due to page limitations, some configurations and features may not be listed. Please contact us for specific requirements. The default configuration for the digital temperature controller includes:
· Power supply: 220V ±10%, 50Hz
· Input signal options:PT100/CU50/K/S/E/J/R/B/N/T(selectable)
· Output options: Relay, SSR solid-state relay, PT100, 4-20mA (selectable)
· Alarm settings: Fully adjustable across the entire range
Available models and panel dimensions:
· REX-C100: Panel size 48×48mm
· REX-C400: Panel size 96×48mm
· REX-C700: Panel size 72×72mm
· REX-C900: Panel size 96×96mm
2Parameters
Parameter | Specification |
Temperature Range | 0 - 1200°C |
Rated Voltage | 220V~±10% 50Hz |
Power Consumption | 4W |
Control Mode | Fuzzy PID Control |
Alarm Range | Full-scale adjustable |
Wiring Method | Terminal connection |
Operating Temperature | 0 - 50°C |
Relative Humidity | 35%~85%RH (non-corrosive) |
Input Types | K/E/PT100 (selectable) |
Output Options | Relay, SSR (solid-state relay) |
Accuracy | ±0.1% FS ±1 digit or ±0.5% FS ±1 digit |
Model | Panel Dimensions (mm) |
REX-C100 | 48 × 48 |
REX-C400 | 96 × 48 |
REX-C700 | 72 × 72 |
REX-C900 | 96 × 96 |
3Fatures
High Visibility Display
Clear digital tube display for enhanced readability.
Stable Power Supply
Built-in copper transformer ensures consistent performance and longevity.
Versatile Input and Output Options
Supports K/E/PT100 inputs and relay/SSR output for diverse needs.
Compact and Durable Design
Various sizes available for different installation requirements.
4Alications
Injection Molding Machines
Industrial Ovens and Dryers
Other Industrial Equipment
FAQs
Q: How to select the correct input type for my application?
A: REX-C100 supports K, E, and PT100 inputs. Choose based on your sensor type.
Q: Is the installation process complicated?
A: No, the device comes with a clear manual and standard dimensions for seamless installation.
Q: What are the main benefits of PID control?
A: PID control provides precise and stable temperature management, improving process efficiency.
