Product Description

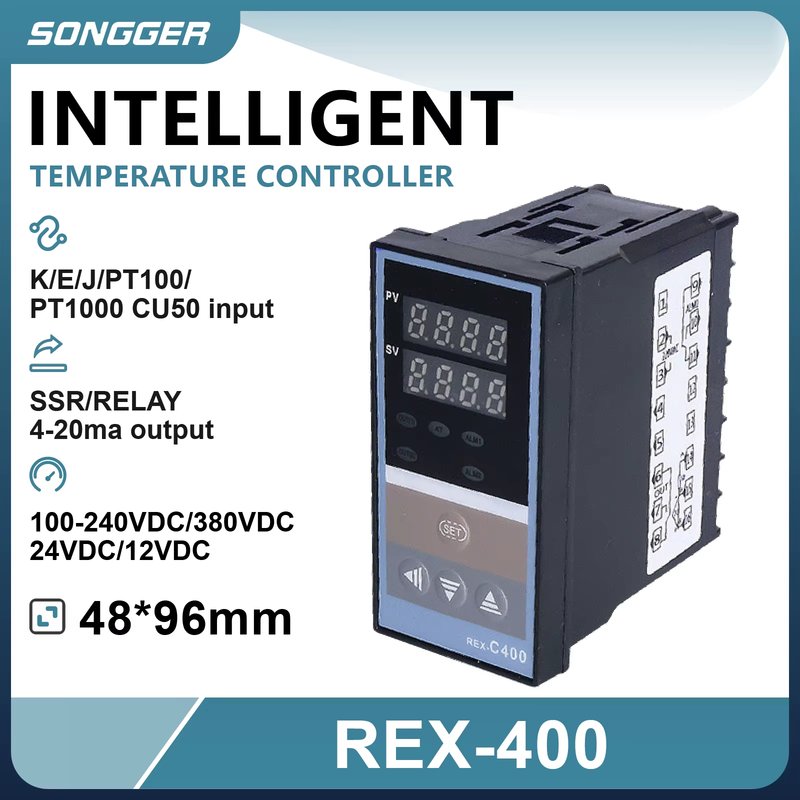

REX-C400 PID Temperature Controller Digital Thermostat with SSR Relay Output and K Type Thermocouple Sensor

This controller does not measure temperature directly — it reads external sensor inputs. The universal input version supports up to 1200°C, while the default K-type input supports up to 999°C.

1、NOTE
Due to page limitations, some specifications may not be fully detailed. Please contact us for any specific requirements.

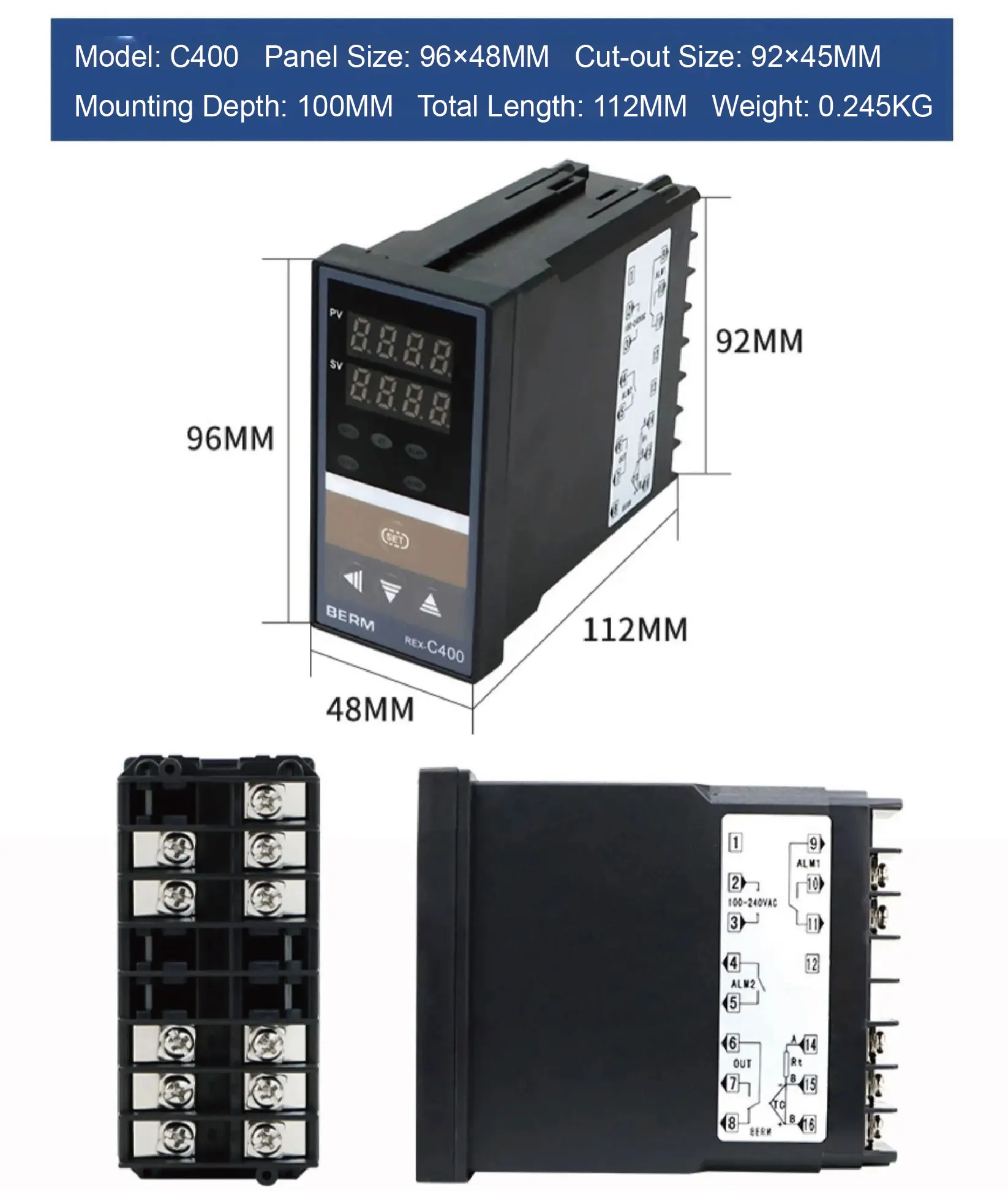

The default configuration for the REX-C400 includes:

· Panel size: 96x48mm

· Mounting cutout: 92x45mm

· Embedded depth: 100mm

· Total product length: 112mm

· Weight: 0.245kg

The device features a high-quality copper transformer for stable power supply and supports multiple input modes, including K, E, and PT100.

Optional configurations include relay or SSR output modes. Customization is available upon request.

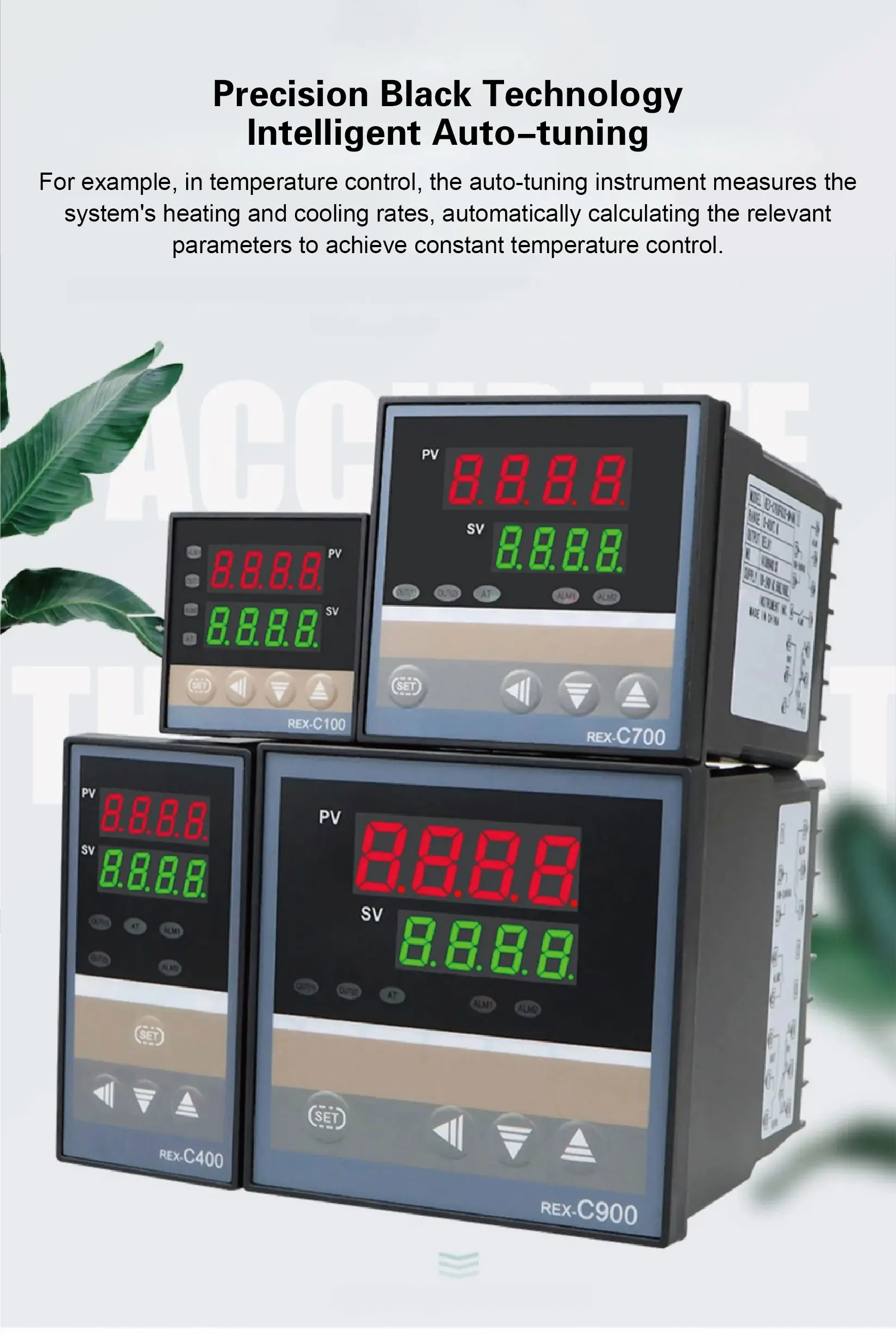

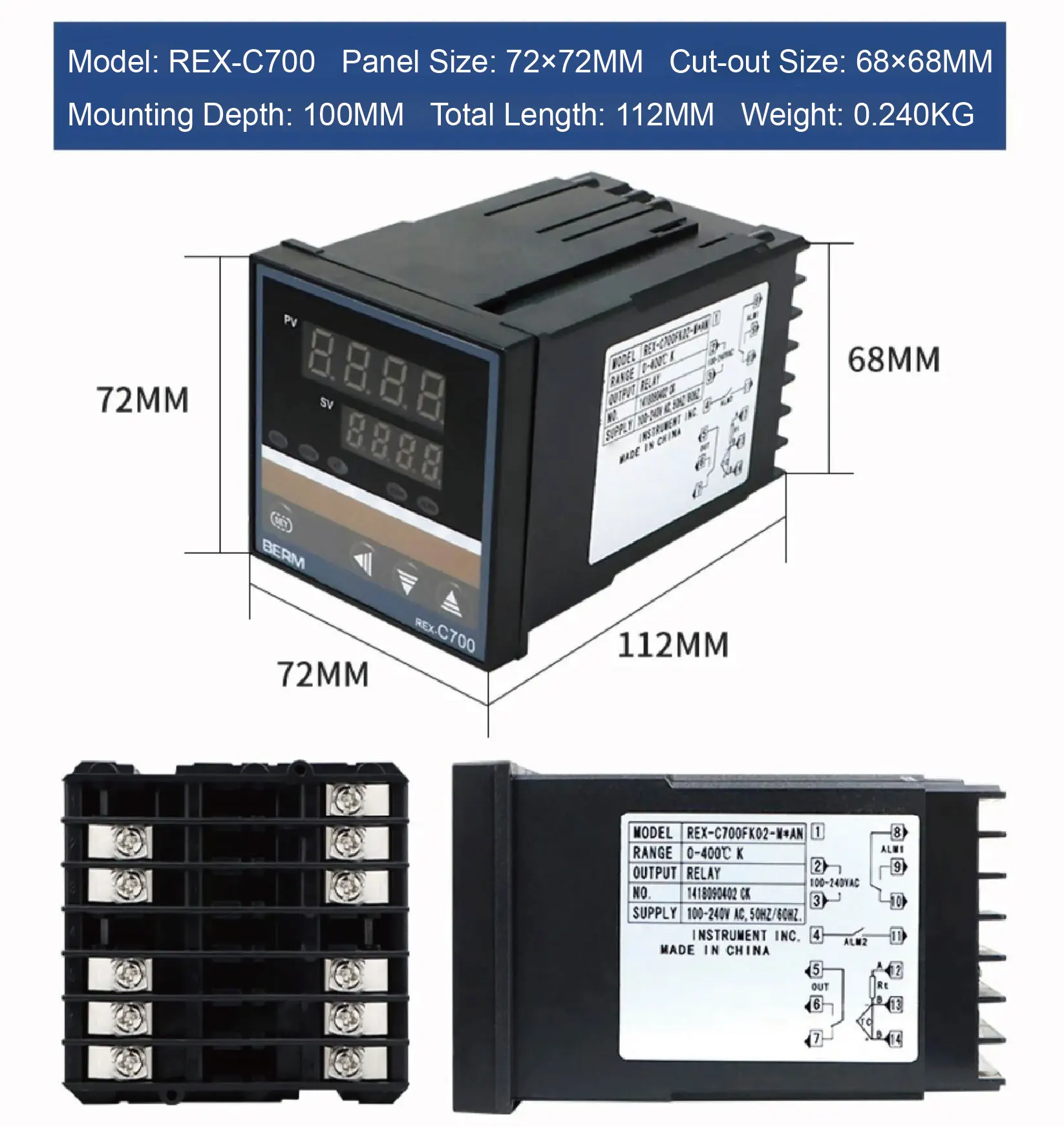

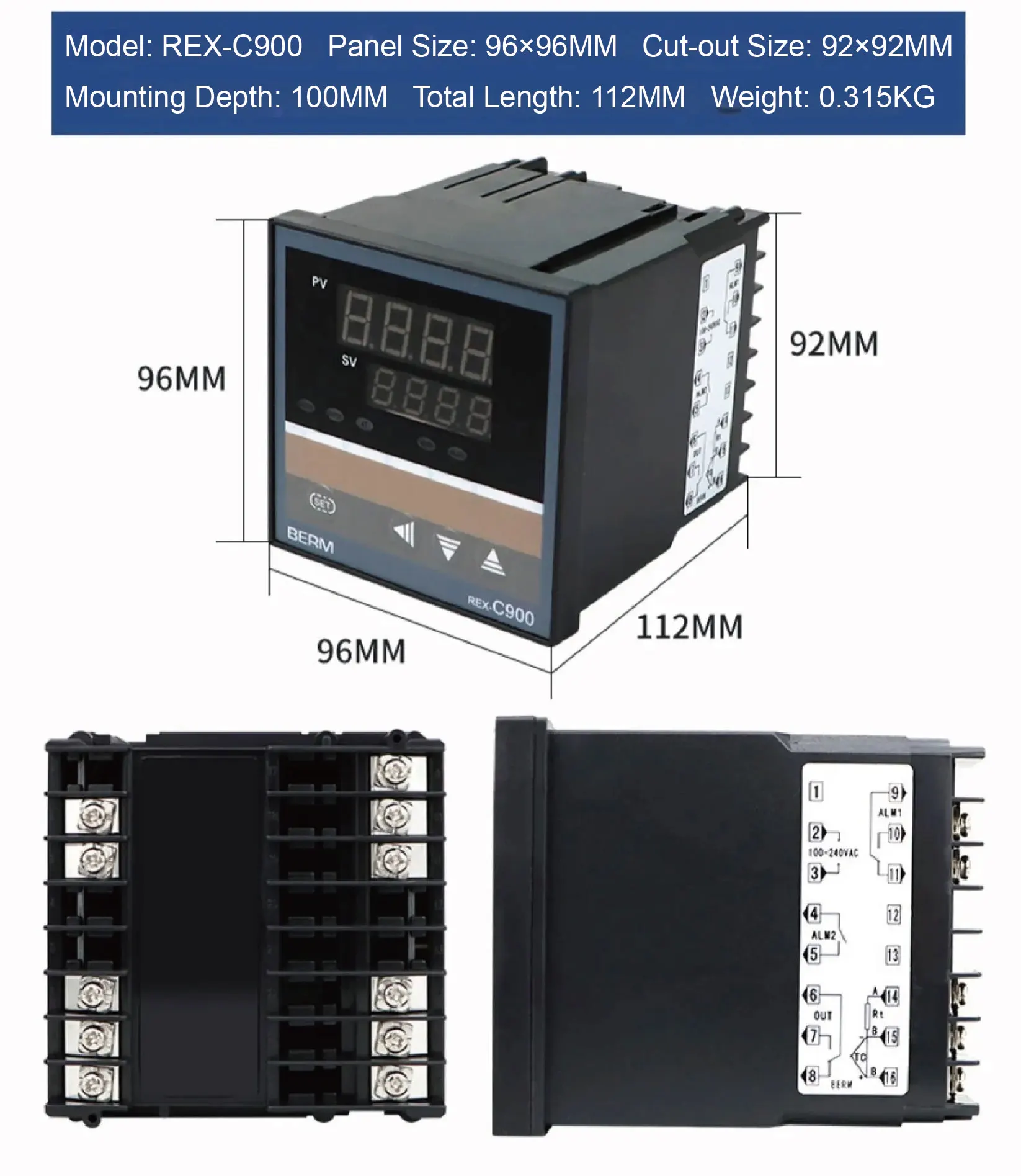

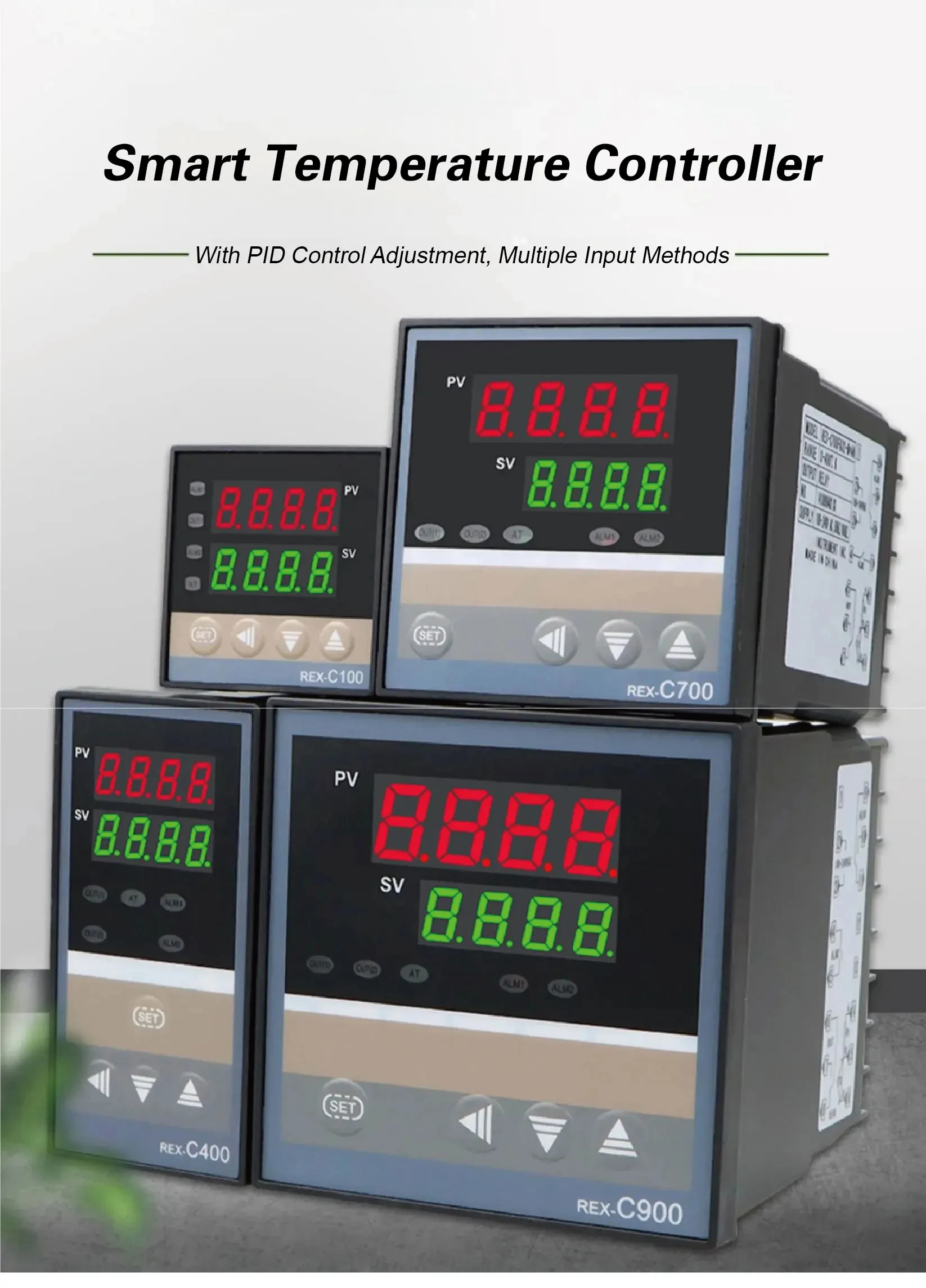

Additional sizes available:

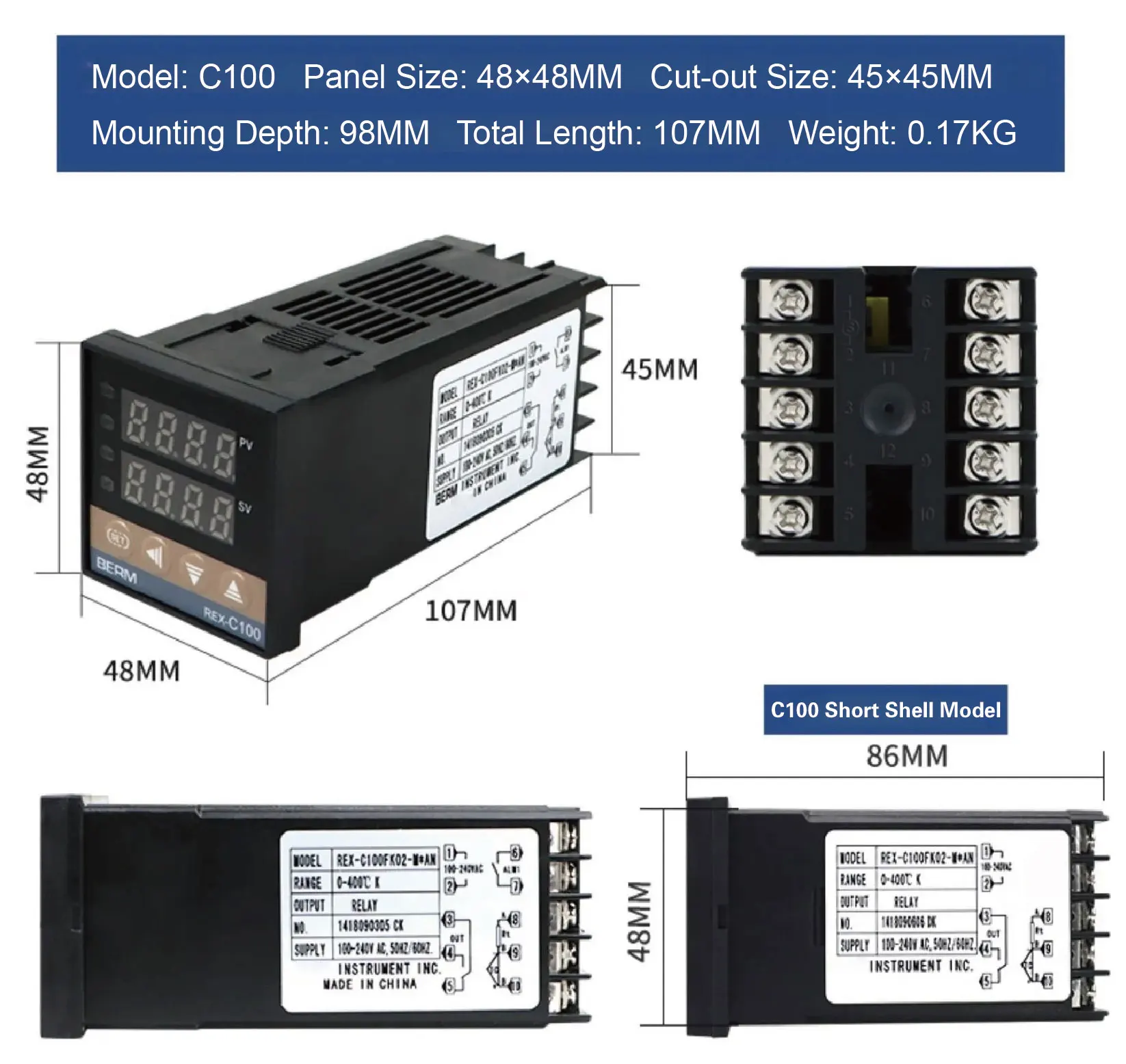

· 48x48mm

· 72x72mm

· 96x96mm

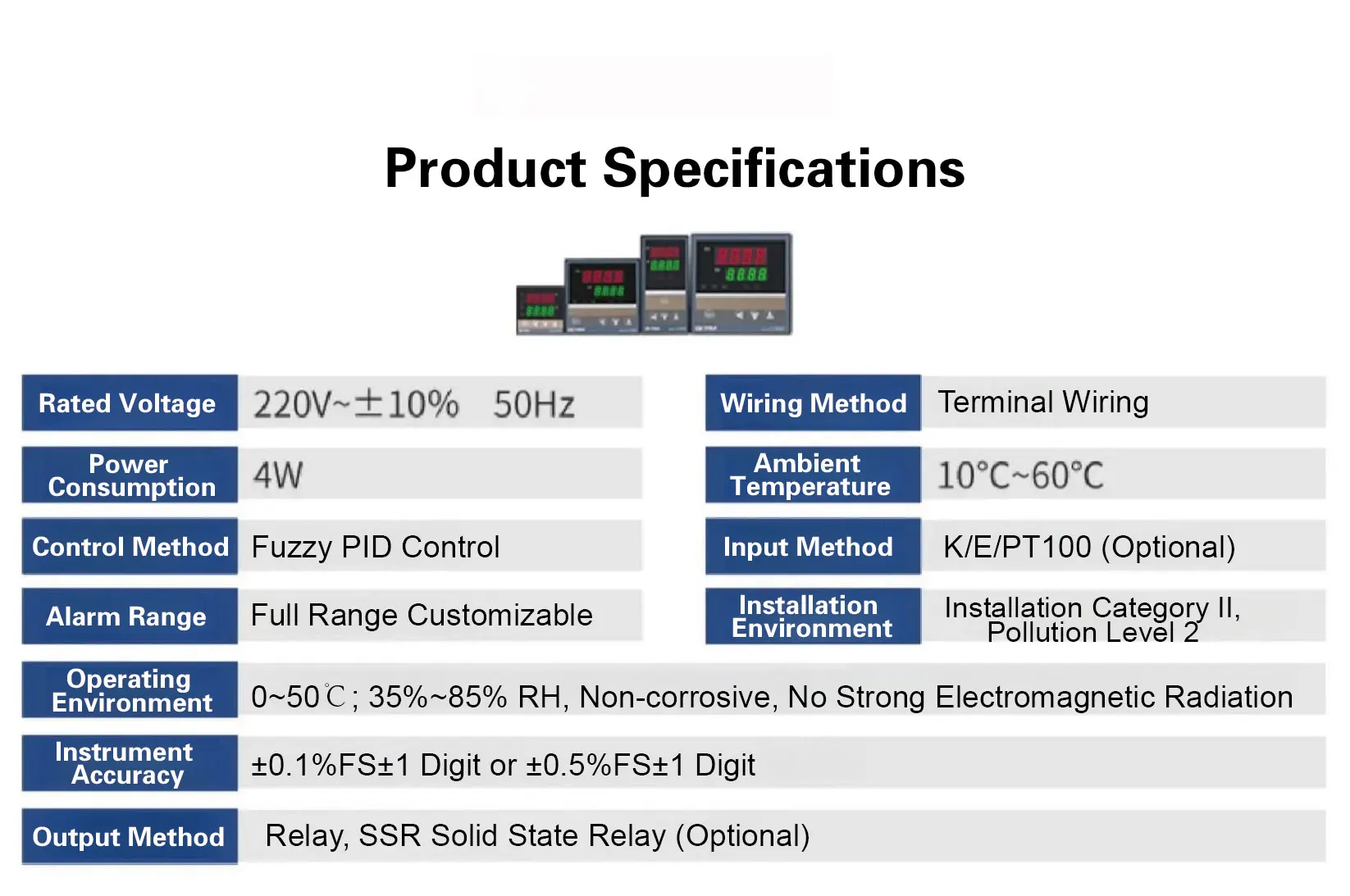

2、Parameters

Parameter	Specification
Temperature Range	0–1200°C
Rated Voltage	220V~±10% 50Hz
Power Consumption	4W
Control Method	PID fuzzy control
Alarm Range	Full range adjustable
Connection Method	Terminal connection
Operating Environment	0~50°C, 35–85% RH, no corrosion or EM radiation
Accuracy	±0.1%FS±1 digit or ±0.5%FS±1 digit
Output Options	Relay, SSR (optional)
Input Options	K/E/PT100 (selectable)

3、Features

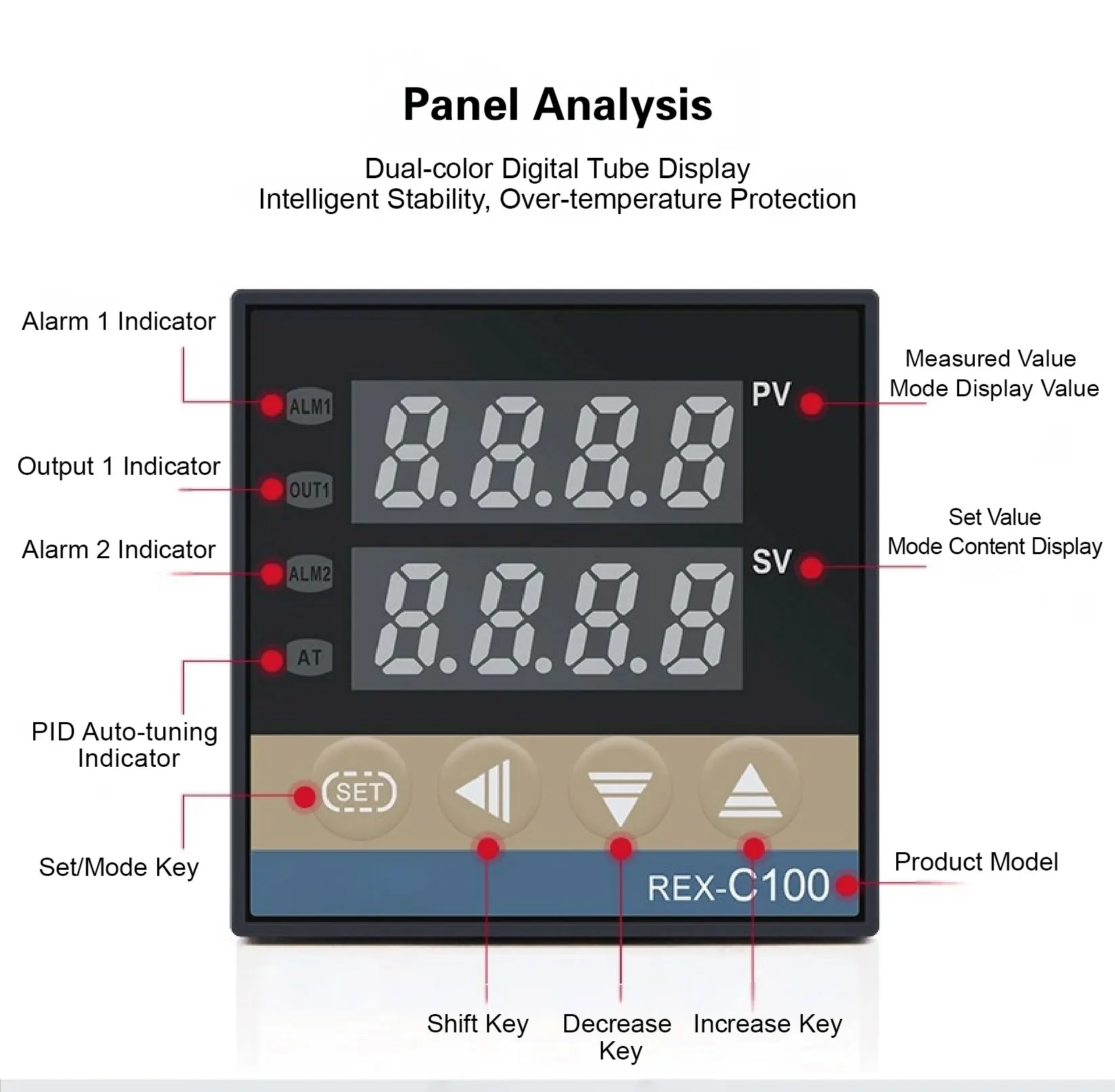

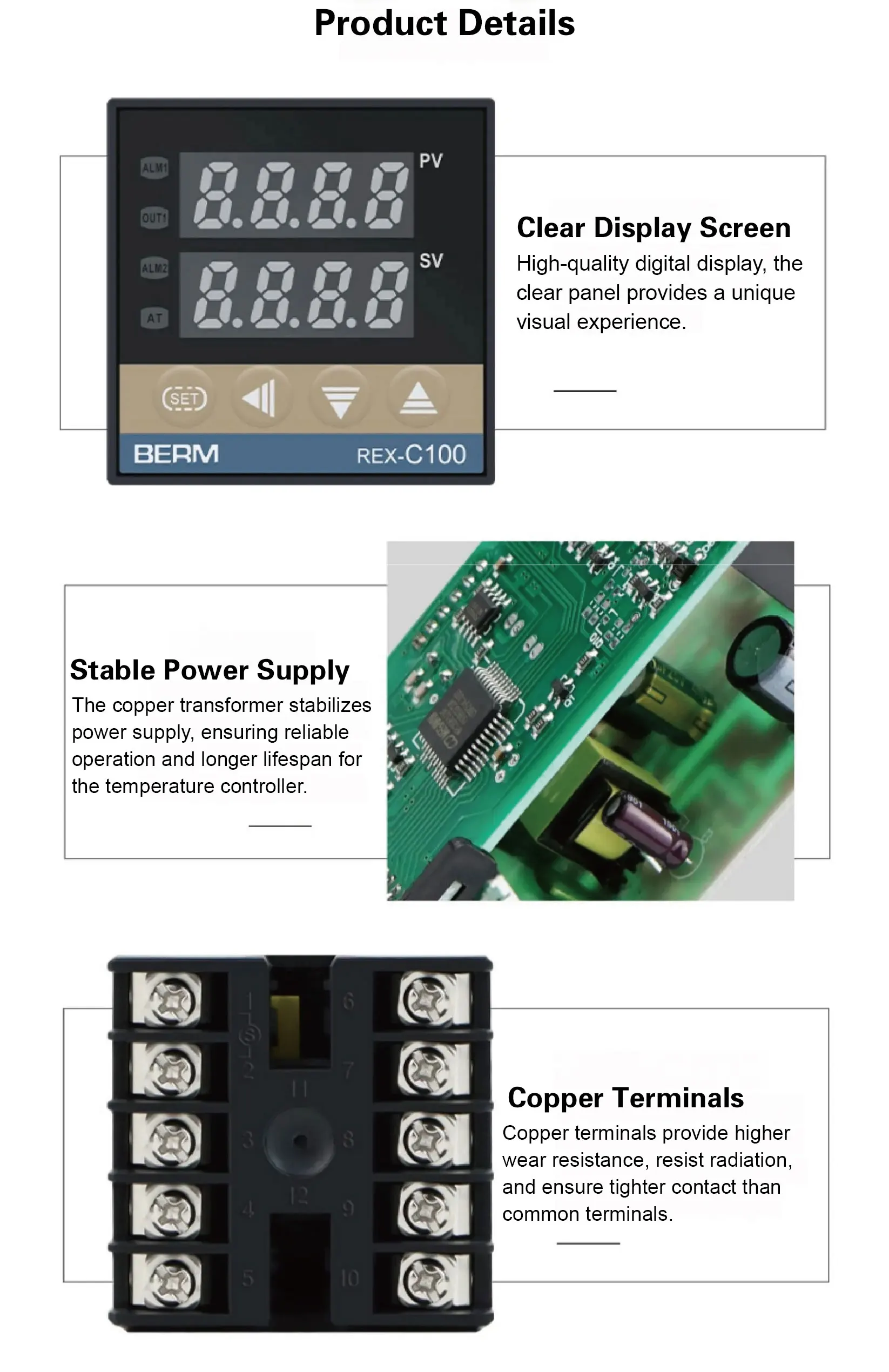

Clear Display
High-quality LED display offers excellent visibility and an intuitive user interface.

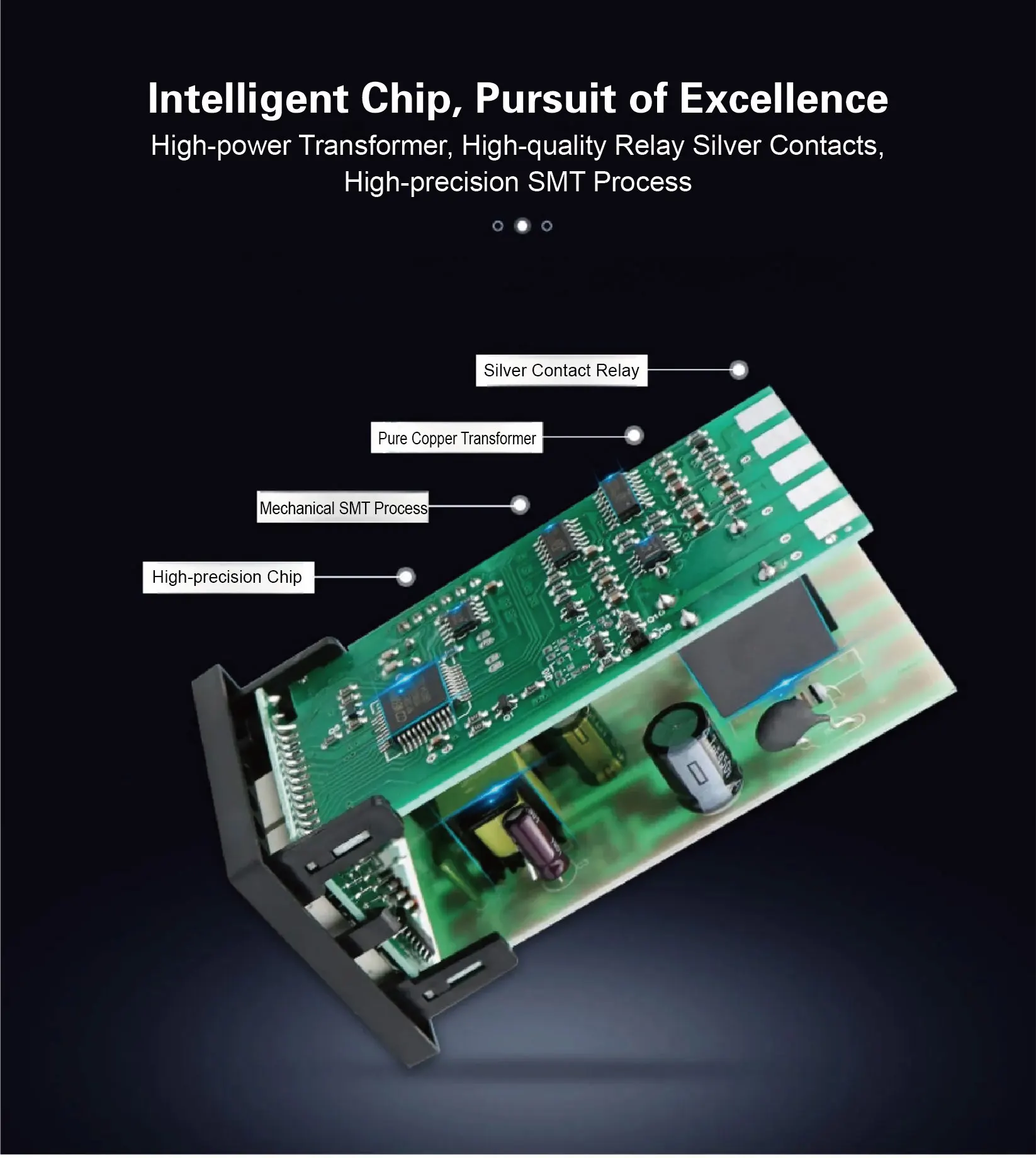

Stable Power Supply
Copper transformer ensures consistent power delivery, enhancing stability and extending device lifespan.

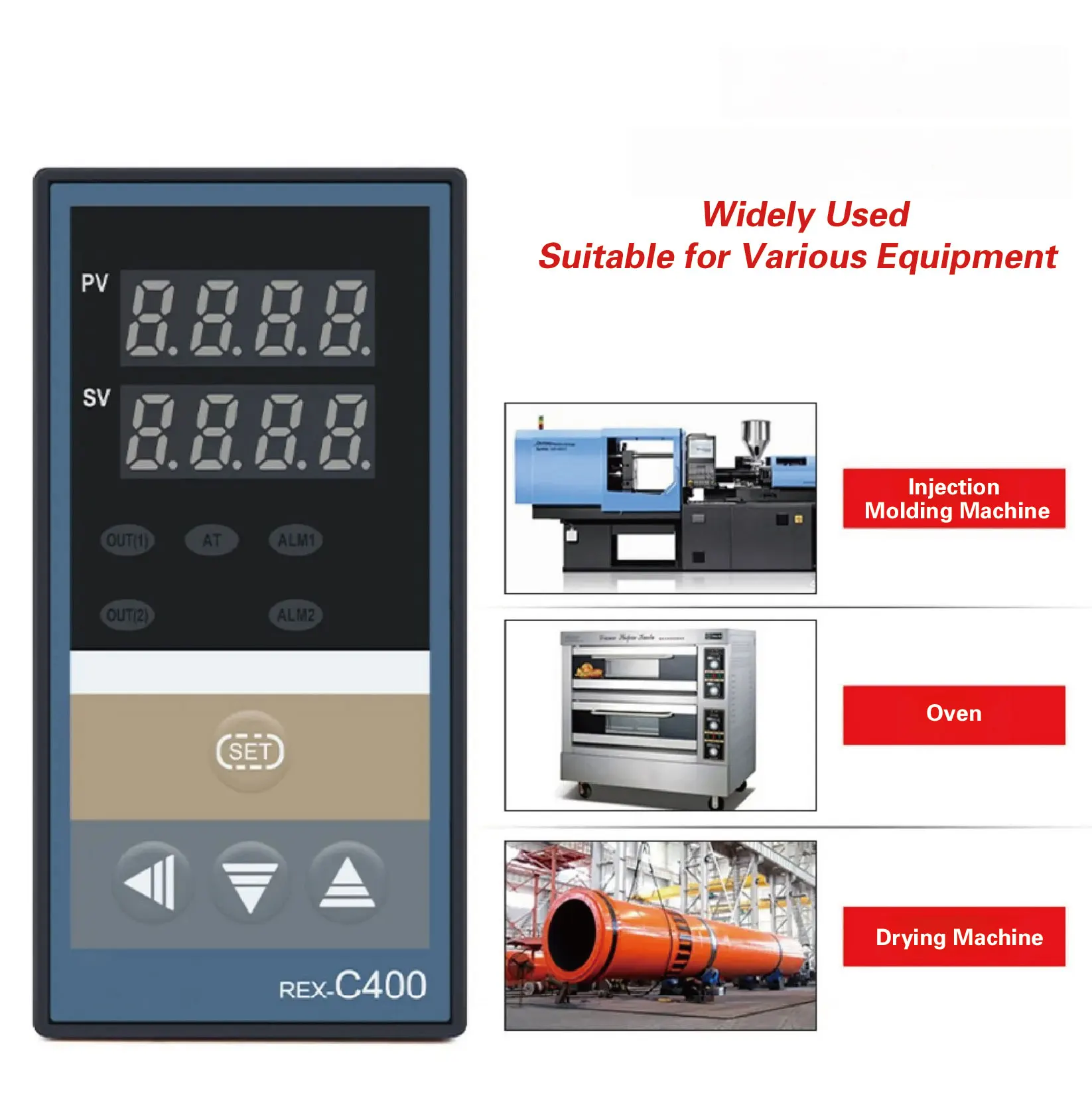

Versatile Applications
Compatible with various equipment such as injection molding machines, ovens, and dryers.

4、Applications

Widely used in industrial processes requiring precise temperature control, including manufacturing, baking, and drying.

REX-C400 PID Temperature Controller Digital Thermostat with SSR Relay Output and 5、FAQs

Can this controller handle temperatures up to 1200°C?
Answer: Yes, it supports a range of 0–1200°C with high precision.

Is it compatible with PT100 sensors?
Answer: Yes, it supports K, E, and PT100 input options.

What is the installation requirement?
Answer: Ensure a clean environment with a pollution degree of 2 and use the specified panel dimensions.
