Product Description

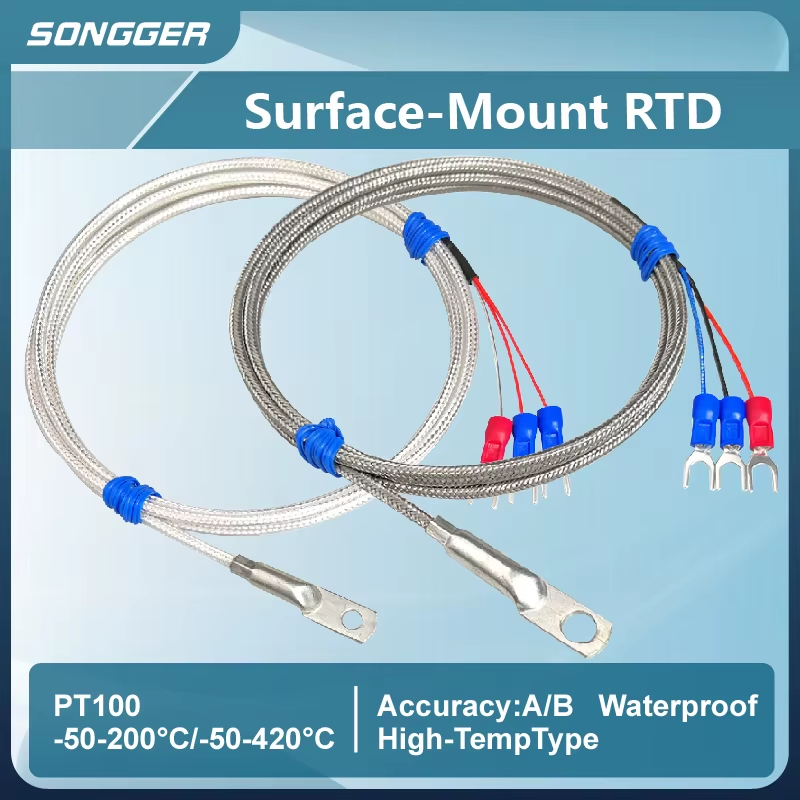

PT100 Surface-Mount RTD Sensor Waterproof Temperature Probe Adhesive Mount 4mm Hole -50~420°C Range
PT100 Surface-Mount RTD Sensor Waterproof Temperature Probe Adhesive Mount 4mm Hole -50~420°C Range1.NOTE
Default Configuration:
1. Inner diameter: 4mm
2. Thickness: 1.2mm
3. Temperature range: -50~200℃
4. Wiring: Three-wire system, U-type terminal
5. Cable length: Standard length
6. Waterprooftype
Due to page limitations, some configurations may not be listed. Please contact us .
Customizable Options:
1. Thermocouple types: Pt1000 / K / E / J / T
2. Inner diameters: Φ4, Φ6, Φ8, Φ10, Φ12, Φ14, Φ16
3. High-temperature models: -50~420℃ (note: high-temperature cables are not waterproof)
4. Cable types: Pt100 three-core high-temperature shielded, Pt100 three-core silicone shielded
5. Cable lengths: 10m, 20m, 30m, 40m
6. Terminal types: Pin terminals, aviation plugs, XH series connectors
2.Parameters
Parameter | Description |
Inner Diameter | Default 4mm; Optional: 6mm, 8mm, 10mm, etc. |
Thickness | 1.2mm |
Temperature Range | -50°C to 200°C; Optional: -50°C to 420°C |
Wiring | 3-wire system, U-type terminal |
Cable Length | Customizable: 0.5m, 1m, 2m, up to 40m |
Accuracy | AA: ±0.1, A: ±0.15, B: ±0.3, C: ±0.6 |
3.Features
Customizable Dimensions: Inner diameters from 4mm to 16mm to suit various applications.
Broad Temperature Range: Supports up to 420°C for high-temperature applications (non-waterproof with high-temp cables).
Variety of Cable Options: PT100 high-temp shielded or silicone cables available.
Versatile Terminals: U-type as default, with customizable options including aviation plugs and pin terminals.
High Precision: Meets AA, A, B, and C grade accuracy standards for precise readings.
4.Applications
Industrial temperature monitoring in manufacturing and processing plants.
Heating system sensors for precise temperature control.
Laboratory and research equipment requiring high accuracy.
5.FAQs
Q1: Is this sensor waterproof?
A1: Yes, the standard model is waterproof. However, high-temperature cables are not waterproof.
Q2: Can I customize the cable length?
A2: Yes, cable lengths can be customized。
Q3: Does this product include a temperature controller?
A3: No, the sensor is sold separately. Controllers need to be
