HW-DT100 Infrared Temperature Sensor 4-20mA 0-5V 0-10V RS485 Output Online Indus

Product Description

1.NOTE

This sensor only measures non-metal surfaces. To measure metal, apply paint or high-temp tape. The target must be over 10mm in diameter and either still or moving slowly. Not suitable for fast-moving objects.

Default Configuration:

· Power Supply: DC24V

· Temperature Range:0-100°C/0-200°C/0-300°C/0-500°C/0-600°C

· Signal Output: 4-20mA, Two-wire system

· Thread Connection: M18*1 (Thread length: 32mm)

· Product Lengths:68mm

· Housing Material: 304 Stainless Steel

· Cable Length: 1.5m (Standard)

· Protection Level: IP65

Customizable Options:

· TemperatureRange:-30~1300℃(-20-100/-20-200/-20-300/-20-500/-20-600/0-800/0-1000°C)

· Voltage: Customizable (12-36VDC, 5-36VDC)

If 5V power supply is required, please contact customer service and leave a note.

· Signal Output: 0-5V, 0-10V, RS485

· Cable Length: Customizable (e.g., 5m, 10m)

Accessories: Intelligent display, control instruments, wind-cooling shield, large screen displays, various mounts (adjustable, three-dimensional), laser aimers (single and dual), and sound-light alarms.(Accessories need to be purchased separately and are not included by default.)

Please confirm the temperature range and output signalbefore placing an order.

For any customization requirements, feel free to contact us.

2.Parameters

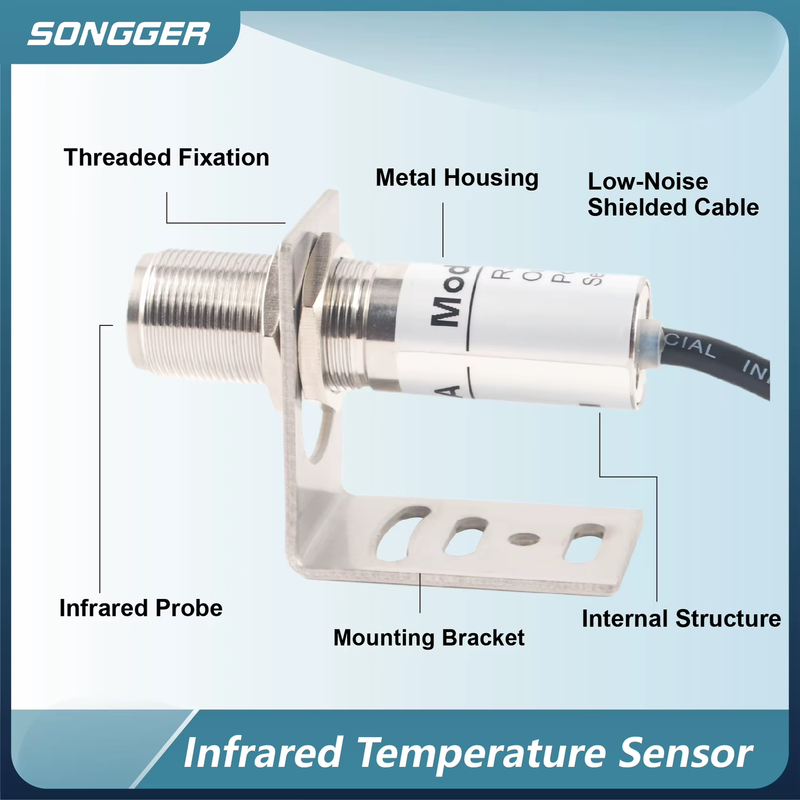

3.Features

Threaded Mounting: Standard M18 thread for quick and secure installation.

Robust Metal Housing: 304 stainless steel ensures durability and resistance to harsh environments.

Low-Noise Shielded Cable: Premium shielded cables for stable and interference-free signals.

Advanced Internal Structure: Integrated lens, spectral filter, detector, and electronics for accurate measurements.

Non-Contact Infrared Probe: Fast response and precise non-contact temperature measurement.

Stable Mounting Bracket: Reliable bracket for long-term stability.

4.Applications

Tea Machines, Asphalt, Printing and Dyeing, Food Processing, Rollers, Rubber, Textile, Plastics, Flooring, Ceramics, Paper Manufacturing, Induction Cookers, Glass, Water Temperature, Coal, Non-lustrous Metals, Pancake Machines, Graphite, Chemical Industry, and other fields.

5.FAQs

Q1:What is the response time of this infrared sensor?
A1:The standard response time is 200ms, but it can be customized to 50ms if needed.

Q2:Is the cable length customizable?
A2:Yes, the standard cable length is 1.5m, but it can be customized based on your requirements.

Q3:Can I customize the signal output type?

A3:Yes,signal output types (4-20mA, 0-5V, 0-10V, RS485) can be customized to meet your specific requirements.
