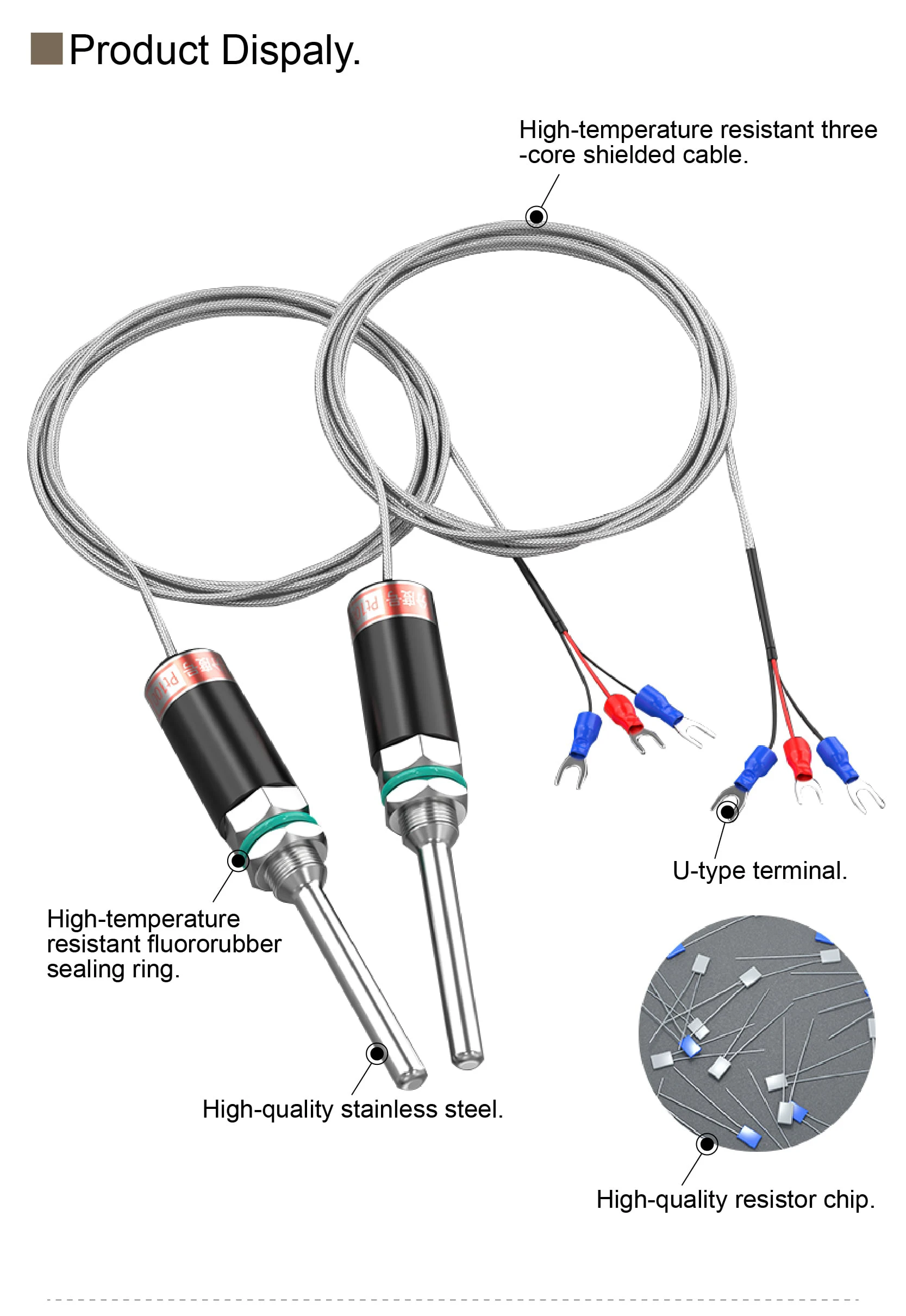

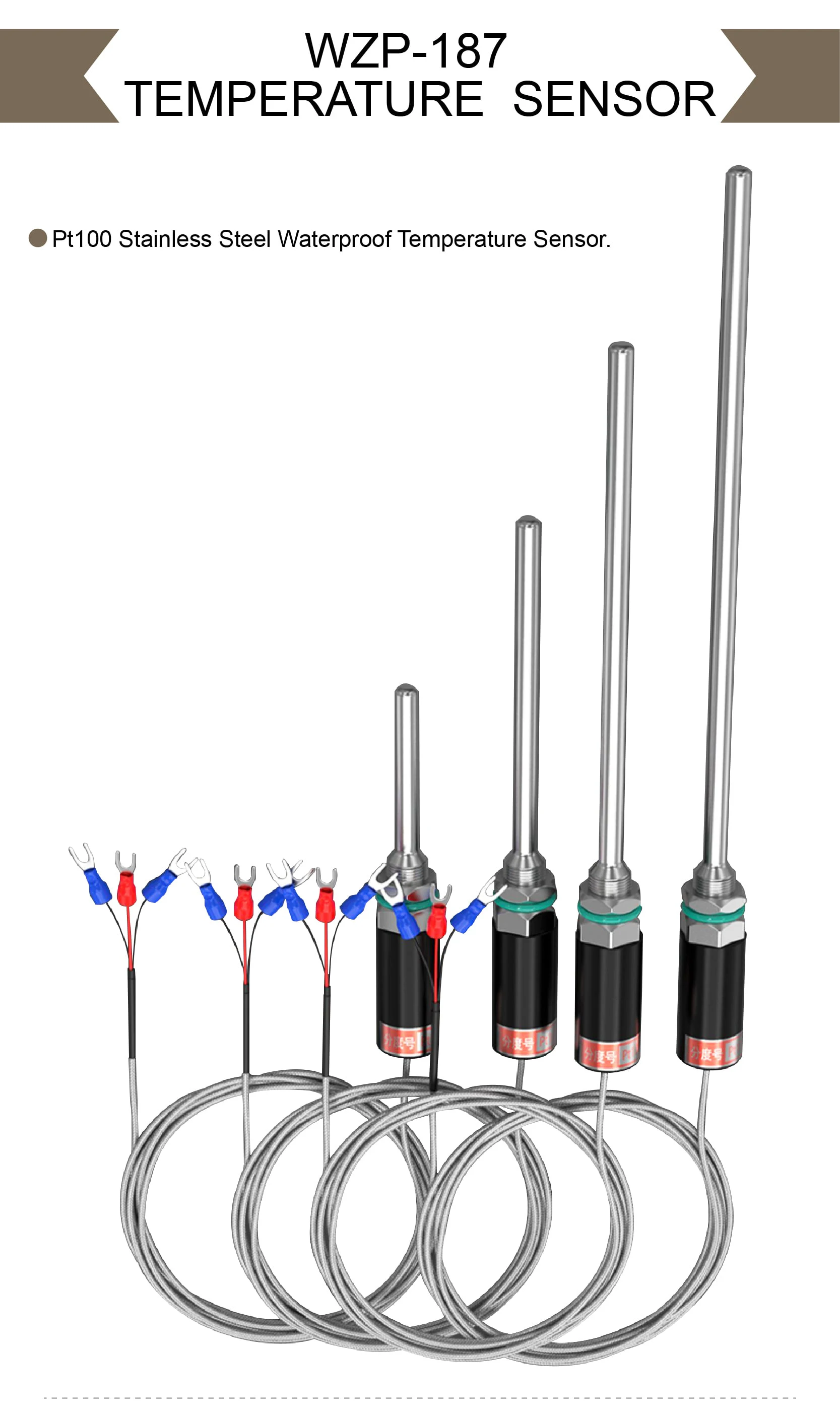

High Precision PT100 RTD WZP-187 Waterproof Temperature Sensor, Stainless Steel

Product Description

1. NOTE

Due to page limitations, some configurations may not be listed. Please contact us or leave a note during checkout for special requests.

Default Configuration Includes:

• Type: Pt100 / K / E/ Cu50

• Temperature Range: Pt100: -50°C to +420°C, K-type: 0–600°C, E-type: 0–400°C,CU50:-50-150

• Probe Diameter: 7mm

• Probe Length: 50mm / 100mm / 150mm / 200mm (Optional) (The probe length includes the thread length.)

• Cable Length: 1.5m

• Thread Interface: M12×1

• Connector: U-shaped Terminal

• Wiring: Pt100: Default 3-wire, K/E/J/T: Default 2-wire

• Material: 201 Stainless Steel

Optional Configurations Include:

• Type: Pt100, K, E, CU50

• Temperature Range: Pt100: -50°C to +420°C, CU50: -50°C to +150°C, K-type: 0–600°C, E-type: 0–400°C

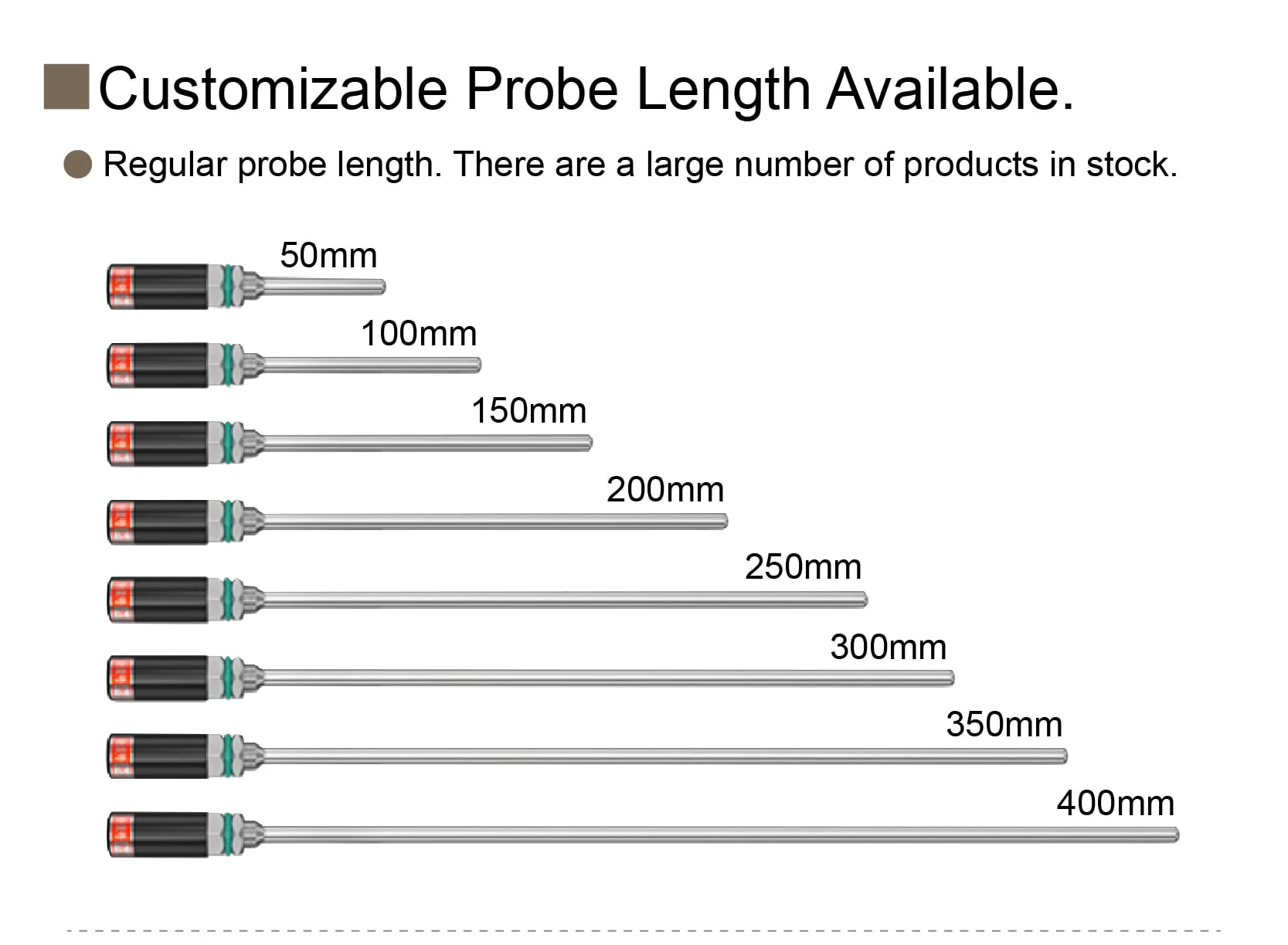

• Probe Length: Customizable (e.g., 50mm, 100mm, 150mm, 200mm, or other lengths)

• Cable Length: Customizable (e.g., 1m, 5m, 10m, 20m)

• Material: Customizable SS304 / SS316L

• Sheath Material: Stainless Steel Metal Sheath (Recommended for environments above 250°C)

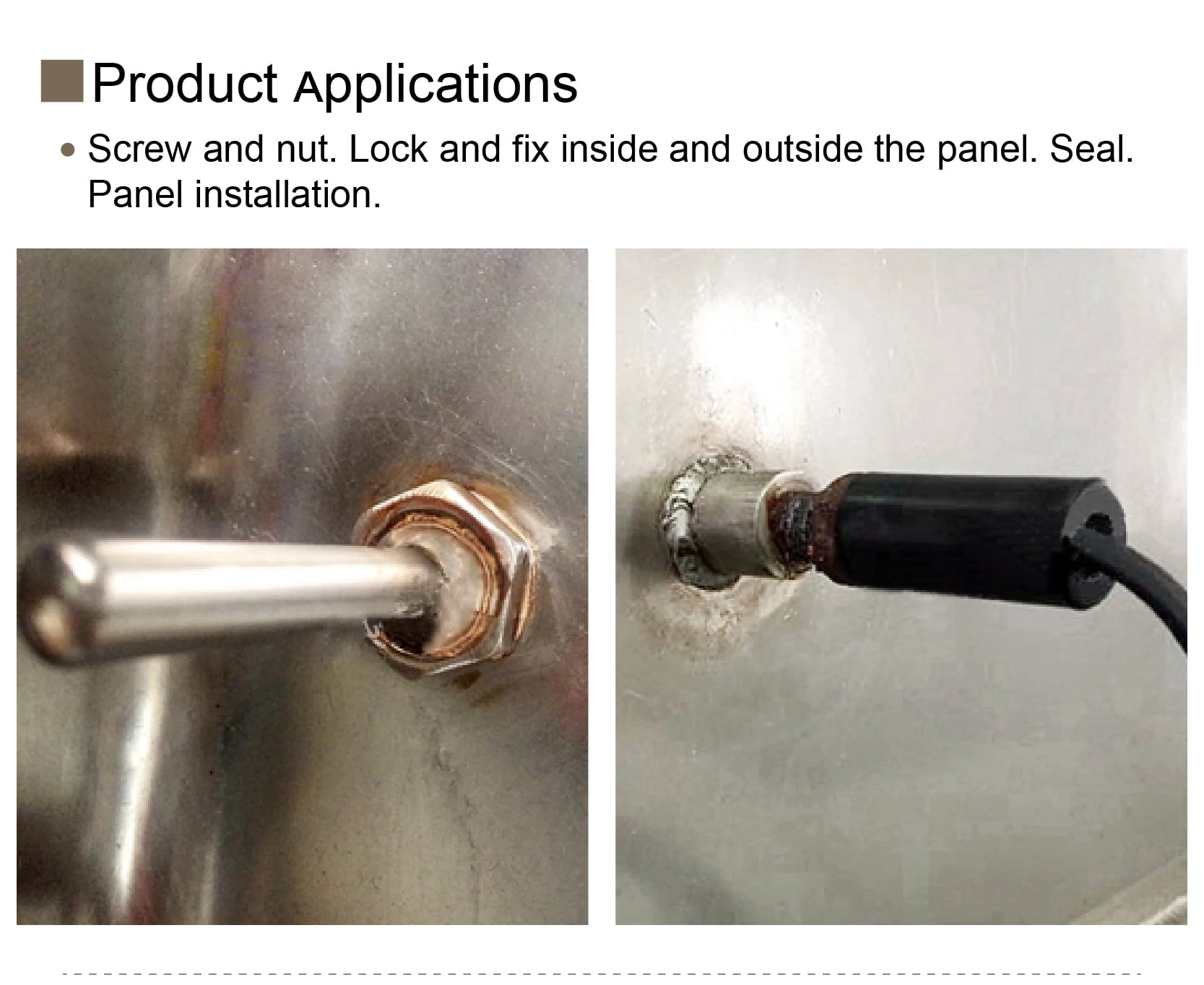

• Connection Type: Threaded, Flanged, Clamped, Custom Connectors

• Cable Connectors: OMEGA Plug, Pin Terminal, Small Yellow Plug, Aviation Plug (Customizable)

Important:

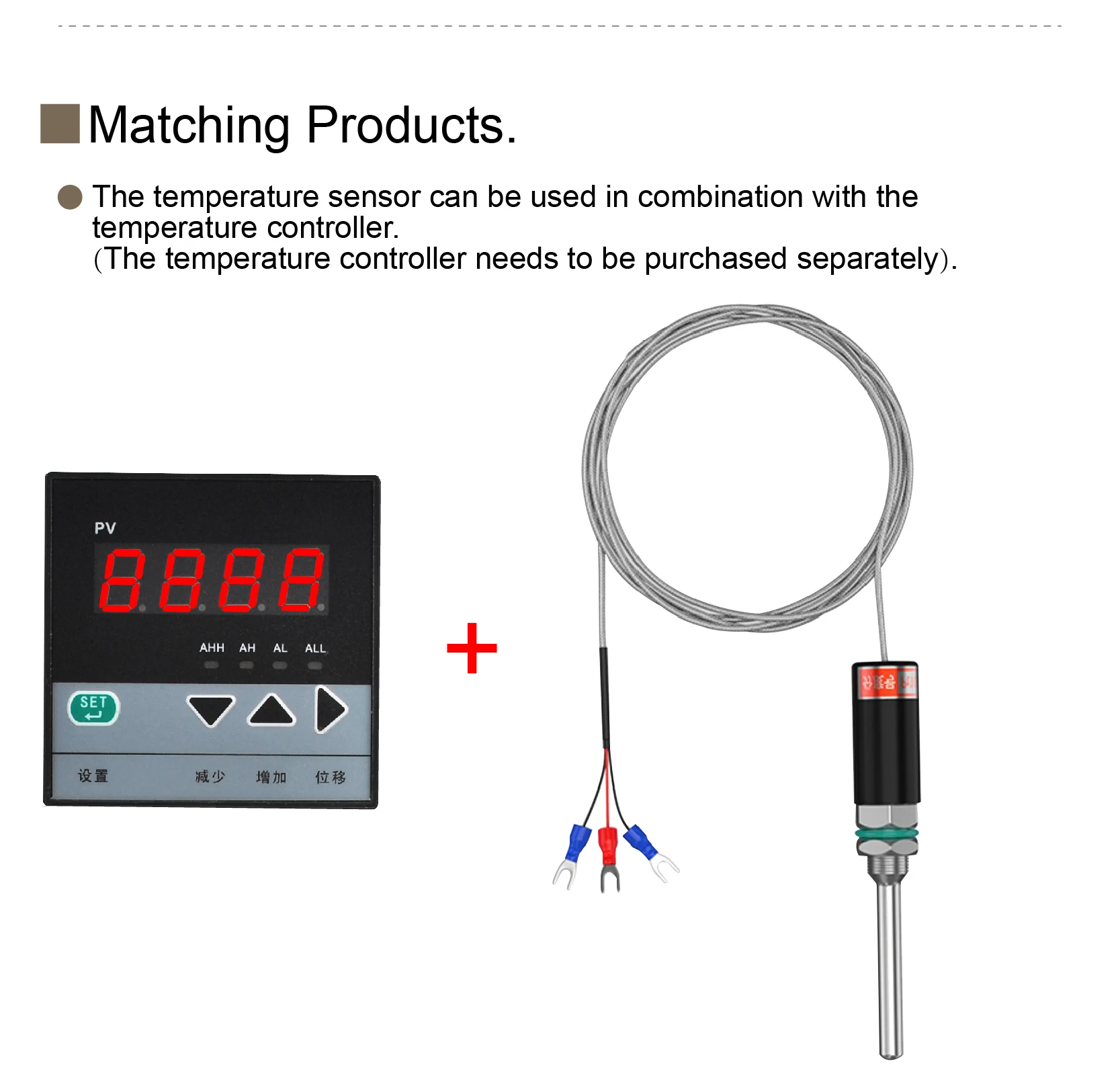

• Ensure the sensor type matches your temperature controller input (e.g., Pt100 sensor for Pt100 controller input).

• For environments above 250°C, use a stainless steel metal sheath to ensure high-temperature resistance and prevent melting.

• Confirm your required probe length, cable type, and connector specifications before placing an order.

This product is custom-made and can be tailored to your required length. If you need a custom length, please contact us for product and shipping cost quotations.

2. PARAMETERS

3. APPLICATION

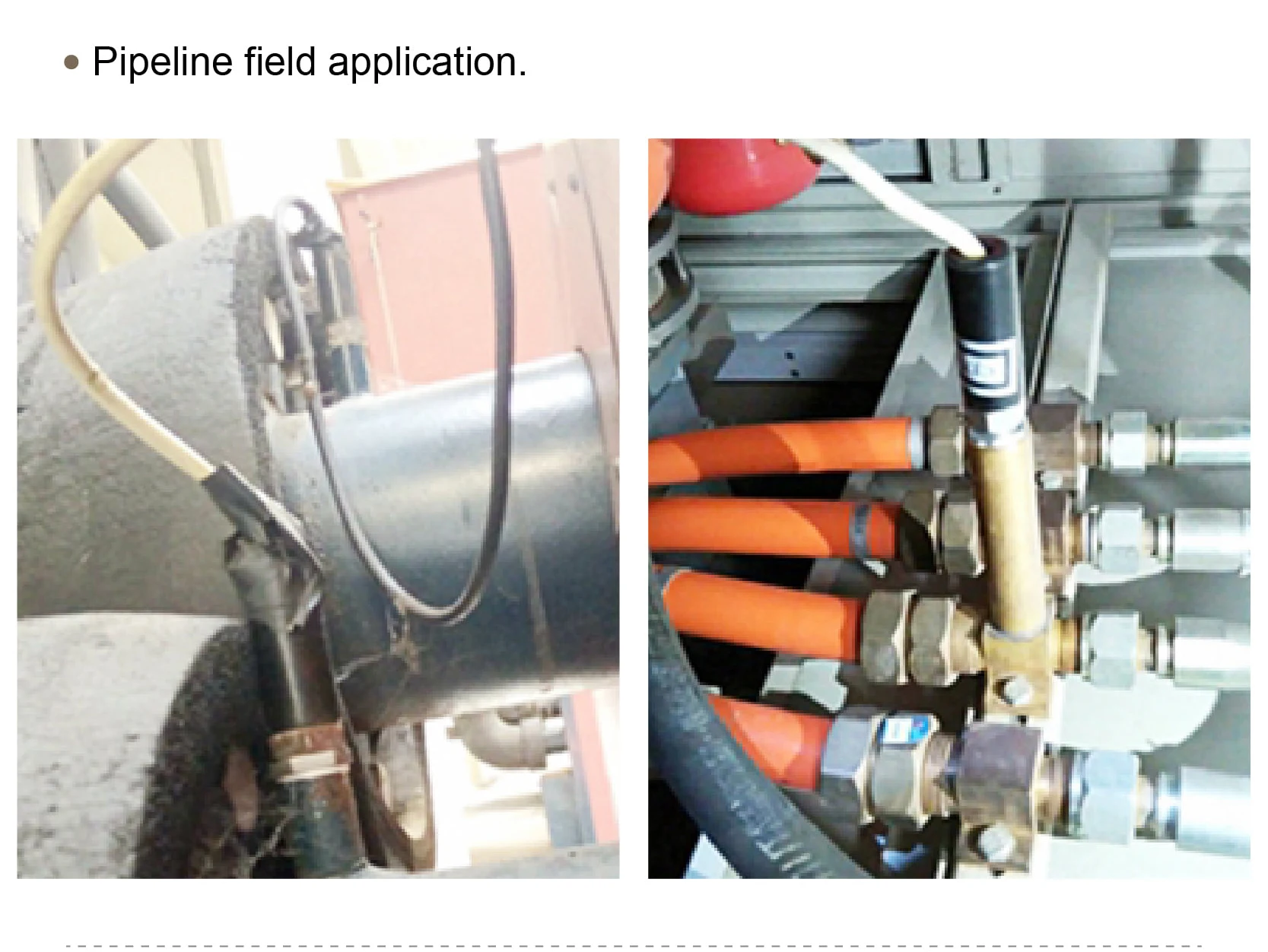

Industrial temperature monitoring and control systems

Compatible with various temperature instruments (e.g., Pt100, K, E type)

Suitable for high-temperature environments with optional metal sheath for protection

4. FEATURES

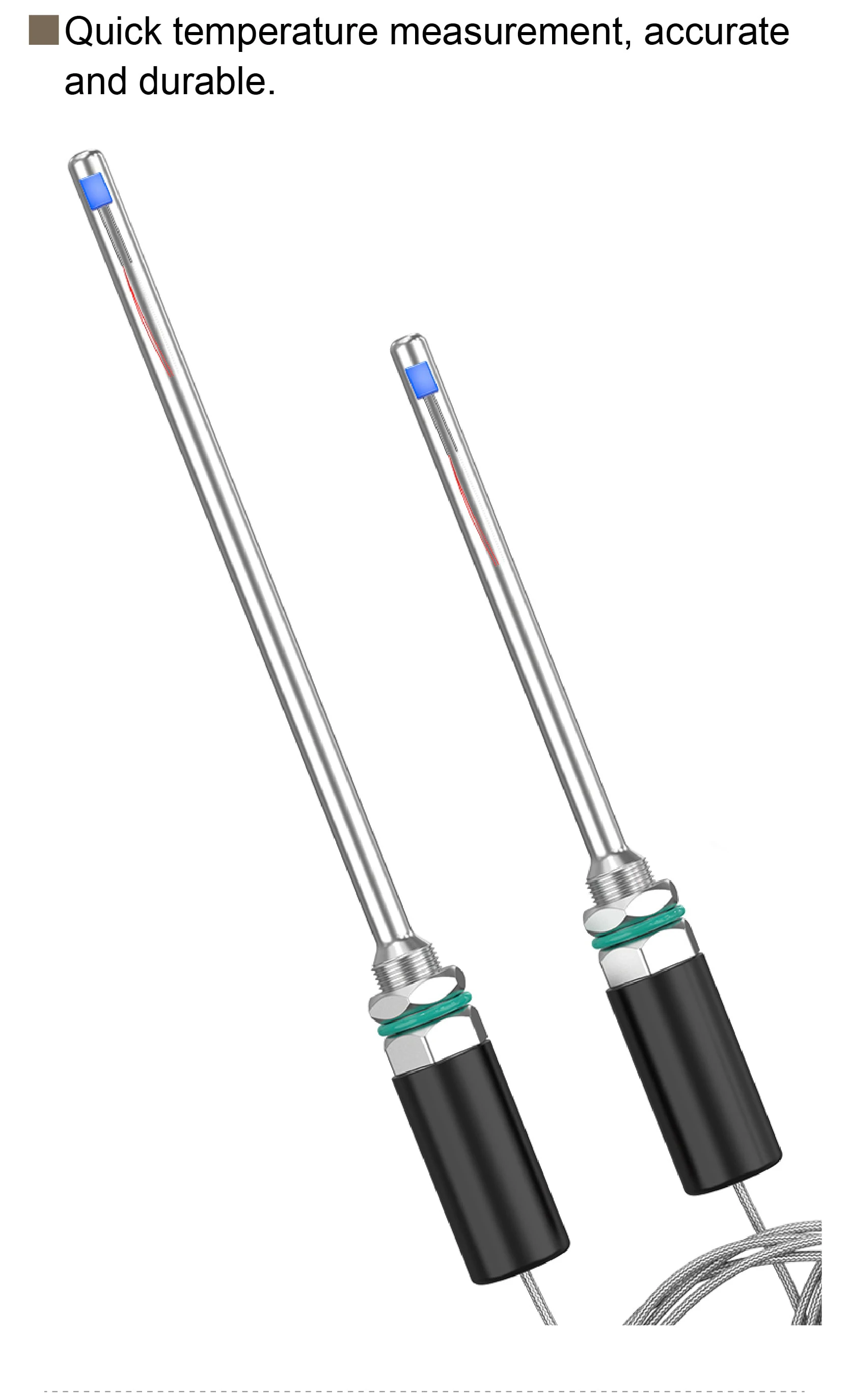

High-temperature resistance up to 450°C

Customizable probe lengths and diameters

Shielded cables for accurate temperature measurement

Optional corrosion-resistant or perforated designs

5. FAQs

Q: Can the probe length be customized?
A: Yes, we offer various lengths ranging from 50mm to 500mm. Contact us for specific requirements.

Q: What type of cable is used for Pt100 sensors?

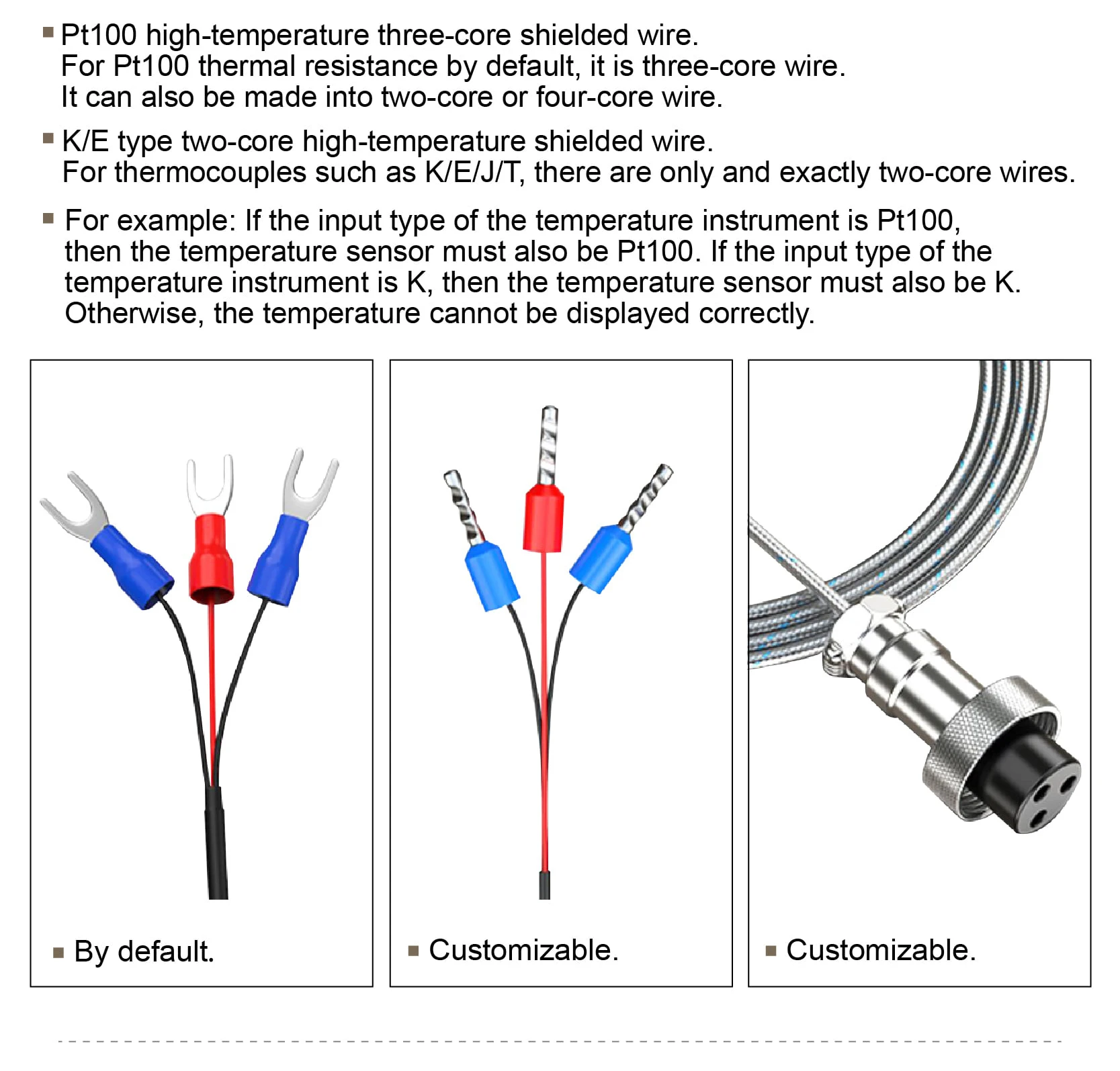

A: Pt100 sensors come with a 3-core shielded cable by default, customizable to 2-core or 4-core upon request.

Q: Can the sensor be used in corrosive environments?

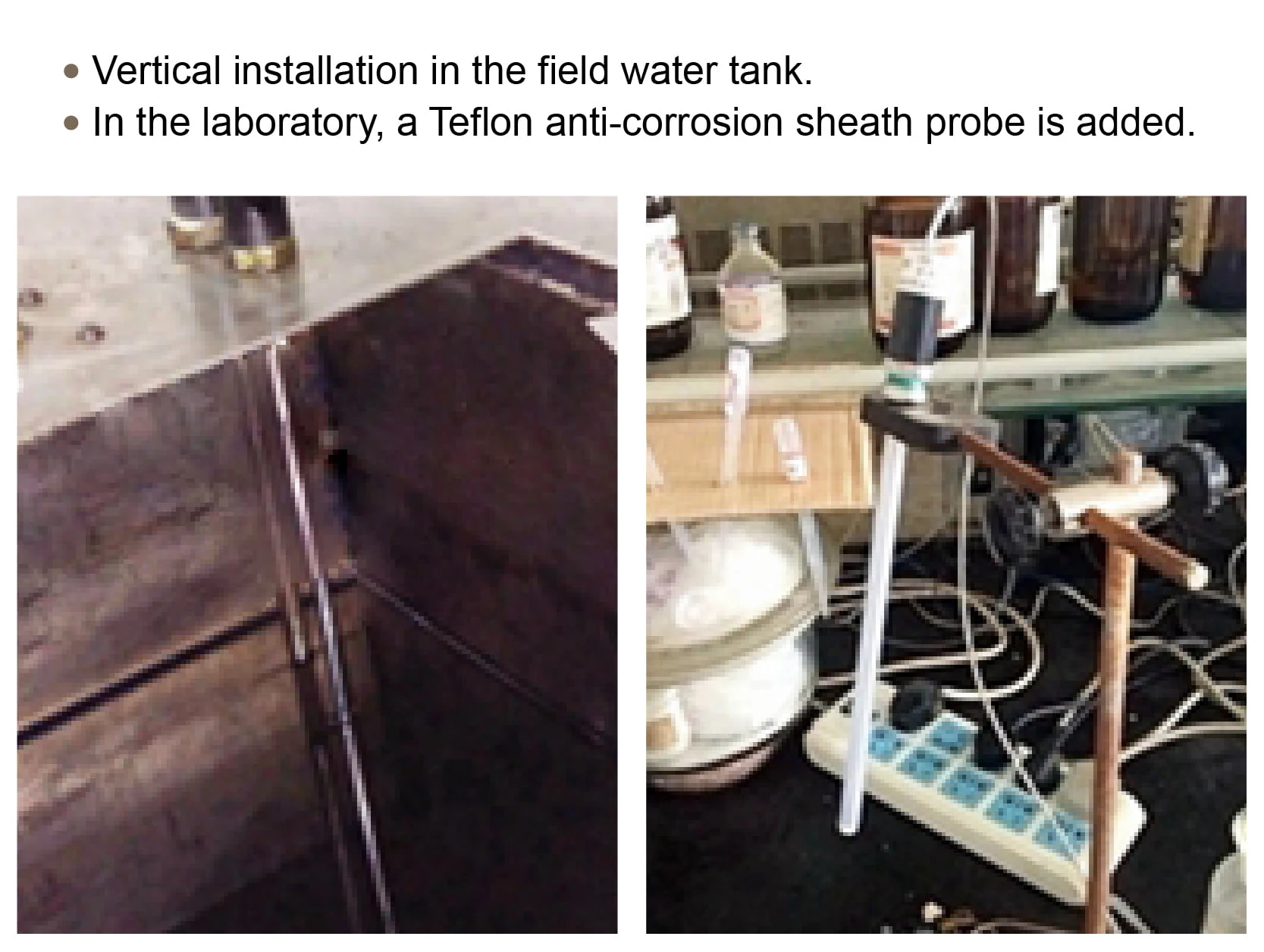

A: Yes, we provide an optional transparent Teflon anti-corrosion sheath for the probe.

Q: Is the sensor compatible with my temperature instrument?
A: Ensure that the input type of your temperature instrument matches the sensor type (e.g., Pt100 or K type).
