Product Description

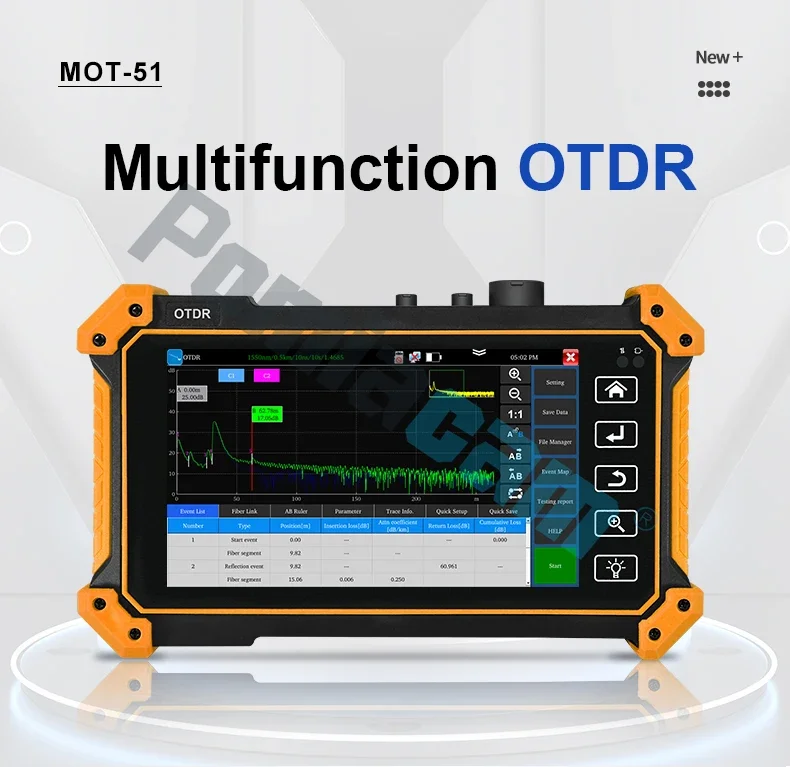

Model: MOT-51 series

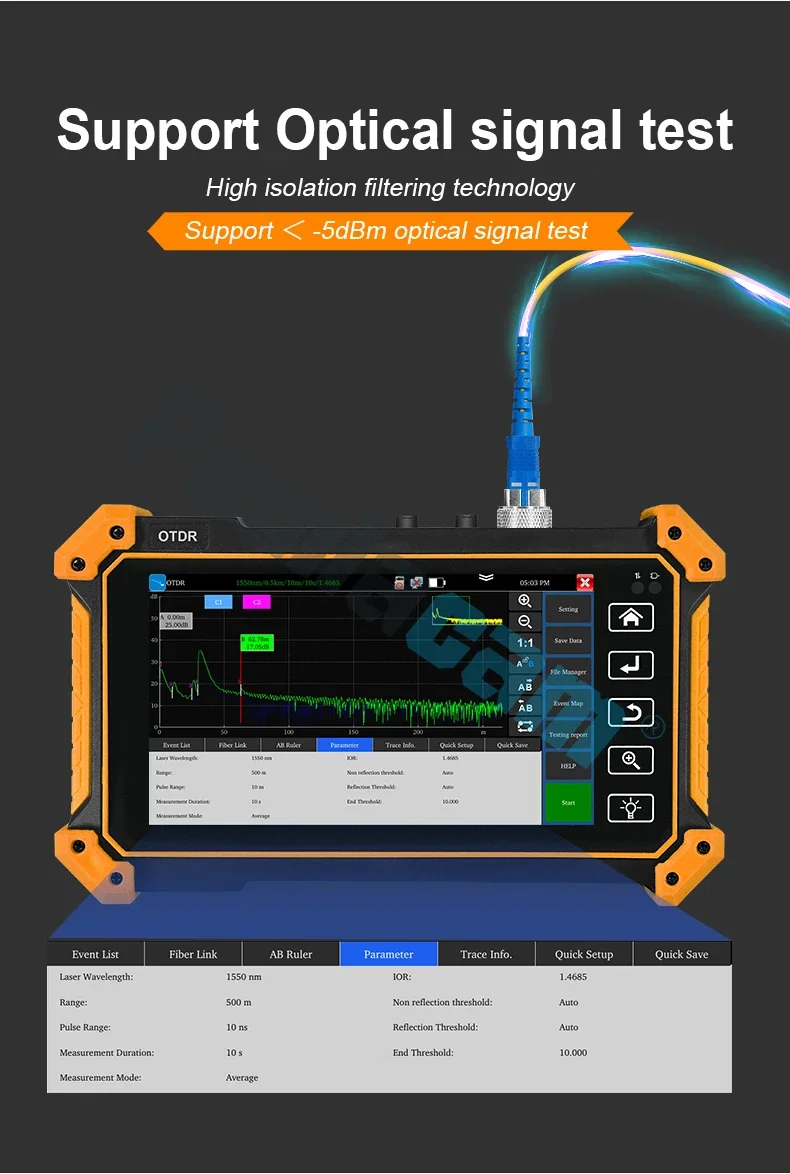

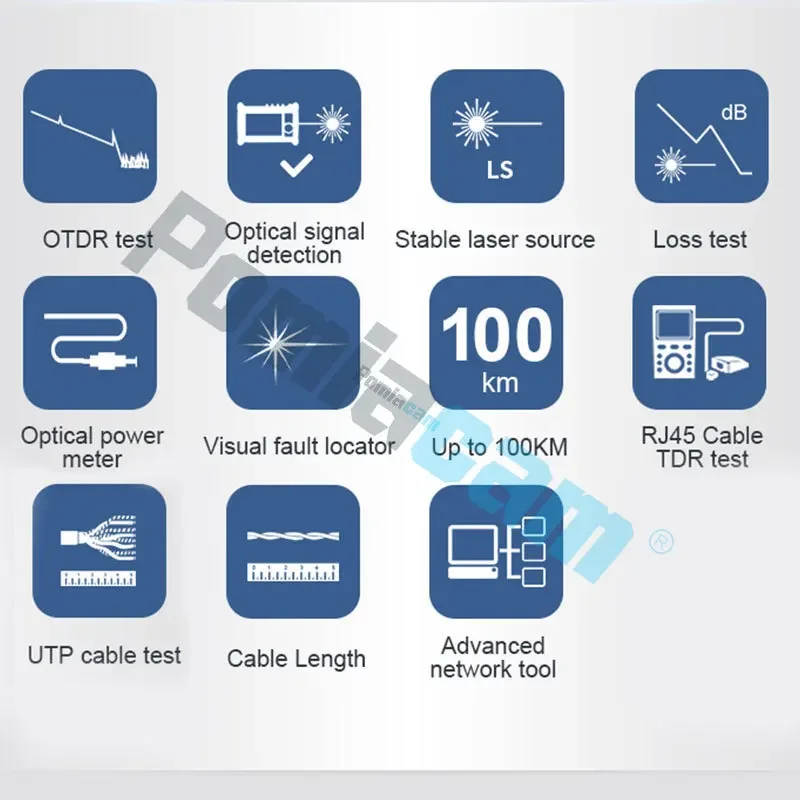

OTDR

● 5.55 inch OLED touch screen display, 1280*720 resolution

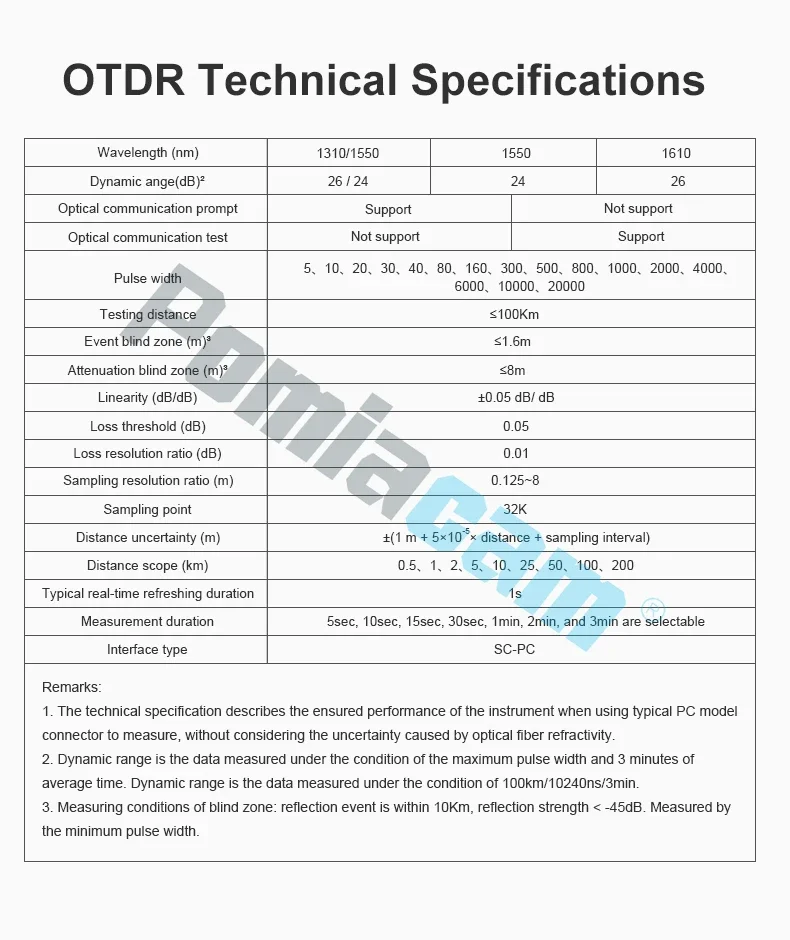

● 1310/1550/1610wavelength Optional, 26/24dB Dynamic range Optional*, max test range 100KM*

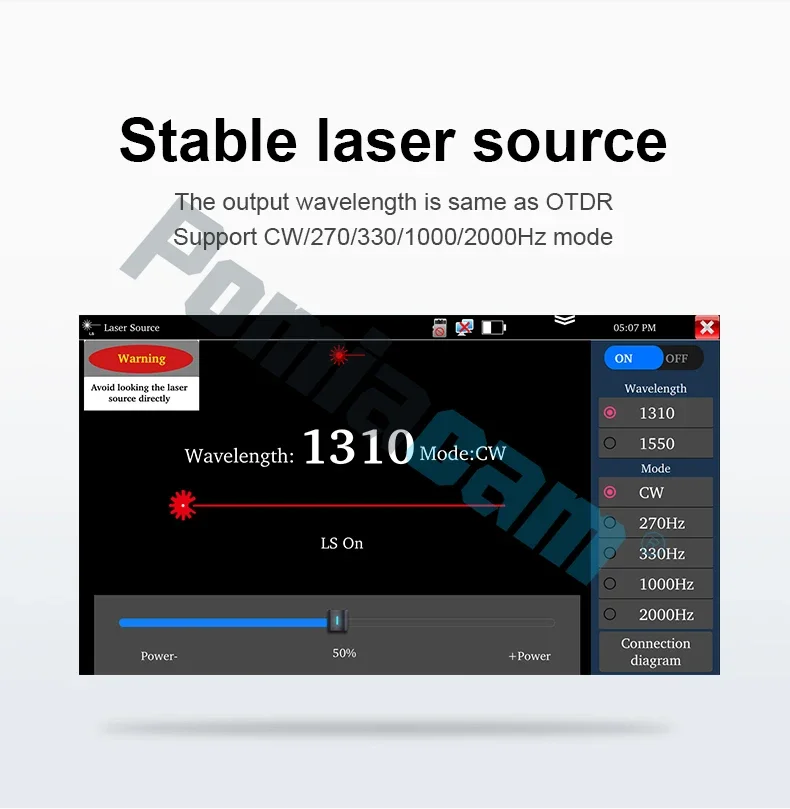

● Stable laser source, support CW/270/330/1000/2000Hz

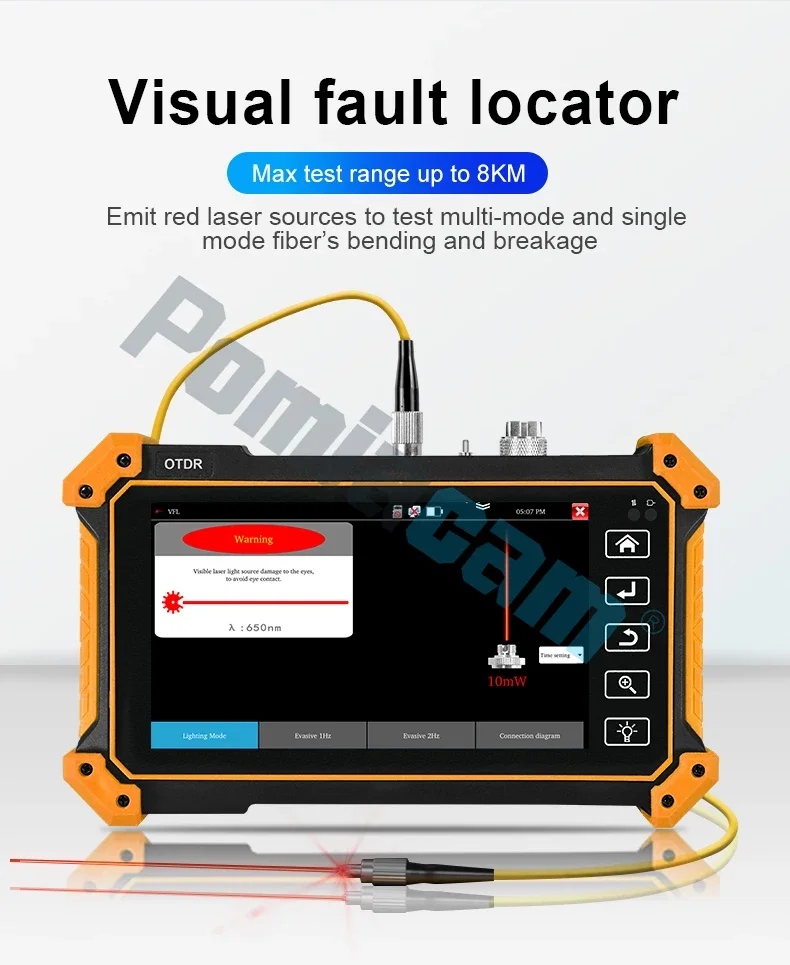

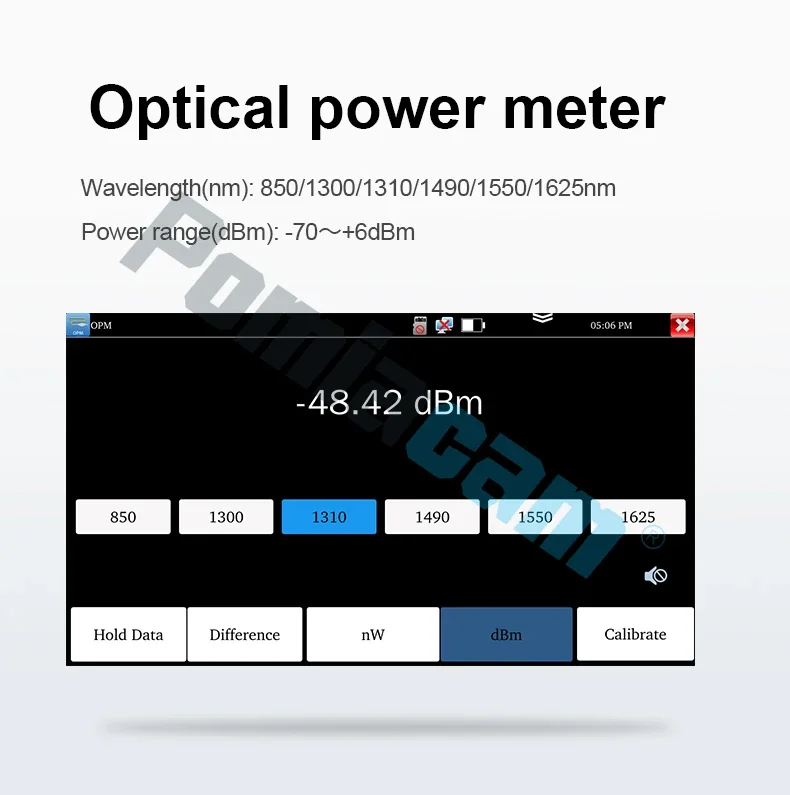

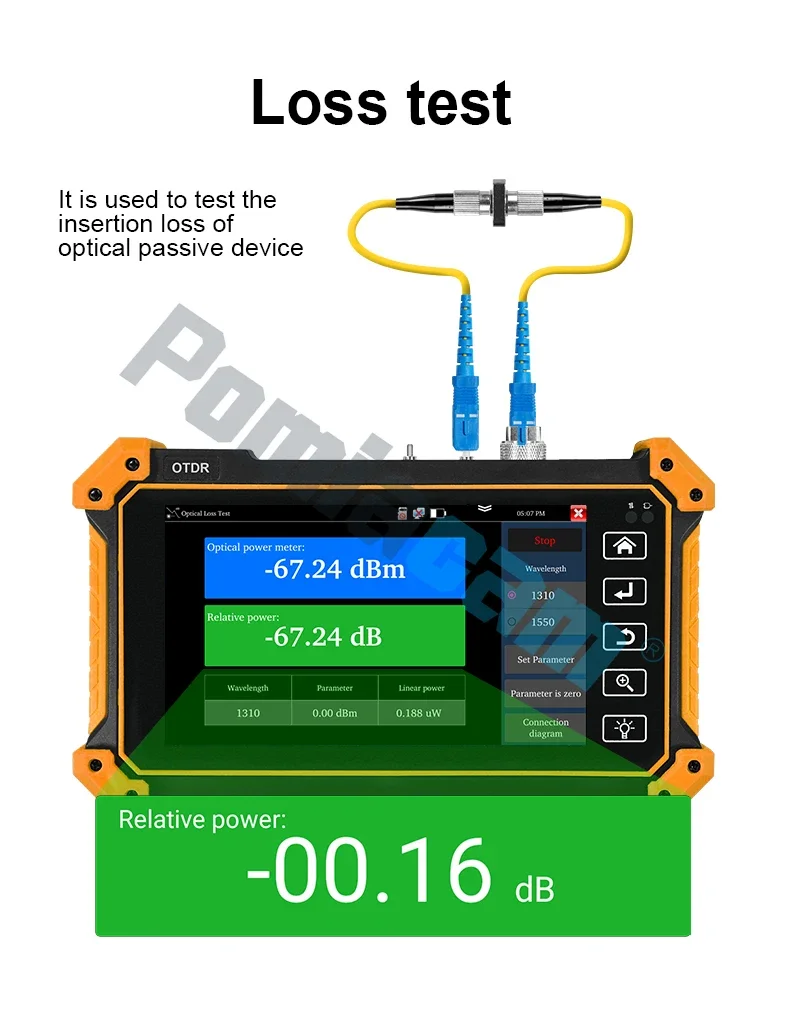

● Optical power meter and visual fault locator

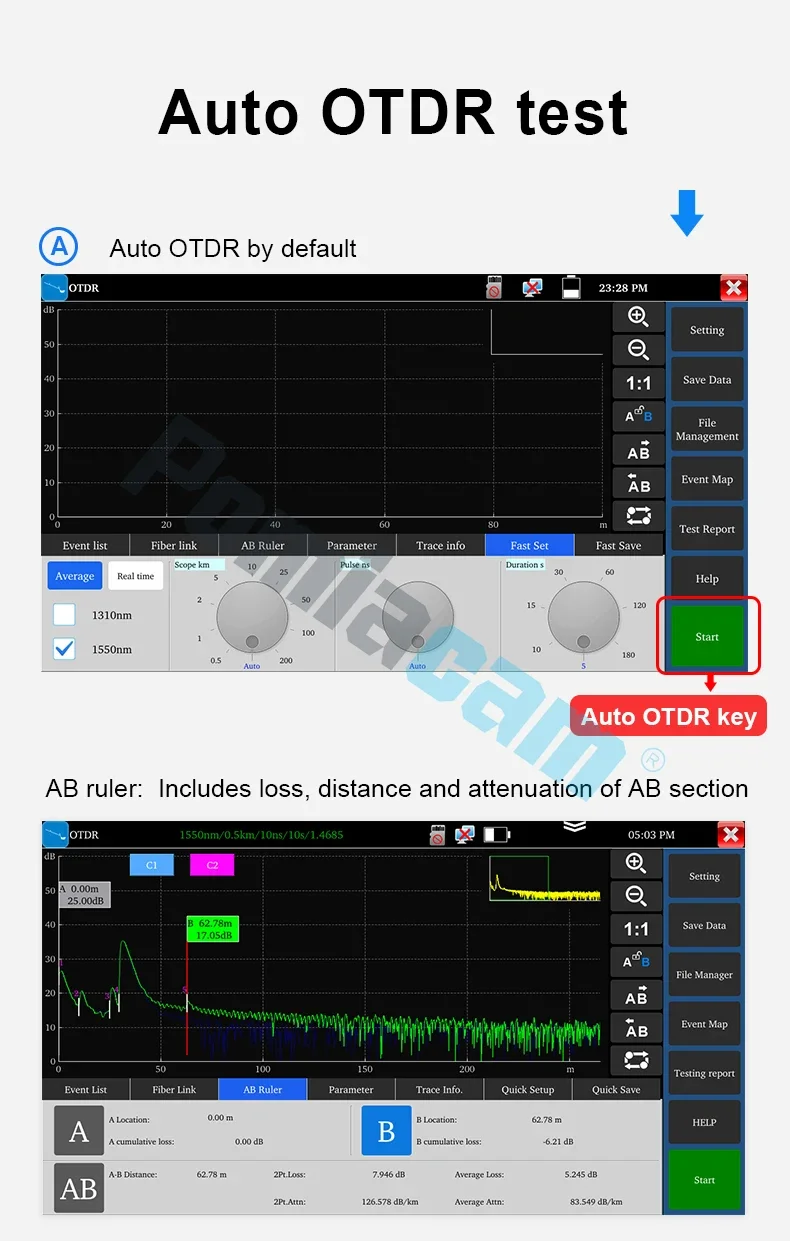

● Test fiber's length, loss, attenuation parameters and event map, locate connection point/ fusion point

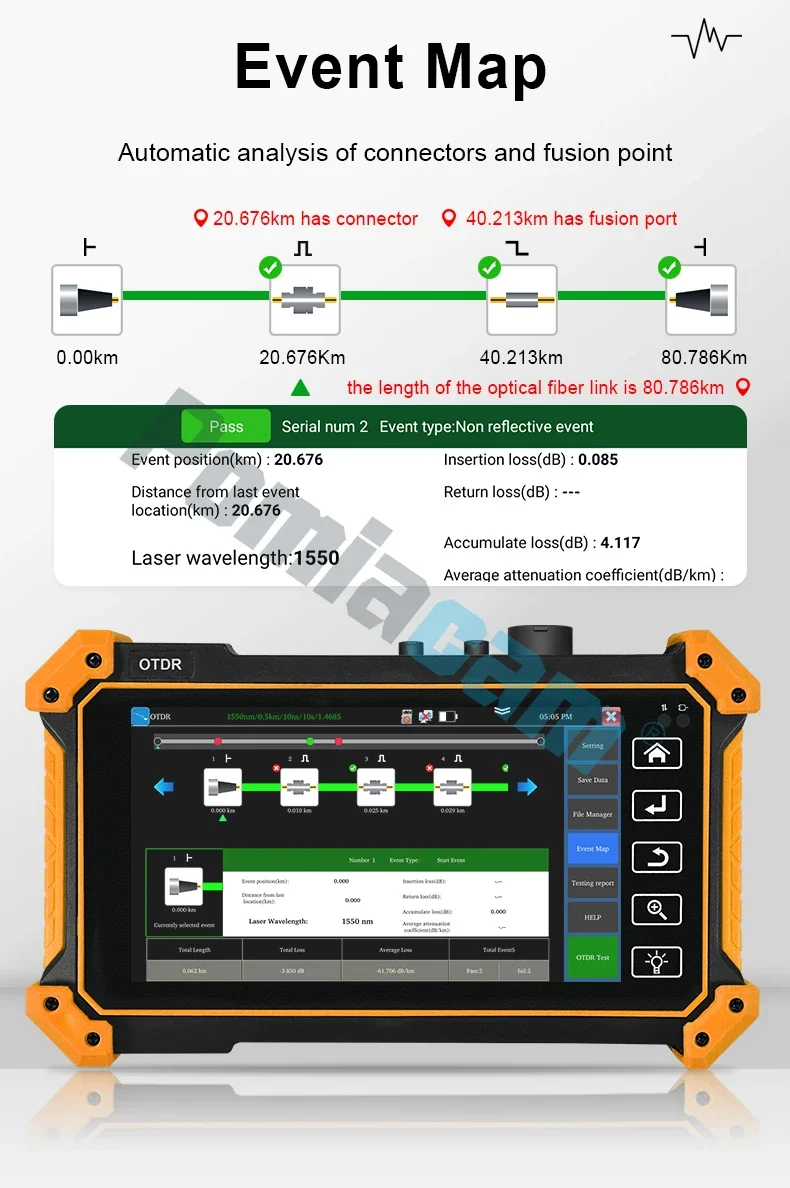

● Automatic analysis of various linkers/fusion points, easy analyze of various events

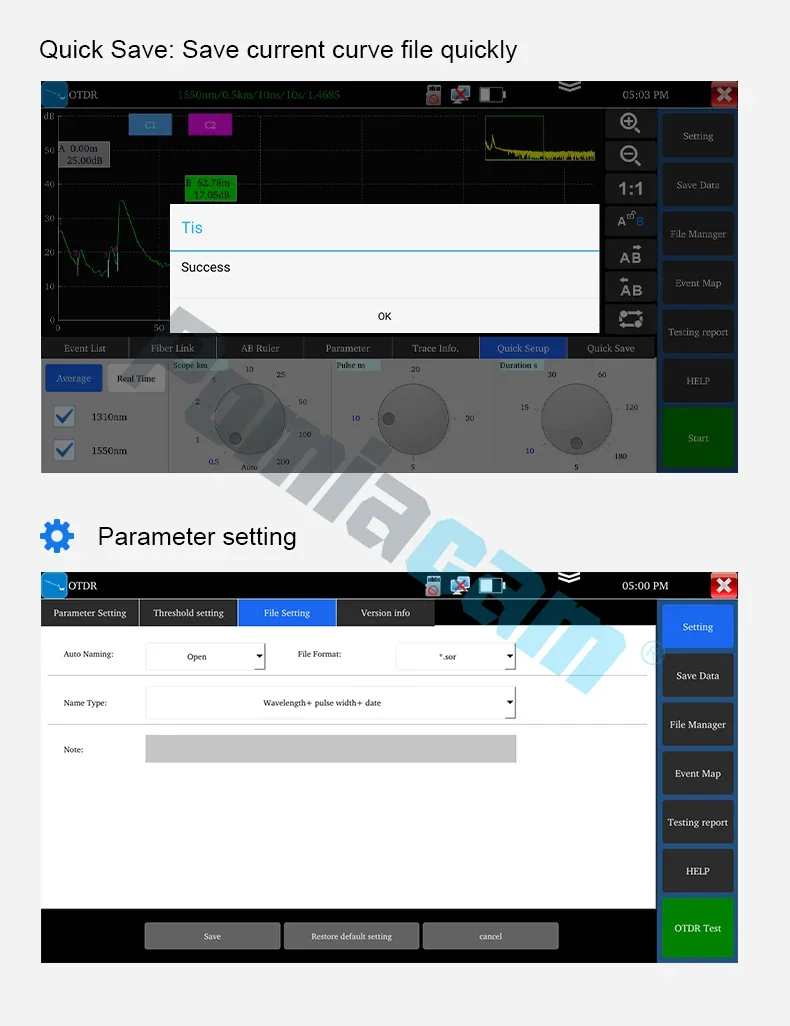

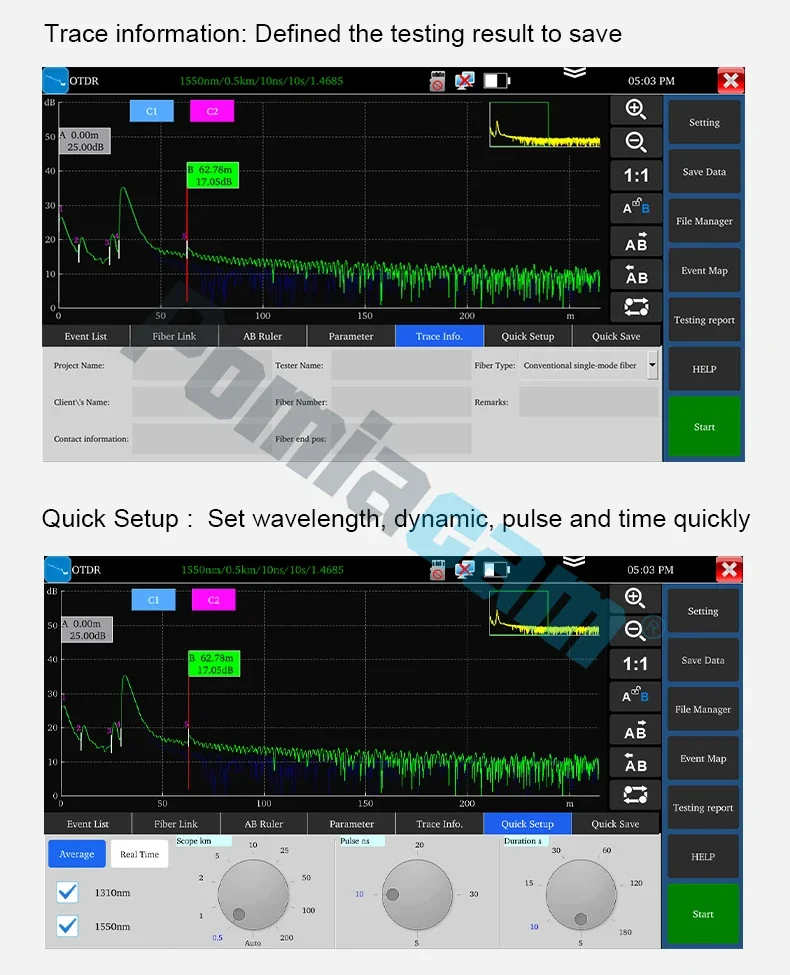

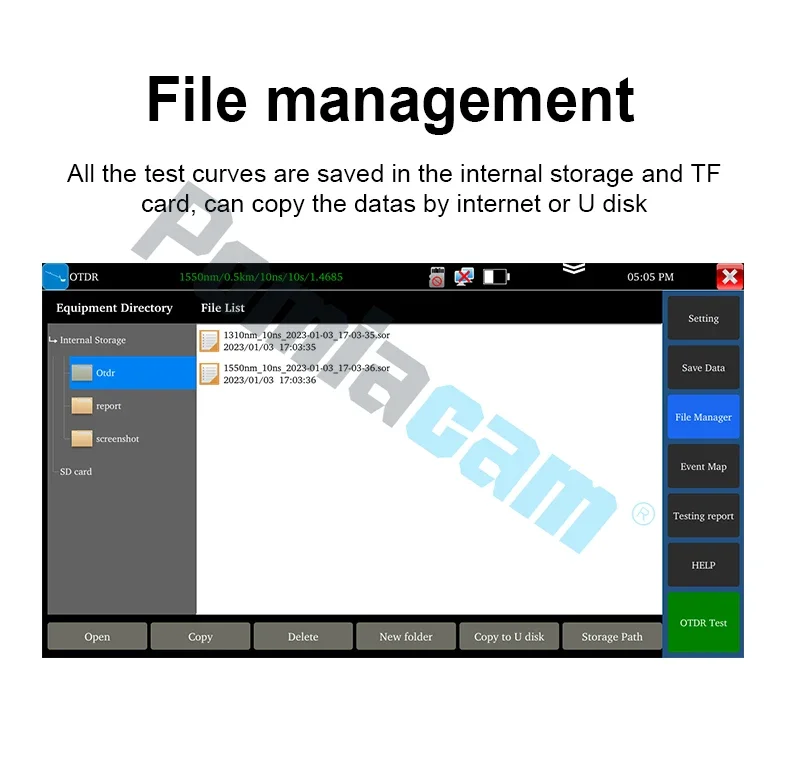

● Save and view the testing curves, support zoom and move curves, view details.

● Support saving curves number ≥30000pcs

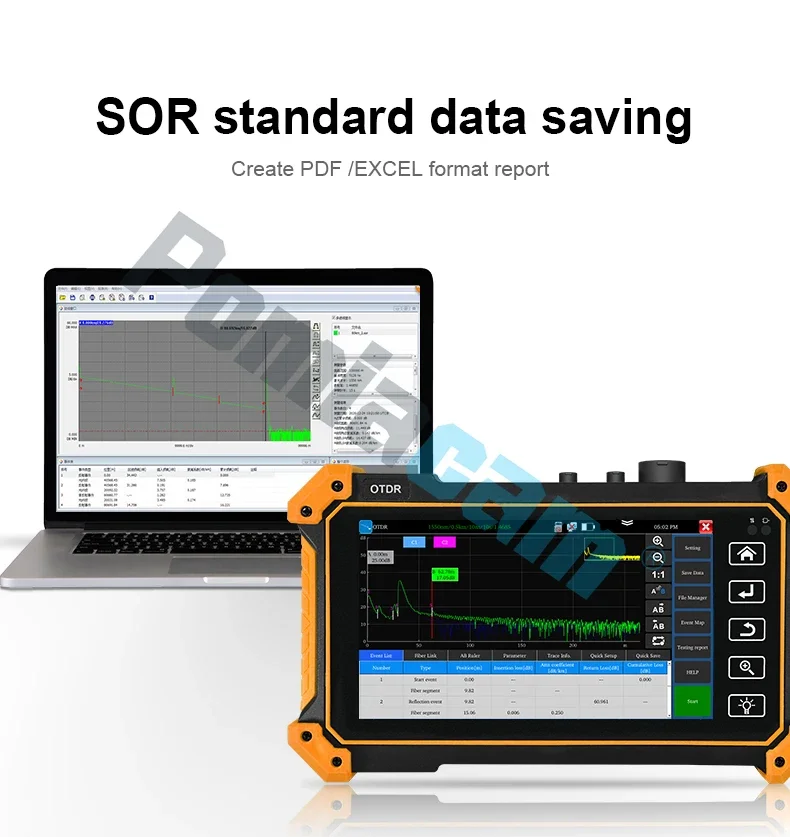

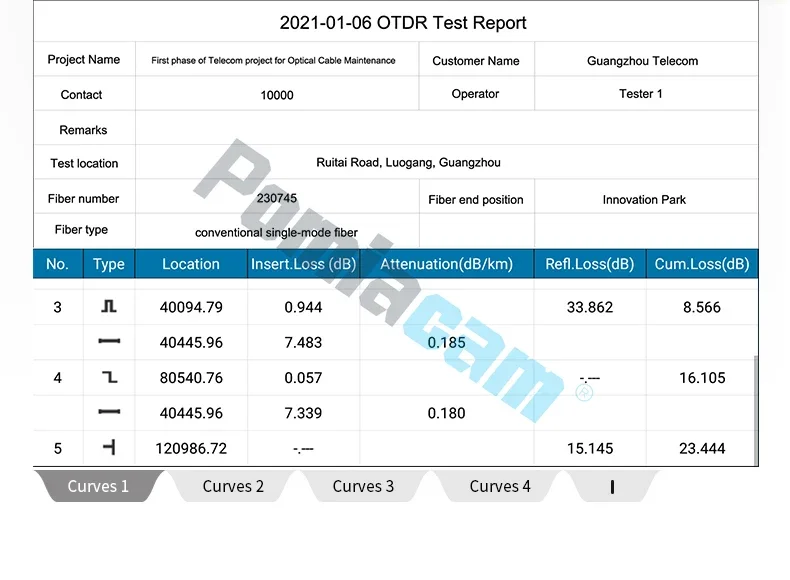

● Support create testing report, including curve trajectory graphs, parameter settings, fiber event information, and fiber link information. Report saved as EXCEL, PDF, or screenshots format etc

Cable test:

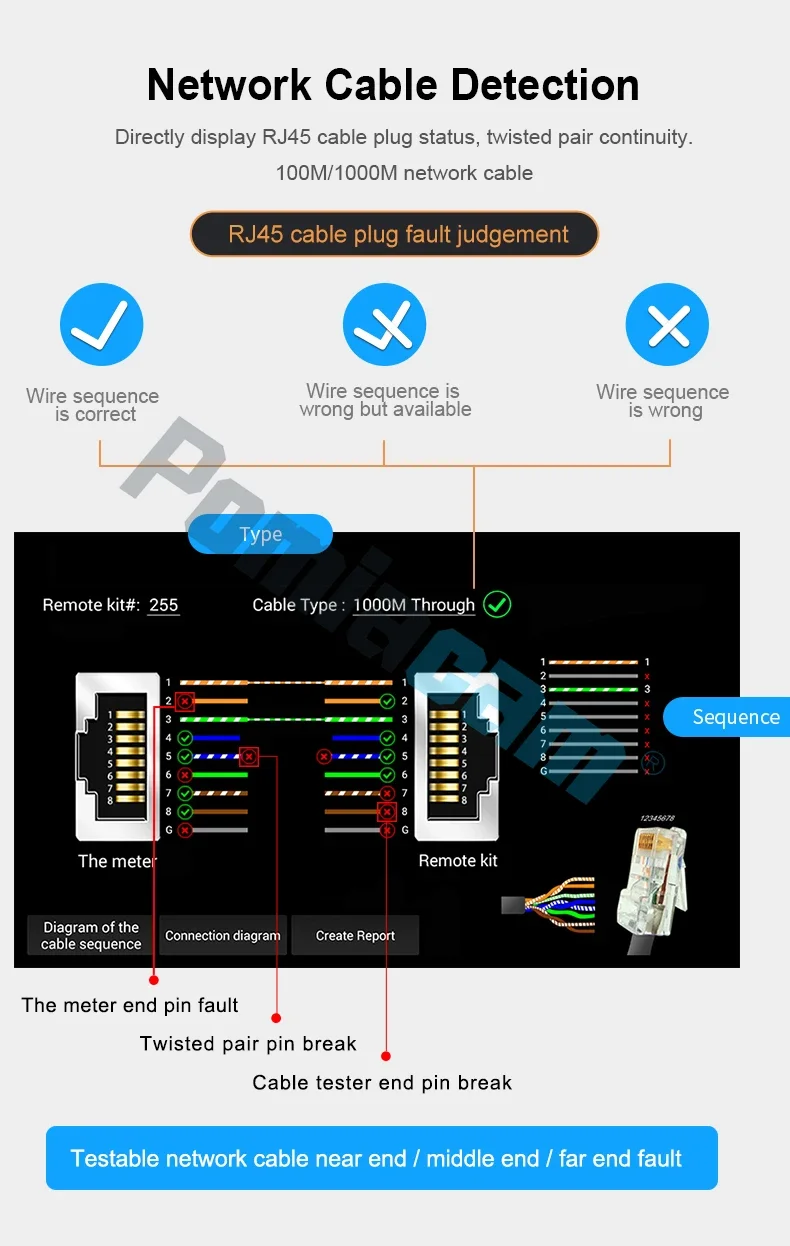

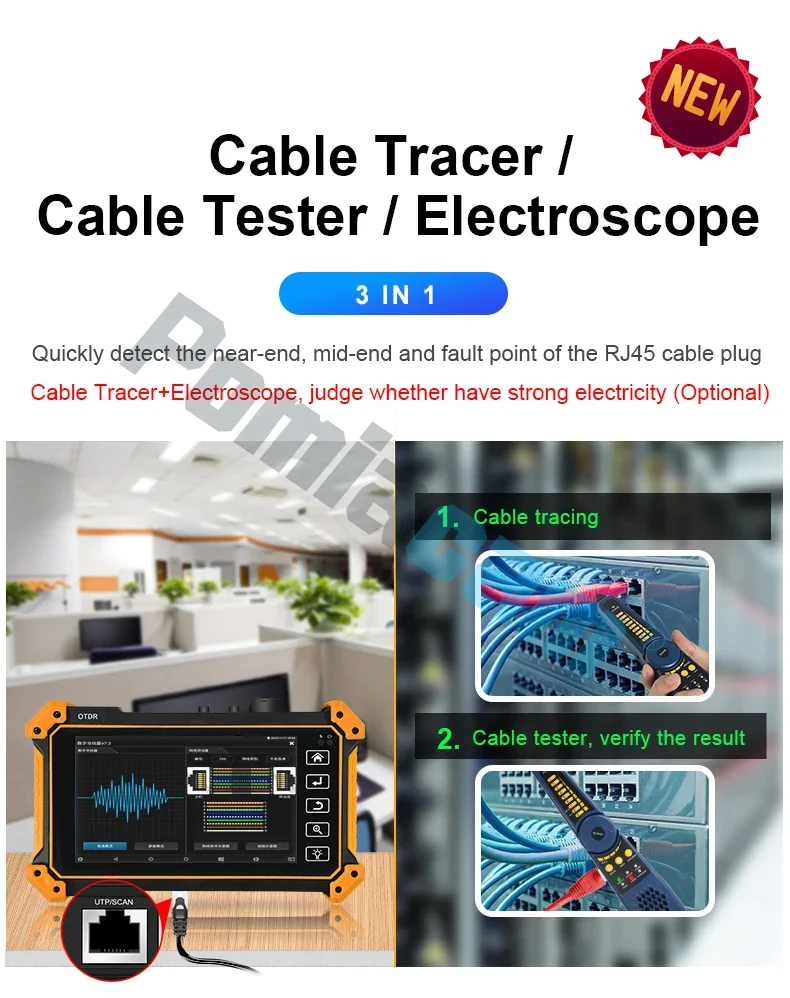

● Improvement cable tester, UTP cable, telephone cable etc sequence and continuity test, save testing report. Support detect the near-end, mid-end and far-end fault point of the RJ45 cable plug

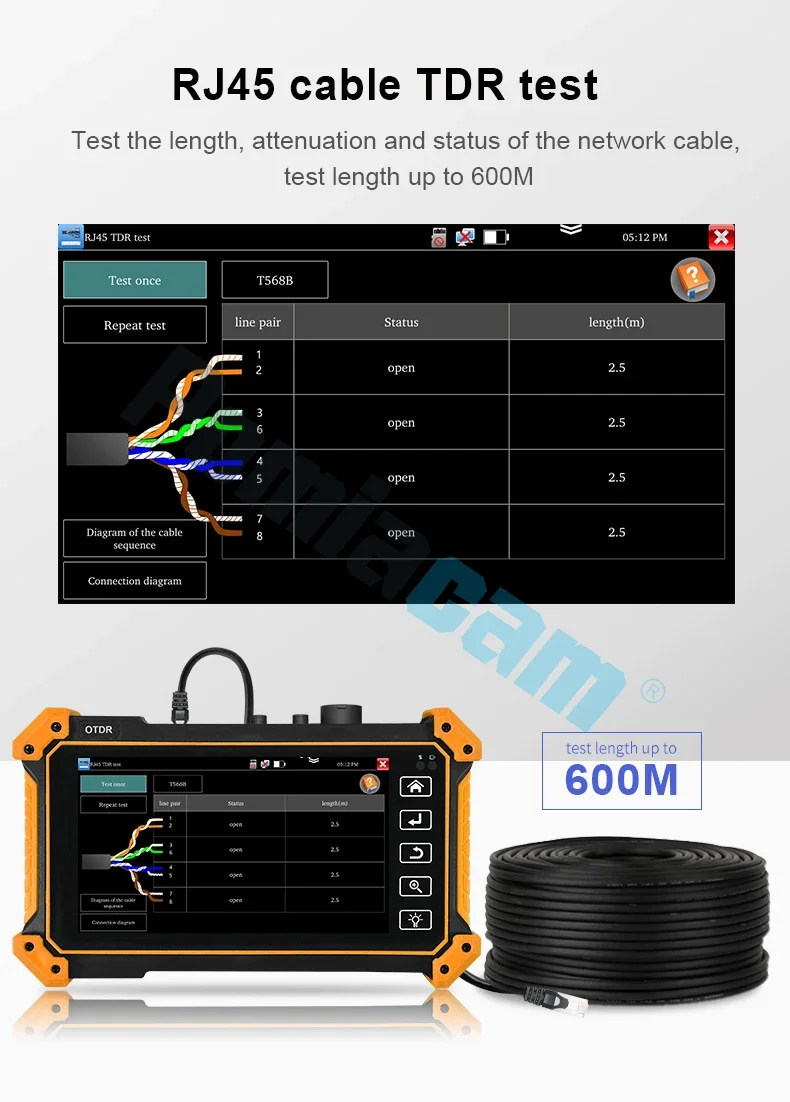

● RJ45 cable TDR test, test cable pair status and length, max test 600M* (Optional)

● Cable length, BNC cable, network cable, telephone cable, RVV cable, elevator cable, and cat 5/6 cable's length test. Max measurement for cable's open is 1.5KM

Another function:

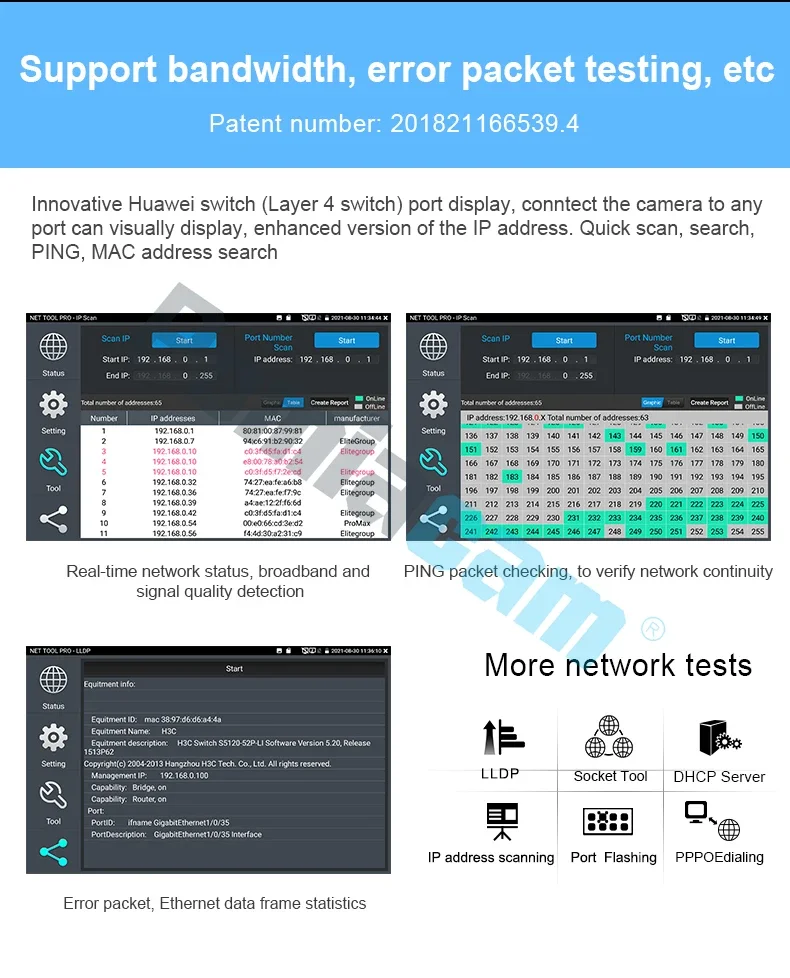

● PING test

● USB 5V 1A power output, as the power bank

● FTP server and online update

● 3.7V 4000mA Li-ion Battery, 3.5 hours charging, normal working time lasts 6 hours
