4K 60Hz 120M HDMI KVM Extender over RJ45 Ethernet Cat6 Cable HDMI USB Extender T

Product Description

If you like our products please you add to cart or add to Favorites,Surprise coupons is waiting for you to extract,
more refined small gifts free to send, please contact customer service.
If you follow our store and become our fans, you can get extra 5% discount for some designated products.

Description:

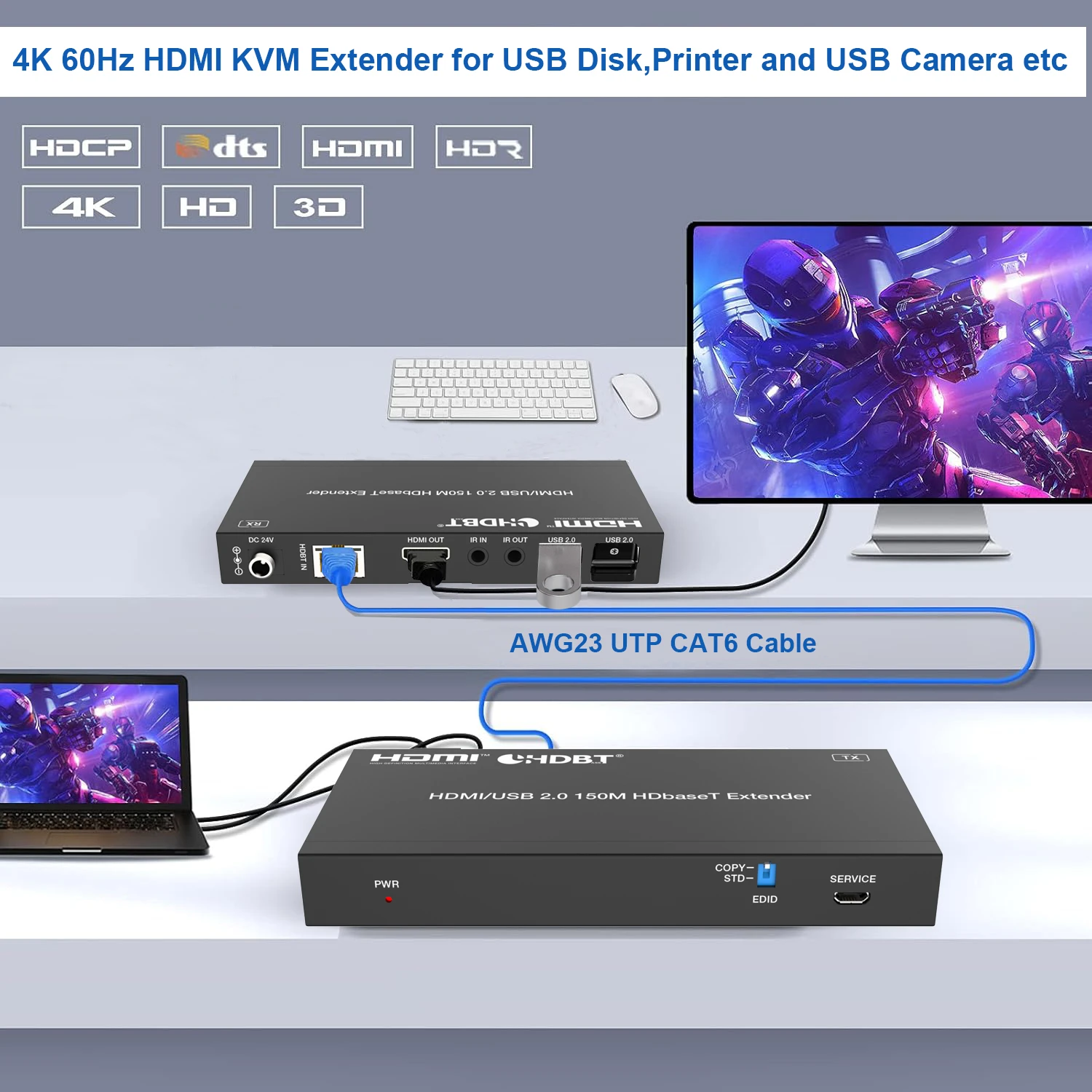

ZY-EHB150U2,Navceker 18Gbps HDBaseT Extender can extend HDMI signal, bi-directional IR control signal and USB KVM signal to a distance up to 492ft / 150m (Long Reach Mode) via a single CAT6 cable. This product converts HDMI signal to standard HDBaseT signal and transmits it through LAN cable. It can easily control signal source device or display device from the remote end through bi-directional IR signal pass-through function. Video resolution is up to 4K x 2K @60Hz YUV 4:4:4. It also supports POC function.

Features:

2025 4K 60Hz HDMI KVM Extender RJ45 HDMI USB Extender 120m over Cat5e/Cat6 POC HDMI Extender Transmitter Receiver for USB Camera,USB Disk PC Computer

• HDBaseT Mode:USB supports USB 2.0 transmission (support connecting with USB camera, USB flash drive and other devices); the audio & video signal transmission distance can be extended up to 328ft / 100m for 4K@60Hz

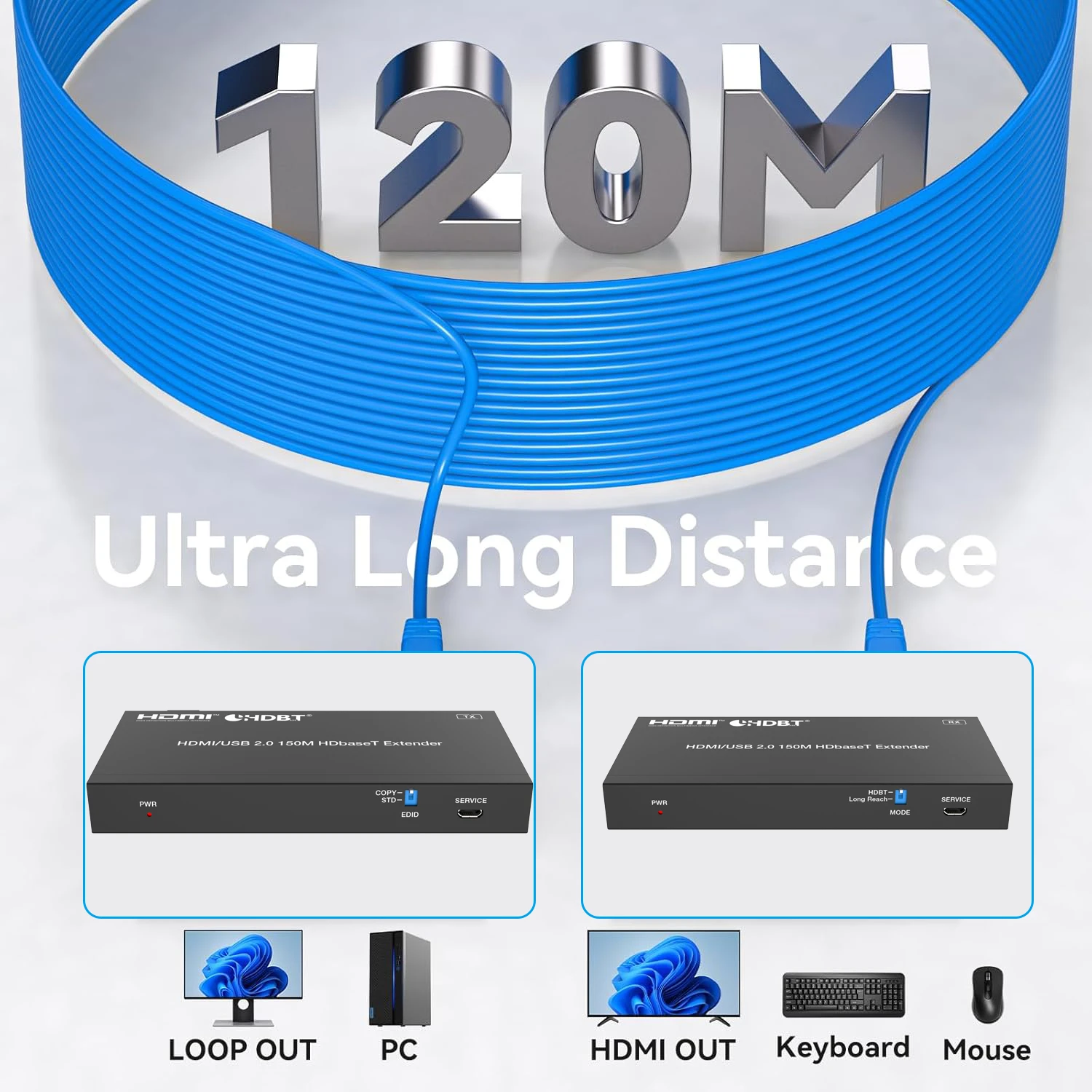

• Long Reach Mode: USB only supports HID (Human Interface Device) device; the audio & video signal transmission distance can be extended up to 492ft / 150m for 1080P or 394ft / 120m for 4K 60Hz

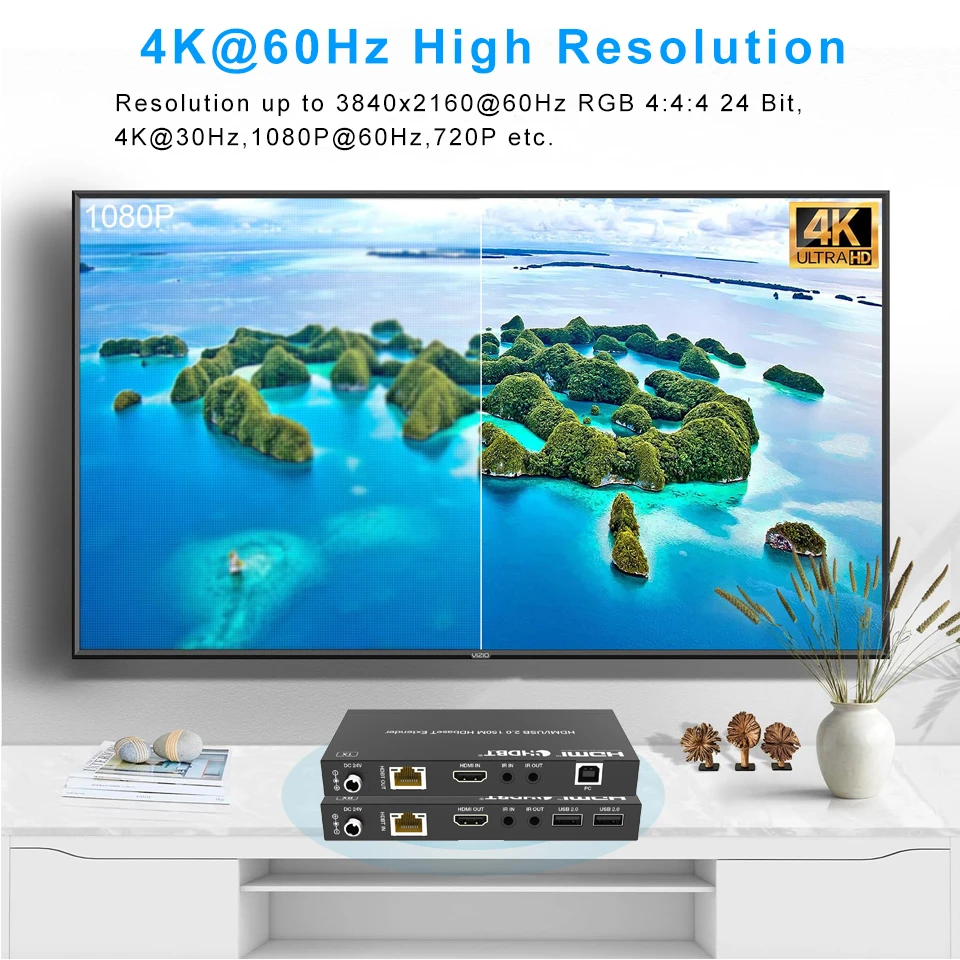

• Video resolution:Up to 576P,720P,1920x1080P@60Hz,3840x2160@60Hz;

• HDR 10+,3D,Dolby Vision,Dolby ATMOS,Deep Color:8/10/12 Bit;

• Audio format:LPCM2/5.1/7.1,Dolby Digital,DTS 5.1,Dolby Digital+ ;

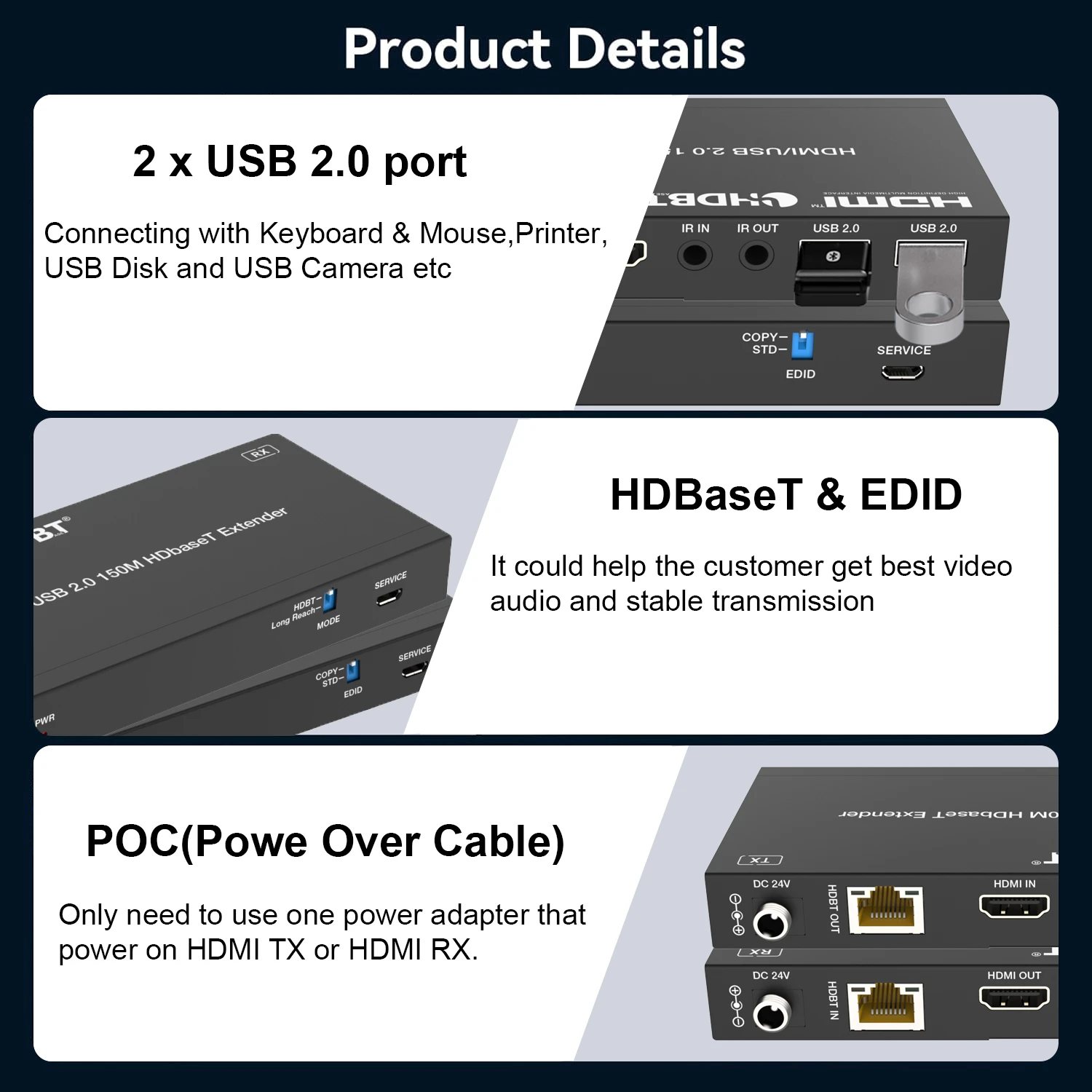

• POC function:Power over CAT cable,only need one power adapter;

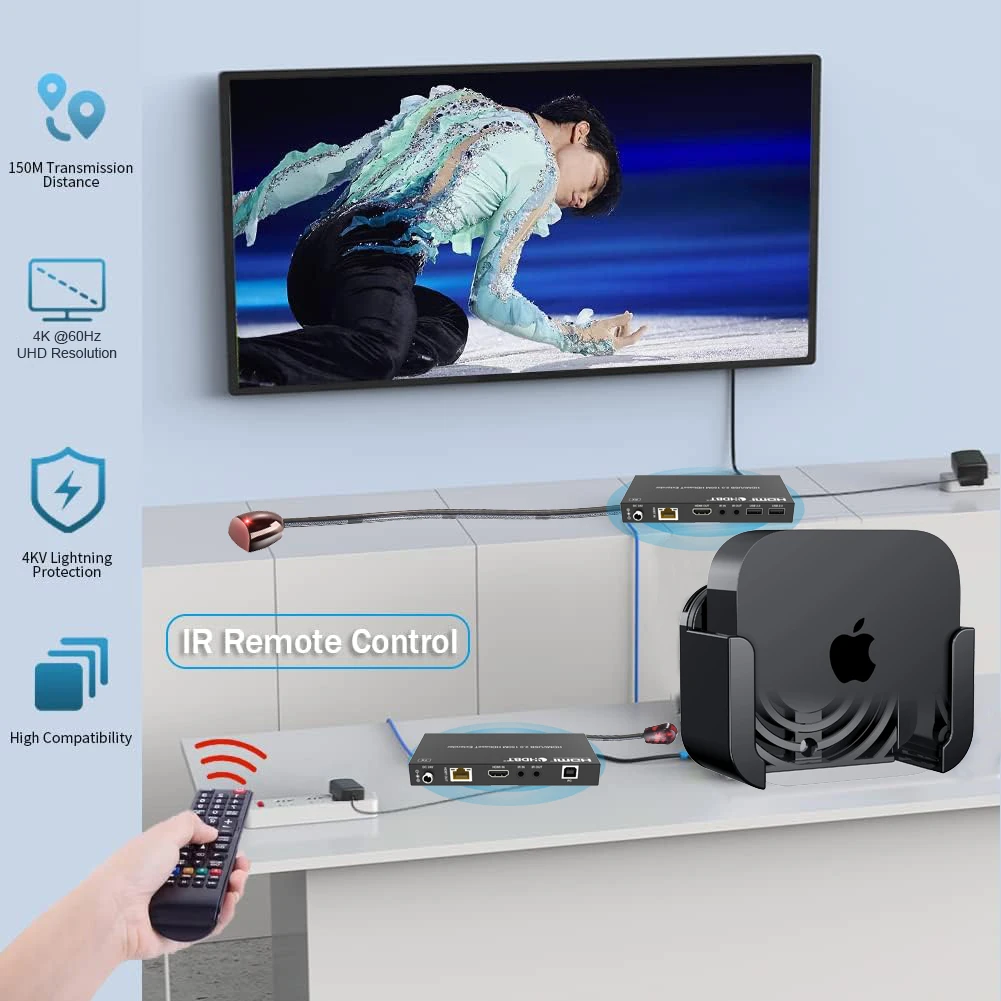

• Bi-directional IR control: two way ir signal to control;

• Uncompressed mode:ZERO Delay,No loss;

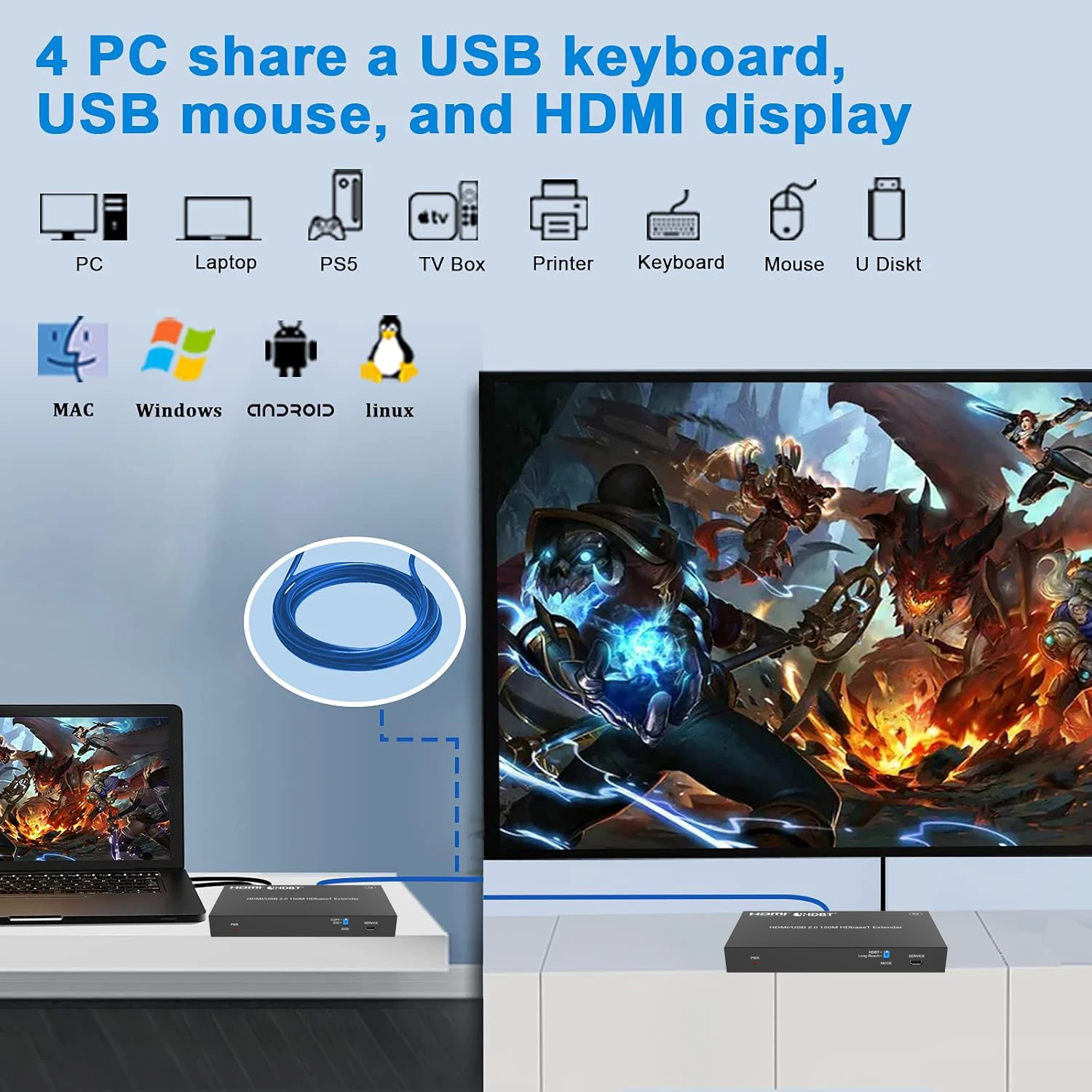

• KVM Rmote Control:keyboard and mouse remote control transmitter from long distance;

• Male to male:one TX to one RX applicataion;

• Video standard:compliance with HDMI 2.0 and HDCP 2.2 ,and compliant DVI standard;

• Built-in automatic adjustment system:make the image smooth, clear and stable;

• Built-in ESD protection system：make transmission much safer. Perfect hdmi extension adapter for large homes, factories, construction sites, data control centers etc;plug and play

• Simple to install, plug and play

Specifications:

120M HD USB KVM Network Extender splitter over Ethernet 4K 60Hz Extender for Mouse Keyboard for DVD Camera Laptop PC To TV Monitor

Video
Standards----------HDMI 2.0; HDCP 2.2
Maximum pixel clock------300MHz
Maximum data rate-------18Gbps
Resolution ------4K@60Hz
Connector-----HDMI-A
Impedance--------100Ω

USB
Interface-------PC: Type B USB interface; connect to pc;

K/M: connect wired or wireless USB keyboard and mouse
USB signal----------HID Signal

CAT
Interface-----RJ45/IEEE-568B/AWG23

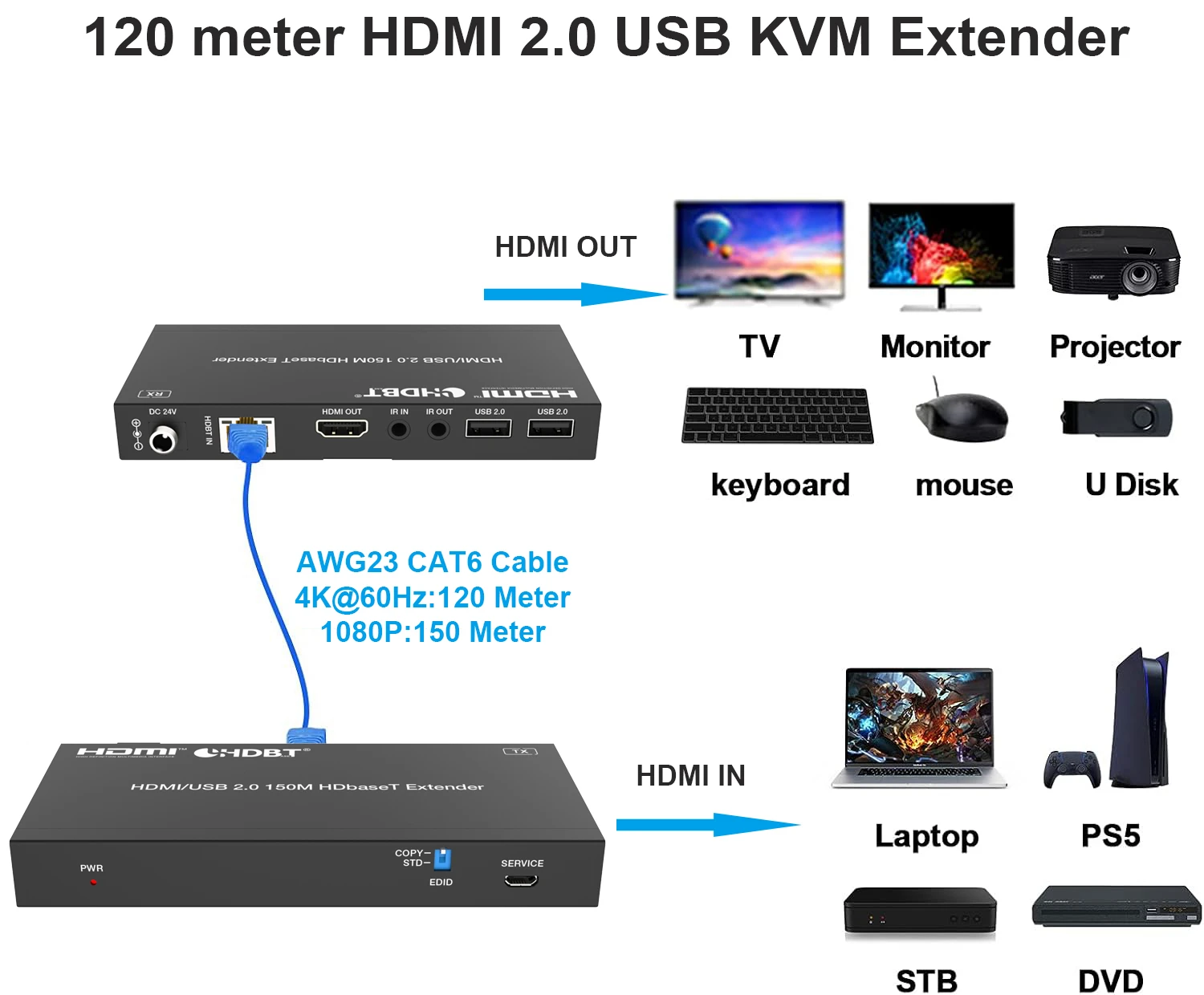

Transmission distance--------4K@60Hz CAT6:120m,1080P CAT6:150m

Other
Power supply-----The power adapter: DC 24V/1A
Power dissipation------13.2W (Max)
Temperature-------Operating: -5℃ ~ +70℃
Humidity-------Operating: 5% ~ 90%
Dimension-------140*65*18mm
The warranty--------1 year free warranty

Note:

1.the K/M USB port support wired or wireless keyboard and mouse,also support Mechanical keyboard，USB camera,Scanner,USB flash driver ,printer etc for HDBT mode.

2.For CAT cable,please you use AWG23 CAT5e/6 cable with IEEE-568B connection.
