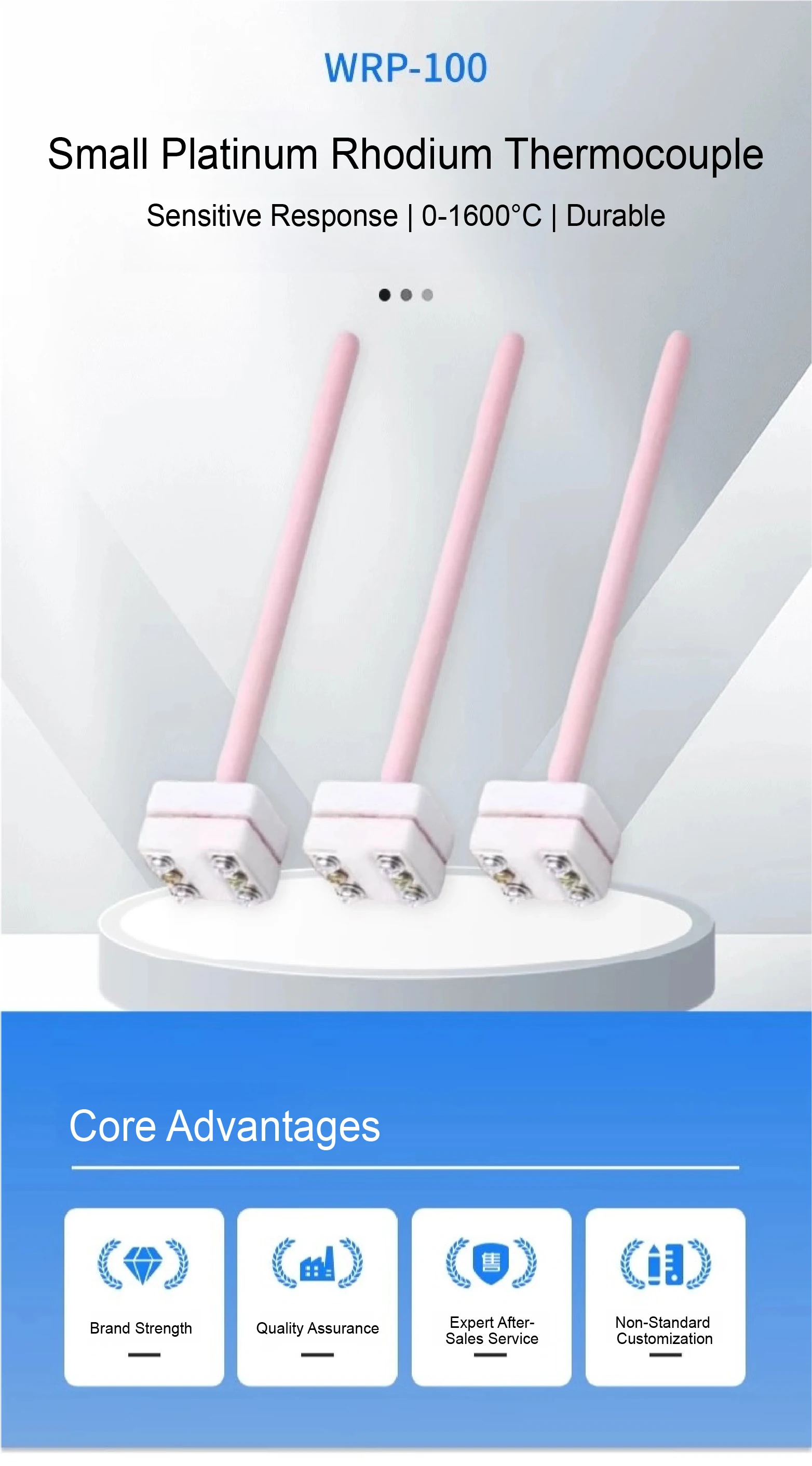

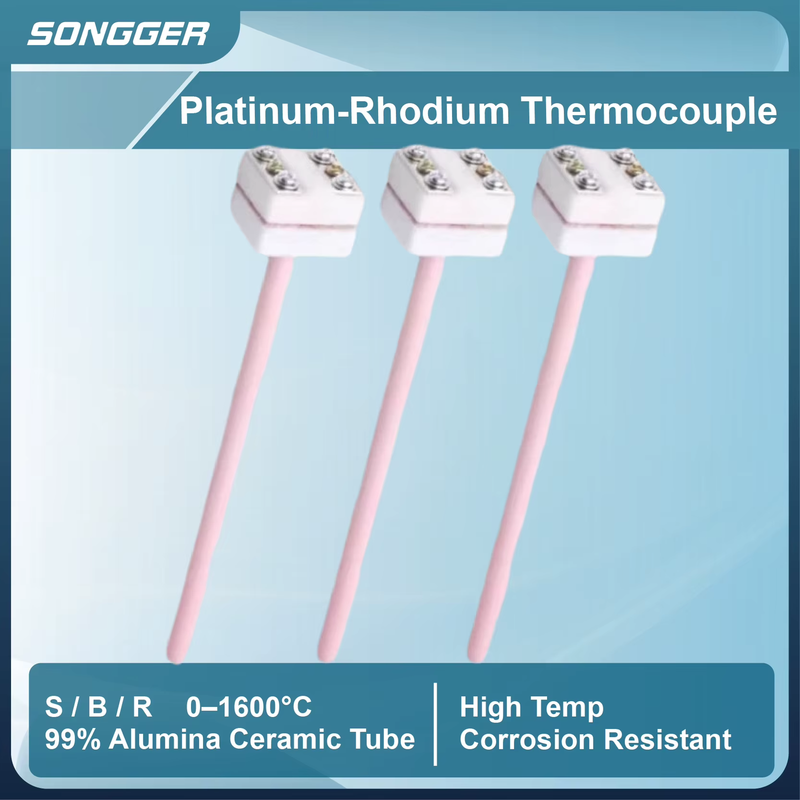

WRP-100 S Type Thermocouple Probe 0-1600°C Platinum Rhodium Sensor with Corundum

Product Description

1.NOTE:
Key Parameters:

Index Code: S, R, B (High-temperature precious metal thermocouple)

Temperature Range: S, R: 0-1300°C | B: 0-1600°C

Material: 99% Alumina / 95% Alumina / 92% Alumina

Diameter: Default Φ8mm (Customizable)

Insertion Depth: 150/225/300mm (Custom lengths available)

Wire Diameter: Economic Type: 0.1mm | Enhanced Type: 0.2mm（0.2 is more durable than 0.1.）

Application:Economic Type Max Temp: 1300°C | Enhanced Type Max Temp: 1600°C for temperature measurement or control of fluids, steam, gaseous media, and solid surfaces.

Handle with Care: Alumina tubes are ceramic and brittle. Avoid impact to prevent breakage.

Proper Installation: For thermocouples longer than 2m, do not install horizontally. Secure firmly to avoid damage from industrial vibration.

Allow for Expansion: Ensure enough space for thermal expansion of the alumina tube to prevent cracking.

Avoid Rapid Temperature Changes: When inserting into a high-temperature furnace, preheat gradually. When removing, do so slowly to avoid cracking from sudden temperature changes. Never place a hot tube directly on the ground.

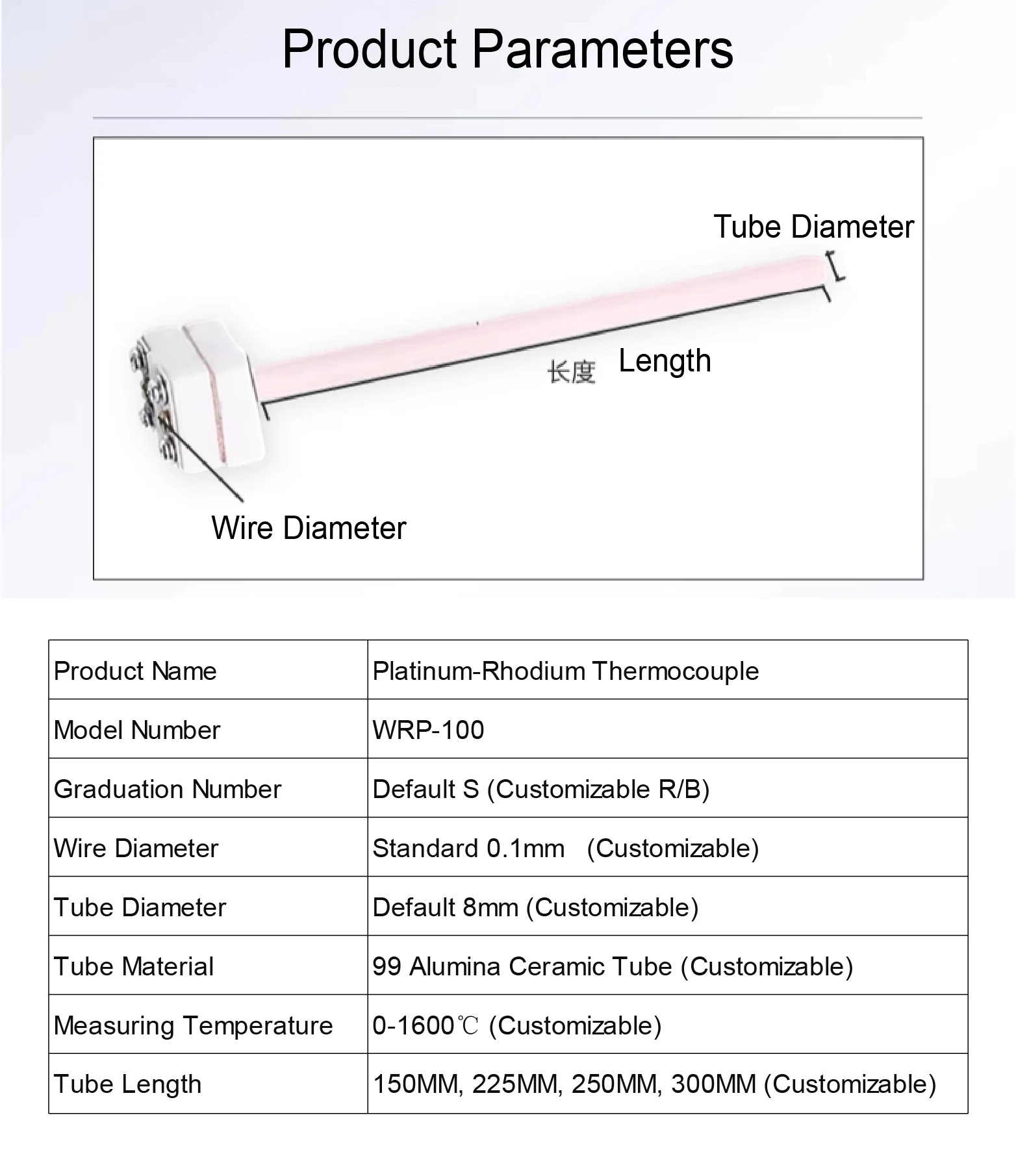

2.Parameters:

3.Application:
Economic Type Max Temp: 1300°C | Enhanced Type Max Temp: 1600°C for temperature measurement or control of fluids, steam, gaseous media, and solid surfaces.

4.Features:

· High Temperature Resistance: Maximum continuous working temperature of 1600°C and 1800°C for short-term use.

· High Corrosion Resistance: Made with high-purity platinum-rhodium alloy.

· Precise Temperature Sensing: Suitable for industrial process control systems.

· Durable Protective Tube: High-density alumina tube with excellent thermal shock resistance.

5.FAQ:

·Q1: Can the insertion depth be customized?
A1: Yes, non-standard lengths can be customized according to your requirements.

·Q2: How to prevent breakage during installation?
A2: Ensure proper installation, leave enough expansion space, and handle carefully to avoid impacts.

·Q3: What is the maximum temperature this product can withstand?
A3: Economic Type Max Temp: 1300°C | Enhanced Type Max Temp: 1600°C.
