2023 HDMI KVM Extender Over IP RJ45 Ethernet Network KVM Extender USB HDMI 250M

Product Description

If you like our products please you add to cart or add to Favorites,Surprise coupons is waiting for you to extract,
more refined small gifts free to send, please contact customer service.
If you follow our store and become our fans, you can get extra 5% discount for some designated products.

Description:

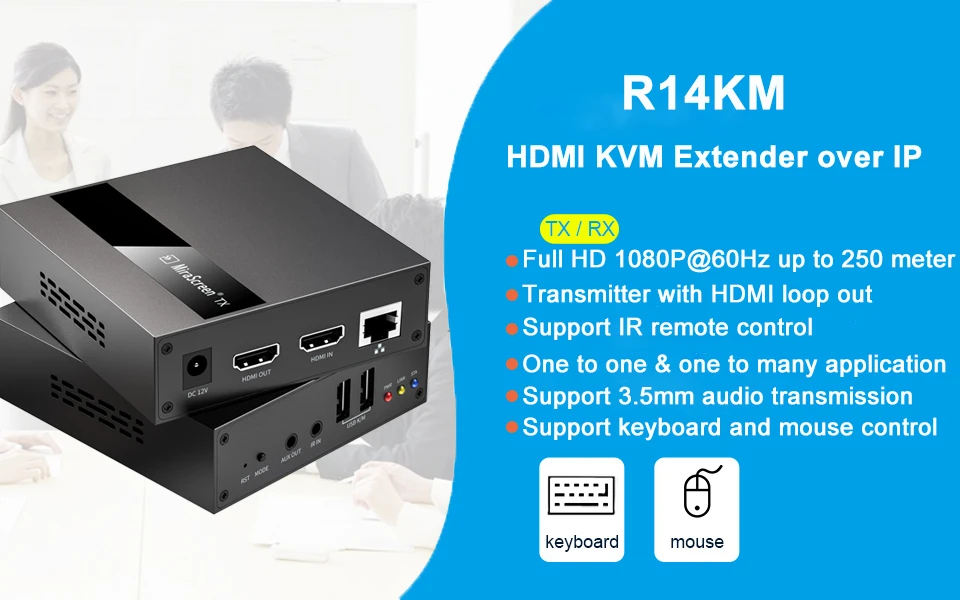

ZY-R14KM,Navceker hdmi extender provides extension of HDMI signals long distances over a single CAT5e/6/7 cable, it supports high resolution up to 1920x1080@60Hz, Infrared signal,stereo audio signal ,Keyboard and mouse signal and hdmi loop out transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Features:

• Transmission Distance:up to 250m over a single CAT5e CAT6 cable;

• Video resolution:up to 480P,720P,1920*1080P@60Hz;

• Audio sampling rate:32kHz, 44.1kHz and 48kHz ;

• Audio Format:DTS-HD/Dolby-true HD/LPCM7.1/DTS/DSD ;

• USB KVM function:Support keyboard and mouse romote control;

• HDMI Loop out:The transmitter with one HDMI local output;

• Infrared remote control:support 20~60 KHz IR romote control;

• Support 3.5mm Stereo audio transmission;

• H.264 compressed Technology,less than 70ms delay;

• Male to male:one TX to one RX applicataion;

• Male to female:TCP/IP,one TX to N RX(Max:253 pcs RX) application with Ethernet switch/Router;

• IEEE-568B:standard 802.3 Ethernet 10/ 100/ 1000Mbps;

• Video standard:compliance with HDMI 1.3 and HDCP 1.2 standard;

• Local EDID :match many kinds of display devices;

• Built-in automatic adjustment system:make the image smooth, clear and stable;

• Built-in ESD protection system：make transmission much safer. Perfect hdmi extension adapter for large homes, factories, construction sites, data control centers etc;plug and play

• Simple to install, plug and play

Specifications:

Video
Standards----------HDMI 1.4; HDCP 1.4
Maximum pixel clock------165MHz
Maximum data rate-------10.2Gbps
Resolution ------1920X1080@60Hz
Connector-----HDMI-A
Impedance--------100Ω

USB
Interface-------PC: Type B USB interface; connect to pc;K/M: connect USB keyboard and mouse
USB signal----------HID Signal

IR
Interface----3.5mm seat
Signal direction--------Unidirectional
Signal type----------Digital
IR frequency--------20~60kHz ;

AUX
Interface----3.5mm seat
Signal direction--------Unidirectional
Signal type----------stereo audio

UTP
Interface-----RJ45
Transmission distance--------CAT5:100m,CAT5:120m,CAT6:200m

Other
Power supply-----The power adapter: DC 12V/1A
Power dissipation------MAX 3.6W
Temperature-------Operating: -5℃ ~ +70℃
Humidity-------Operating: 5% ~ 90%
Dimension-------98*92*28mm
The warranty--------1 year free warranty

Package:

HDMI KVM transmitter ……………………….……. 1 pcs

HDMI KVM receiver ………………………………... 1 pcs

IR cable.................................................................. 2 pcs
USB Cable …………………………….…………. ... 1 pcs
Power adapter ………………………………............ 2 pcs
User manual …………………………………..…...... 1 pcs
