4K 30Hz 20Km HDMI Fiber Optic USB KVM Extender Video Transmitter Receiver Over S

Product Description

If you like our products please you add to cart or add to Favorites,Surprise coupons is waiting for you to extract,
more refined small gifts free to send, please contact customer service.
If you follow our store and become our fans, you can get extra 5% discount for some designated products.

Description:

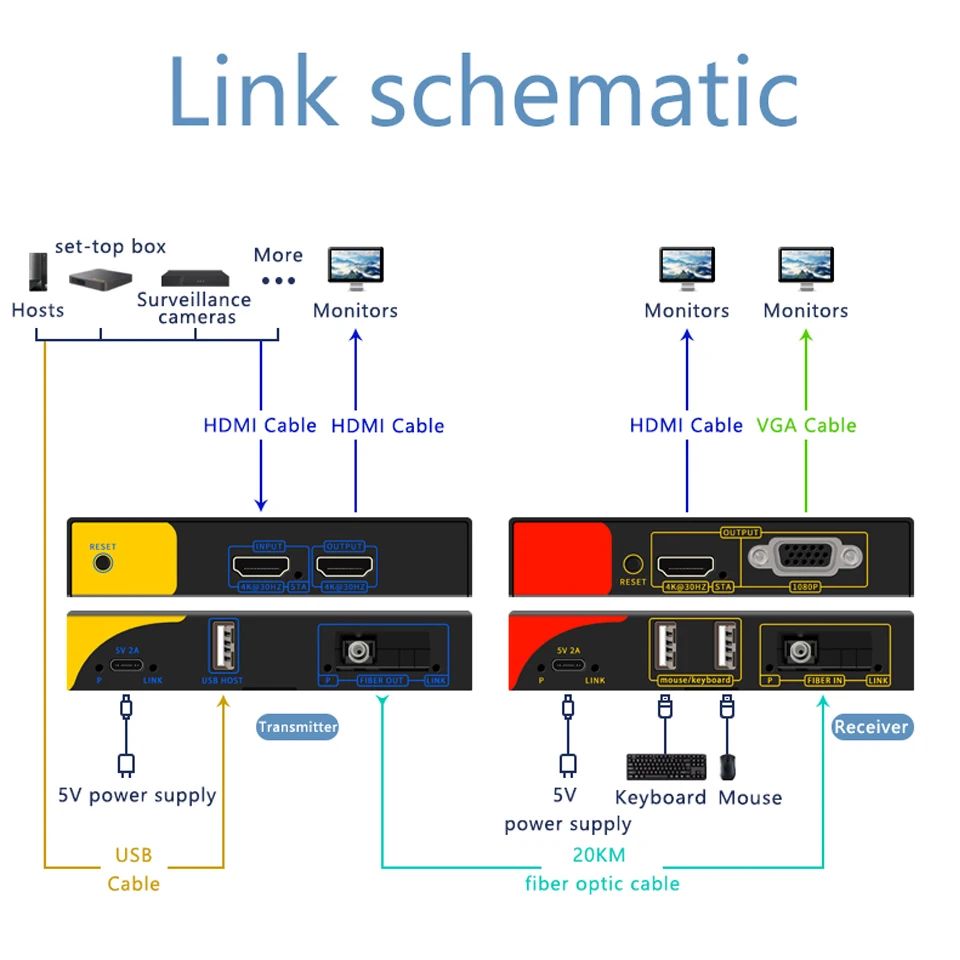

ZY-DT258, Navceker HDMI Fiber optic extender provides extension of HDMI video audio signal long distances over one SC fiber optic cable, it supports high resolution up to 3840x2160@30Hz . It also supports Remote KVM Control and HDMI loop out function.The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Features:

20Km IP HDMI Fiber KVM Extender over Sing SC Fiber Cable 4K HDMI USB KVM Fiber Optical Transceiver Support USB Keyboard Mouse

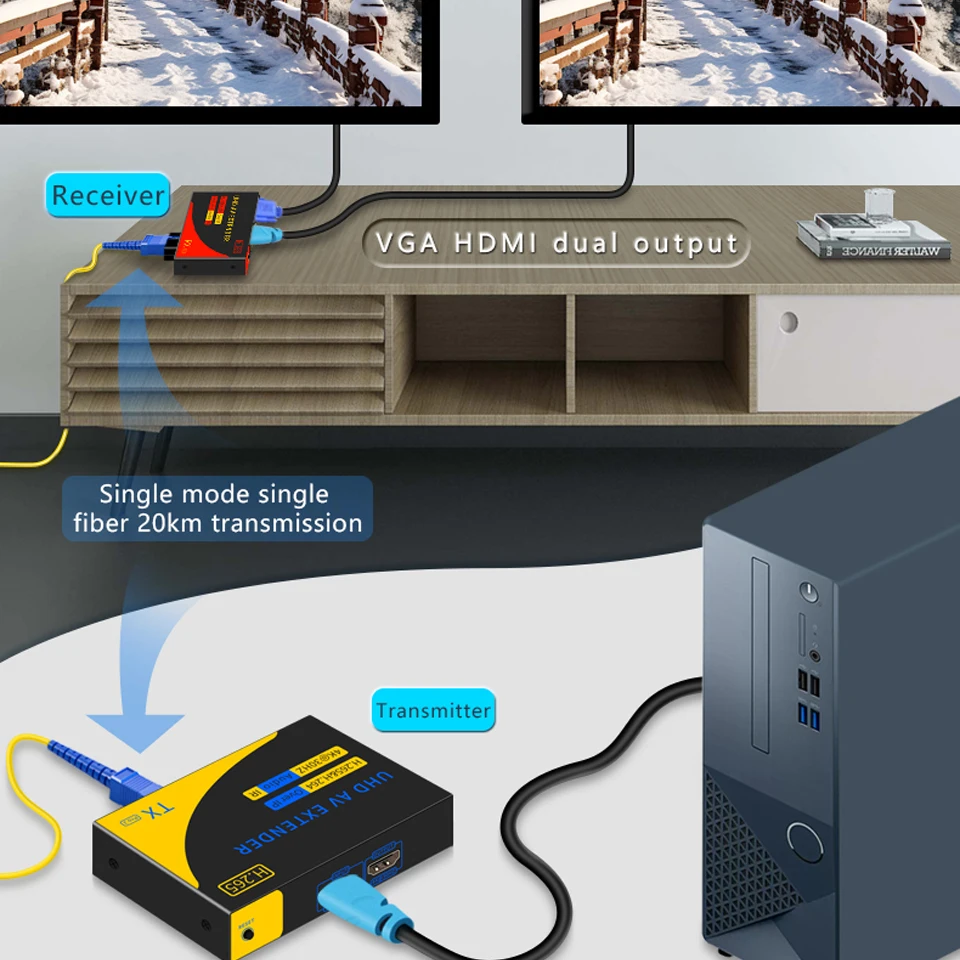

• Long range transmission:up to 20 km over a single-mode SC fiber optic cable;

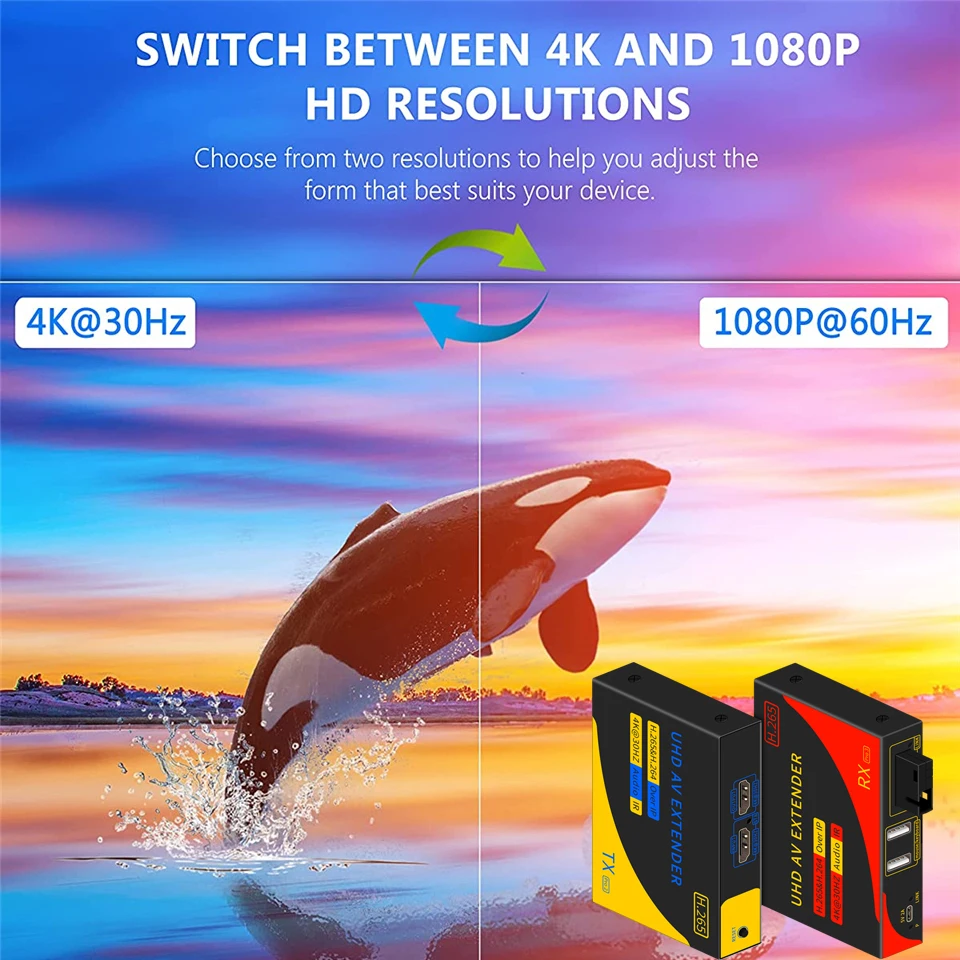

• Video resolution: 480P,720P,720i,1080i,1920*1080P@60Hz,4K@30Hz;

• Audio sampling rate: 32kHz, 44.1kHz and 48kHz ;

• Audio Format: DTS-HD/Dolby-true HD/LPCM7.1/DTS/DSD ;

• Compressed mode:H.265 technology;

• Latency/Delay:less than 50ms;

• Male to male: one TX to one RX applicataion;

• Male to female: over TCP IP,one TX to many RX applicataion;

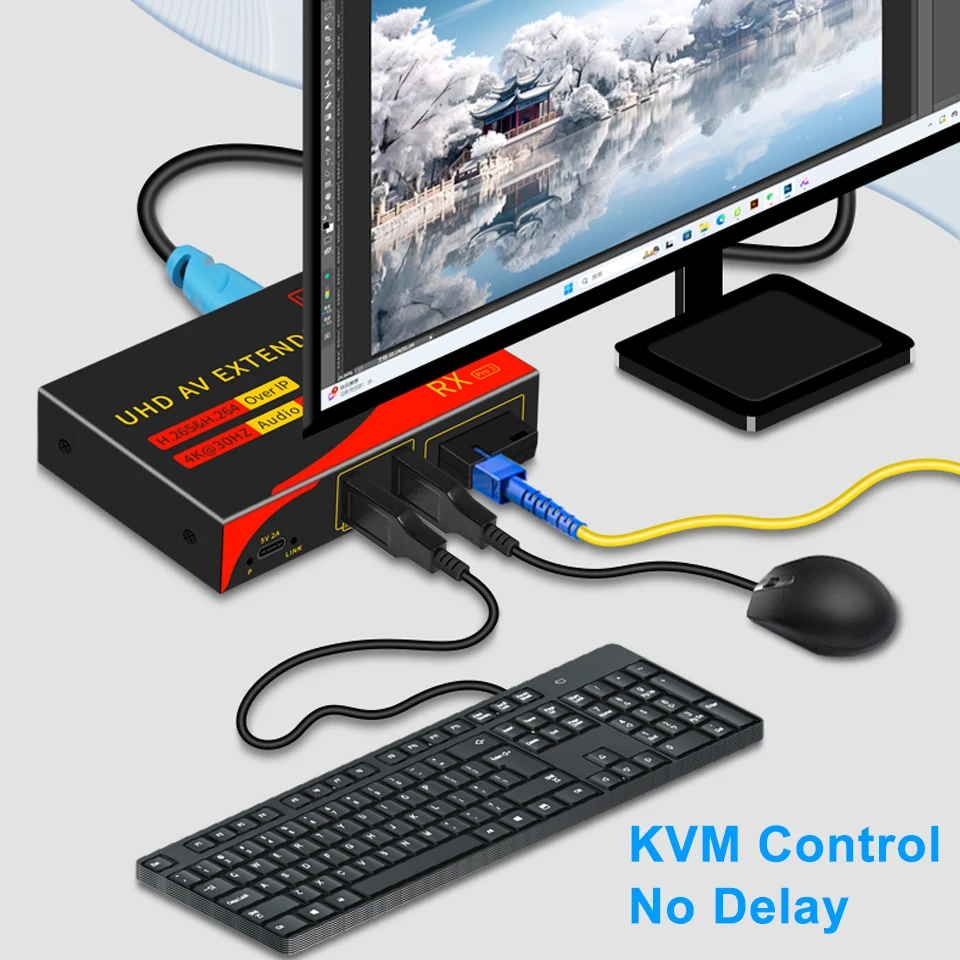

• KVM Control:supports remote USB KVM control by keyboard & mouse;

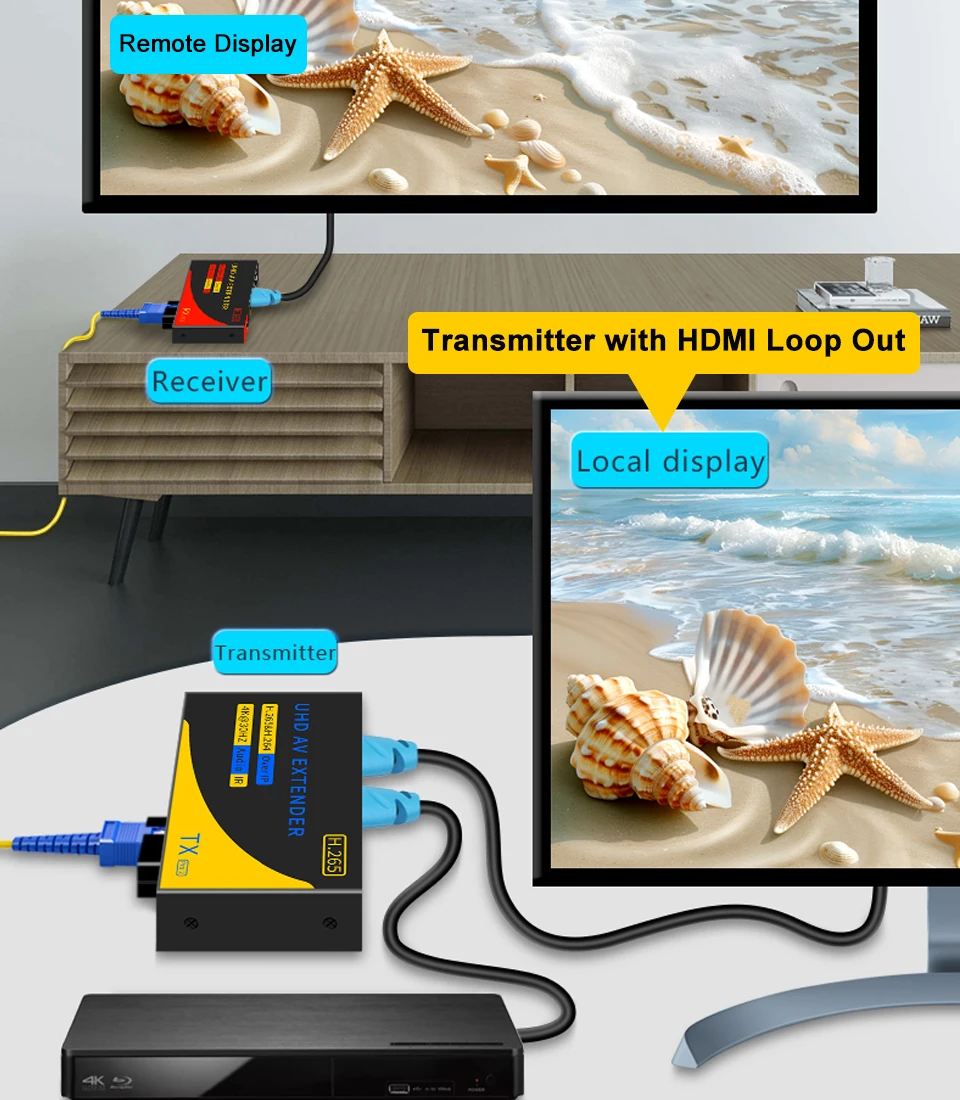

• HDMI Loop Out:The transmitter with one HDMI loop output;

• Video standard:compliance with HDMI 1.4 and HDCP 1.4 standard;

• Built-in automatic adjustment system: make the image smooth, clear and stable;

• Built-in ESD protection system：make transmission much safer. Perfect hdmi extension adapter for large homes, factories, construction sites, data control centers etc;

• Plug and Play:Simple to install.

Specifications:

HDMI-USB KVM over Fibre Extender up to 20KM Single Mode Single Fiber SC HDMI Fiber Optical Transceiver

Video
Standards----------HDMI 1.4; HDCP 1.4
Maximum pixel clock------300MHz
Maximum data rate-------10.2Gbps
Resolution ------3840X2160@30Hz
Connector-----HDMI-A
Impedance--------100Ω

USB
Interface-------PC: Type A USB interface; connect to pc;K/M: connect USB keyboard and mouse
USB signal----------HID Signal

Fiber type
Fiber interface--------------- SC Connector
Transmission distance--------0~20 km over single-mode fiber

Fiber Type---------- ------------------ Single Mode

Wavelength--------------------1310nm

Interface Bandwidth--------------10.2Gbps

Other
Power supply-----The power adapter: DC 5V/2A
Power dissipation------MAX 3W
Temperature-------Operating: -5℃ ~ +70℃
Humidity-------Operating: 5% ~ 90%

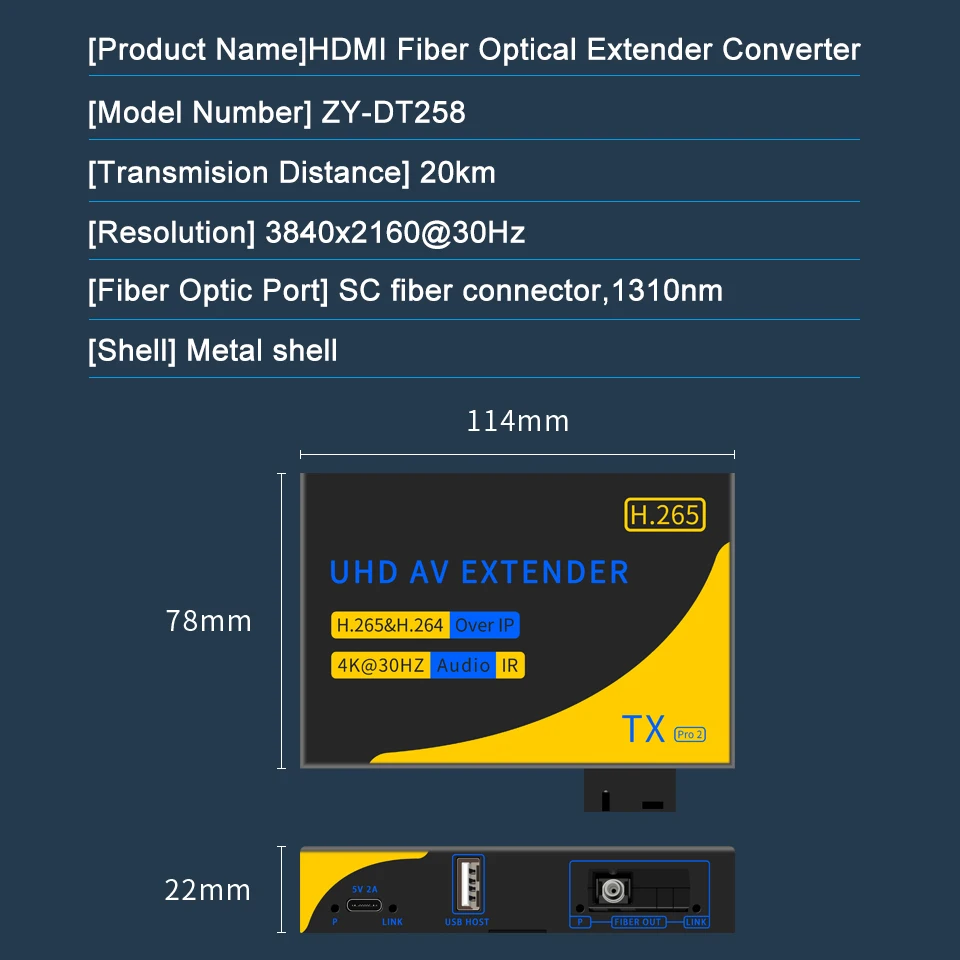

Dimension-------93*57*26mm
The warranty--------1 year free warranty

Important Note before buy it:

1.For long distance transmission,there are 40ms~50ms delay for image of HDMI remote display,

2.For long distance transmission,according our hundreds of tests,due to compressed technology,there are some delay for KVM remote control,keboard and mouse is not full smooth.

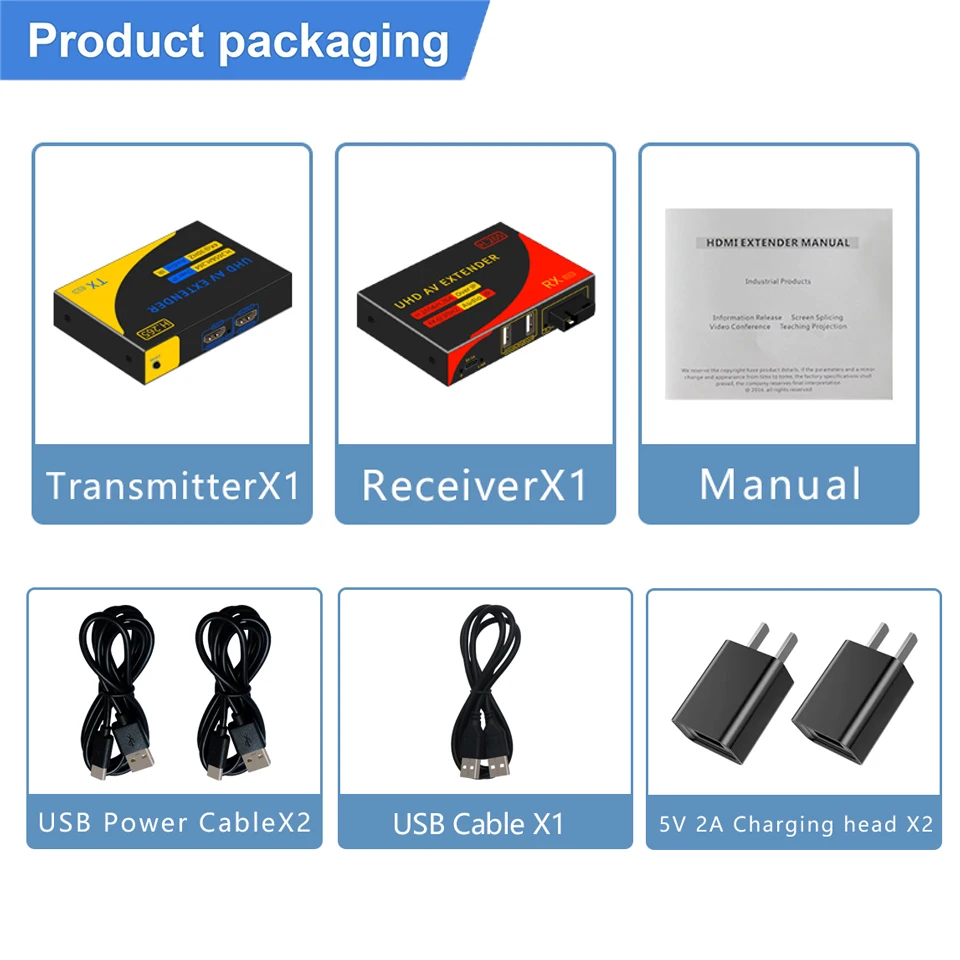

Package:

HDMI extender Fiber transmitter ……………………1 pcs

HDMI extender Fiber receiver ……………………… 1 pcs

USB data cable .......……………………………….... 1 pcs

Power adapter ……………………………….... 2 pcs
User manual …………………………………..1 pcs
