Description:

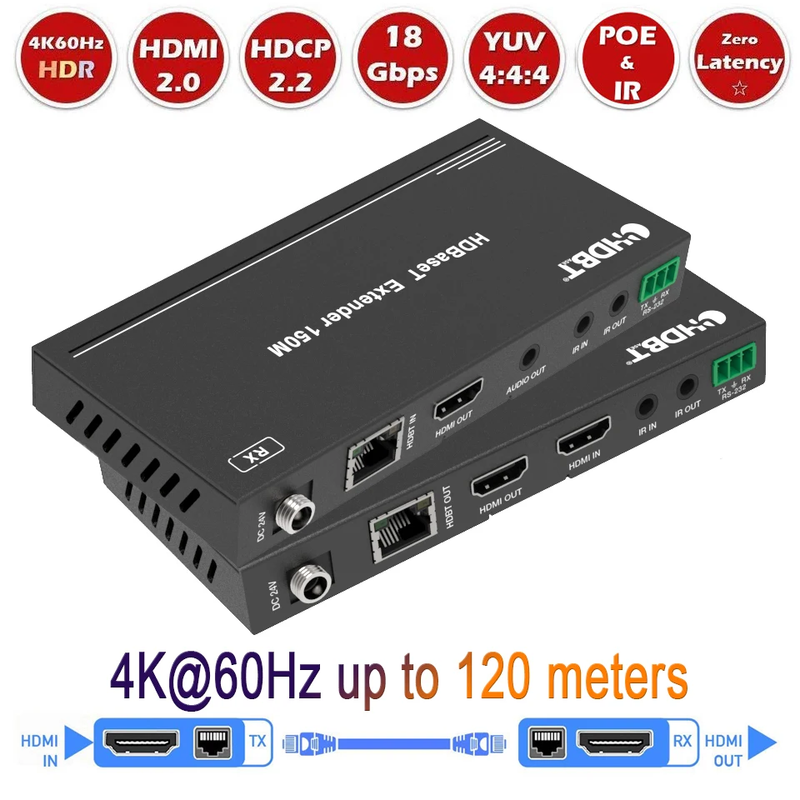

ZY-EX150,Navceker 18Gbps HDMI Extender can extend high definition video / audio signal,RS-232, bi-directional IR, and the distance is up to 492ft / 150 meters betweentransmitter and receiver via a single CAT cable. It supports resolution up to4K2K@60Hz 4:4:4, 18Gbps and HDCP 2.2. One HDMI loop port is availablefor output.It also supports de-embeded audio for L/R audio output and PoC function. In addition, the extender is equipped with two-way IR pass-through which allows for source and display control.

Features:

• Transmits HDMI video and audio 4K@60Hz signal up to 120m and 1080P signal up to 150m over a single CAT6/7 cable;

• Use single UTP/STP LAN cable (CAT-6/7) to substitute HDMI cable to achieve long distance transmission;

• UTP/STP cable termination follows the standard of IEEE-568B;

• Support video resolution up to 4096x2160@60Hz,1920x1080@60Hz, 3D signal;

• Audio: sampling rate: 32kHz, 44.1kHz and 48kHz ;

• Audio Format: DTS-HD/Dolby-true HD/LPCM7.1/DTS/DSD ;

• Support HDBaseT technology;

• Support CEC pass through;

• Support HDMI loop out that transmitter has one local hdmi out;

• Support Audio out on the receiver;

• Support Bidirectional RS232 and 38KHz~56KHz IR transmission;

• IR extension from transmitter to receiver or from receiver to transmitter

• Support POC function,Power from TX to RX over Cat5/6 cable(Receiver powered by Transmitter);

• Support LED indicators to show the power status;

• Compliance with HDMI 2.0/1.4 and HDCP 2.2 standard;

• Deep Color support 48/36/30/24-bit;

• High compatibility, can auto-match source and display device;

• Built-in automatic adjustment system, make the image smooth, clear and stable;

• Built-in ESD protection system;

• Simple to install, plug and play.

Specifications:

Package Contents:

Connections and Operations:

1) Connect the HDMI input source (such as HD-DVD, PS3, STB etc.) to TX.

2) Connect a CAT-6/7 cable from UTP output of TX to UTP input of RX.

3) Connect the HDMI sink(such as HD-LCD、HD-DLP) to RX.

4) Connect the IR TX UNIT into TX IR-Out port; Connect the IR RX UNIT into RX IR-In port.

5) Connect the IR RX UNIT into TX IR-In port; Connect the IR TX UNIT into RX IR-Out port.

6) Phoenix RS232 Port can be set for firmware update or RS232 control signal transmission (Default set for RS232).

Attention: Please insert and extract cables gently.
