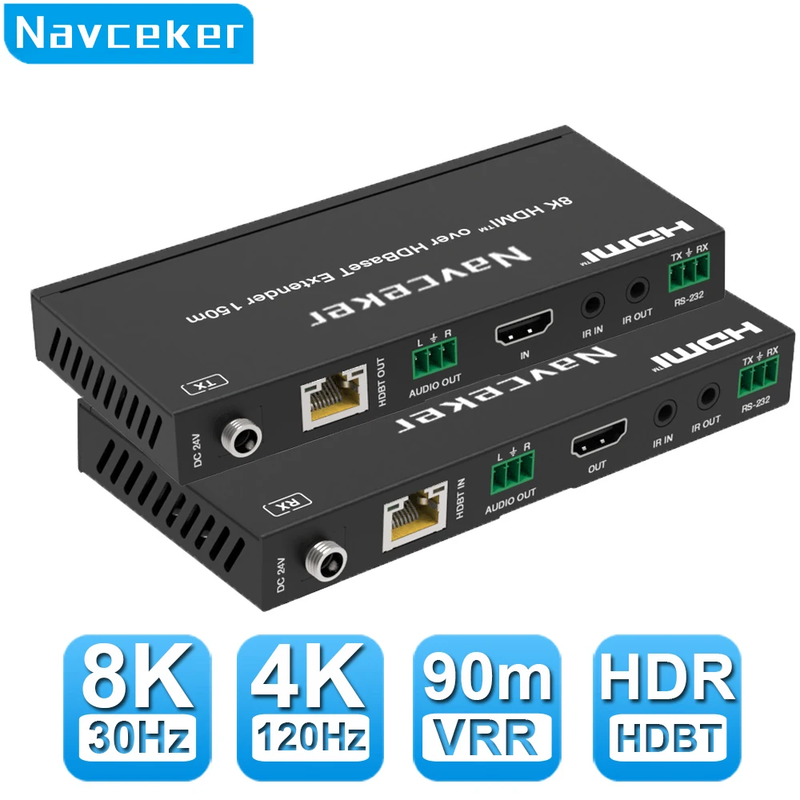

8K HDMI Extender 4K 120Hz HDMI 2.1 Extender Over UTP Cat6 RJ45 Cable 90 Meter HD

Product Description

If you like our products please you add to cart or add to Favorites,Surprise coupons is waiting for you to extract,
more refined small gifts free to send, please contact customer service.
If you follow our store and become our fans, you can get extra 5% discount for some designated products.

Description:

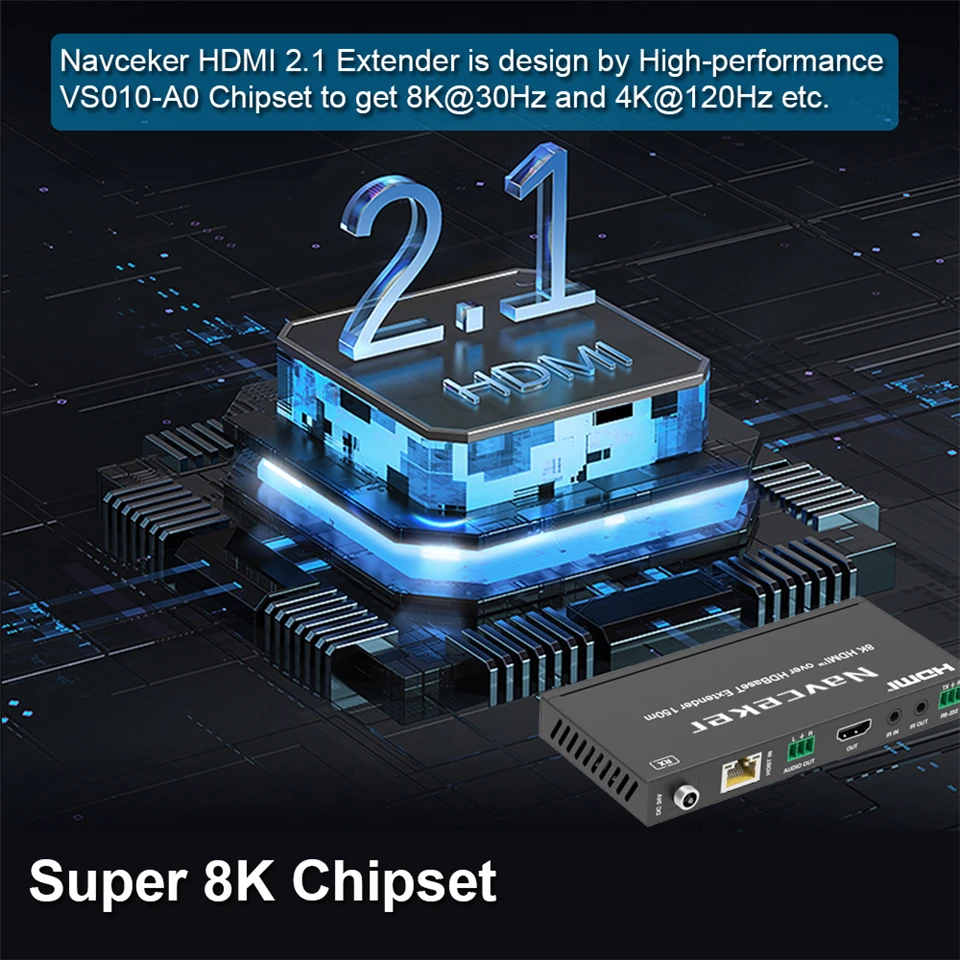

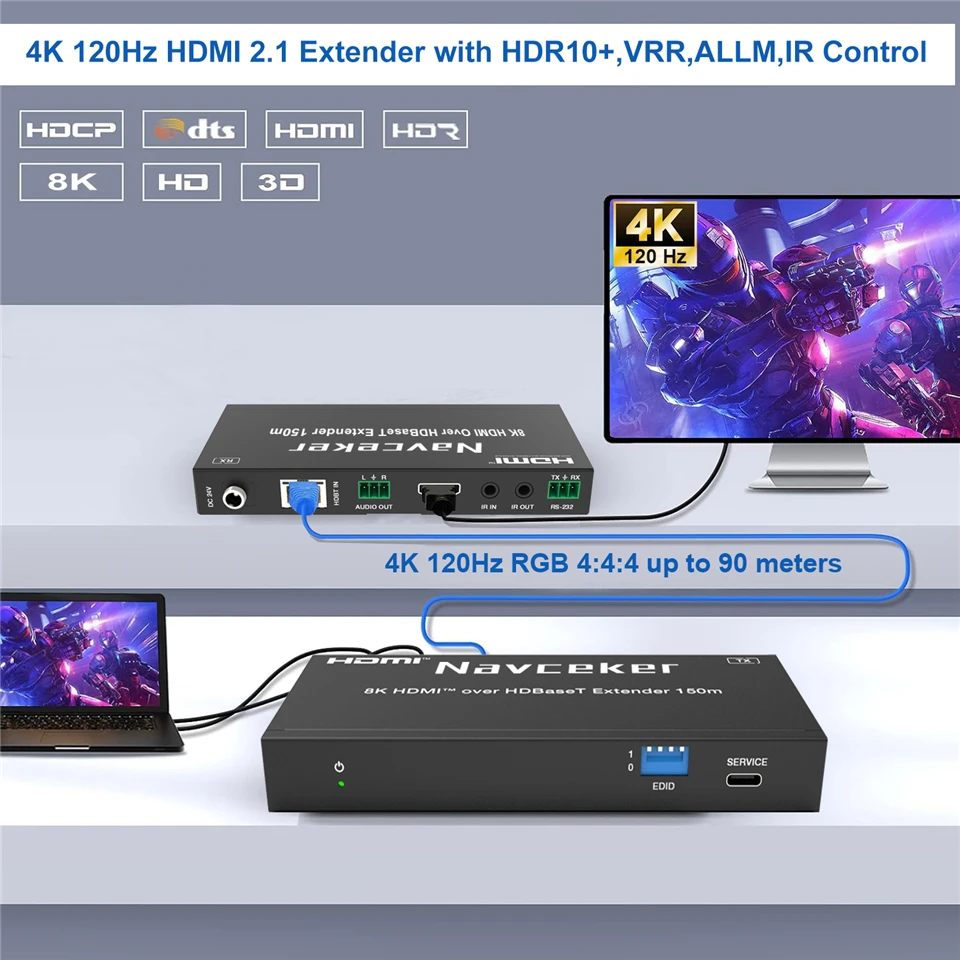

ZY-EHC150CG,Navceker 40Gbps HDMI 2.1 HDBaseT Extender can extend HDMI signal, bi-directional IR control signal and L/R audio signal to a distance up to 295ft / 90m (8K@30Hz/4K@120Hz) via a single CAT6 cable. This product converts HDMI signal to standard HDBaseT signal and transmits it through LAN cable. It can easily control signal source device or display device from the remote end through bi-directional IR signal pass-through function. Video resolution is up to 7860x4320 @30Hz YUV 4:4:4. It also supports POC function.

Features:

90M HDMI 2.1 Extender over Single Rj45 Cat6 Cable 8K HDMI Ethernet Extender 4K 120Hz Video Transmitter Adapter for PC Loptop HDTV Monitor

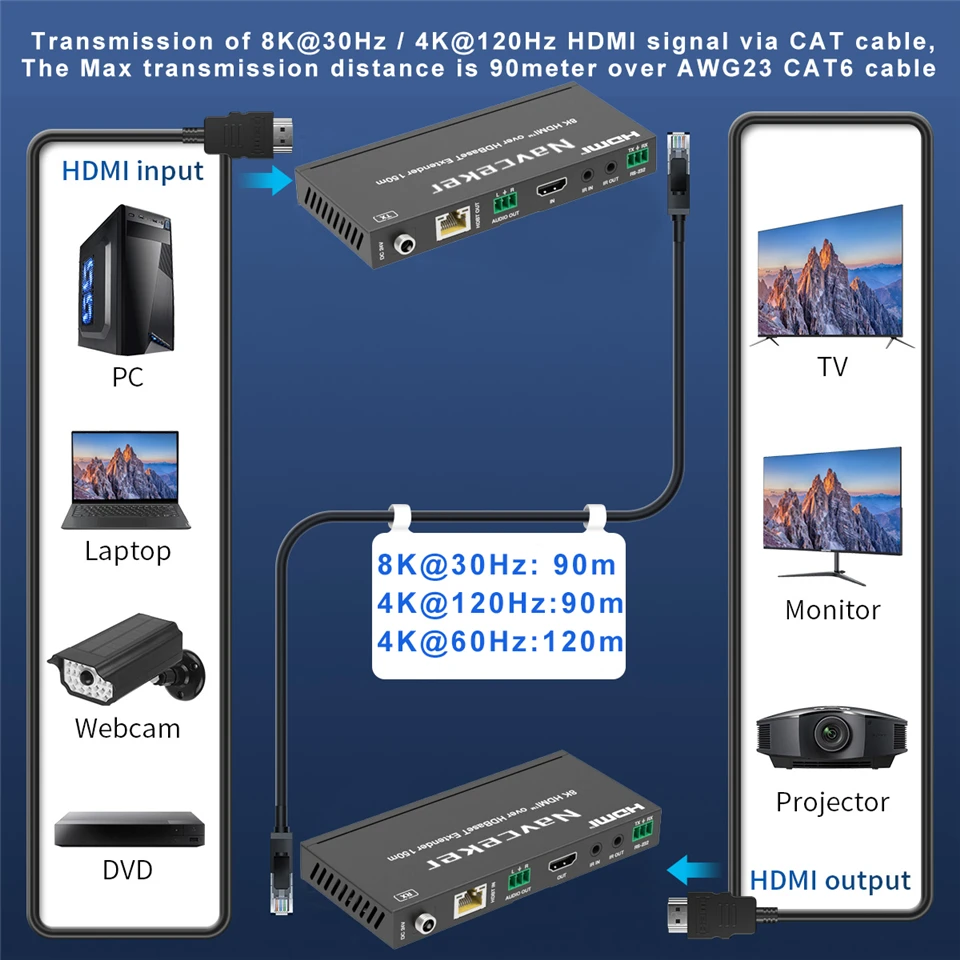

• The maximum extended transmission distance via AWG 23 CAT copper cable:90m/295ft for 8K@30Hz (4:4:4), 4K@120Hz (4:4:4);120m/394ft for 4K@60Hz (4:4:4);150m/492ft for 1080p

• Video resolution:640x480p60Hz, 800x600p60Hz, 1024x768p60Hz, 1280x1024p60Hz, 1360x768p60Hz,1440x900p60Hz, 1440x1050p60Hz, 1680x1050p60Hz, 1920x1200p60Hz, 480i60Hz,480p60Hz, 576i50Hz, 576p50Hz, 720p50Hz, 720p60Hz, 1080i50Hz, 1080i60Hz,1920x1080p24/25/30/50/60/100/120Hz, 3840x2160p24/25/30/50/60/100/120Hz,4096x2160p24/25/30/50/60/100/120Hz, 5120x2160p24/25/30/50/60/100/120Hz,7680x4320p24/25/30Hz etc

• HDR 10+,3D,Dolby Vision,Dolby ATMOS,Deep Color:8/10/12 Bit;

• HDBaseT 3.0 Technology,VRR.FVA,ALLM,HLG,RS-232 and CEC pass-through

• Audio format:LPCM 2.0, LPCM 5.1, LPCM 7.1, (32K/44.1K/48K/88.2K/96K/176.4K/192K) (16/20/24); Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos; DTS Surround, 96/24, ES, DTS Express,DTS-HD HRA, DTS HD Master, DTS:X

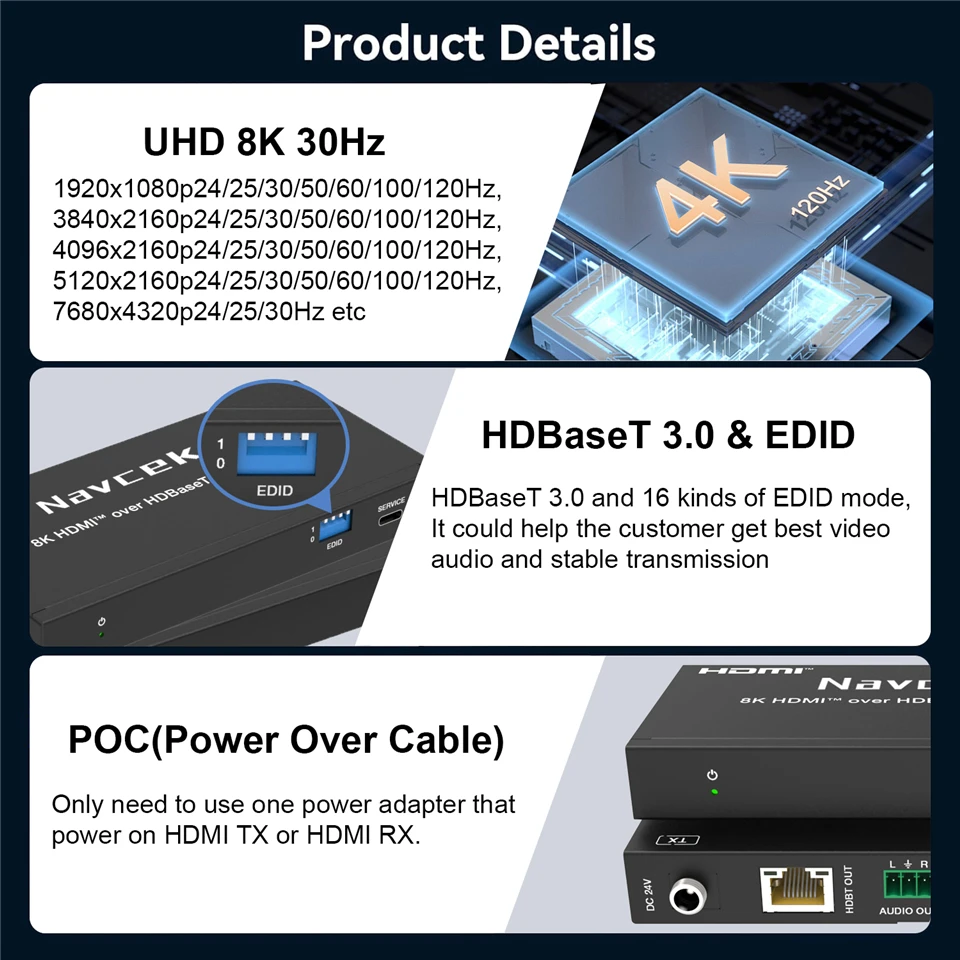

• POC function:Power over CAT cable,only need one power adapter;

• Bi-directional IR control: two way ir signal to control;

• Uncompressed mode:ZERO Delay,No loss;

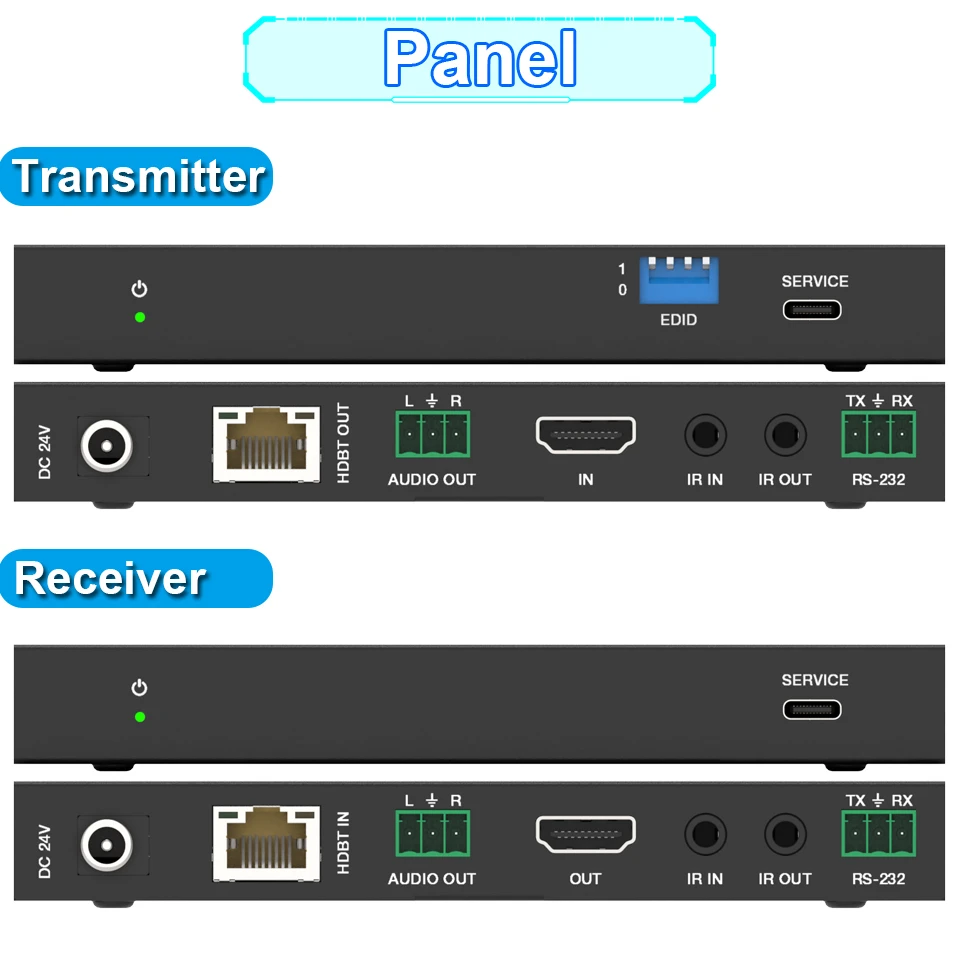

• Both TX and RX support analog audio de-embedding;

• Male to male:one TX to one RX applicataion;

• Video standard:compliance with HDMI 2.1 and HDCP 2.3 ;

• Built-in automatic adjustment system:make the image smooth, clear and stable;

• Built-in ESD protection system：make transmission much safer. Perfect hdmi extension adapter for large homes, factories, construction sites, data control centers etc;plug and play

• Simple to install, plug and play

Specifications:

4K 120Hz HDMI-compatible Extender to RJ45 LAN Network Extension TX RX Cat5e CAT6 Ethernet Cable 90M For PS5 HDTV Computer DVD STB

Video
Standards----------HDMI 2.1; HDCP 2.3
Maximum TMDS------18Gbps
Maximum data rate-------40Gbps
Resolution ------8K@30Hz
Connector-----HDMI-A
Impedance--------100Ω

IR
Interface----3.5mm seat
Signal direction--------directional
Signal type----------Digital
IR frequency--------20~60 KHz ;

CAT
Interface-----RJ45/IEEE-568B/AWG23

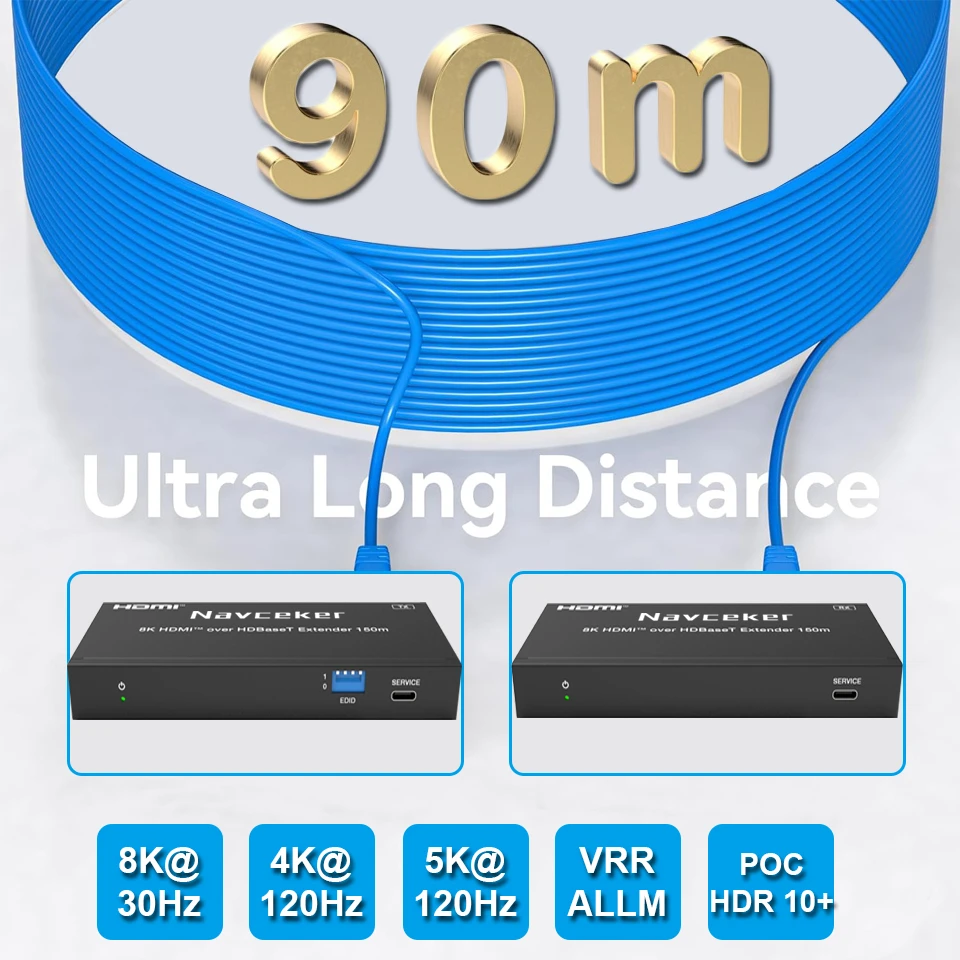

Transmission distance--------8K@30Hz / 4K@120Hz CAT6:90m;
-------- 4K@60Hz CAT6:120m;

-------- 1080P CAT6:150m
Other
Power supply-----The power adapter: DC 24V/1A
Power dissipation------Transmitter: 11.28W; Receiver: 10.8W
Temperature-------Operating: -5℃ ~ +70℃
Humidity-------Operating: 5% ~ 90%
Dimension-------140*65*18mm
The warranty--------1 year free warranty

Note:

1.All available input/output resolutions:

2.For CAT cable,please you use AWG23 CAT5e/6 cable with IEEE-568B connection.
