2023 Best 1x2 HDMI Splitter Extender 60m 1x4 HDMI UTP Extender Cat5e Cat6 1080P RJ45 HDMI Splitter extensor Transmitter Receiver
2023 Best 1x2 HDMI Splitter Extender 60m 1x4 HDMI UTP Extender Cat5e Cat6 1080P RJ45 HDMI Splitter extensor Transmitter Receiver
If you like our products please you add to cart or add to Favorites,Surprise coupons is waiting for you to extract,
more refined small gifts free to send, please contact customer service.
If you follow our store and become our fans, you can get extra 5% discount for some designated products.
Description:
ZY-HTS0102,The extender provides extension of HDMI signals long distances over a single CAT5e/6 cable, transform one channel input to 2 channel output, it supports high resolution up to 1920*1080@60Hz and EDID copy function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
There are 4 models optional, different model has different interface and appearance, please choose suitable model before purchase:

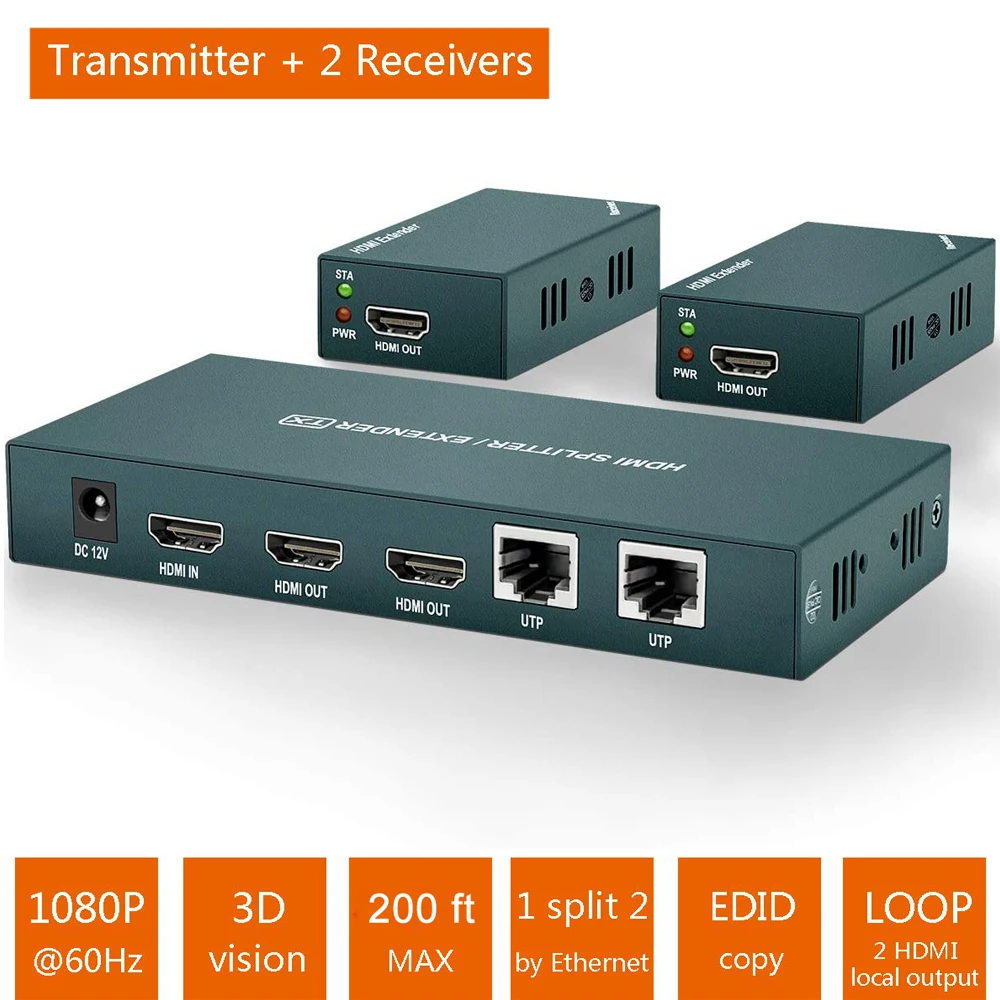

(1) The Black color(One TX and two RX) is ZY-HTS0102,60m(200 ft),1080P, 3D, POC,EDID HDMI splitter extender 1x2 with 2 HDMI Loop Out & 2 Ethernet RJ45 port. (2) The Red color (One TX and four RX)is ZY-HTS0104,60m(200 ft),1080P, 3D, POC,EDID HDMI splitter extender 1x4 with 4 Ethernet RJ45 port.(3) The White color (One TX and seven RX)is ZY-HTS0107,60m(200 ft),1080P, 3D, POC,EDID HDMI splitter extender 1x7 with 1 HDMI Loop Out & 7 Ethernet RJ45 port.(4) The Blue color (One TX and one RX)is ZY-HT202P,60m(200 ft),1080P, 3D, POC,EDID HDMI extenderwith RJ45 port.Features:
Transmits HDMI video and audio signals up to 60m over CAT6,up to 45m over cat5e ;
Support video resolution up to 1920*1080P@60Hz, 3D signal;
Transform one channel HDMI input to 2 channel Ethernet signal output;
Support 2 HDMI loop out;
Support EDID copy function, can match many kinds of display device;
Uncompress,no delay,no loss;
Compliance with HDMI 1.3 and HDCP 1.2 standard;
High compatibility, can auto-match source and display device;
Built-in automatic adjustment system, make the image smooth, clear and stable;
Built-in ESD protection system;
Simple to install, plug and play;
Specifications:
Parameter Description
Video Standards HDMI 1.3, HDCP 1.2
Maximum Video Bandwidth 350MHz
Maximum Data Rate 6.75Gbps
Resolution 1920X1080P@60Hz
Connector HDMI-A
Ethernet UTP Interface RJ45
Transmission Distance CAT6---60m;cat5e:45m
Power Supply The Power Adapter: DC 12V/1A
Power Dissipation Max: 3W
Temperature Operating: -5 ~ +70
Humidity Operating: 5% ~ 90%
Dimension 155*105*25mm
The Warranty 1 Year Free Warranty
