20KM 1080P 120Hz HDMI Fiber KVM Extender 4K 60Hz HDMI Over Fiber Optic Converter

Product Description

If you like our products please you add to cart or add to Favorites,Surprise coupons is waiting for you to extract,
more refined small gifts free to send, please contact customer service.
If you follow our store and become our fans, you can get extra 5% discount for some designated products.

Description:

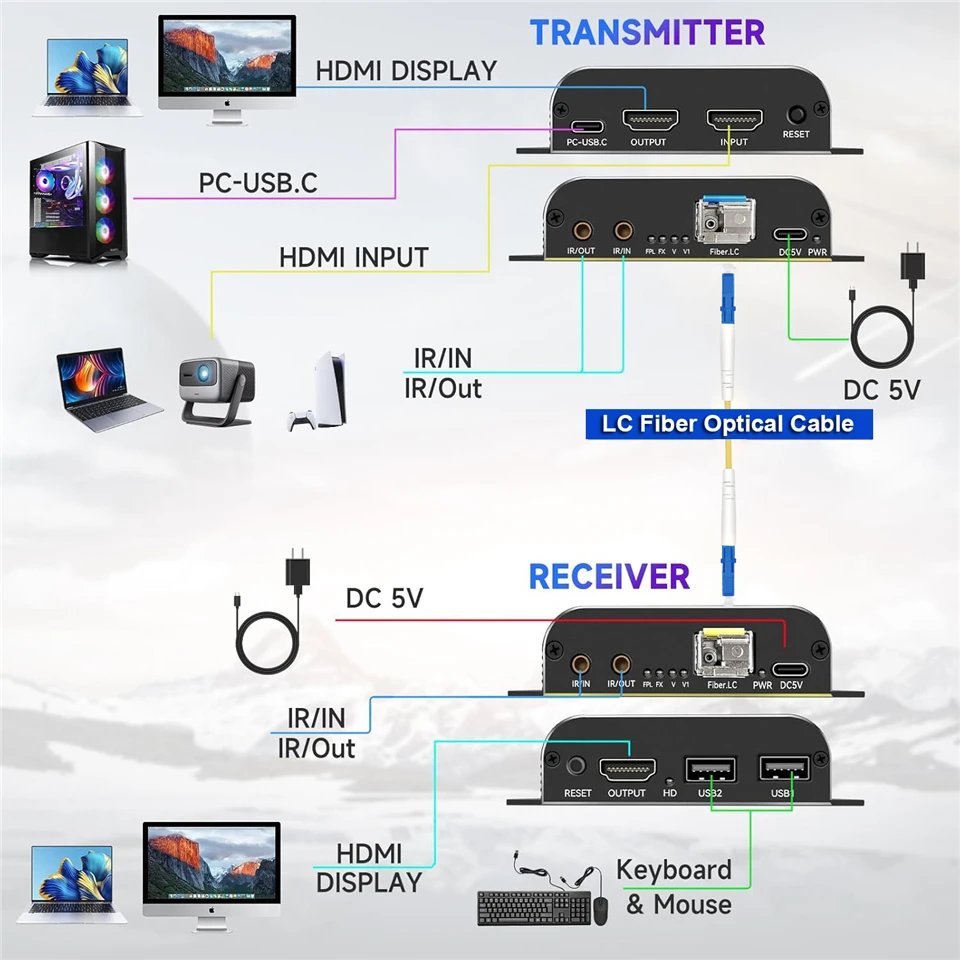

ZY-AD15A, Navceker HDMI Fiber optic extender provides extension of HDMI video audio signal long distances over one LC fiber optic cable, it support high resolution up to 3840x2160@60Hz,1080P@120Hz . It also supports Remote KVM Control,Bi-directional IR control and HDMI loop out function.The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Features:

20Km 4K@60Hz HDMI Fiber Optic USB KVM Extender Video Transmitter Receiver HDMI Loop Over LC Fiber Cable for PS4 PS5 DVD PC To TV Monitor

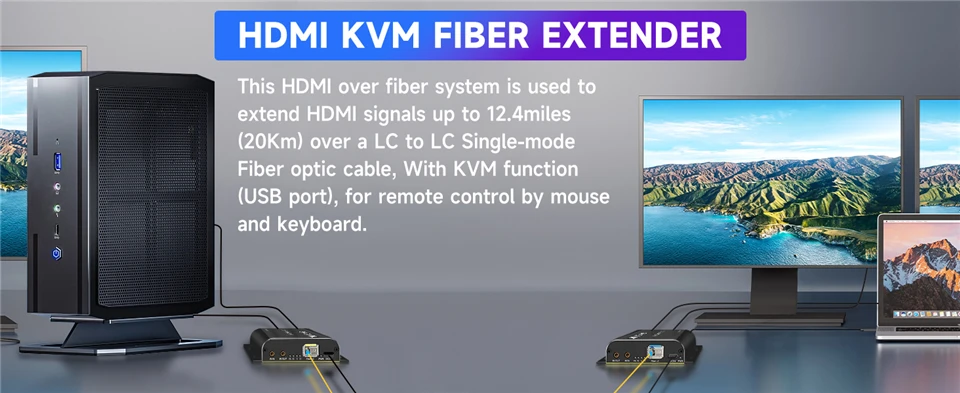

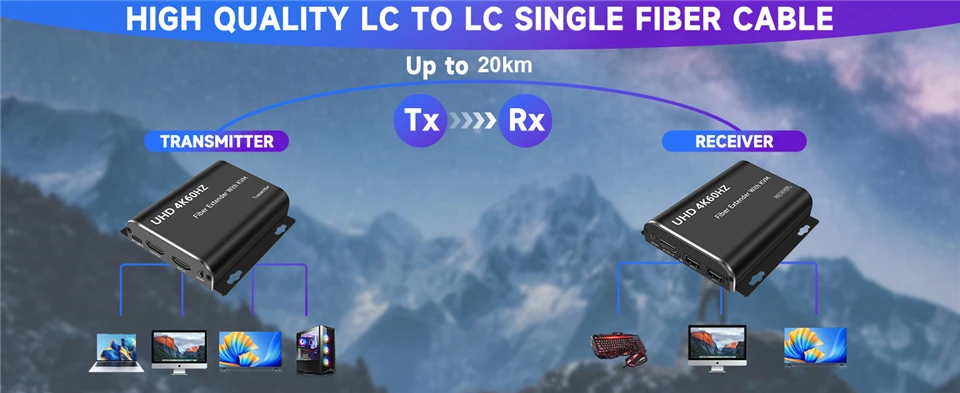

• Long range transmission:up to 20 km over a single-mode/Multi-mode LC fiber optic cable;

• Video resolution: 480P,720P,720i,1080i,1920*1080P@60/120Hz,4K@30/60Hz;

• Audio Format: DTS-HD/Dolby-true HD/LPCM7.1/DTS/DSD ;

• Uncompressed,No loss,No delay;

• Infrared control:Bi-directional 20~60 KHz IR romote control;

• KVM Control:supports remote USB KVM control by keyboard & mouse;

• HDMI Loop Out:The transmitter with one HDMI loop output;

• Video standard:compliance with HDMI 2.0b and HDCP 2.2 standard;

• Built-in automatic adjustment system: make the image smooth, clear and stable;

• Built-in ESD protection system：make transmission much safer. Perfect hdmi extension adapter for large homes, factories, construction sites, data control centers etc;

• Plug and Play:Simple to install.

Specifications:

20Km HDMI Fiber Optic USB KVM Extender 1080P 120Hz Video Transmitter Receiver Over LC Fiber Cable Extender KVM Switch For mouse keyboard PC

Video
Standards----------HDMI 2.0b; HDCP 2.2
Maximum pixel clock------600MHz
Maximum data rate-------18Gbps
Resolution ------3840X2160P@60Hz
Connector-----HDMI-A

Fiber type
Fiber interface--------------- LC Connector
Transmission distance--------0~20 km over single/multi-mode fiber

Fiber Type---------- ------------------ Single Mode

Wavelength--------------------1310nm 1510nm

Interface Bandwidth--------------18Gbps

Other
Power supply-----The power adapter: DC 5V/2A
Power dissipation------MAX 3W
Temperature-------Operating: -5℃ ~ +70℃
Humidity-------Operating: 5% ~ 90%

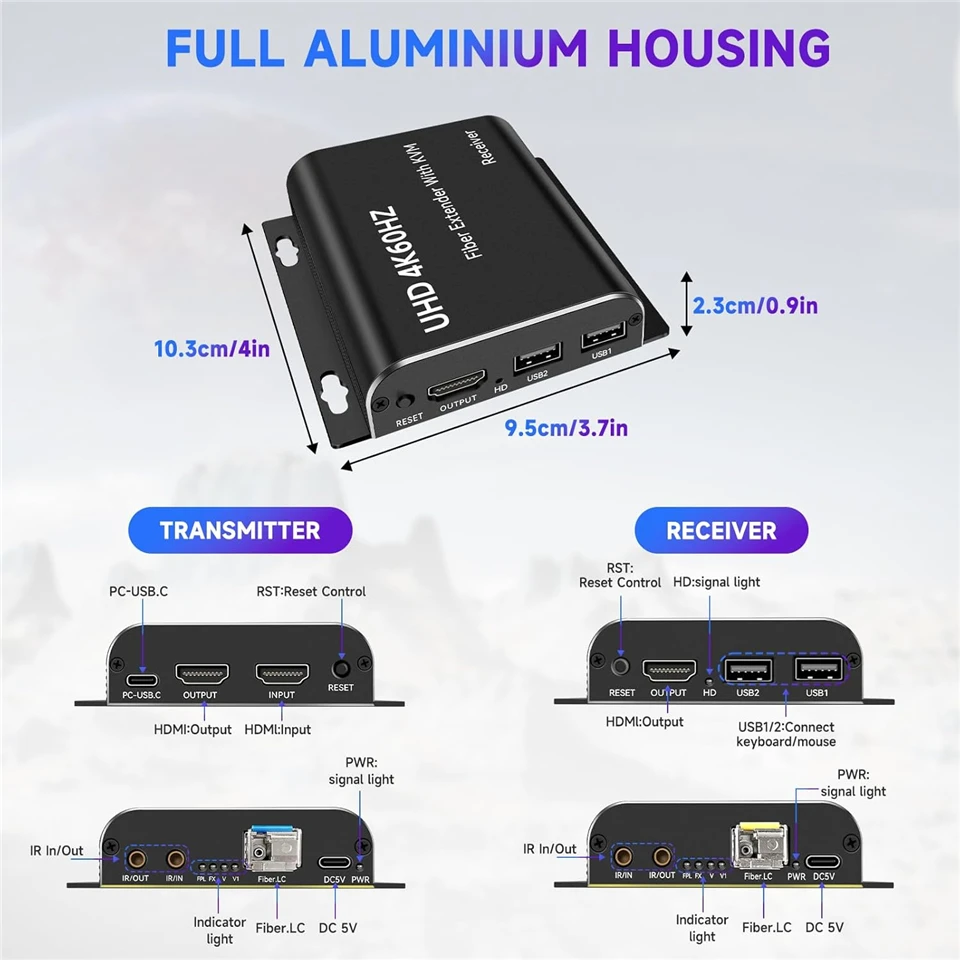

Dimension-------104*98*23mm
The warranty--------1 year free warranty

Package:

HDMI extender Fiber transmitter ……………………1 pcs

HDMI extender Fiber receiver ……………………… 1 pcs

1.25G SFP Module………………………………........... 2 pcs

USB data cable .......……………………………….... 1 pcs

Power adapter ……………………………….... 2 pcs
User manual …………………………………..1 pcs

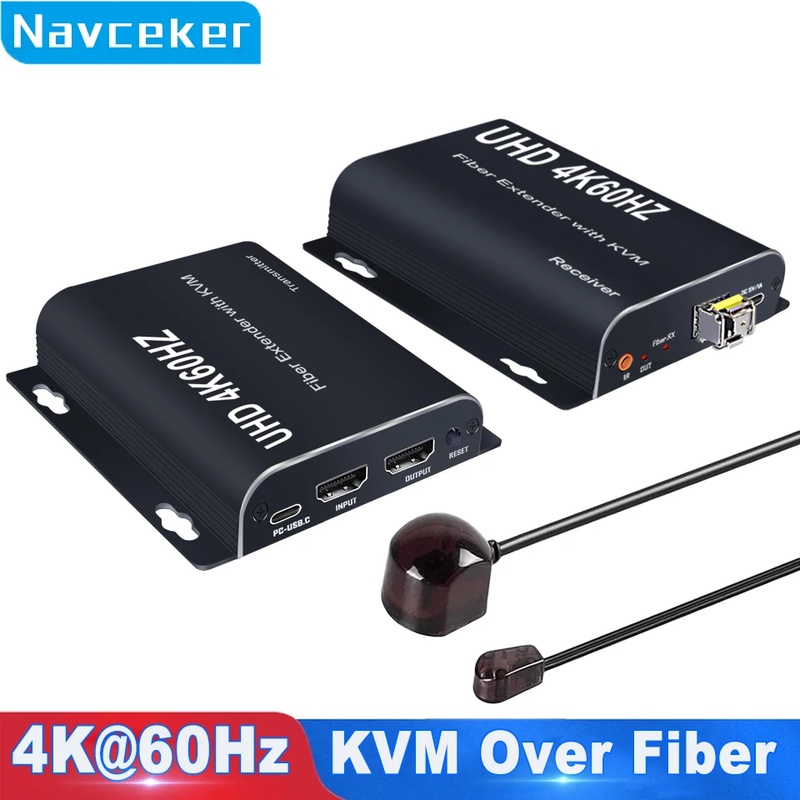

Navceker 4K@60Hz HDMI KVM Fiber Optic Extender

• 20km long distance transmission

• Resolution:4K@30/60Hz,1080P@60/120Hz

• HDMI Loop out

• USB KVM Remote Control

• IR Bi-Directional Remote Control

Newest Uncompressed Technology

For 0 km to 20km,There are no loss and Zero delay between HDMI fiber transmitter and HDMI fiber receiver through Newest Uncompressed Technology.

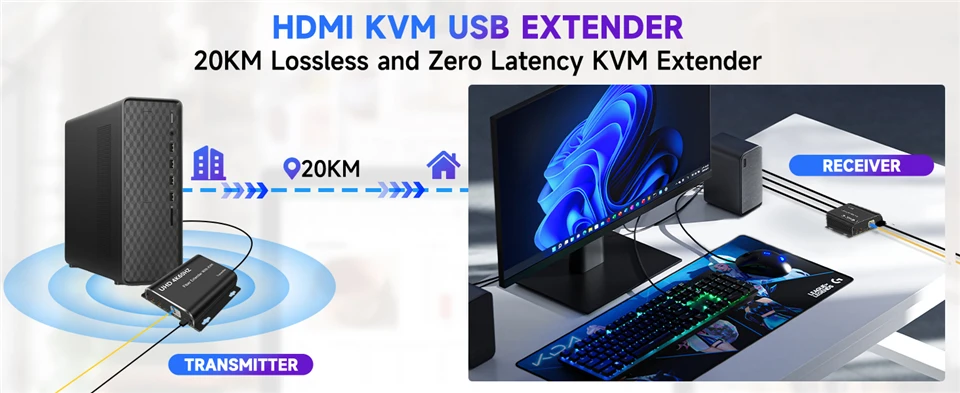

USB KVM Remote Control

Navceker HDMI fiber optical extender with 2 x USB 2.0 port,it could supports wireless or wired Keyboard and mouse to remote control HDMI input source,Note:the USB port not support USB camera,USB flash driver,printer etc.

HDMI Loop out

the transmitter have a HDMI local output,it is easy to know what is situation in far end when it is used to Security Monitoring System.

High resolution and High refresh rate

The resolution is up to 480P,576P,720P,1080i,1920x1080@60Hz,1920x1080@120Hz,

3840x2160@30Hz,3840x2160@60Hz etc.
