150m HDMI Extender IP over RJ45 Cat5 Cat6 Ethernet Cable 1080P HDMI USB KVM Exte

Product Description

If you like our products please you add to cart or add to Favorites,Surprise coupons is waiting for you to extract,
more refined small gifts free to send, please contact customer service.
If you follow our store and become our fans, you can get extra 5% discount for some designated products.

Description:

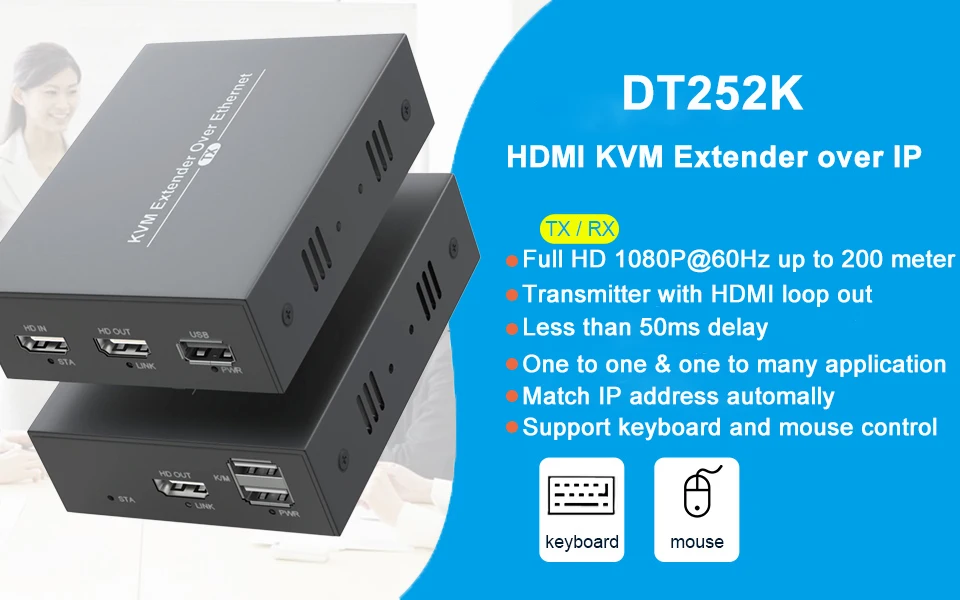

ZY-DT252KM,Navceker hdmi extender provides extension of HDMI signals long distances over a single CAT5e/6/7 cable, it supports high resolution up to 1080P@60Hz, Keyboard and mouse signal and hdmi loop out transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Features:

HDMI KVM Extender over IP Rj45 cat6 cable 200M HDMI USB KVM Ethernet Extender via Network Switch for PS4 Camera PC to TV Monitor

• Transmission Distance:up to 200m over a single CAT5e CAT6 cable;

• Video resolution:up to 480P,720P,1920*1080@60Hz;

• Audio sampling rate:32kHz, 44.1kHz and 48kHz ;

• Audio Format:DTS-HD/Dolby-true HD/LPCM7.1/DTS/DSD ;

• USB KVM function:Support keyboard and mouse romote control;

• HDMI Loop out:The transmitter with one HDMI local output;

• H.264 compressed Technology,less than 50ms delay;

• High-speed USB 2.0:up to 480Mbps

• Male to male:one TX to one RX applicataion;

• Male to female:TCP/IP,one TX to N RX(Max:253 pcs RX) application with Ethernet switch/Router;

• IEEE-568B:standard 802.3 Ethernet 10/ 100/ 1000Mbps;

• Video standard:compliance with HDMI 1.3 and HDCP 1.2 standard;

• Copy EDID function :match many kinds of display devices;

• Built-in automatic adjustment system:make the image smooth, clear and stable;

• Built-in ESD protection system：make transmission much safer. Perfect hdmi extension adapter for large homes, factories, construction sites, data control centers etc;plug and play

• Simple to install, plug and play

Specifications:

IP Network USB 2.0 KVM Extender RJ45 Ports 1080P HDMI Over LAN KVM Extender 150m HDMI KVM Extensor By Cat5 Cat5e Cat6

Video
Standards----------HDMI 1.3; HDCP 1.2
Maximum pixel clock------165MHz
Maximum data rate-------6.75Gbps
Resolution ------1920X1080P@60Hz
Connector-----HDMI-A
Impedance--------100Ω

USB
Interface-------PC: Type B USB interface; connect to pc;K/M: connect USB keyboard and mouse
USB signal----------HID Signal

UTP
Interface-----RJ45
Transmission distance--------CAT5:100m,CAT5e:150m,CAT6:200m

Other
Power supply-----The power adapter: DC 12V/1A
Power dissipation------MAX 3W
Temperature-------Operating: -5℃ ~ +70℃
Humidity-------Operating: 5% ~ 90%
Dimension-------100*60*25mm
The warranty--------1 year free warranty

Package:

HDMI KVM transmitter ……………………….……. 1 pcs

HDMI KVM receiver …………………………………. 1 pcs
USB Cable …………………………….…………. 1 pcs
Power adapter ……………………………….... 2 pcs
User manual …………………………………..… 1 pcs
