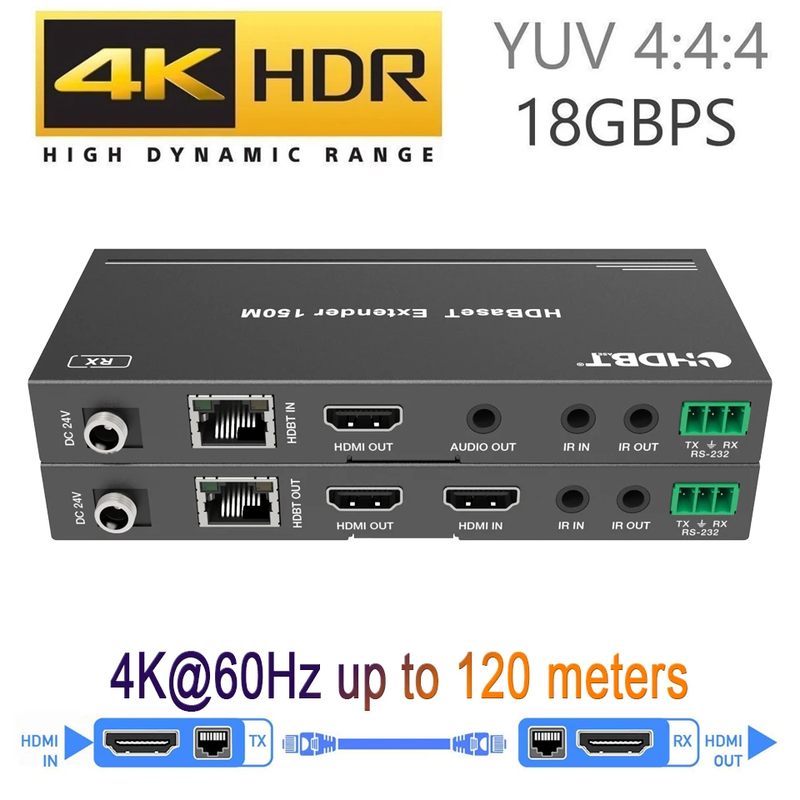

2026 Best 4K 60Hz HDMI HDBaseT Extender With IR 120m 4K HDMI POE Extender Over R

Product Description

If you like our products please you add to cart or add to Favorites,Surprise coupons is waiting for you to extract,
more refined small gifts free to send, please contact customer service.
If you follow our store and become our fans, you can get extra 5% discount for some designated products.

Description:

ZY-EX150,Navceker 18Gbps HDMI Extender can extend high definition video / audio signal,RS-232, bi-directional IR, and the distance is up to 492ft / 150 meters betweentransmitter and receiver via a single CAT cable. It supports resolution up to4K2K@60Hz 4:4:4, 18Gbps and HDCP 2.2. One HDMI loop port is availablefor output.It also supports de-embeded audio for L/R audio output and PoC function. In addition, the extender is equipped with two-way IR pass-through which allows for source and display control.

Features:

• Transmits HDMI video and audio 4K@60Hz signal up to 120m and 1080P signal up to 150m over a single CAT6/7 cable;

• Use single UTP/STP LAN cable (CAT-6/7) to substitute HDMI cable to achieve long distance transmission;

• UTP/STP cable termination follows the standard of IEEE-568B;

• Support video resolution up to 4096x2160@60Hz,1920x1080@60Hz, 3D signal;

• Audio: sampling rate: 32kHz, 44.1kHz and 48kHz ;

• Audio Format: DTS-HD/Dolby-true HD/LPCM7.1/DTS/DSD ;

• Support HDBaseT technology;

• Support CEC pass through;

• Support HDMI loop out that transmitter has one local hdmi out;

• Support Audio out on the receiver;

• Support Bidirectional RS232 and 38KHz~56KHz IR transmission;

• IR extension from transmitter to receiver or from receiver to transmitter

• Support POC function,Power from TX to RX over Cat5/6 cable(Receiver powered by Transmitter);

• Support LED indicators to show the power status;

• Compliance with HDMI 2.0/1.4 and HDCP 2.2 standard;

• Deep Color support 48/36/30/24-bit;

• High compatibility, can auto-match source and display device;

• Built-in automatic adjustment system, make the image smooth, clear and stable;

• Built-in ESD protection system;

• Simple to install, plug and play.

Specifications:

Package Contents:

Connections and Operations:

1) Connect the HDMI input source (such as HD-DVD, PS3, STB etc.) to TX.

2) Connect a CAT-6/7 cable from UTP output of TX to UTP input of RX.

3) Connect the HDMI sink(such as HD-LCD、HD-DLP) to RX.

4) Connect the IR TX UNIT into TX IR-Out port; Connect the IR RX UNIT into RX IR-In port.

5) Connect the IR RX UNIT into TX IR-In port; Connect the IR TX UNIT into RX IR-Out port.

6) Phoenix RS232 Port can be set for firmware update or RS232 control signal transmission (Default set for RS232).

Attention: Please insert and extract cables gently.
