Description:

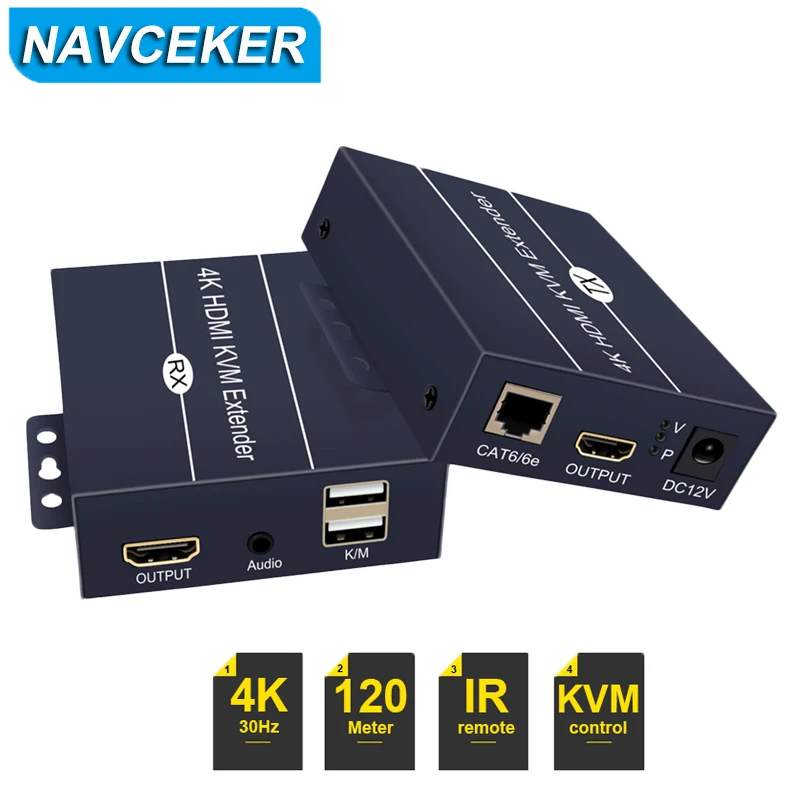

ZY-HT430KM,Navceker 4K HDMI extender provides extension of HDMI signals long distances over a single CAT5e/6 cable, it supports high resolution up to 4Kx2K@30Hz, KVM control,3.5mm audio out,HDMI loop out and unidirectional 38 KHz IR signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Features:

• Long range transmission:up to 120m/392ft over a single CAT6 cable;

• Video resolution:480P,720P,1080i, 1920x1080P@60Hz,4Kx2K@30Hz,3D signal;

• Audio sampling rate:32kHz, 44.1kHz and 48kHz ;

• Audio Format:DTS-HD/Dolby-true HD/LPCM7.1/DTS/DSD ;

• HDMI loop out :The transmitter with one HDMI local loop out;

• Uncompressed mode:No Loss,No delay;

• Male to male:one TX to one RX applicataion;

• KVM Control:wired or wireless Keyboard and mouse remotely control;

• Audio Extractor:Receiver with one 3.5mm audio out to speaker;

• IEEE-568B:standard 802.3 Ethernet 10/ 100/ 1000Mbps;

• Infrared control:unidirectional 38 KHz IR romote control;

• Video standard:compliance with HDMI 1.4 and HDCP 1.2 standard;

• Local EDID function :match many kinds of display devices;

• Built-in automatic adjustment system:make the image smooth, clear and stable;

• Built-in ESD protection system：make transmission much safer. Perfect hdmi extension adapter for large homes, factories, construction sites, data control centers etc;plug and play

• Simple to install, plug and play

Specifications:

Video
Standards----------HDMI 1.4; HDCP 1.2
Maximum pixel clock------225MHz
Maximum data rate-------10.2Gbps
Resolution ------4Kx2K@30Hz
Connector-----HDMI-A
Impedance--------100Ω

USB
Interface-------PC: Type A USB interface; connect to PC;K/M: connect USB keyboard and mouse
USB signal----------HID Signal(Support wired or wireless keyboard and mouse)

IR
Interface----3.5mm seat
Signal direction--------Unidirectional
Signal type----------Digital
IR frequency--------38kHz ;

UTP
Interface-----RJ45
Transmission distance--------CAT5e:100 meters,CAT6:120 meters

Other
Power supply-----The power adapter: DC 12V/1A
Power dissipation------MAX 3W
Temperature-------Operating: -5℃ ~ +70℃
Humidity-------Operating: 5% ~ 90%
Dimension-------98*78*28mm
The warranty--------1 year free warranty

Package:

HDMI extender transmitter ……………………1 pcs

HDMI extender receiver ……………………… 1 pcs

IR cable........................................................2 pcs

Power adapter ……………………………….... 2 pcs
User manual …………………………………..1 pcs
