Hirschmann Float Level Switch Stainless Steel Liquid Water Oil Sensor Reed Magne

Product Description

1.NOTE

Default Configuration

• Design: Single-float design

• Voltage Options: 0–220V

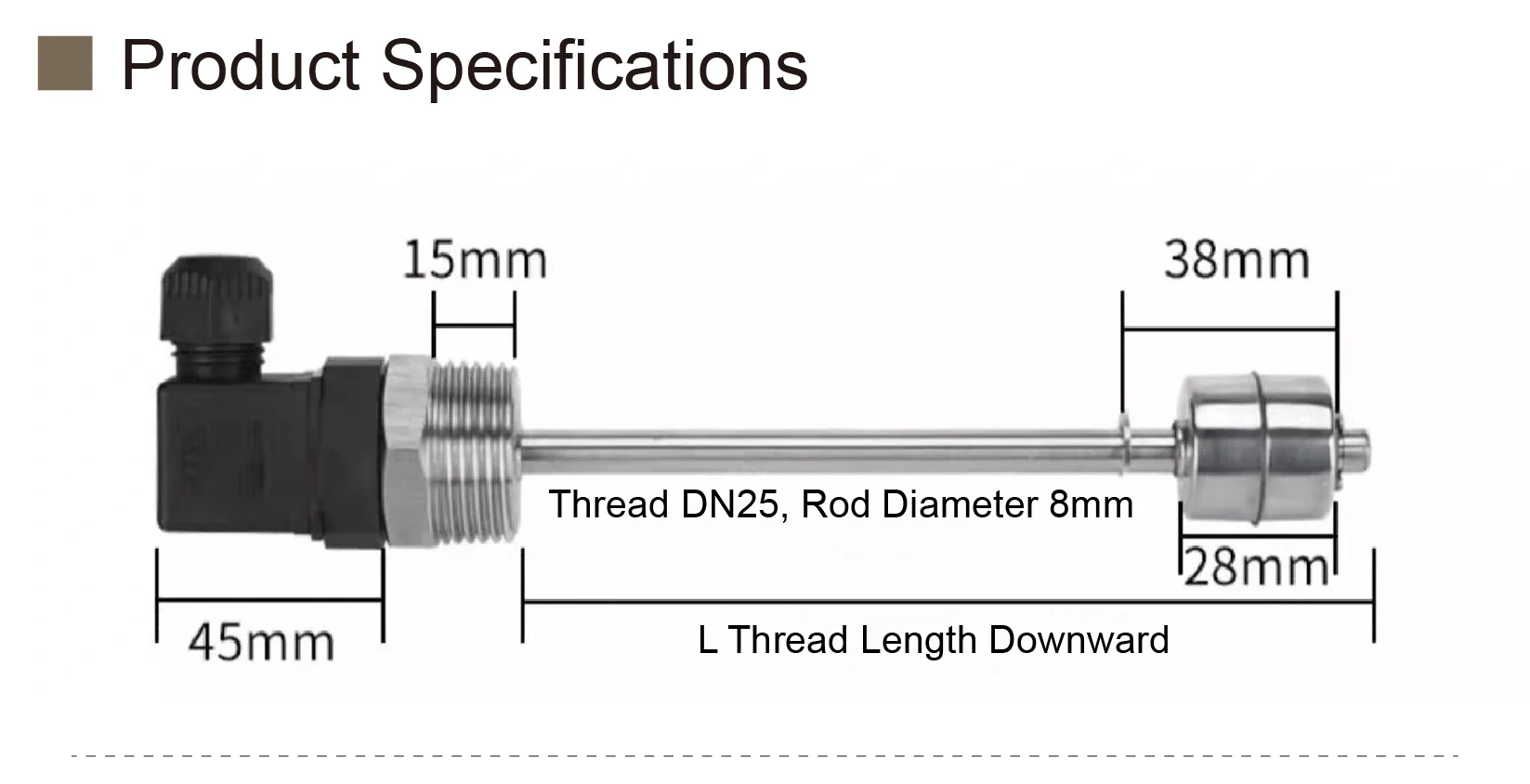

• Rod Length Options: 0–100mm, 0–200mm, 0–300mm, 0–400mm, 0–500mm, etc.

• Operating Temperature: -30°C to 120°C

• Thread Size: G 1

• Material: SUS304 stainless steel

• Signal Type: Normally Closed (NC)

Customizable Options

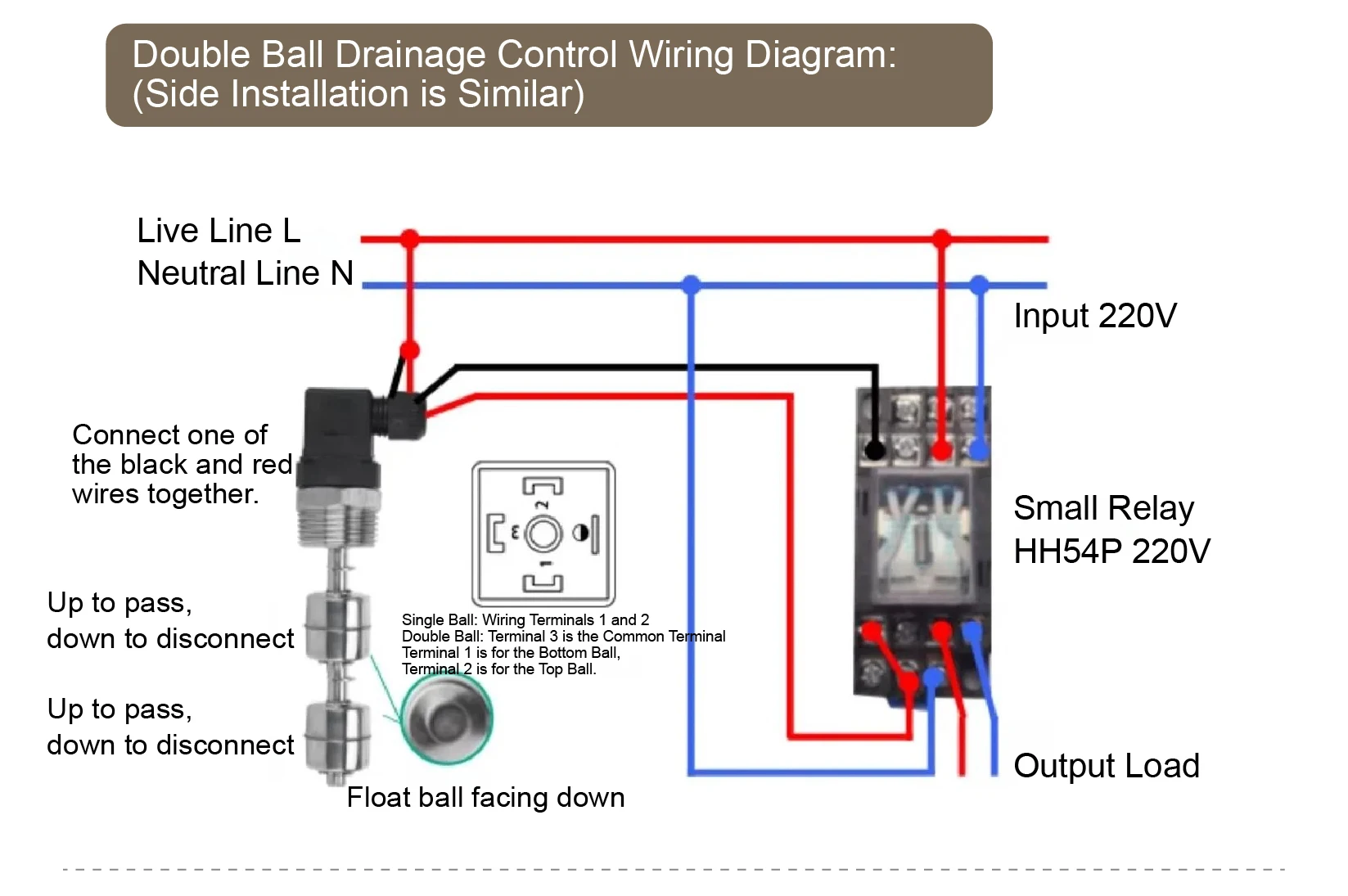

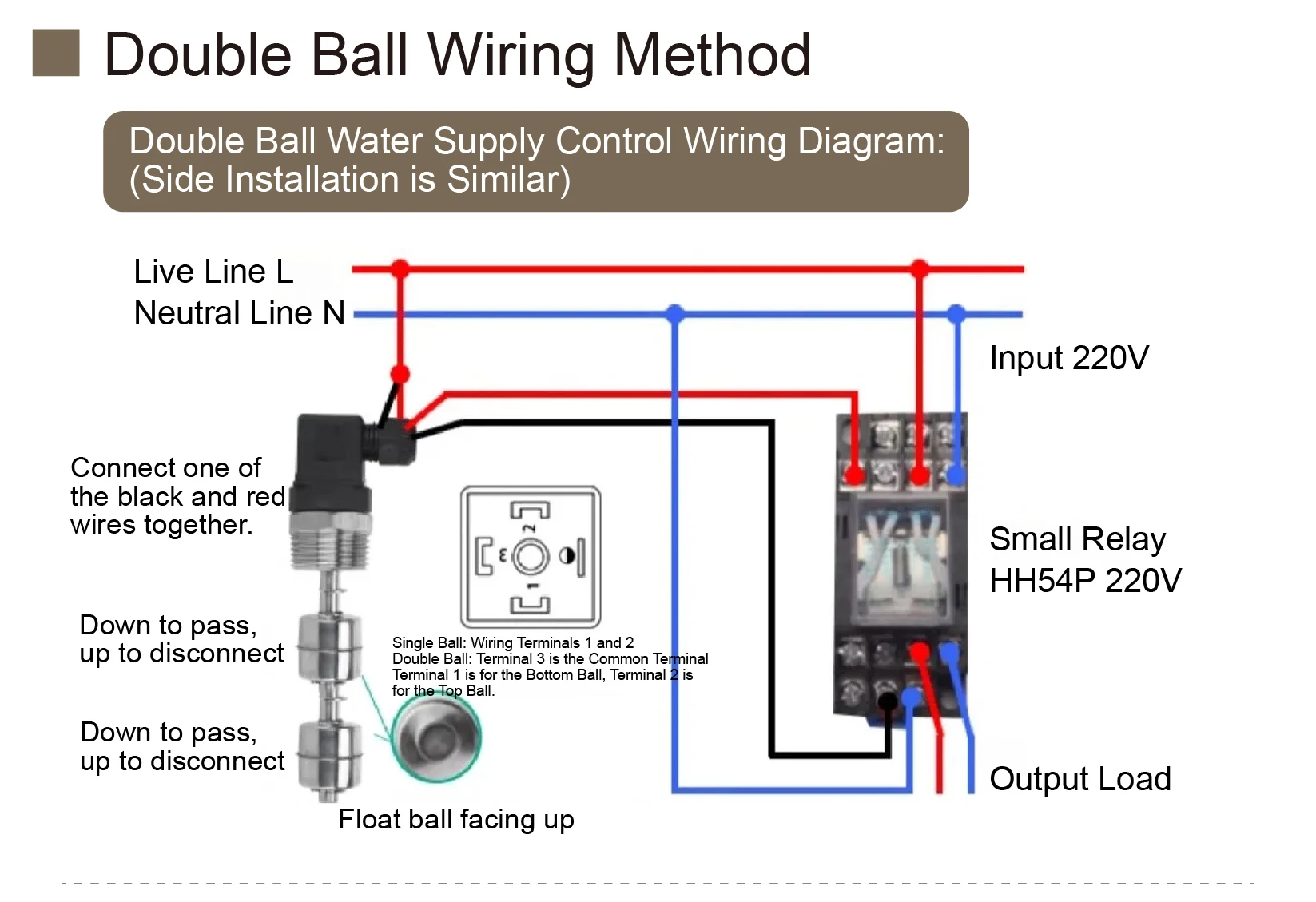

• Design: Dual-float design available

• Probe Length: Custom lengths available (e.g., 300mm, 500mm, 800mm)

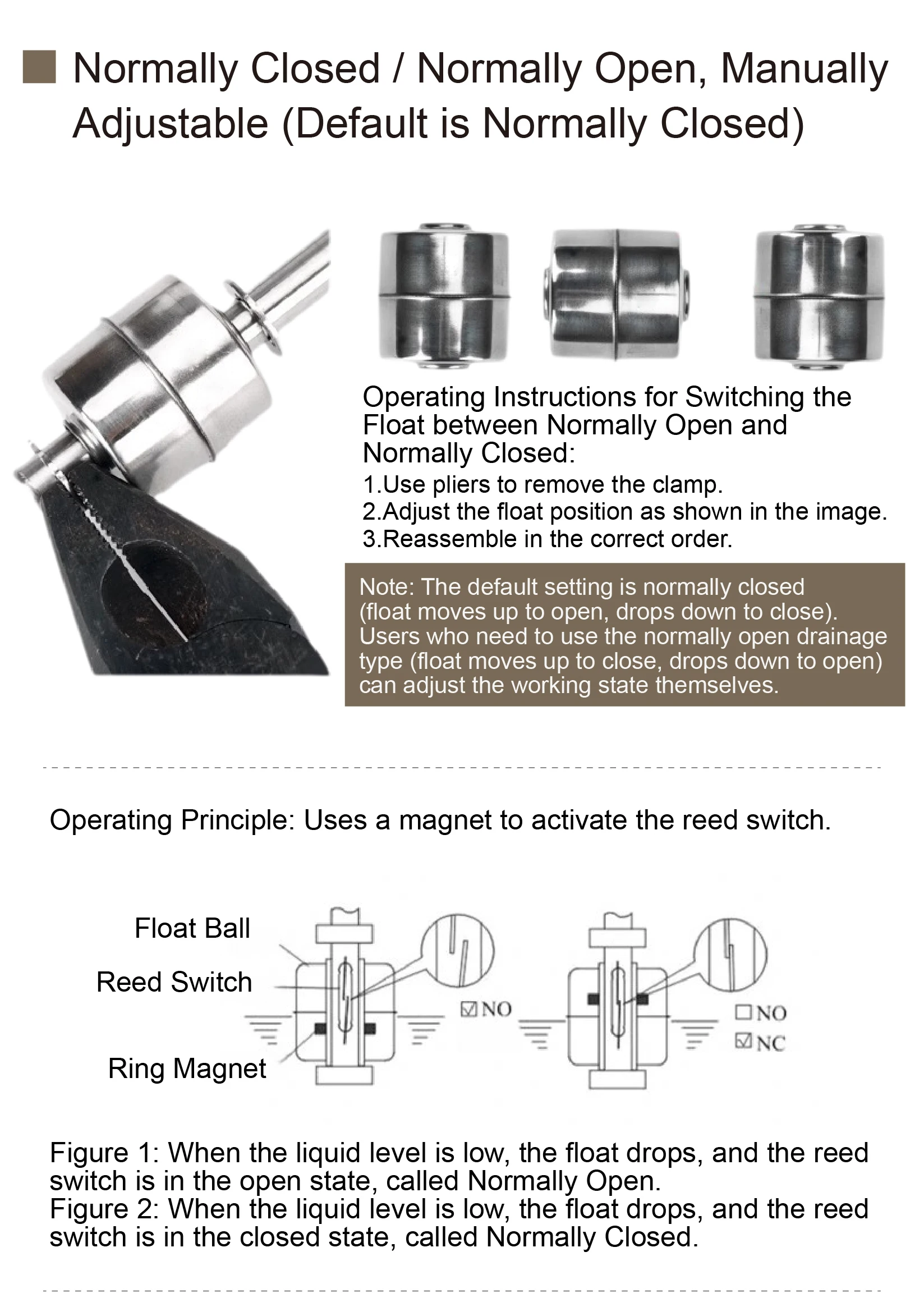

• Float Ball Position & Signal Type (NO/NC): Customizable upon request. Please contact us for details.

Important Notes

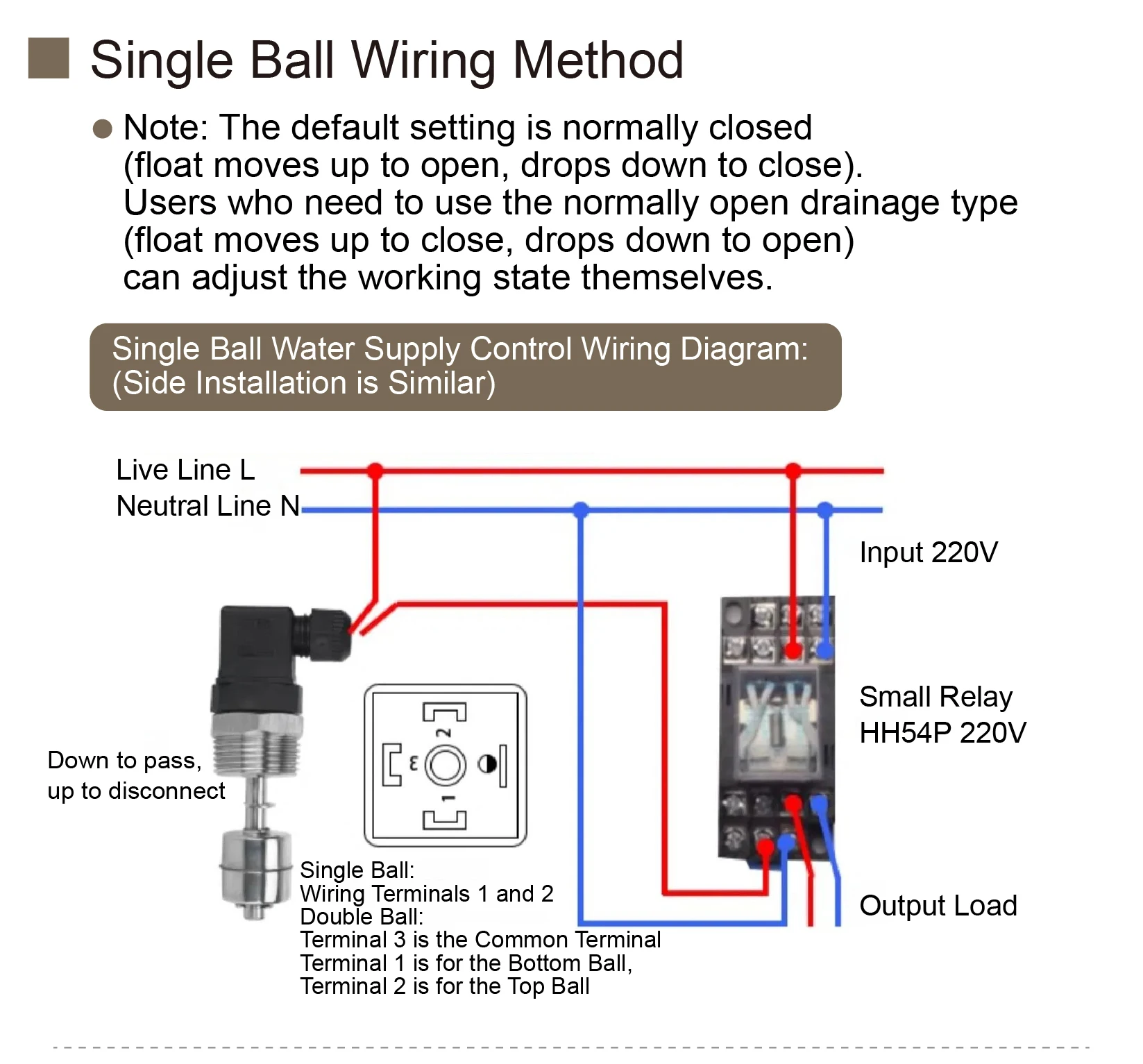

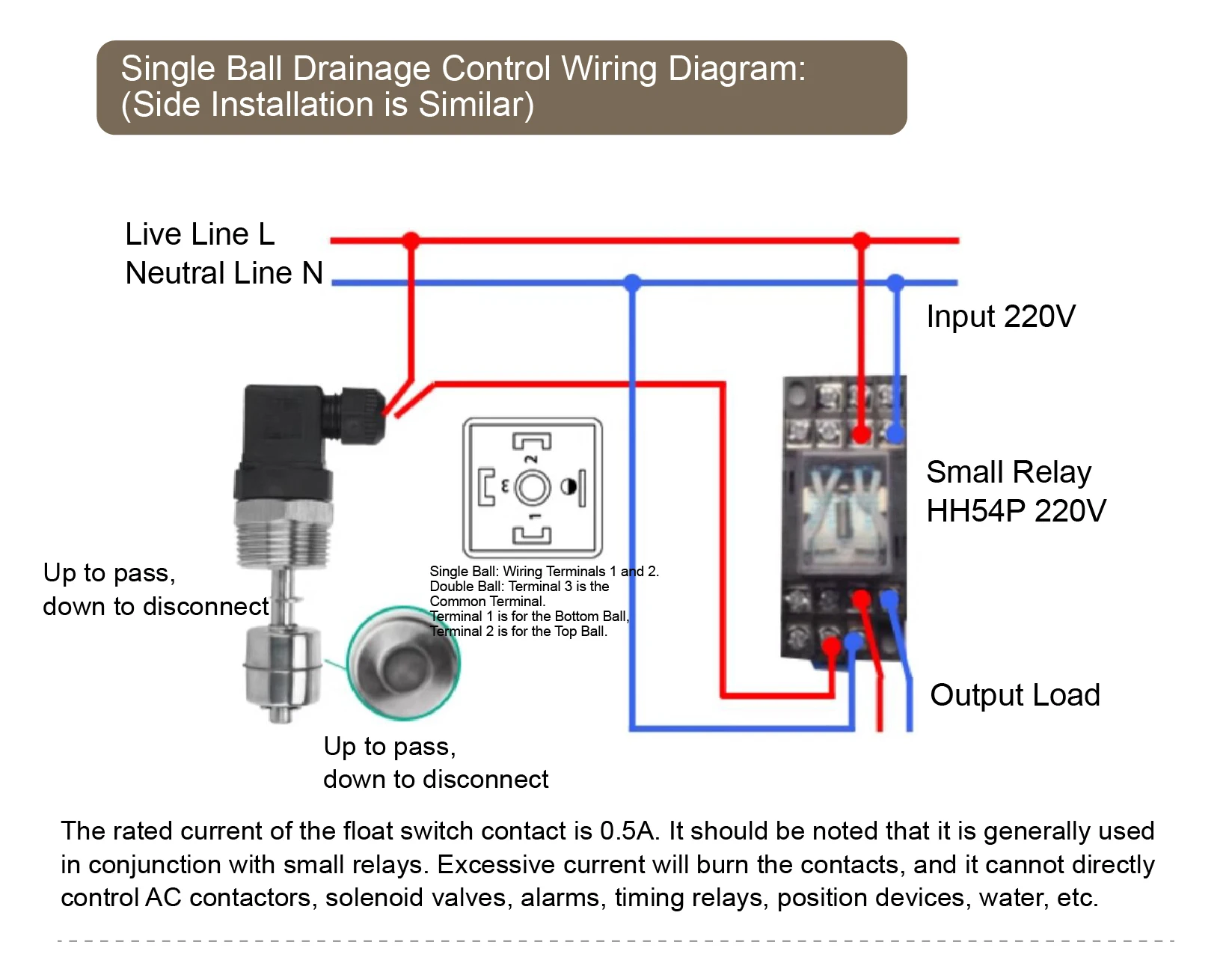

• This float switch cannot directly control solenoid valves, high-power relays, or AC contactors. A low-power relay (e.g., HH54P) must be used for proper operation.

• The float position is fixed and cannot be adjusted. Retaining clips at both ends are designed to prevent movement. Even if repositioned, the internal reed switch contact points cannot be moved.

Shipping Notice
If the shipping cost appears high during checkout and you're planning to order in bulk or purchase large-sized items, we offer more economical shipping options and routes. Please contact us for tailored shipping arrangements.

2. Parameters

3. Features

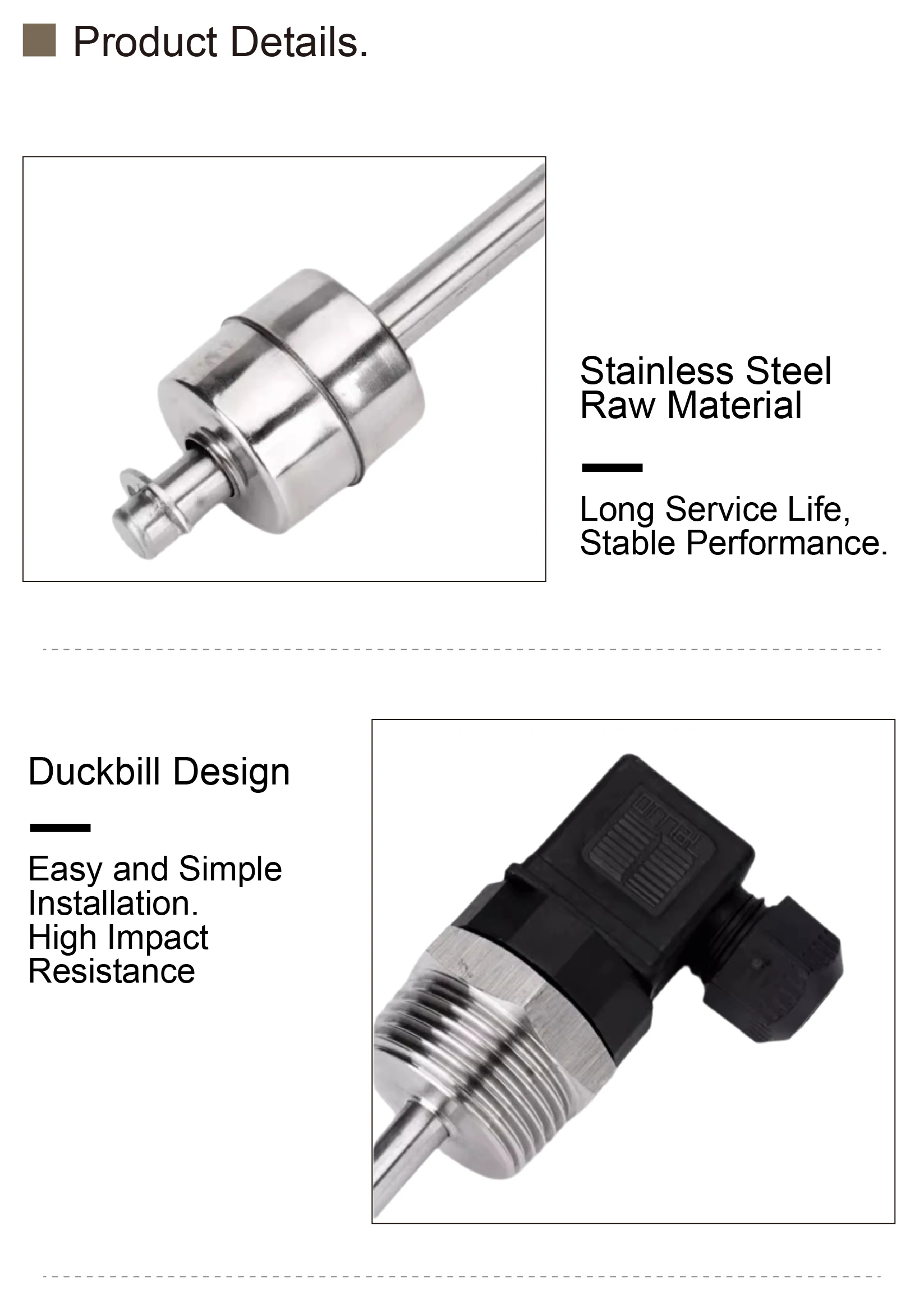

Stainless Steel Construction
Crafted from high-quality stainless steel for a long service life and consistent, reliable performance.

Duckbill Design
Features a duckbill-shaped structure for easy installation and enhanced impact resistance.

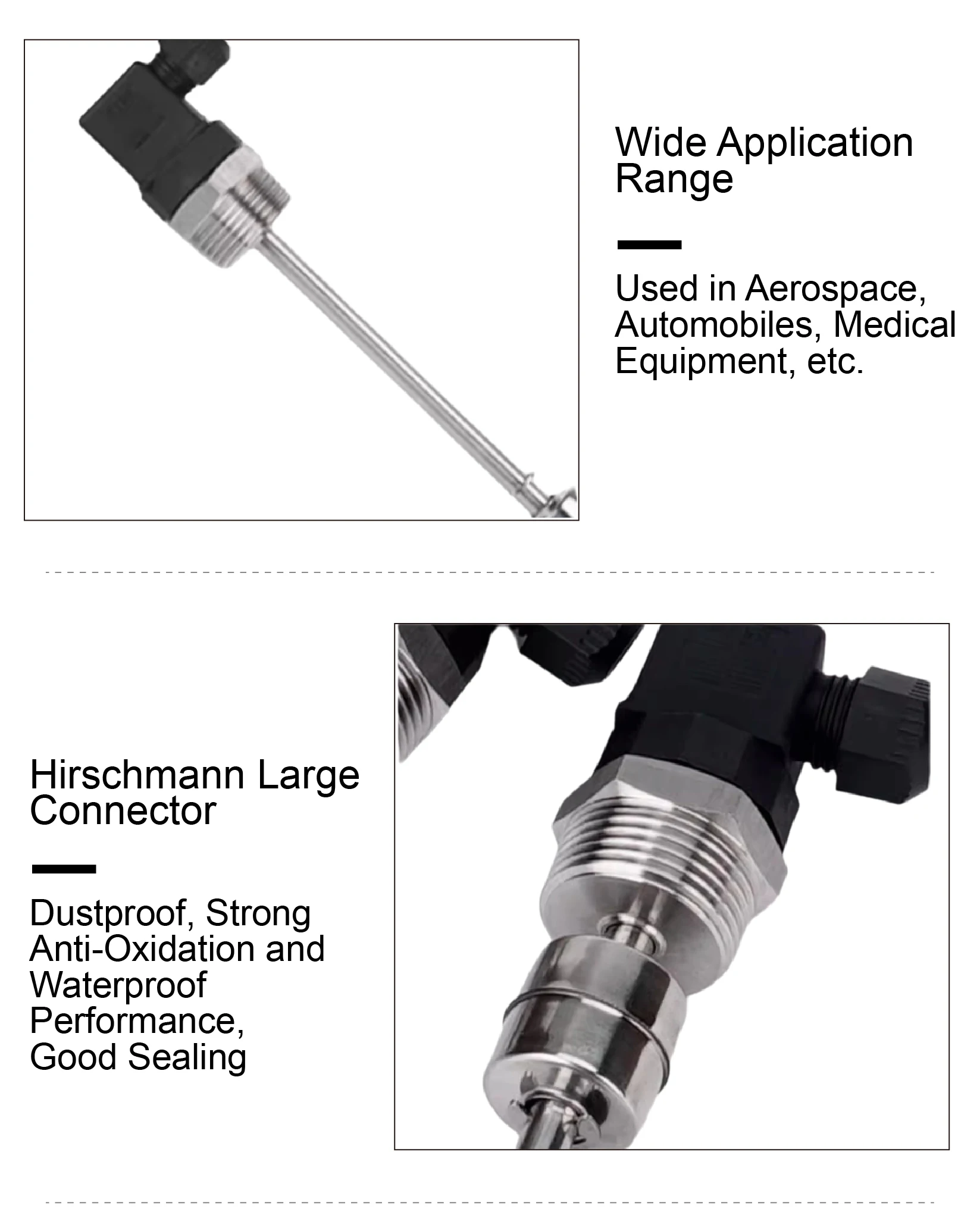

Versatile Applications
Suitable for a wide range of industries, including aerospace, automotive, and medical equipment.

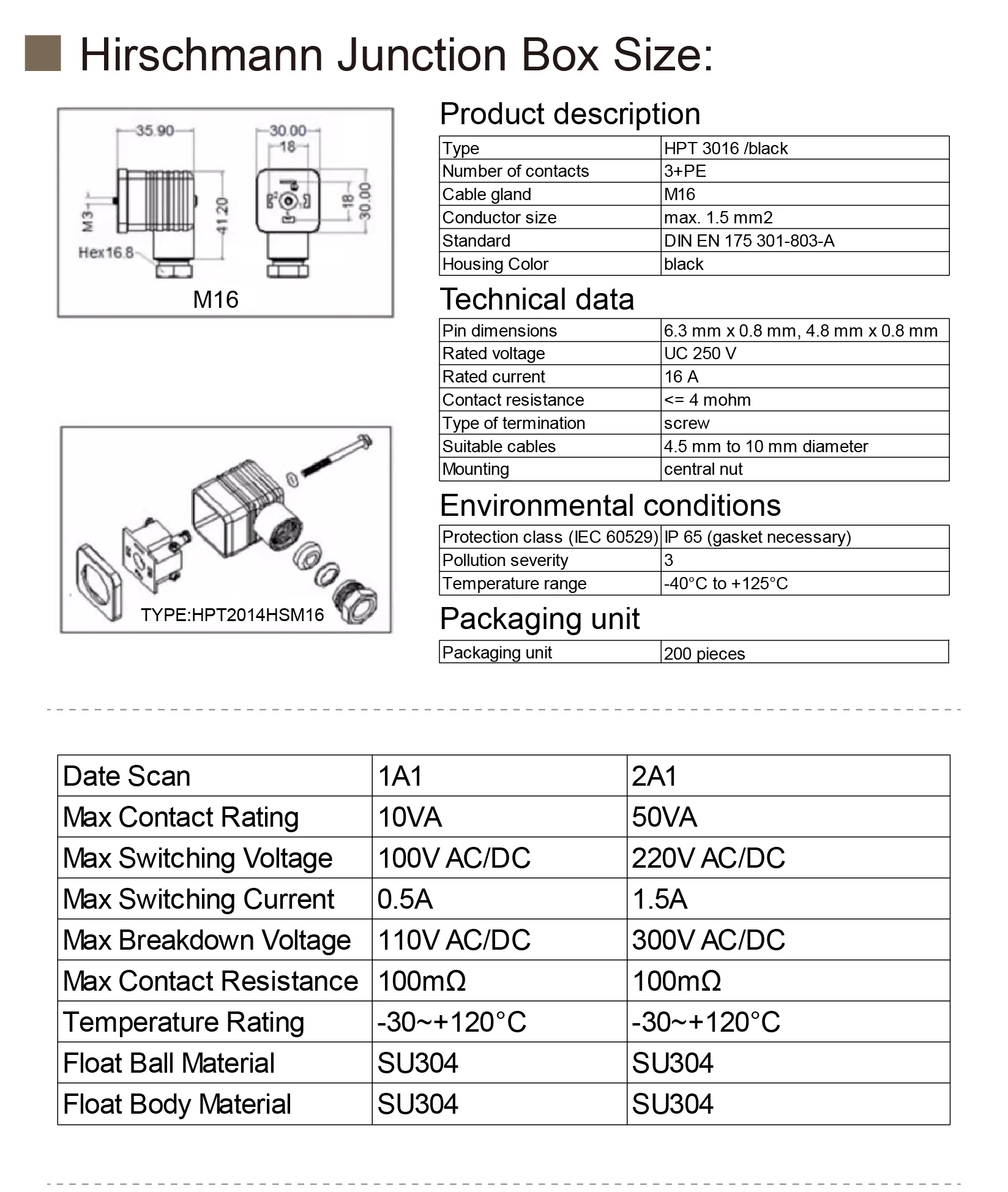

Hirschmann Large Connector
Equipped with a Hirschmann large connector offering excellent resistance to dust, water, and oxidation, along with superior sealing performance.

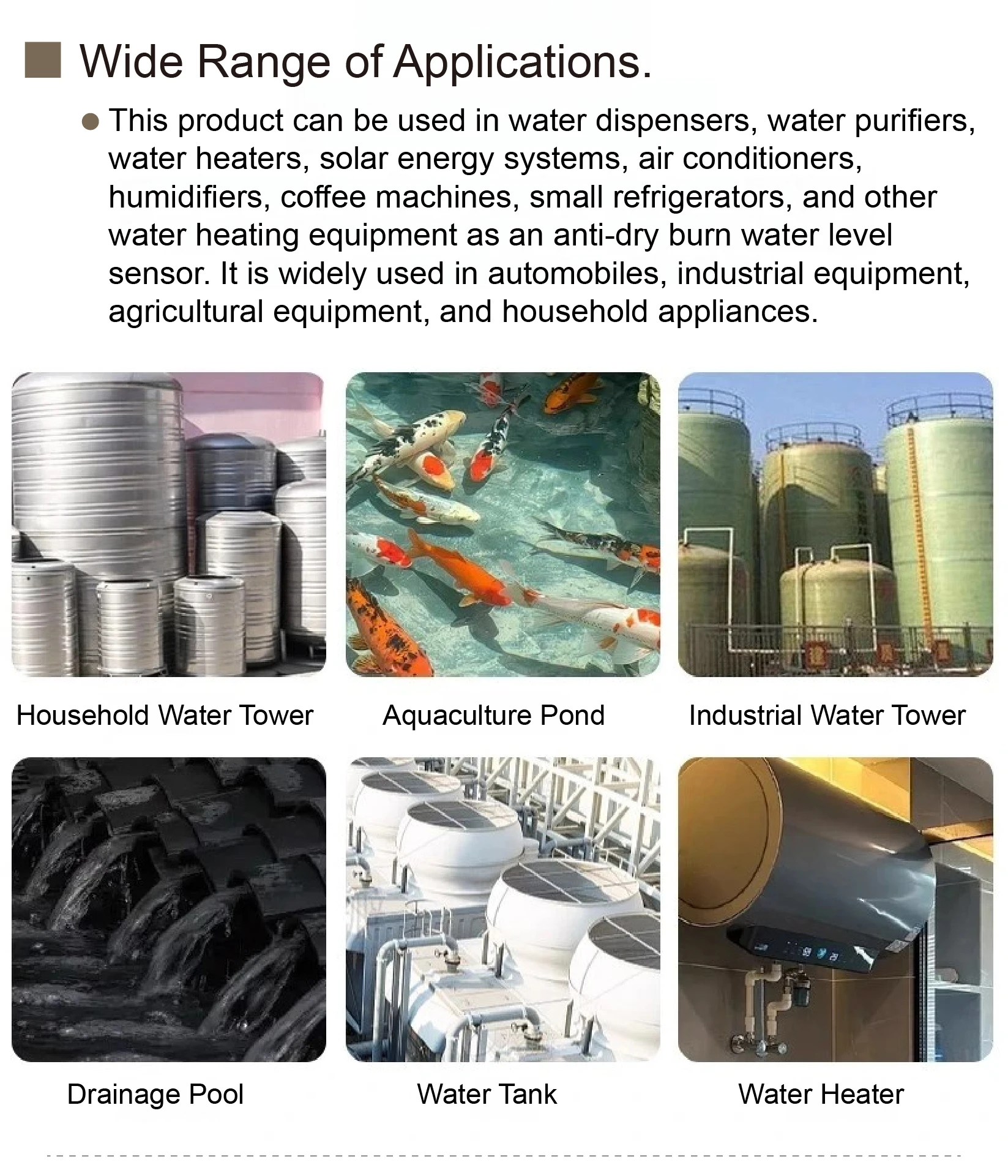

4.Applications

Household Water Tanks

Industrial Water Towers

Aquaculture Ponds

Drainage Pools

General Water Tanks

Water Heaters

5.FAQs

Q1: Is the float switch resistant to corrosion?
A1: Yes, it is made from high-quality SUS304 stainless steel, providing excellent resistance to corrosion.

Q2: Can it be used in high-temperature environments?
A2: Yes, it is designed to operate reliably in temperatures ranging from -30°C to +120°C.

Q3: How easy is the installation?
A3: The duckbill design allows for quick and easy installation while offering strong impact resistance.
