Product Description

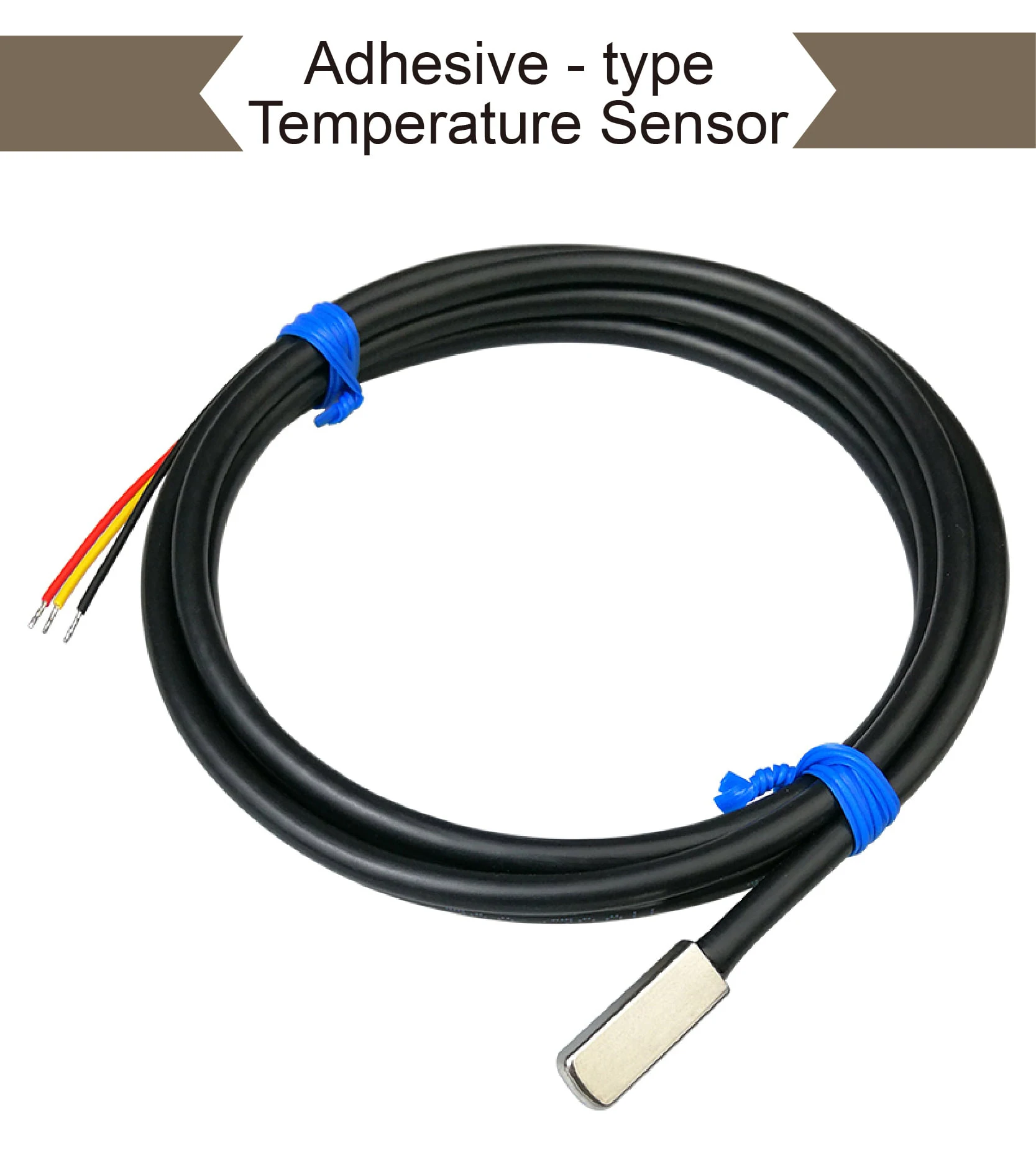

DS18B20 Waterproof Digital Temperature Sensor Probe Teflon Cable Adhesive Flat Tip Ring Terminal Surface Monitor
DS18B20 Waterproof Digital Temperature Sensor Probe Teflon Cable Adhesive Flat Tip Ring Terminal Surface Monitor1. NOTE
Default Configuration:
Size: 20*7.5*3.6mm
Temperature Range: -50 to 125°C
Wire Length: 0.5-5M
Wire Type: Tin-plated bare wire (default), 3-wire
Customizable Options:
Wire Length: 5M, 10M, 15M, 20M, etc.
Terminal Types: U-shaped terminal, pin terminal, aviation plug, XH2.54 quick connector, etc.
Due to page limitations, some configurations may not be listed. If you need customization, please contact us.
2.Parameters
Item | Description |
Product Name | Digital Temperature Sensor |
Model | WST-TP-WK-V320PVH |
Sensor Type | DS18B20 |
Cable Type | RVVP-3*0.2mm² |

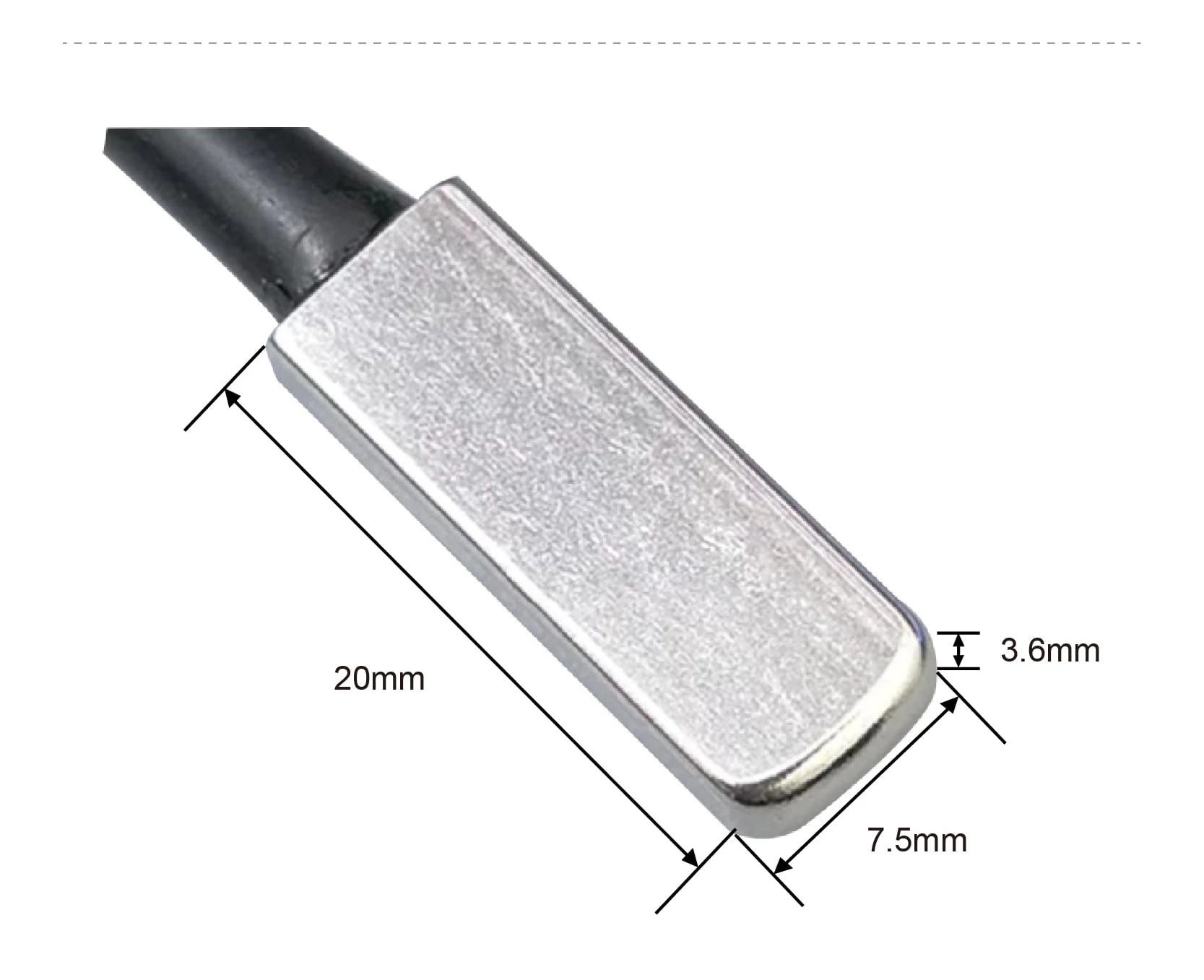

Probe Dimensions | 20*7.5*3.6mm |

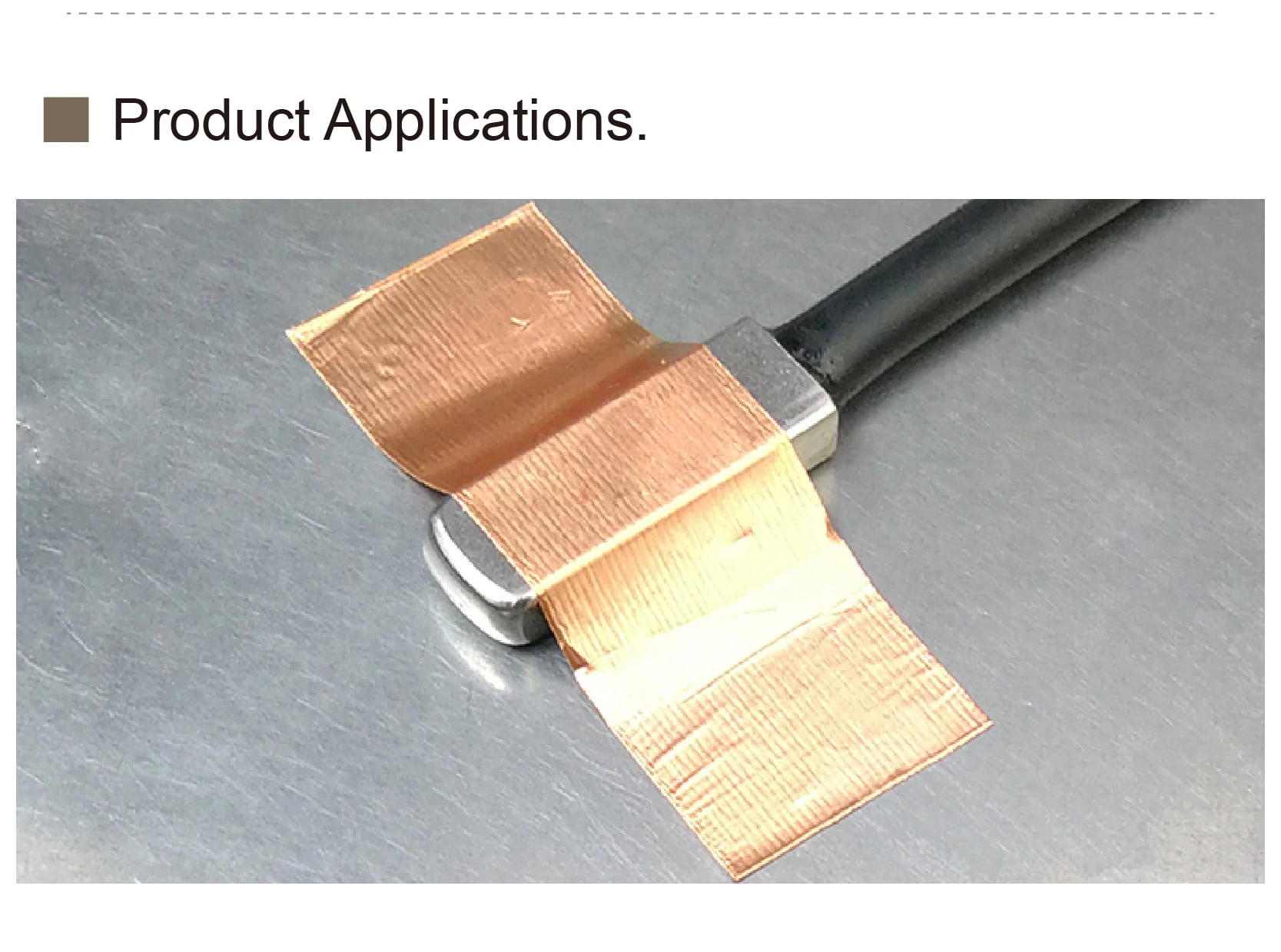

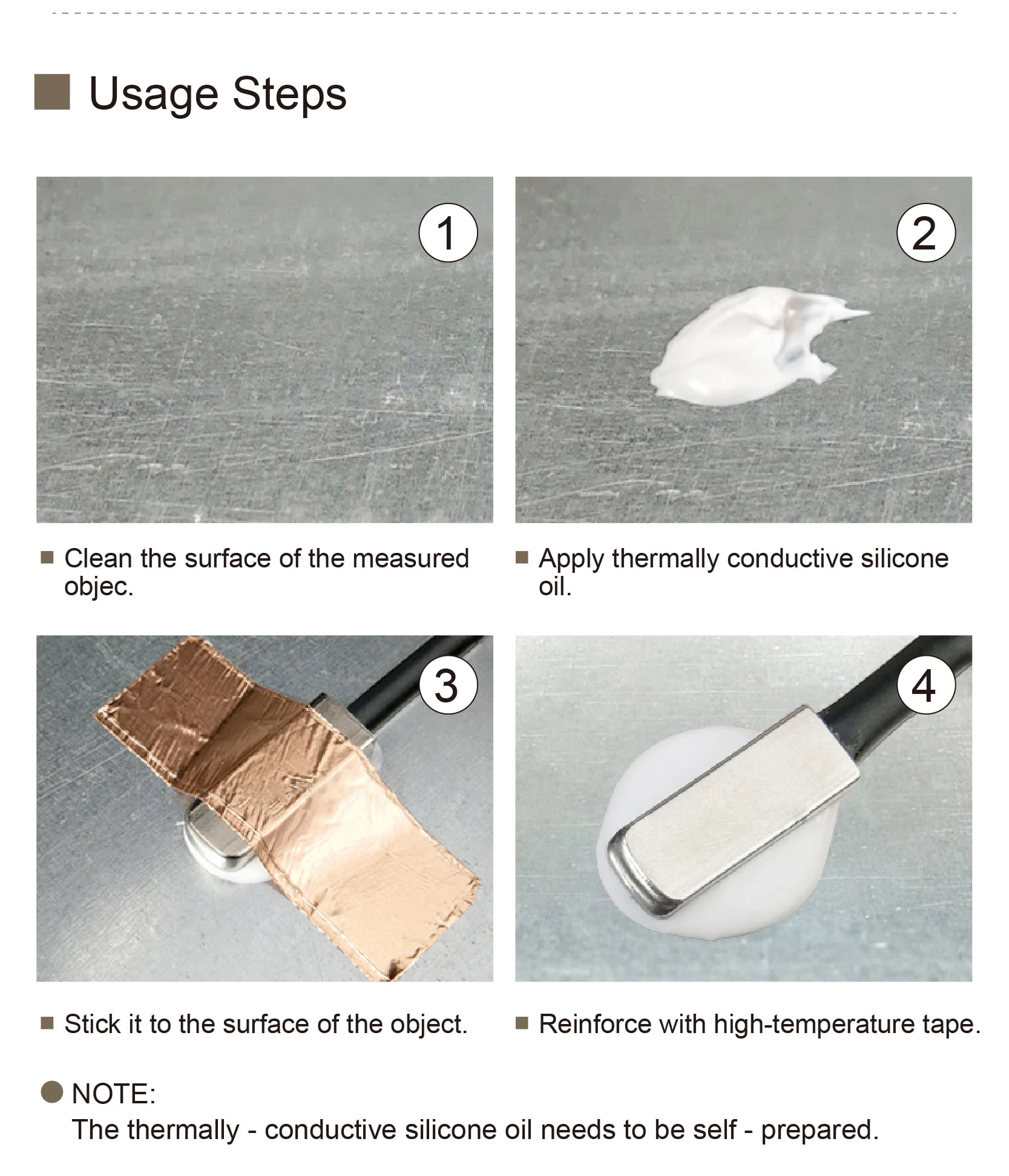

Installation Method | Adhesive Copper Foil Tape |
Temperature Range | -50°C to +125°C (Default) |
Cable Length | 0.5m / 1m / 1.5m / 2m / 5m / Custom |
Connection Terminals | Tinned Bare Wire (Default) / U-Type / Pin / XH Connector / Aviation Plug |
Application Scope | Flat surfaces where drilling is not feasible |
3.Features

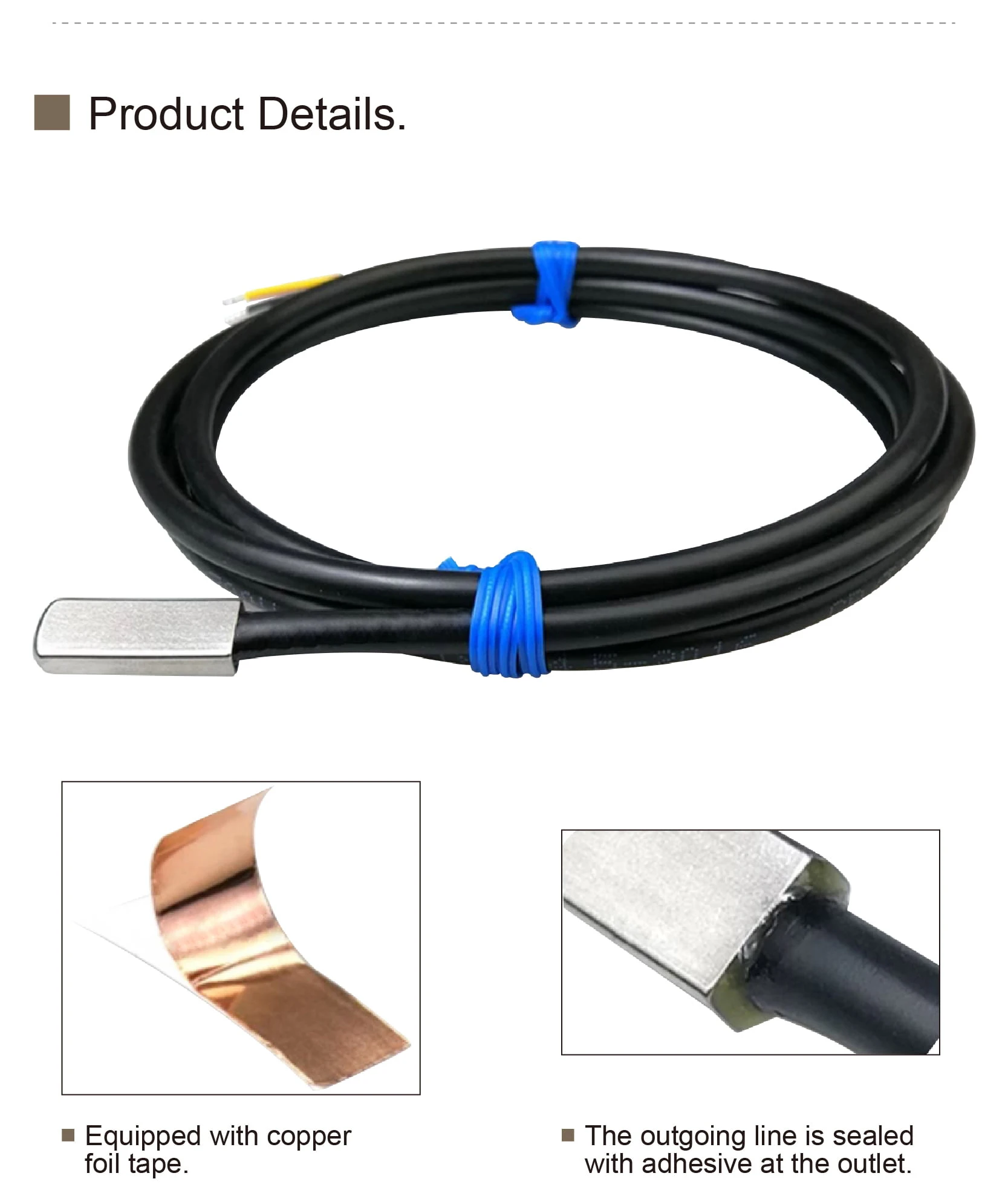

Sealed Cable Outlet with Adhesive
Ensures easy installation and secure adhesion on flat surfaces.
High-Quality RVVP Sheathed Cable
Durable, flexible, and provides stable signal transmission.

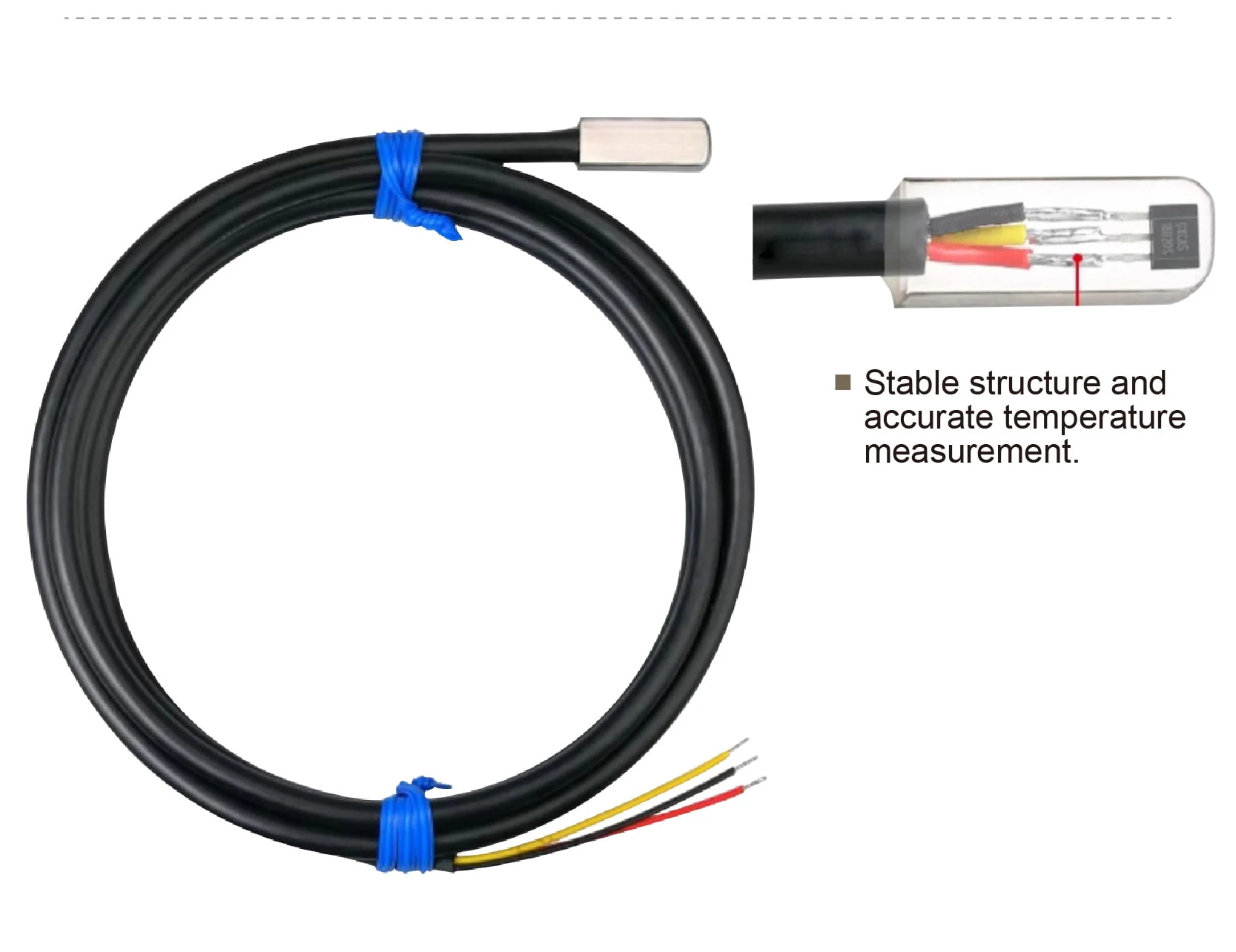

Precision Soldering
Strong, secure connections that resist detachment over time.
Zhongke Galaxy Chip
High precision and sensitivity for accurate temperature readings.
Versatile Connection Options
Offers various terminals like tinned bare wire, U-type, pin connectors, and aviation plugs.
Customizable Cable Length
Multiple cable lengths available to suit different applications.
4.Applications
Aquariums
Monitor water temperatures in fish tanks efficiently.
Greenhouses
Accurate temperature monitoring for optimal plant growth.
Farming Industries
Stable performance in livestock and agricultural temperature control.
Food Processing
Ensures safe temperature levels for food production and storage.
Cold Storage Facilities
Reliable in low-temperature monitoring for frozen goods.
5.FAQs
Q1: What is the temperature measurement range of the DS18B20 sensor?
A1: The sensor measures temperatures from -50°C to +125°C, ensuring wide applicability.
Q2: Can the cable length be customized?
A2: Yes, we offer custom cable lengths ranging from 0.5m to 5m or more.
Q3: What connection terminals are available for this sensor?
A3: The default terminal is tinned bare wire. Other options include U-type terminals, pin connectors, XH connectors, and aviation plugs.
