RHD-771 RT3S Walkie-Talkie Antenna SMA-M Male VHF UHF Walkie Talkie Antennas for

Product Description

Notice

SMA-M male antenna not suitable for Baofeng UV5R UV82.

If you want to buy antenna for Baofeng UV5R UV82,please buy SMA-F Female antenna this is SMA-F antenna

link:

Retevis RHD-771 SMA-M Male Antenna 36.5cm 144/430Mhz VHF UHF Antenna For Retevis RT1 RT3S RT3 RT8 RT81 For TYT MD-380/UV8000D

Attention,please:

1.The accuracy of the measuring instrument. The Retevis factory uses professional measuring equipment(very expensive than handheld devices), which is more accurate than ordinary handheld devices.

2.Each antenna has a center frequency point. At this frequency point, the VSWR value is the lowest and the use effect is the best. So try to measure around 144MHz/430MHz.

Retevis factory VSWR measurement chart

Description:

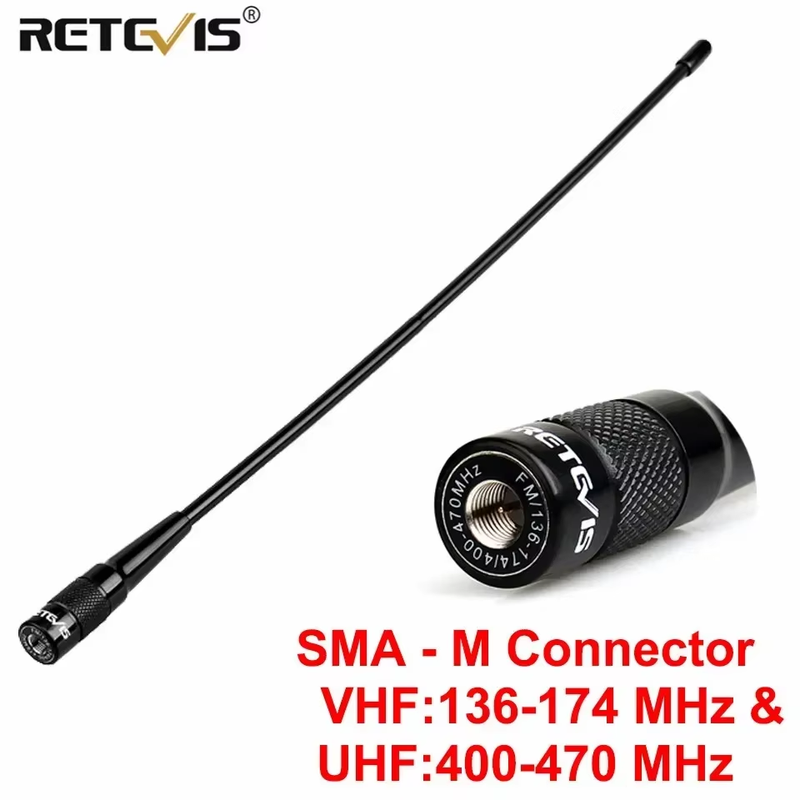

The Original Retevis RHD-771 Elite Antenna will allow you to get longer range on your handheld radio, like RETEVIS RT1/RT3S/RT3,For TYT MD-380/UV-8000D and more radio. This antenna features a 2.15dBi with up to 20 Watts of power. It is 36.5cm in length and weighs 36g.

Specification:

1. 100% brand new and high quality
   Model	RHD-771(SMA-M)
   Band	Dual band VHF/UHF
   Antenna type	SMA-M Soft Antenna
   Frequency	144/430Mhz(136-174+400-470)MHz
   Gain	2.15dBi
   Max power	20 Watts
   VSWR	Less than 1.5 Downwards
   Impedance	50ohm
   Connector Type	SMA-M(Male)
   Omni Polarization	Vertical
   Radiation	Omni
   Material	ABS and Heat shrinkable sleeve
   Length	36.5cm
   Weight	36g/1.27oz
   Color	Black
   Widely used on handheld Radios with SMA–M interface

   Applications model:

   for YAESU	VX-1R,VX-2R,VX-3R,VX-5R,VX-6R,VX-7R
   For RETEVIS	RT1,RT3,RT3S,RT8,RT81
   For TONGFA	TF-UV985,385
   For BAOFENG	BF- UV3R UV100 U3 etc
   For TYT/Tytera	TH-UV8R,UVF9,UVF9D,UVF8D,F8,F5,F3 F7,TH-F1,TC-3000A,UVF10,UV6R,UVF9,UVF11,UVF8,TC-3000B,TC-3000S,TC8000,UV8000D, MD-280,MD-380,MD-446,
   Other Brand radios suitable for SMA-M antenna

Package include:

• 1 or 2 or 10 x Retevis RHD-771 VHF/UHF SMA-M Antenna
