Product Description

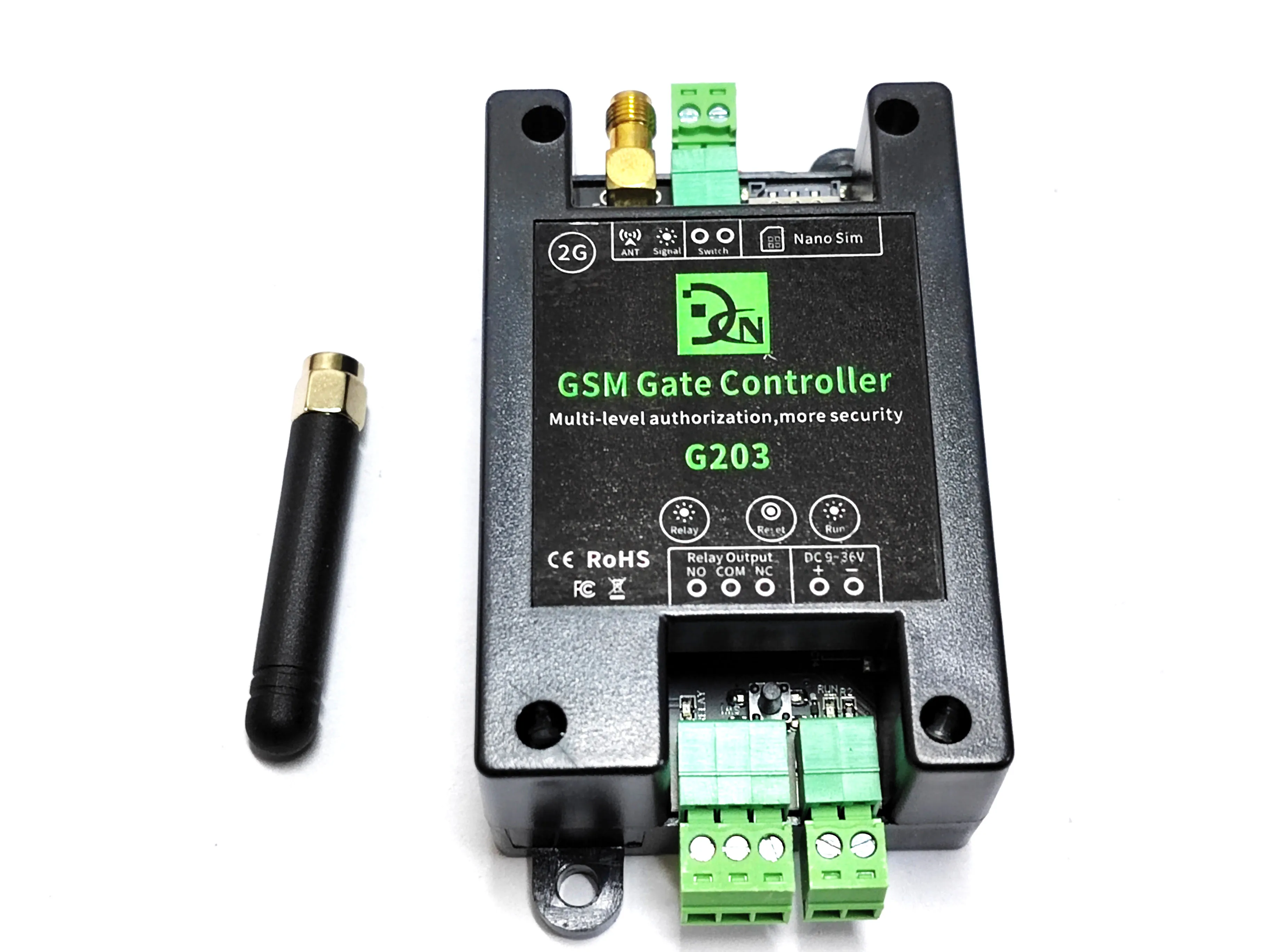

G203 GSM 4G LTE Gate Controller SMS Remote Control ON/OFF Relay Switch For Automatic Sliding Swing Gate Opener
G203 GSM 4G LTE Gate Controller SMS Remote Control ON/OFF Relay Switch For Automatic Sliding Swing Gate Opener1.Technical parameters
Rated Voltage: | DC 9V~36V/1A |
Working temperature: | -10℃~+60℃ |
Storage temperature: | -20℃~+60℃ |
Relative humidity: | 10-90%, No condensation |
Work frequency: | GSM: 850/900/1800/1900MHz |
3G WCDMA: 900/2100 MHz UMTS | |
3G CDMA2000:850/1900MHz UMTS | |
3G: 850/2100MHz UMTS | |
4G: | |
C:GSM:900/1800,LTE-FDD B1/B3/B5/B8 LTE-TDD:B34/B38/B39/B40/B41 | |
E:GSM:900/1800,LTE-FDD B1/B3/B5/B7/B8/B20 | |
SA:GSM:850/900/1800/1900M LTE-FDD B1/B3/B5/B7/B8/B28/B66 | |
Communication protocol: | GSM PHASE 2/2+ (include data service) |
Related Voltage of the Output Relay: | 3A/240V AC |
SIM Card: | Nano type, 3V |
Antenna: | 50 Ω SMA |
Wired Switch: | Supports |
Dimension: | 96.5*50*31.5mm |
Net Weight: | 88g |
Contact Capacity : | 5 Amps at 250VAC Cosφ=1. 20 Amps at 14VDC |
2.Products instruction
Based on GSM/3G/4G communication protocol, supports 1000 authorized users. Authorized users can remotely control the equipment, systems and machines connected to the product bySMS commands & free calling. It is widely used in access control systems, garage doors, swingdoors ,folding doors,sliding doors, parking system and the equipments that can be connected tothe relay control,the G202PLUS gate controller will send a notification (via SMS) to the user ofthe result of the remote control (such as the opening and closing status of thegate). With real authorize and multi-level authorization, more security. no authorize no access, evenif you know the password.That is to say: 203 has a higher level of security.
After the ordinary users of G203 are authorized, they only have the right to use the equipment, and have no management rights.
2. G203: Three-level management (super administrator, administrator, common user);
1. G202 plus: secondary management (super administrator, administrator)
The difference
