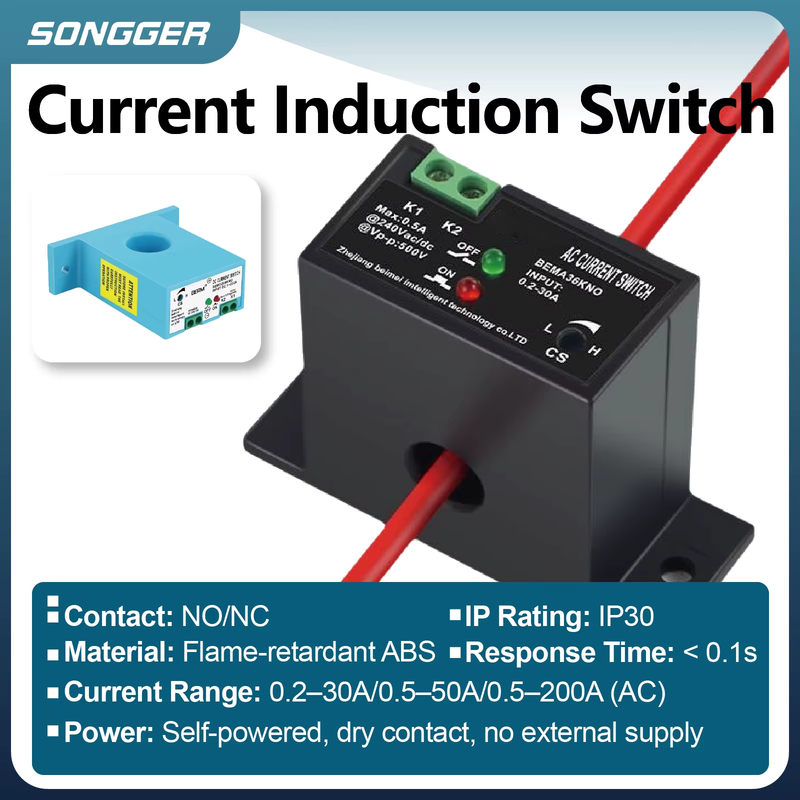

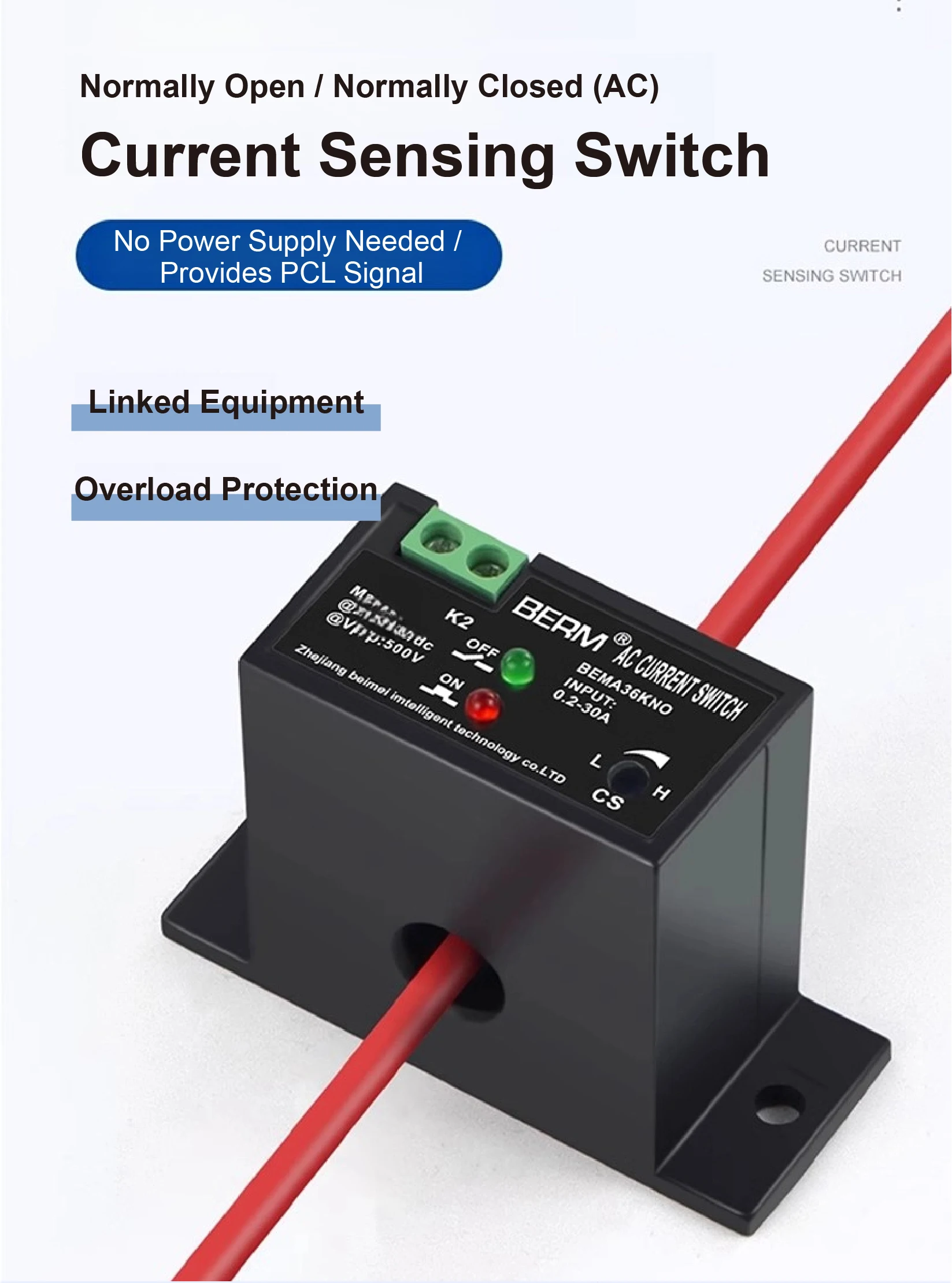

BEMA36K BEMG30 BEMA200 Self Powered AC Current Switch 0.2‑30A Adjustable Relay N

Product Description

1.NOTE

Default:

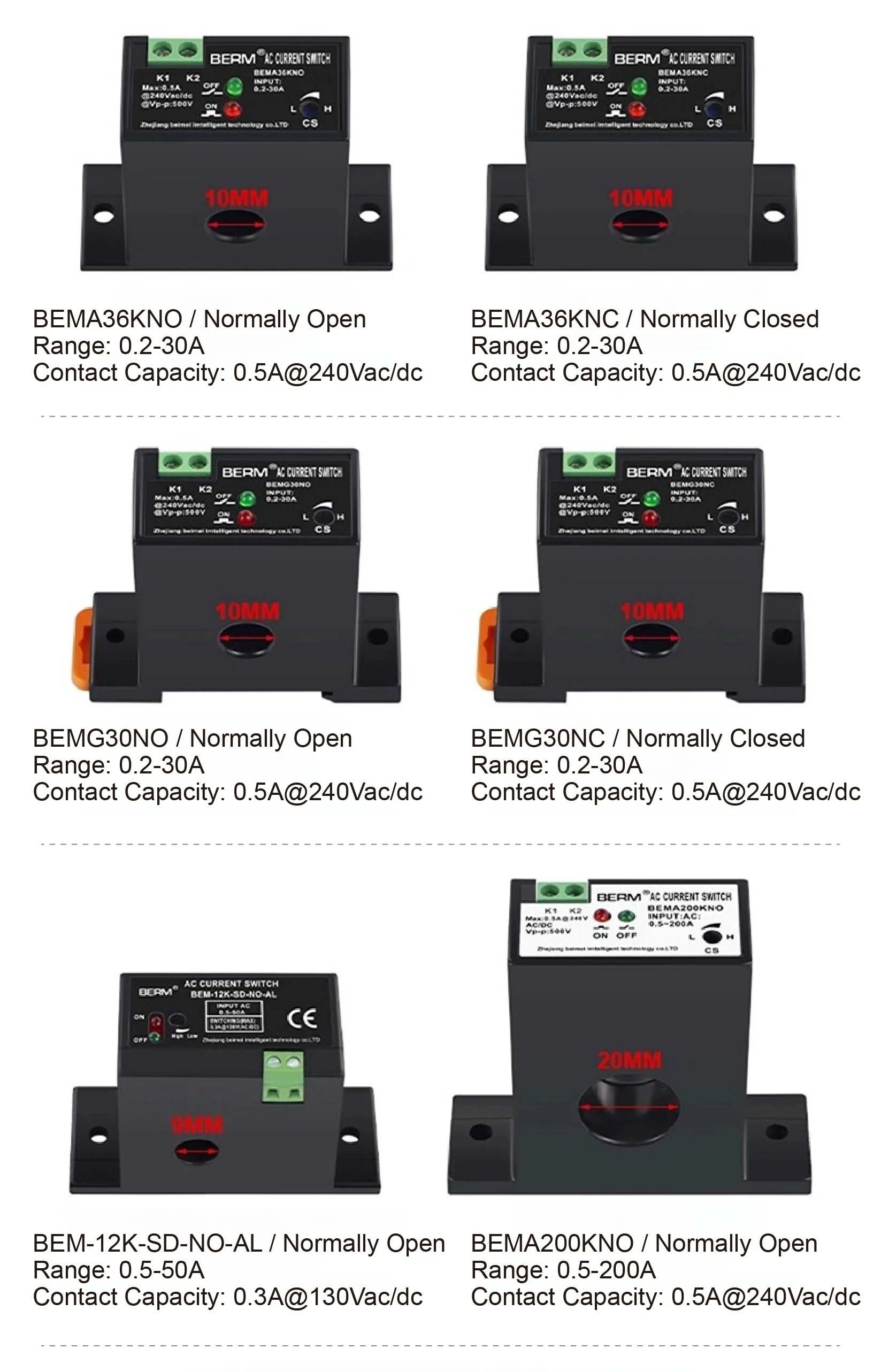

Models:
Normally Open: BEMA36KNO, BEMG30NO, BEM-12K-SD-NO-AL, BEMA200KNO
Normally Closed: BEMA36KNC, BEMG30NC, BEMA200KNC

Start-up time: within 0.1s

Perforation current range: 0.2–30A (AC), 0.5–50A (AC), 0.5–200A (AC)

Power supply: Self-powered, no external power required

Operating temperature: -10°C to +50°C

IP rating: IP30

Housing material: Flame-retardant ABS

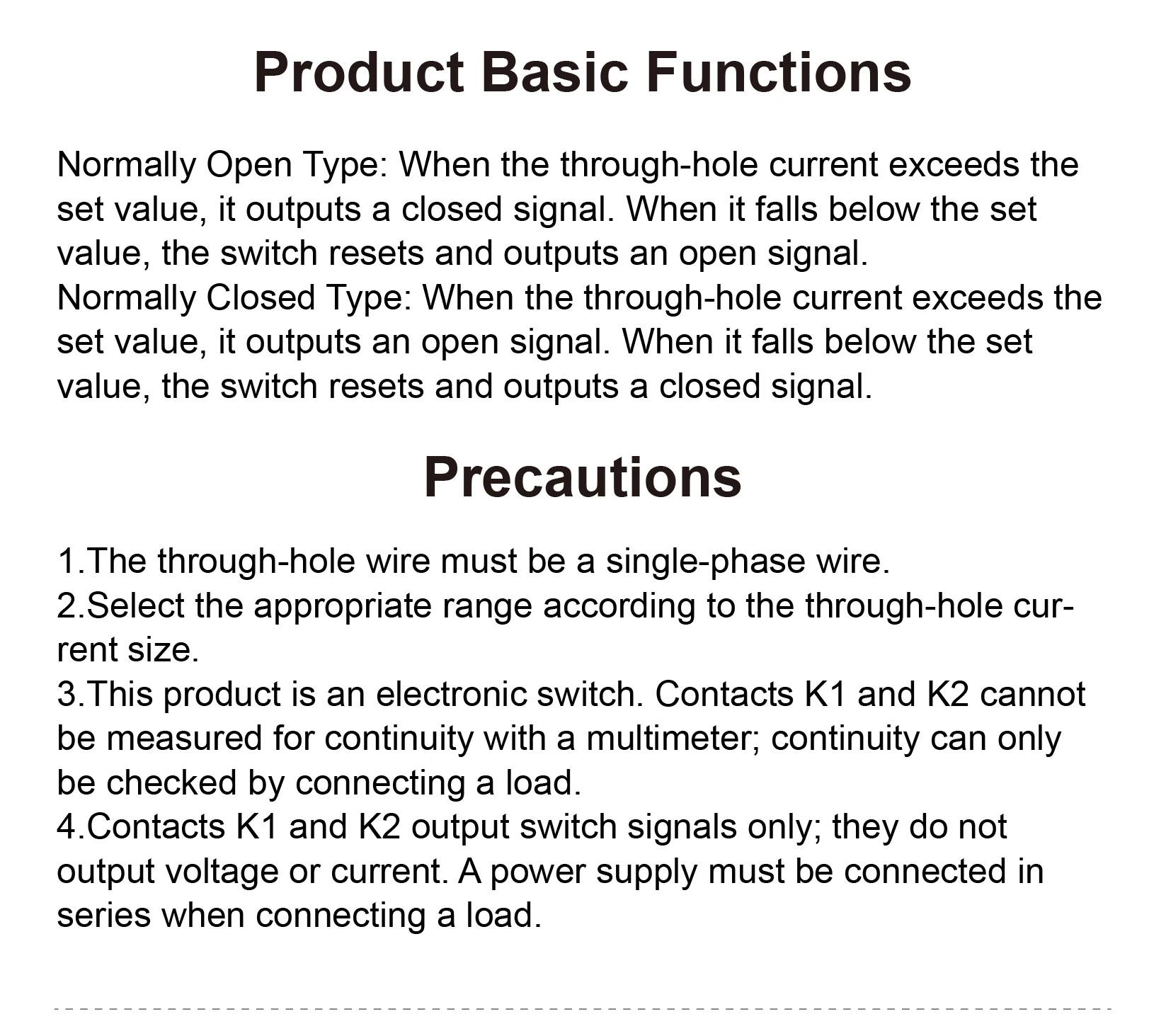

Important Notes:

Only single-phase wires are allowed for perforation.

Select the appropriate current range based on actual perforation current.

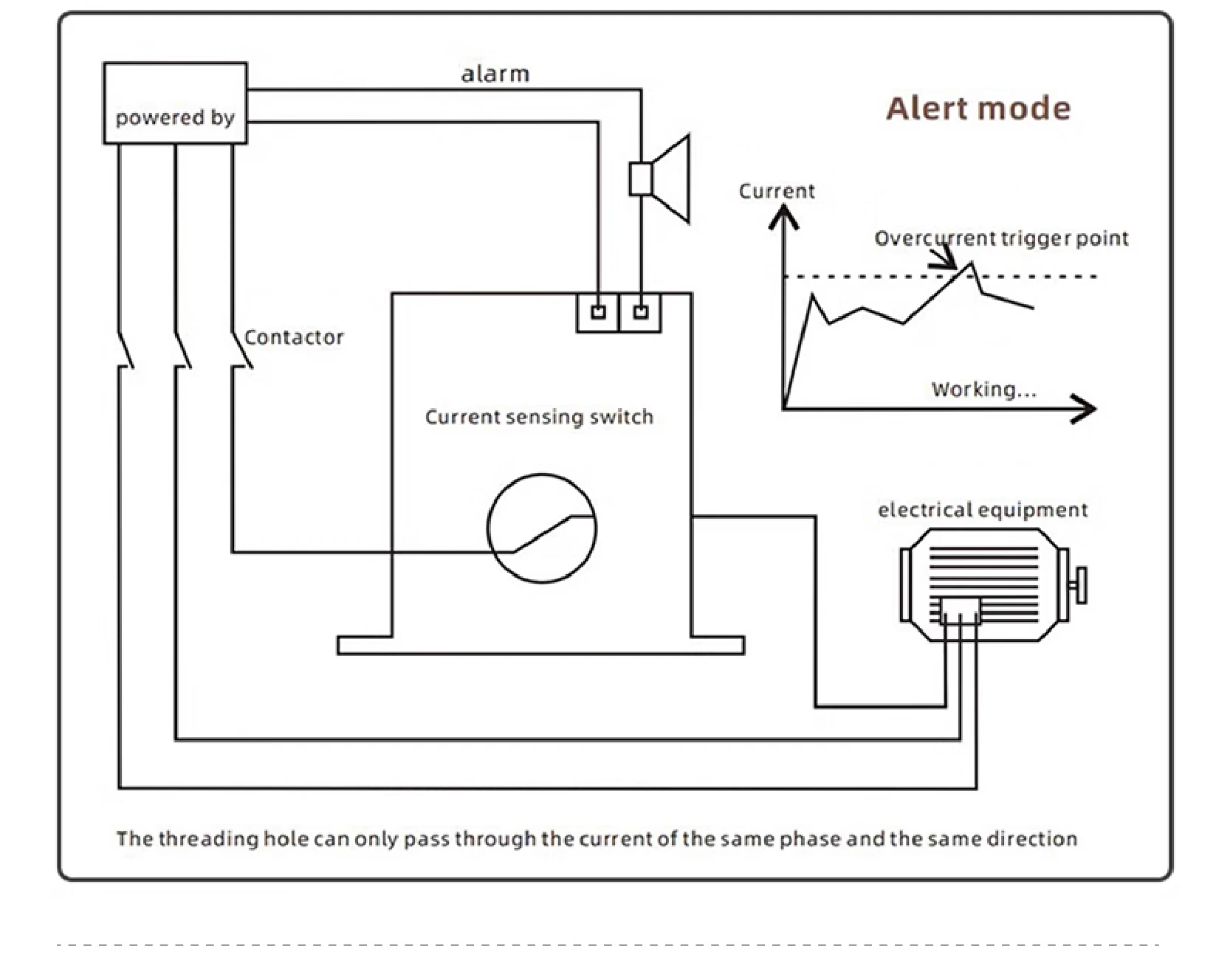

This product is an electronic switch. Do not use a multimeter to directly measure continuity at K1 and K2. Use a load to verify the switching state.

K1 and K2 are dry contacts (no voltage or current output). A power source must be connected in series with the load.

For any questions, please contact us.

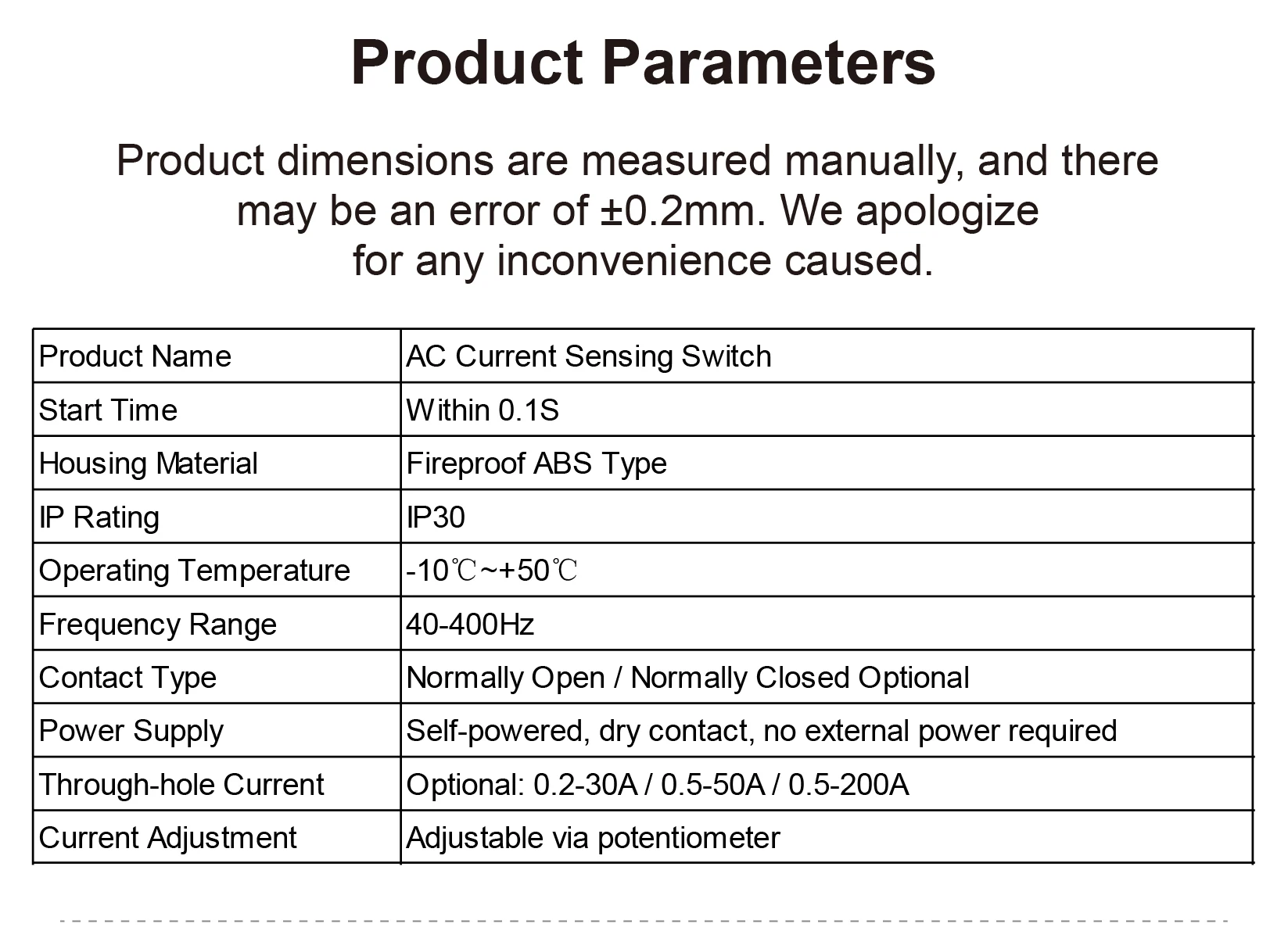

2. Parameters

3. Features

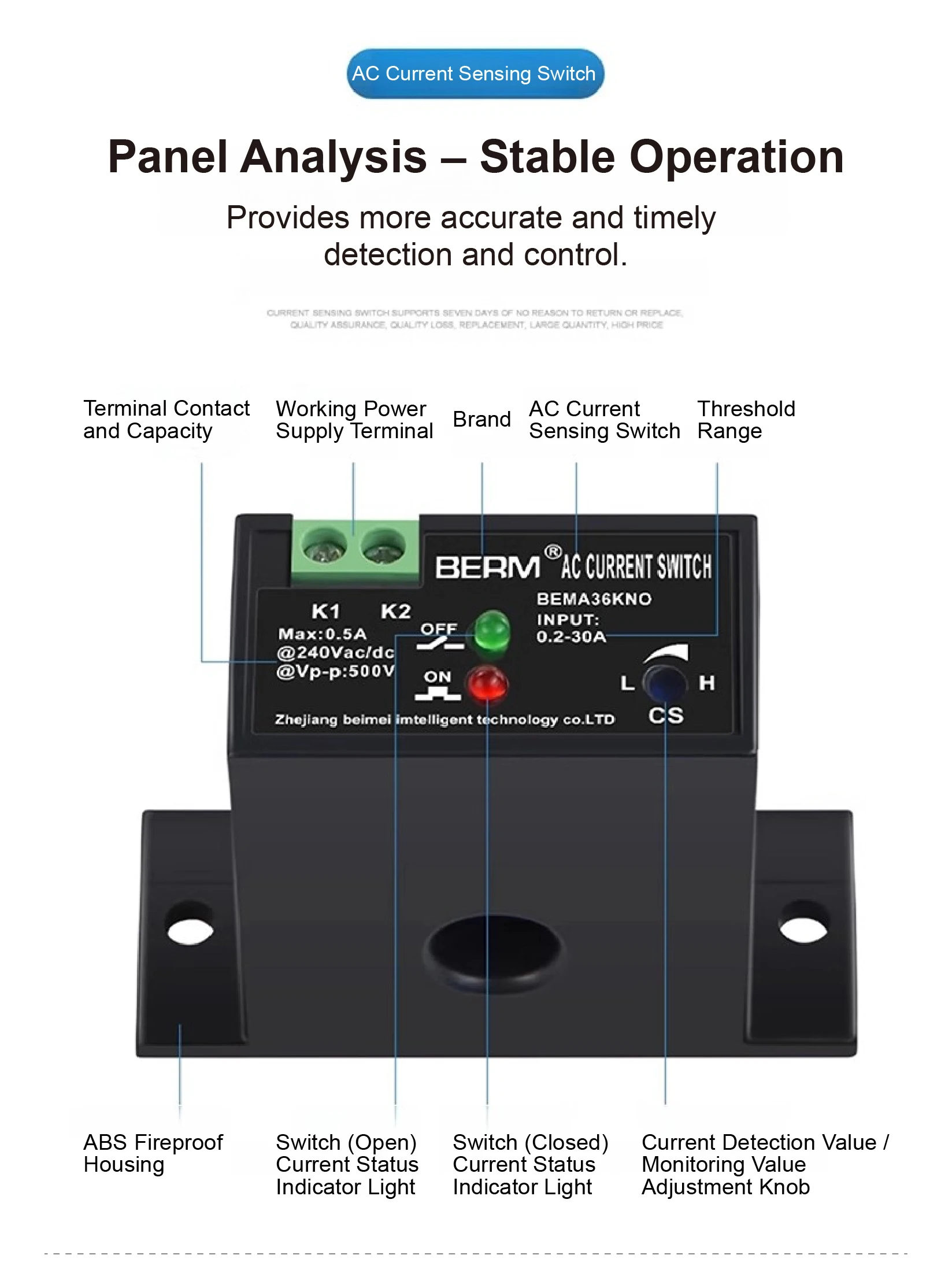

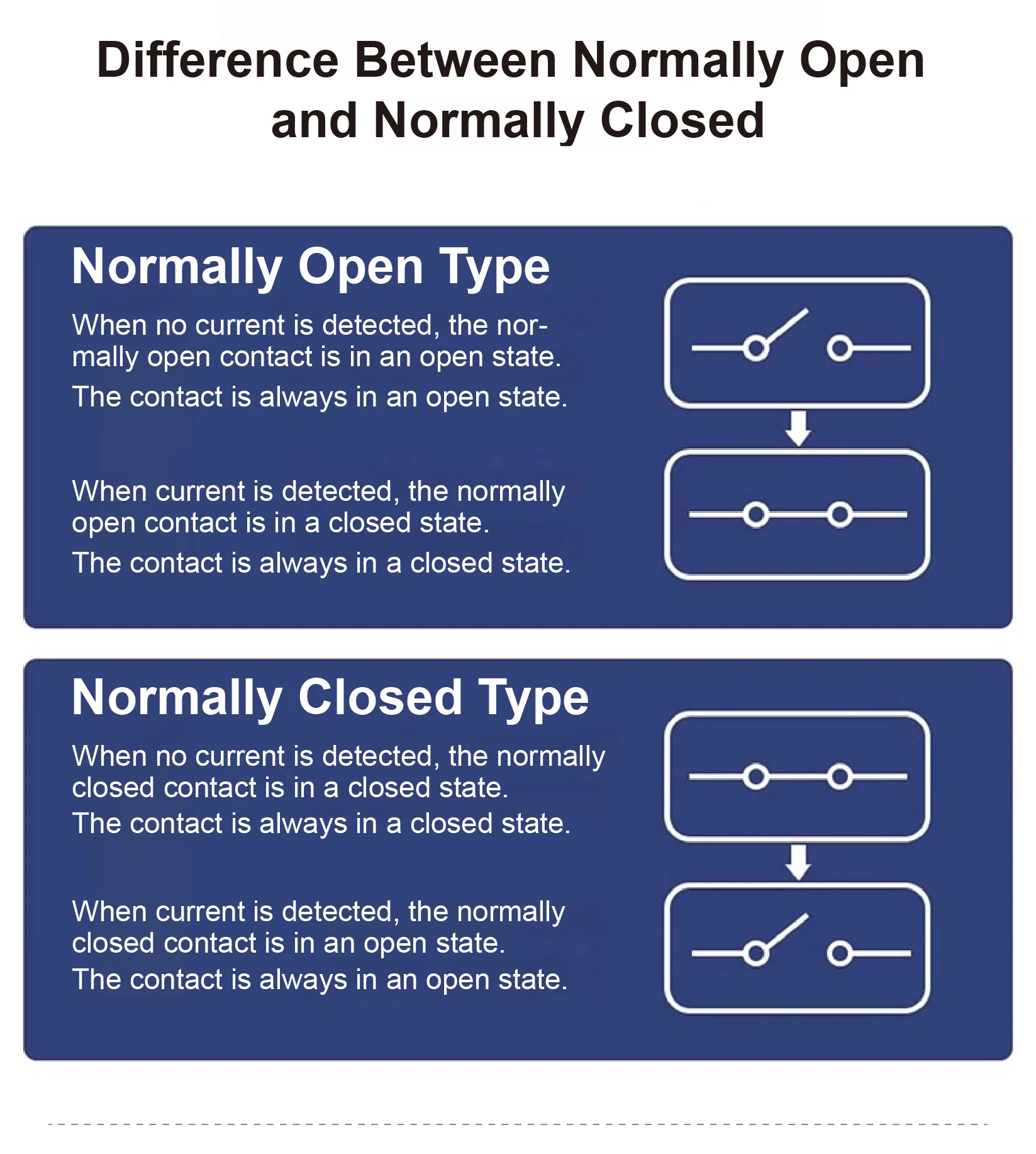

NO/NC Contact Options
Supports both normally open and normally closed configurations for flexible system integration.

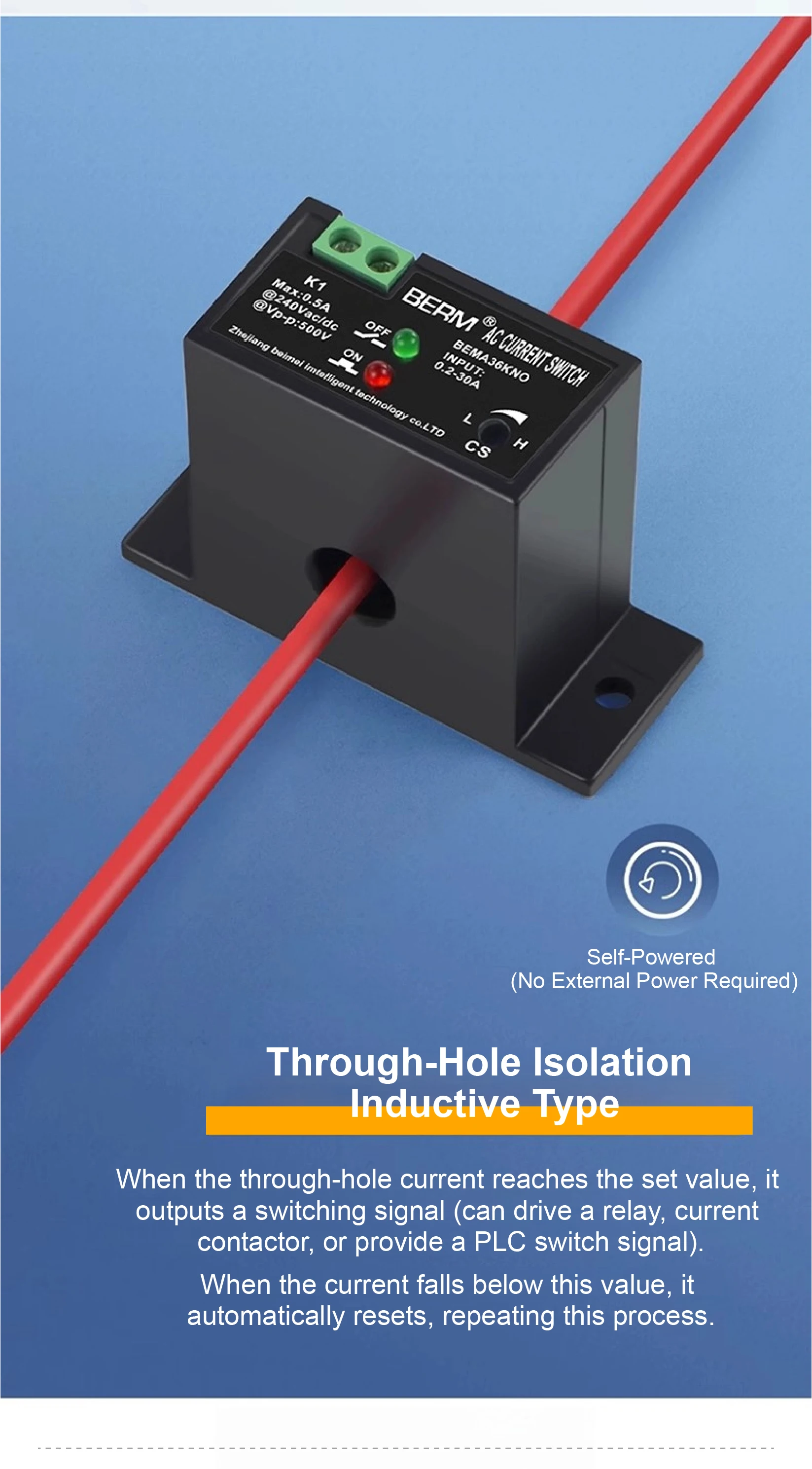

Self-powered Operation
No external power supply required—ideal for energy-efficient installations.

Adjustable Sensitivity

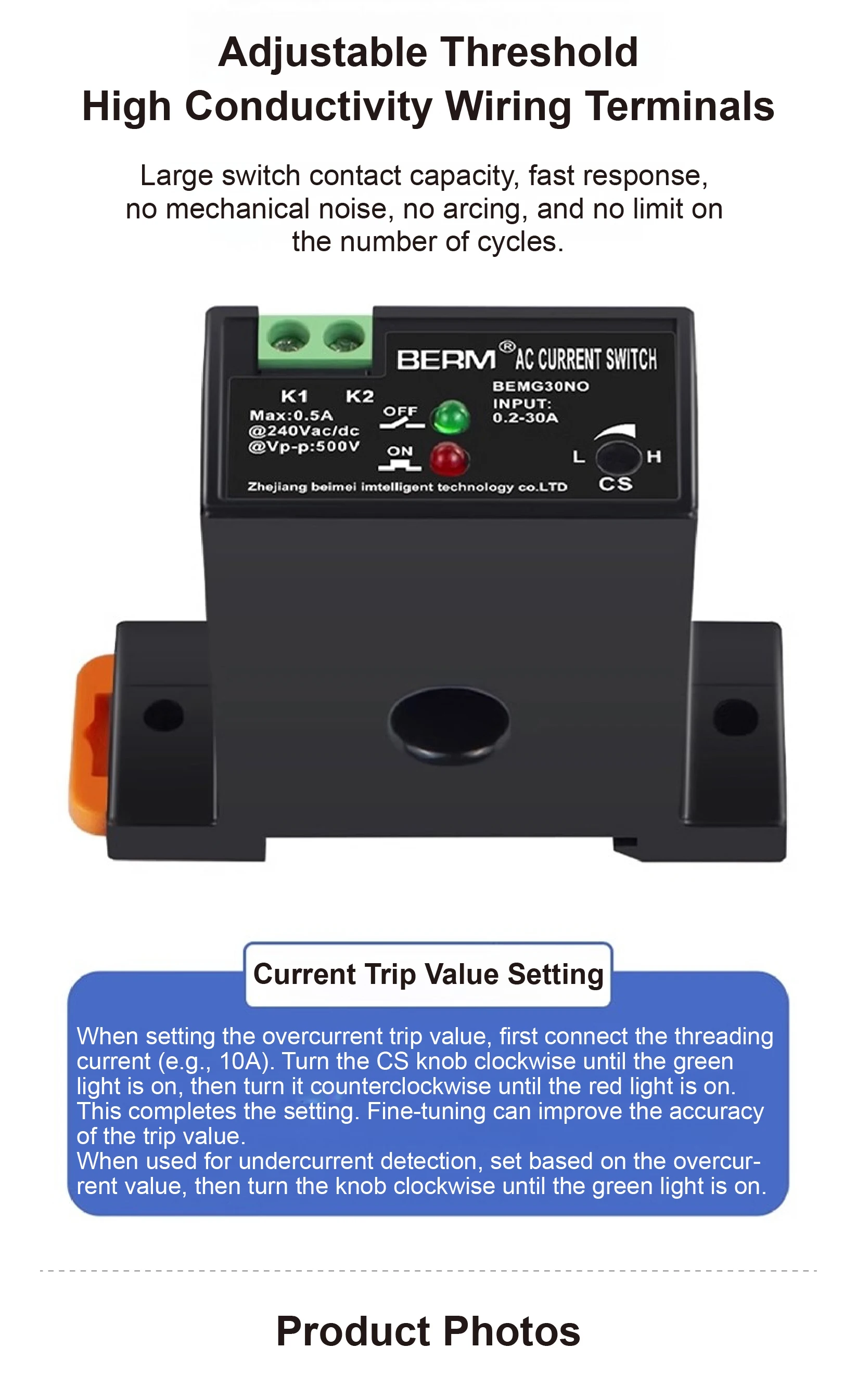

Customize the current threshold using the built-in potentiometer.

Fast Response Time
Activates within 0.1 seconds for reliable and timely detection.

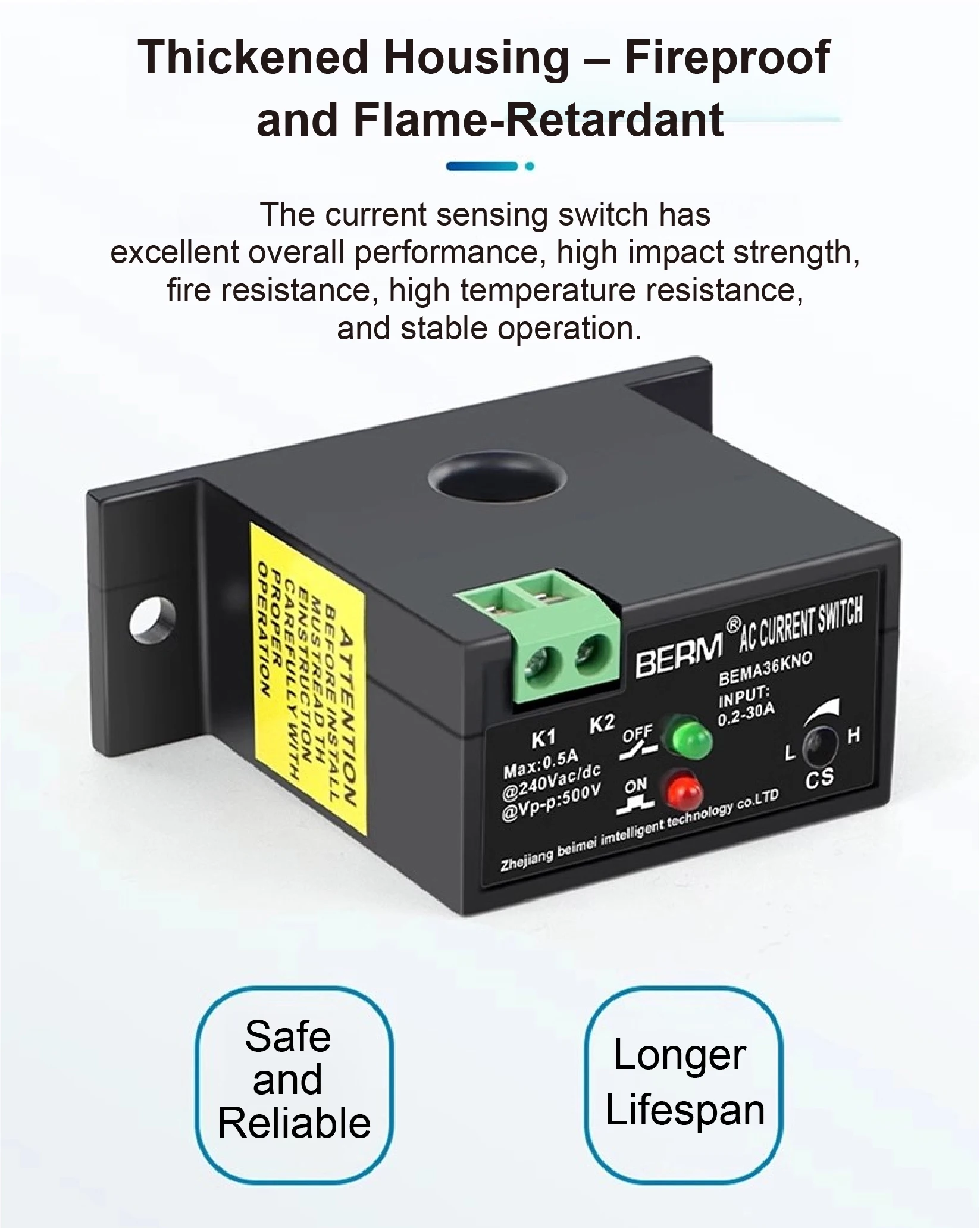

Durable, Flame-retardant Enclosure
ABS housing provides excellent impact resistance and fire safety.

Signal Output for PLC or Relay Control

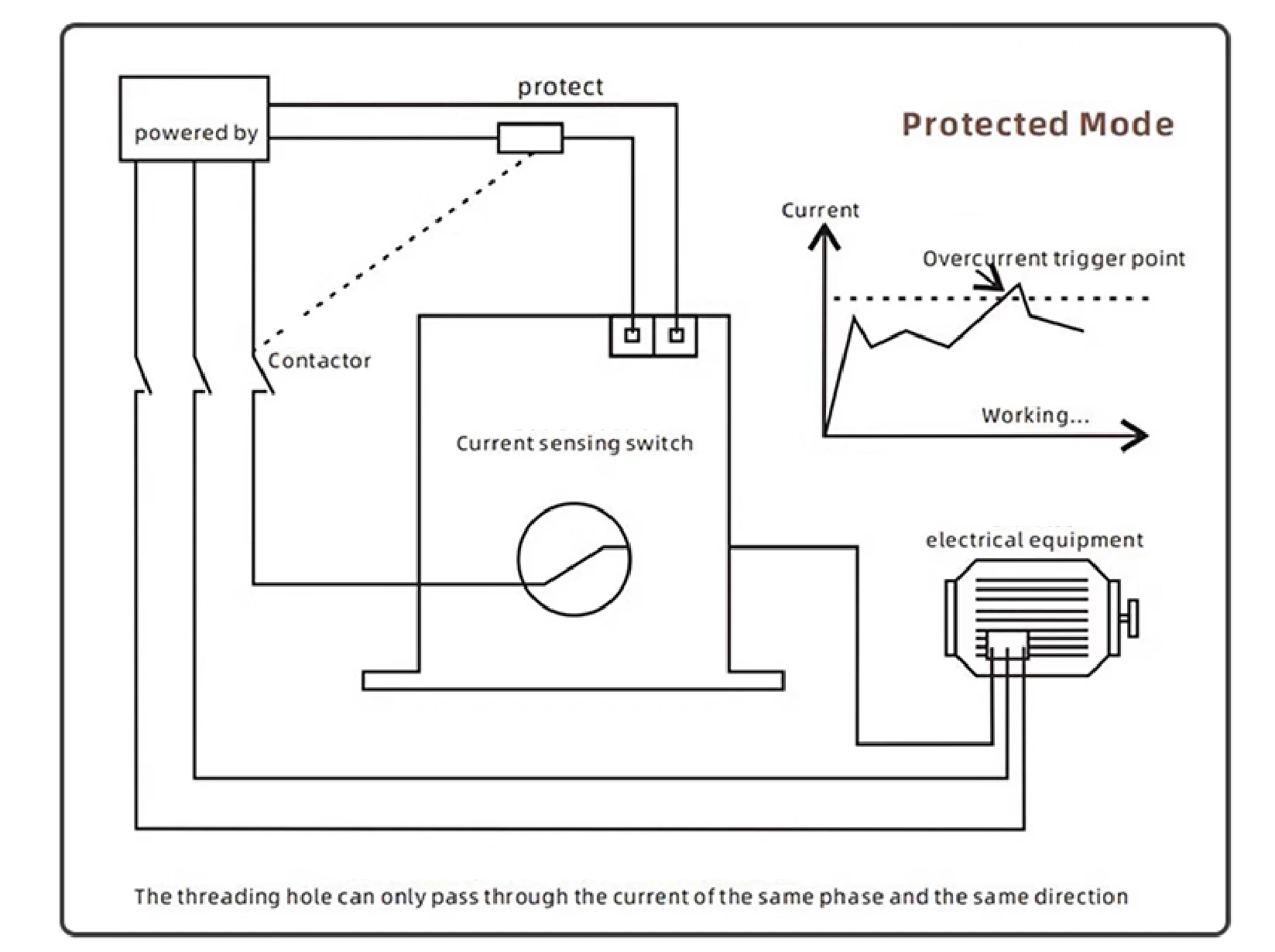

Outputs dry contact signals suitable for PLCs, relays, or contactors.

Silent, Arc-free Switching
No mechanical noise or contact sparking—maintenance-free and long-lasting.

4. Applications

Ideal for industrial automation, smart home systems, and environmental control.
Commonly used in conveyor lines, feeders, and PLC-triggered switching systems.

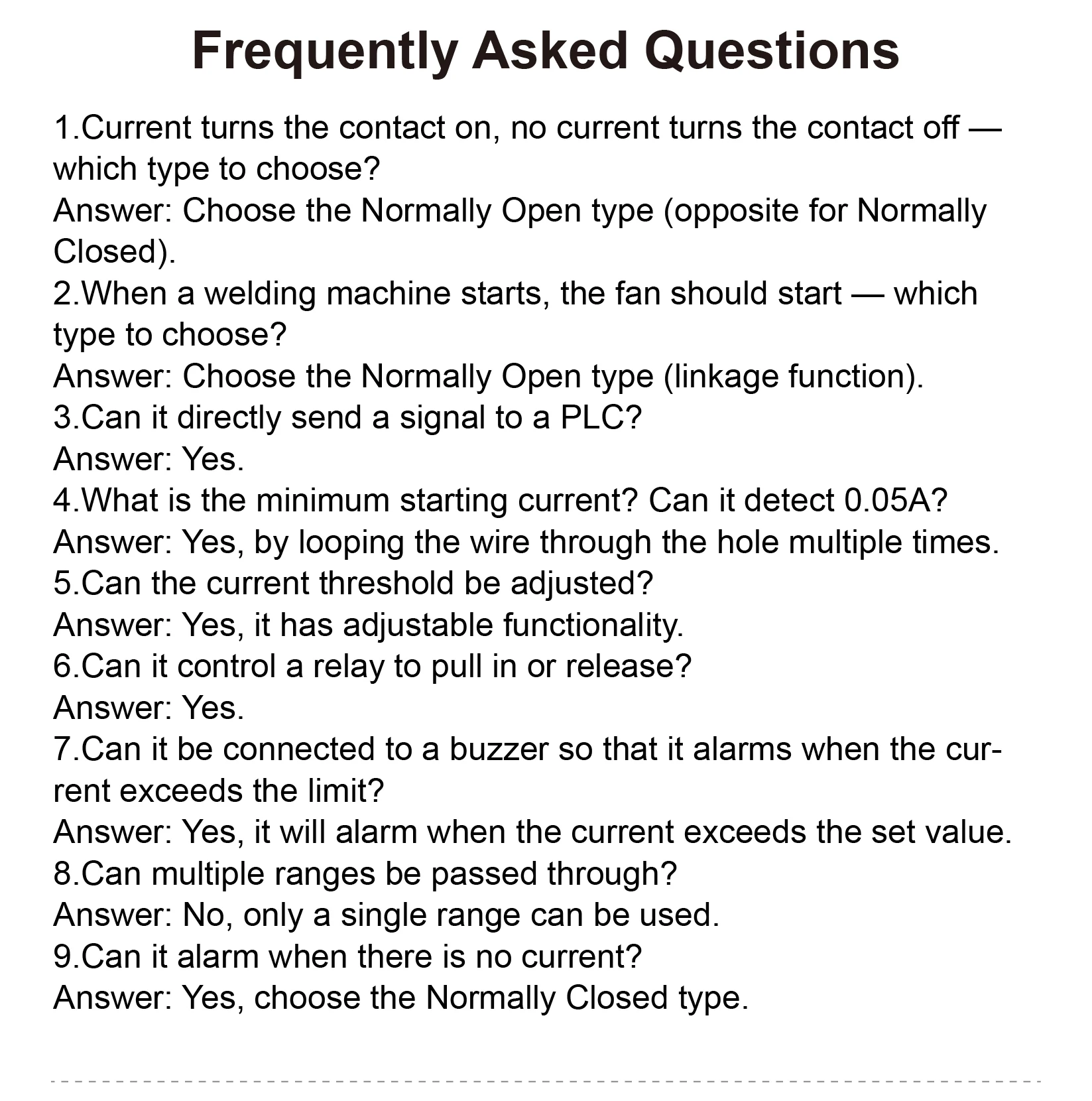

5. FAQs

Q1: Does the switch require external power?
A1: No, it is self-powered through current induction and requires no external power.

Q2: Can the current threshold be adjusted?
A2: Yes, the potentiometer allows you to set the activation current level as needed.

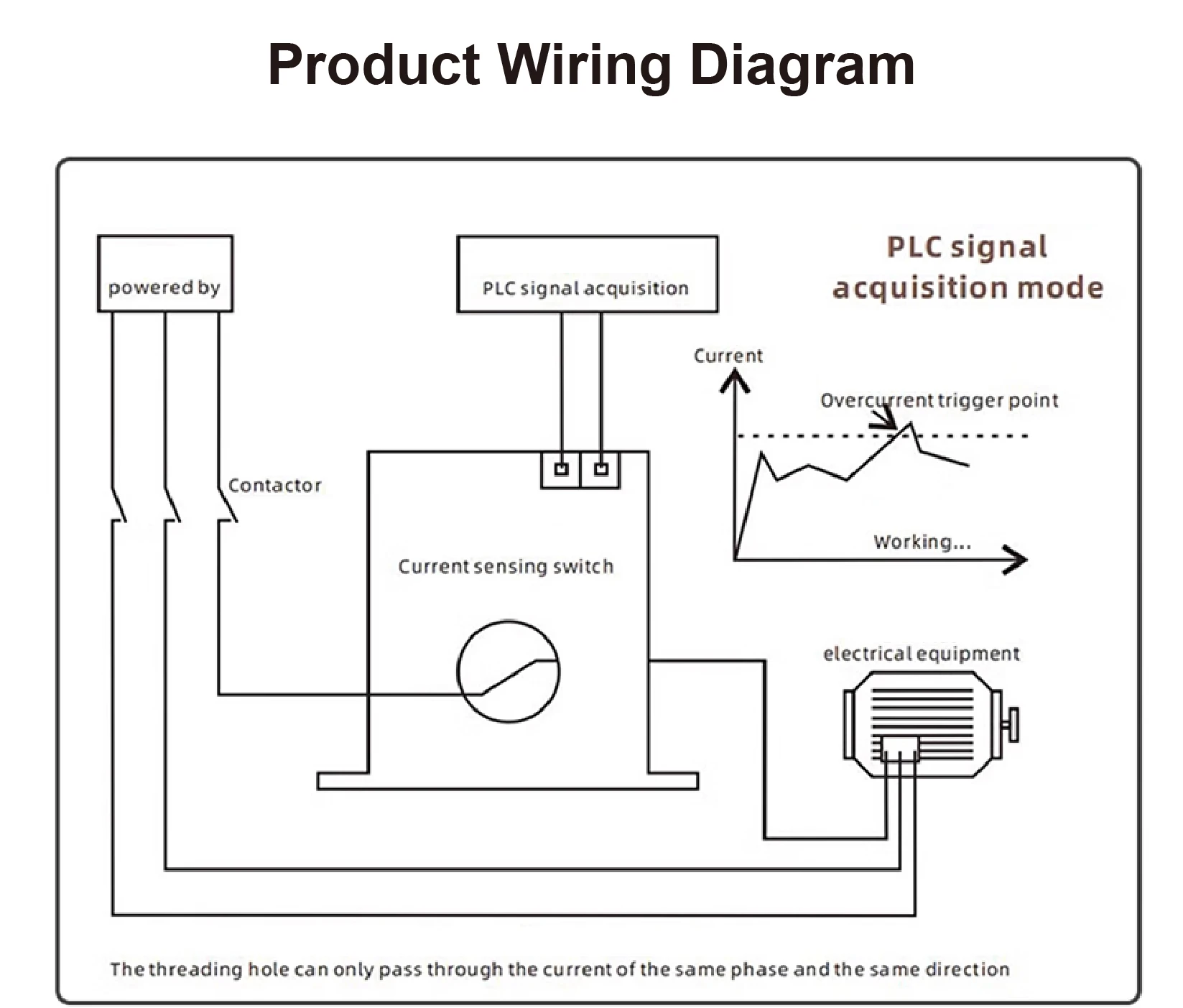

Q3: Is it compatible with PLC systems?
A3: Yes, it outputs a dry contact signal suitable for direct connection to PLC inputs.
