REX-C100 Temperature Controller Kit with K Type Thermocouple and 25DA 40DA 60DA

Product Description

1.NOTE

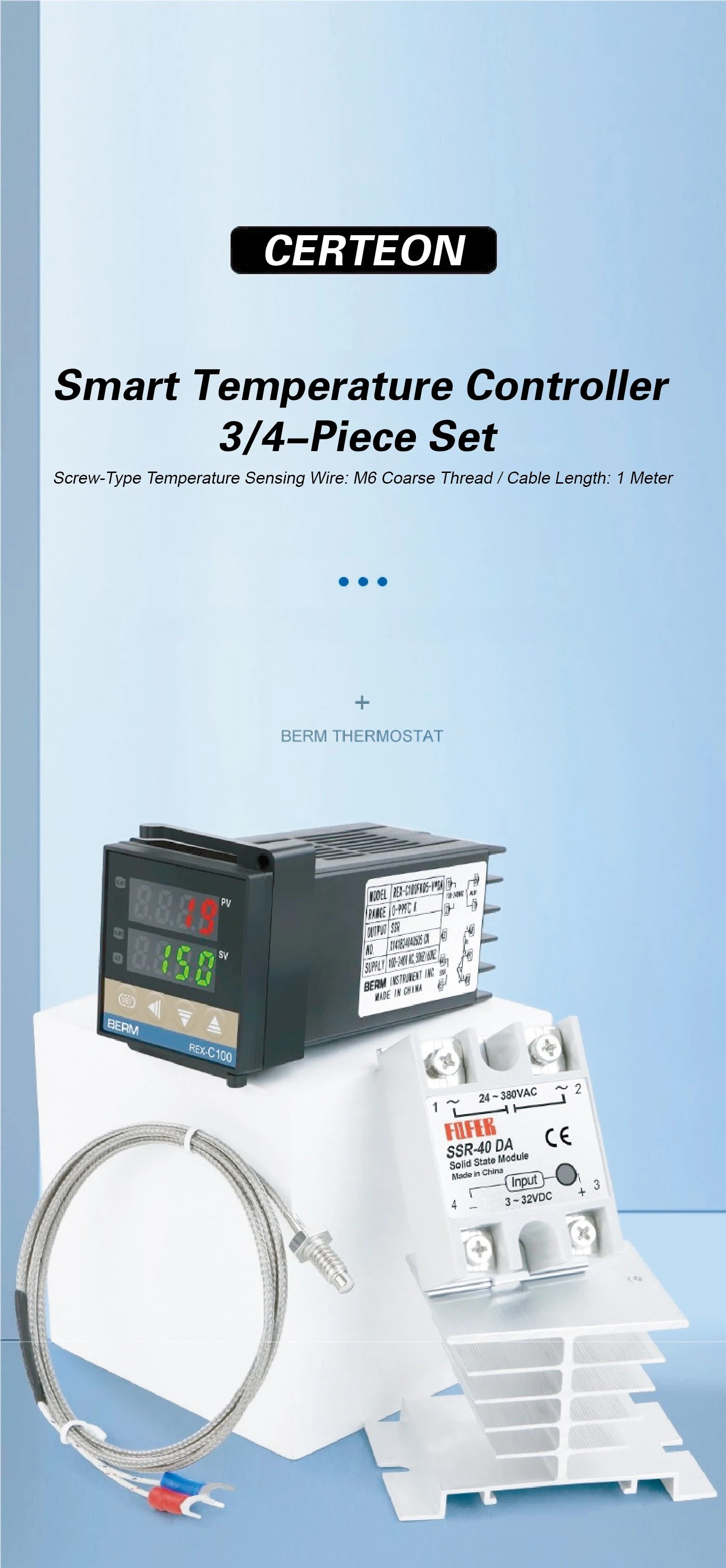

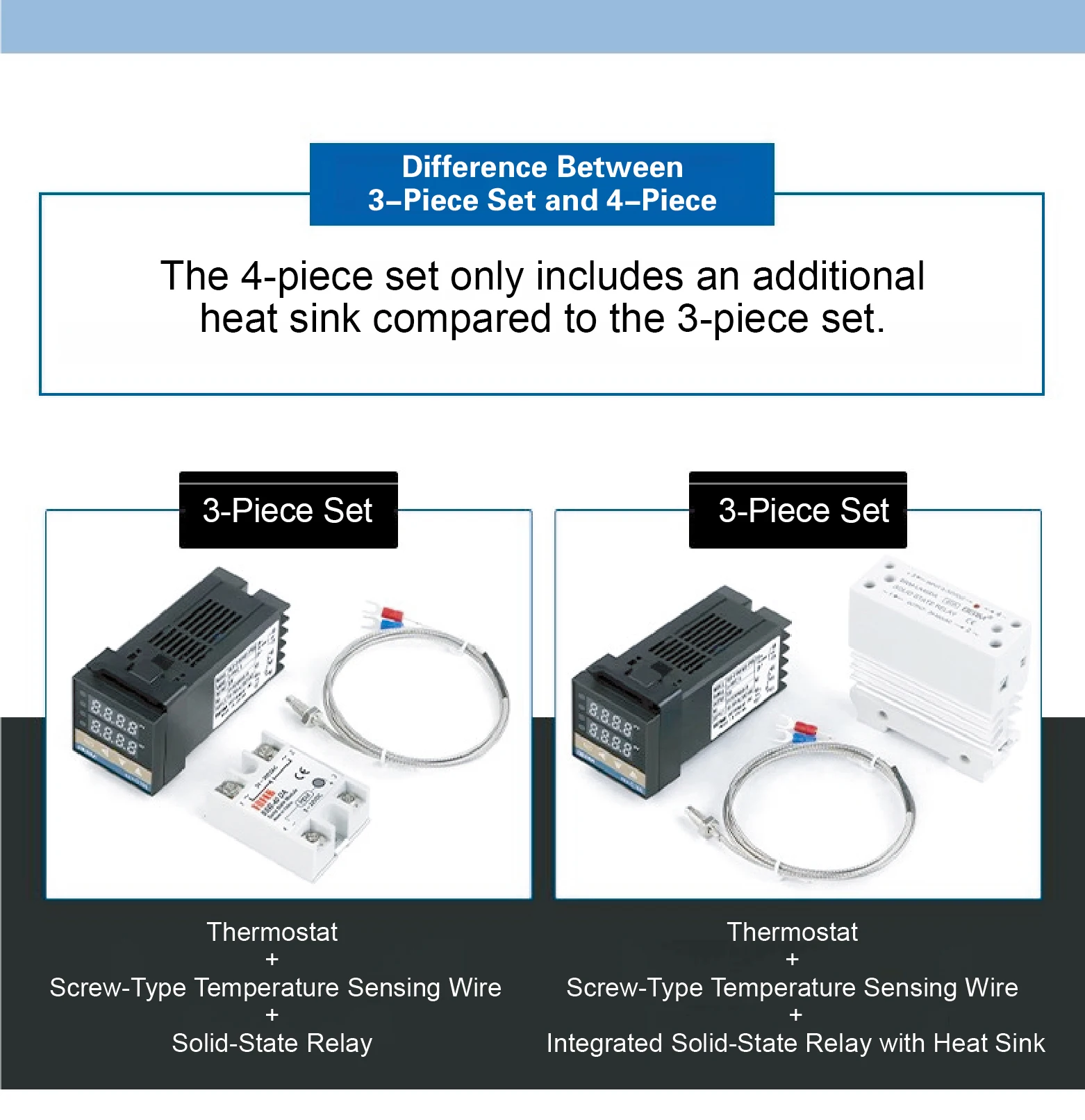

Temperature Controller + Thermocouple Probe + Solid-State Relay+Aluminum Heat Sink

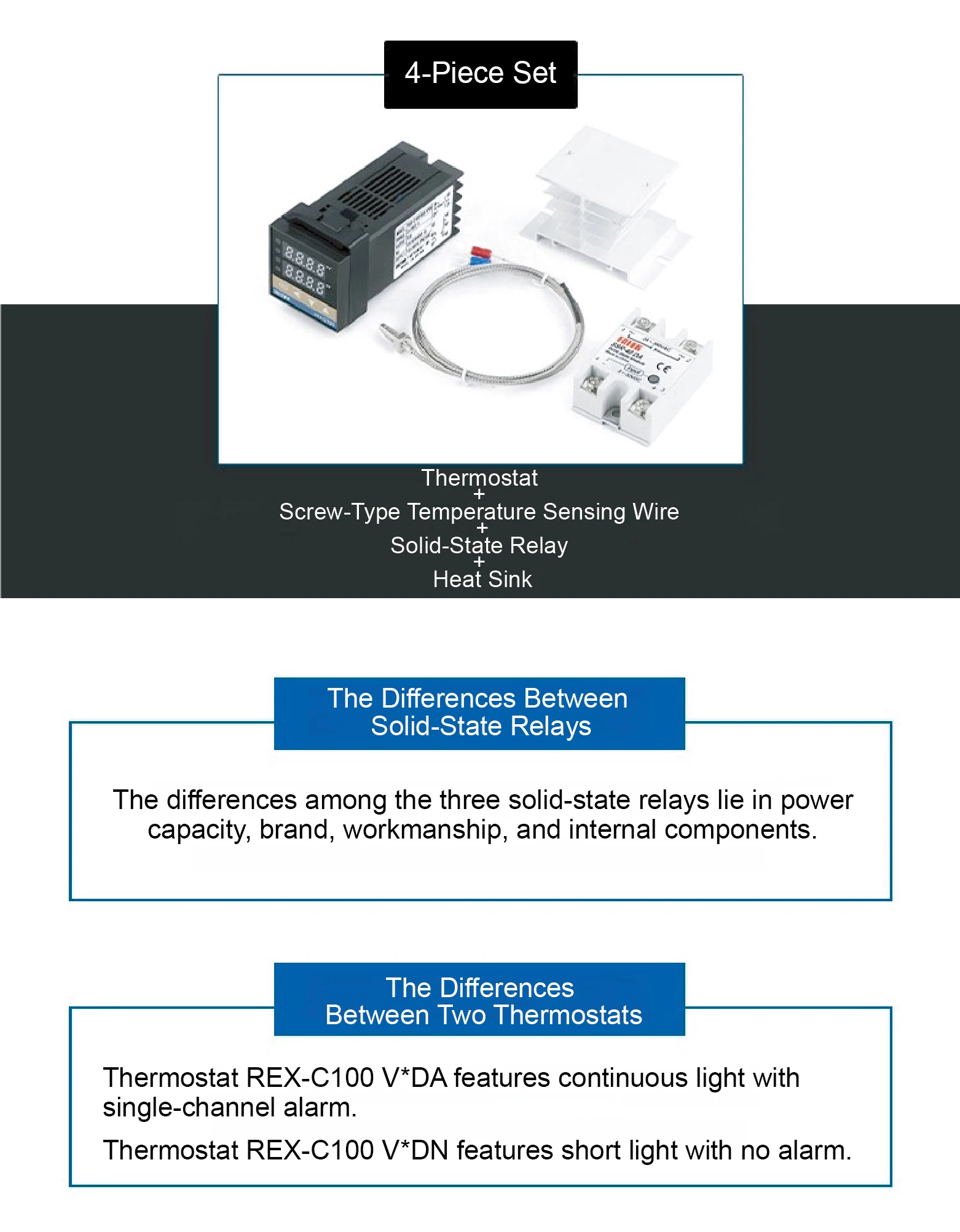

Default Package Includes:

1、 Temperature Controller :

Default power supply: 100-240VAC.

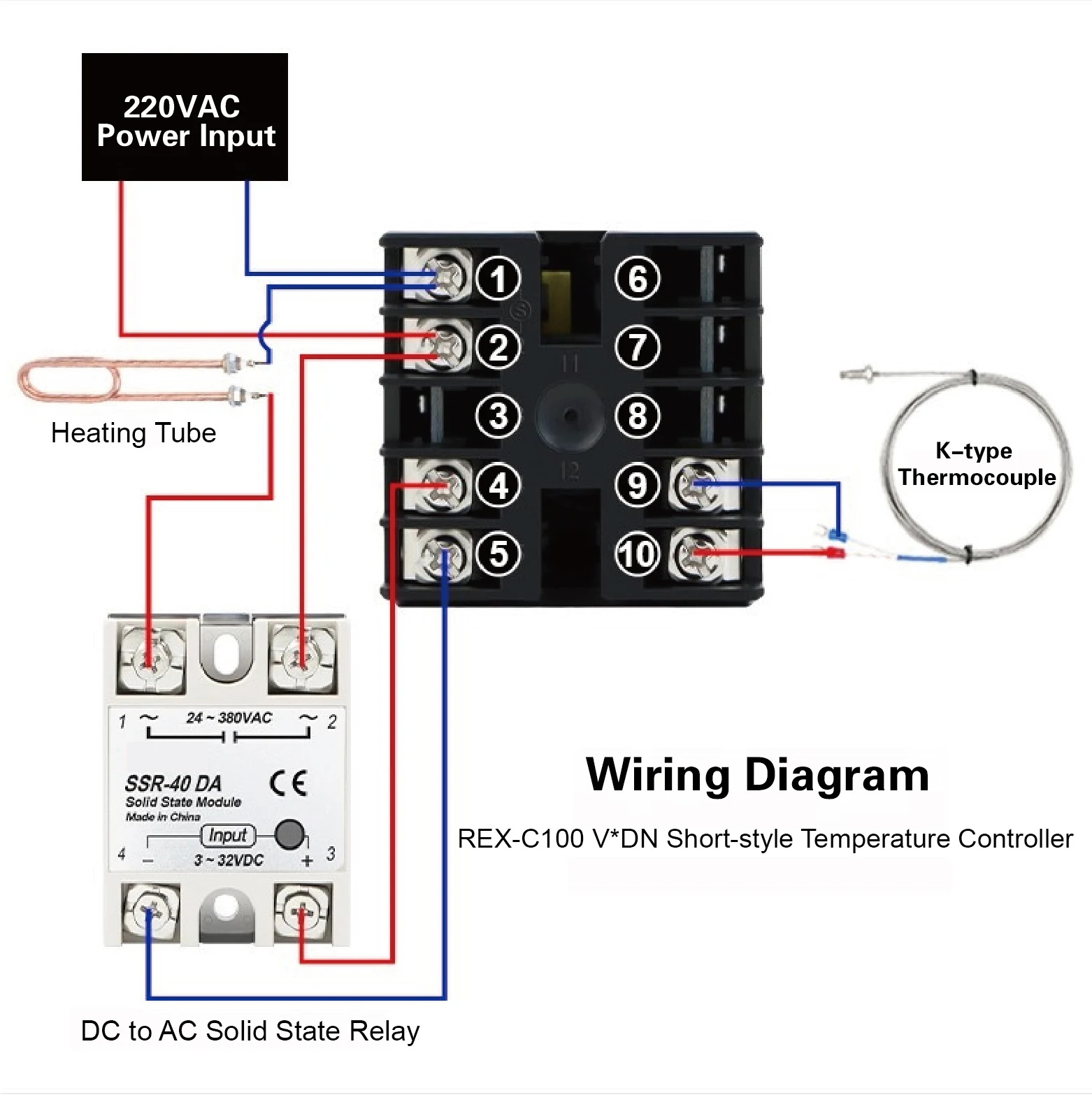

REX-C100V*DN: Compact shell without alarm; dimensions: 48 x 48 x 86 mm.

Output: Solid-state output.

2、Thermocouple Probe:

Threaded K-type thermocouple probe.

Thread size: M6*1.25.

Cable length: 1 meter.

Temperature range: 0-400°C.

3、 Solid-State Relay:

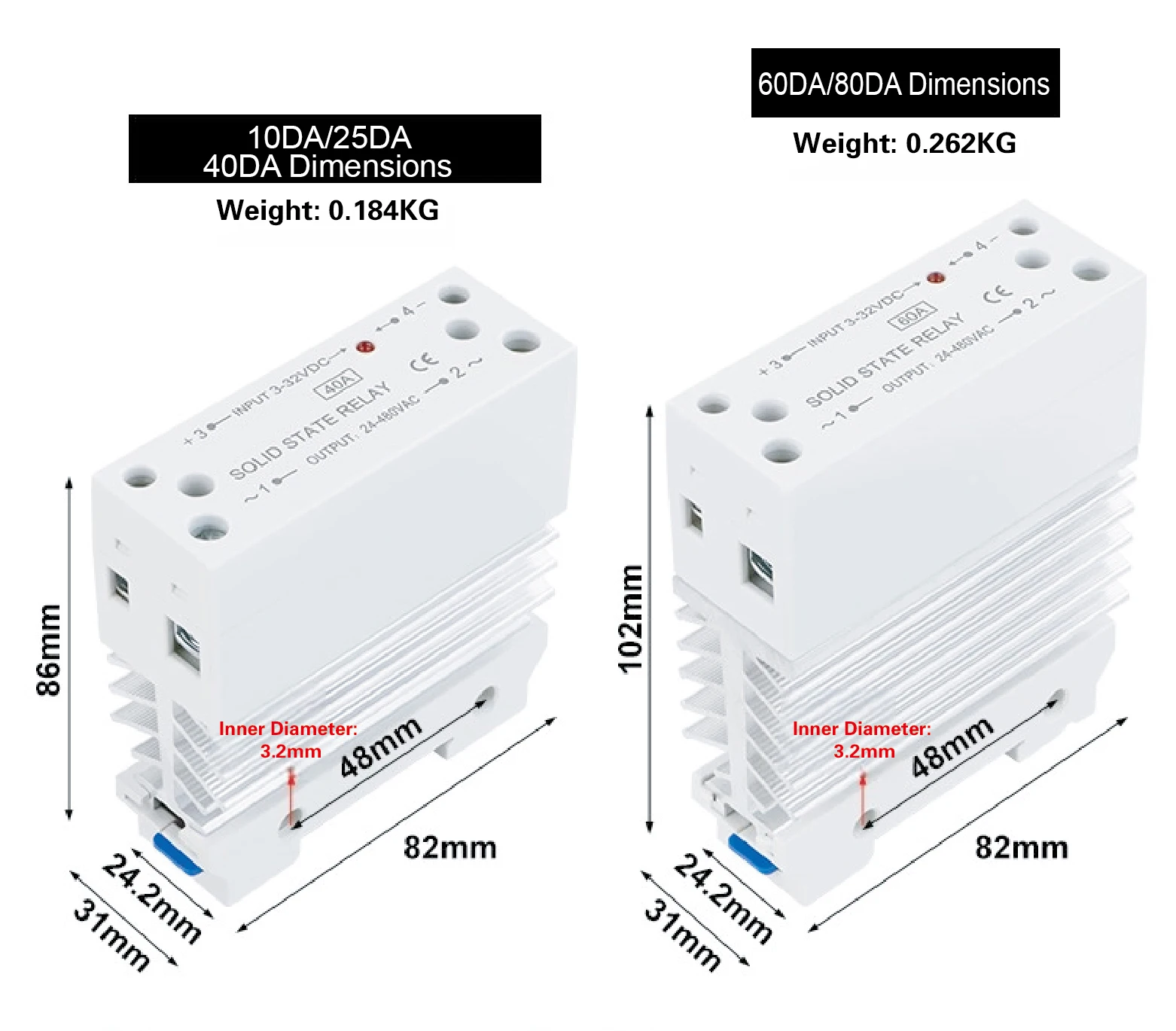

SSR-25DA: Dimensions: 82 x 31 x 86 mm; inner hole diameter: 3.2 mm.

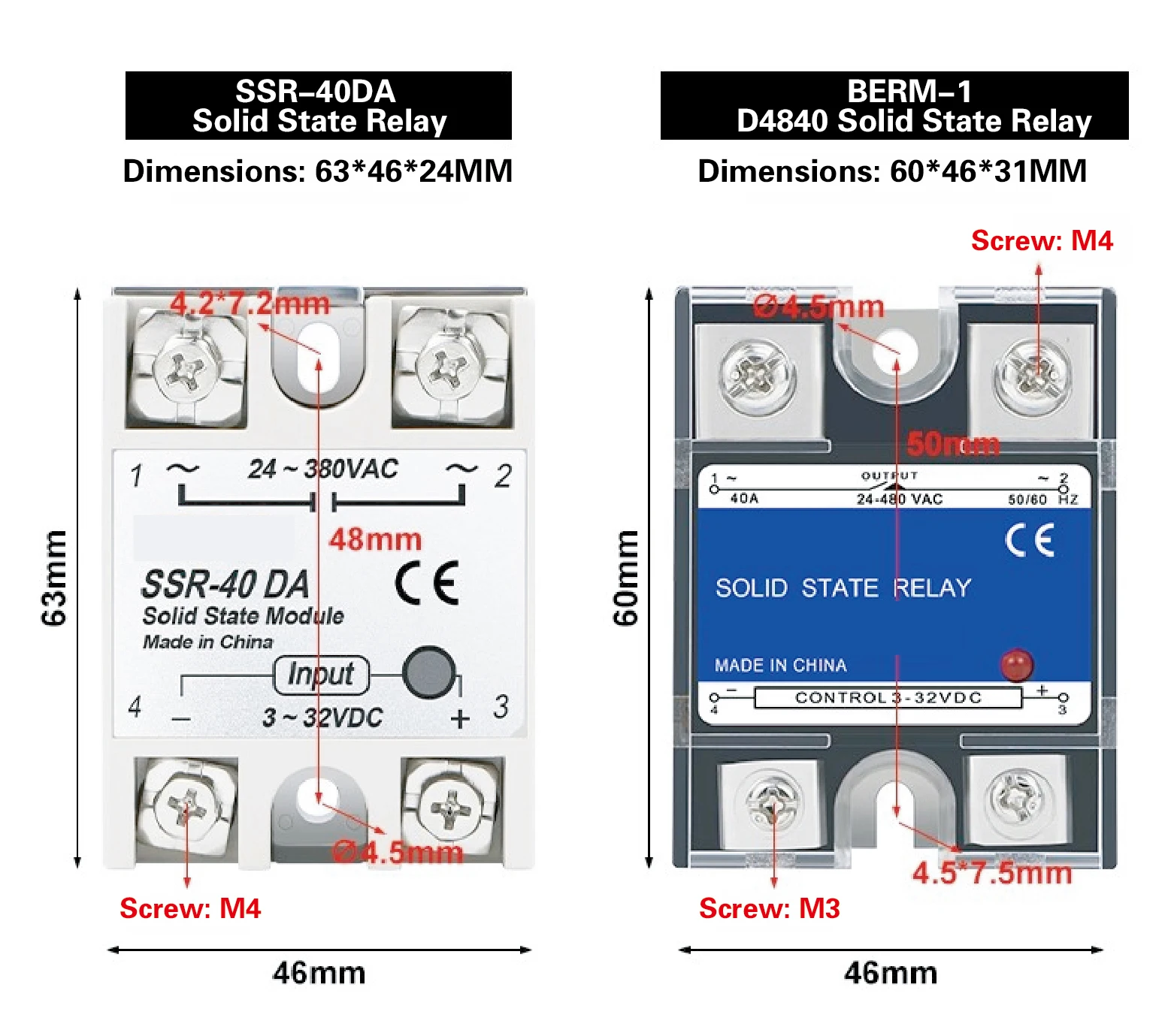

SSR-40DA: Dimensions: 63 x 46 x 24 mm; M4 threads.

SSR-60DA: Dimensions: 82 x 31 x 102 mm; inner hole diameter: 3.2 mm.

4、Aluminum Heat Sink

Integrated thickened aluminum design with excellent heat dissipation, prolonging SSR lifespan.

Customizable Parameters:

1Digital Temperature Controller:

·Output type can be customized (solid-state, relay, or 4-20mA output).

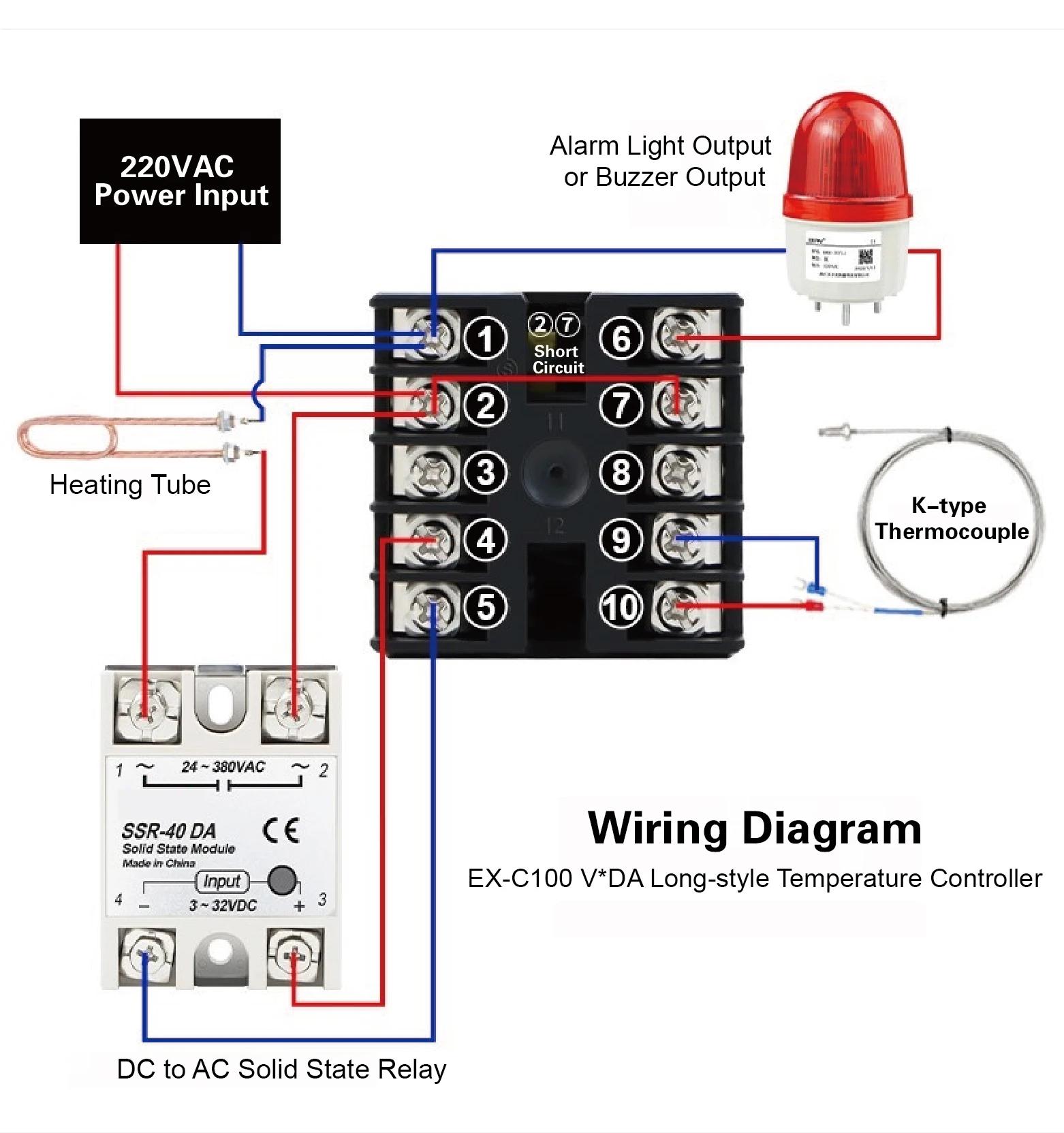

·Size:REX-C100V*DA: Long shell with one alarm; dimensions: 48 x 48 x 107 mm.

2Thermocouple Probe: Probe size, thread specifications, and cable length can be customized.

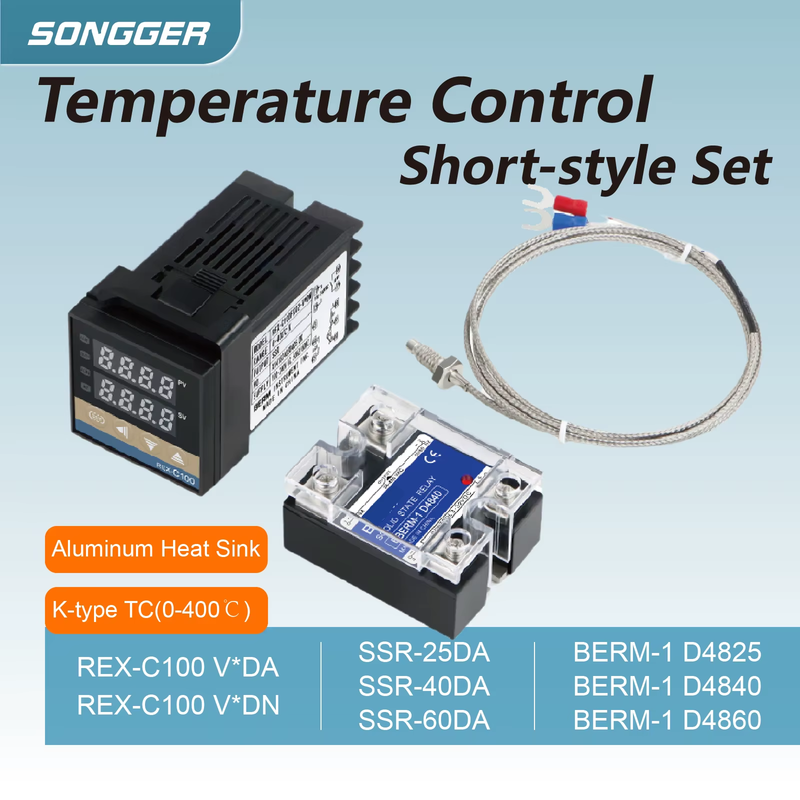

3Solid-State Relay: Various types and sizes available (e.g., SSR-25DA/SSR-40DA/SSR-60DA/

BERM-1 D4825/BERM-1 D4840/BERM-1 D4860/BRM-LK25DA/40DA/60DA).

For customization or bulk purchases, please contact us.

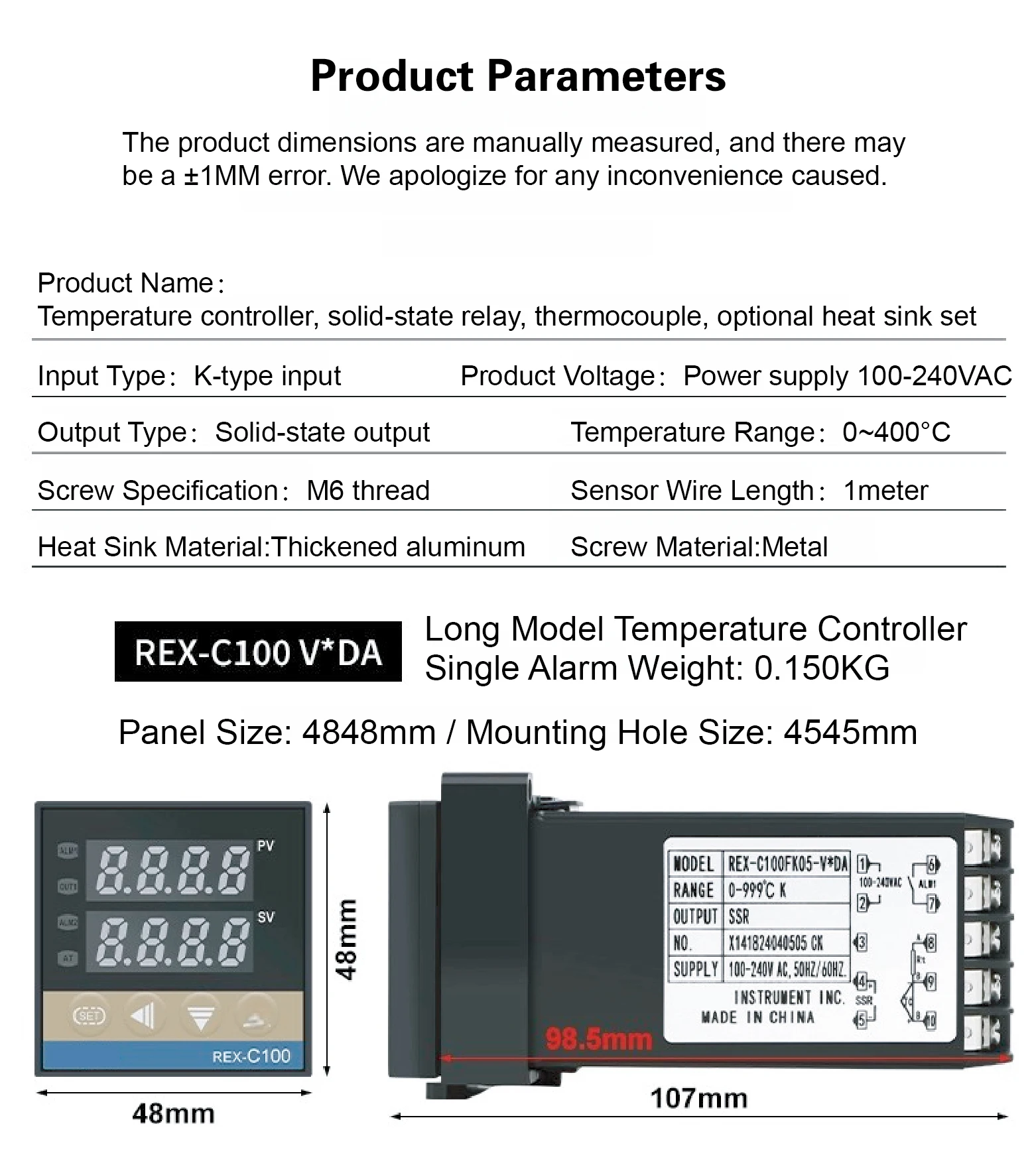

2.Parameters

3.Features

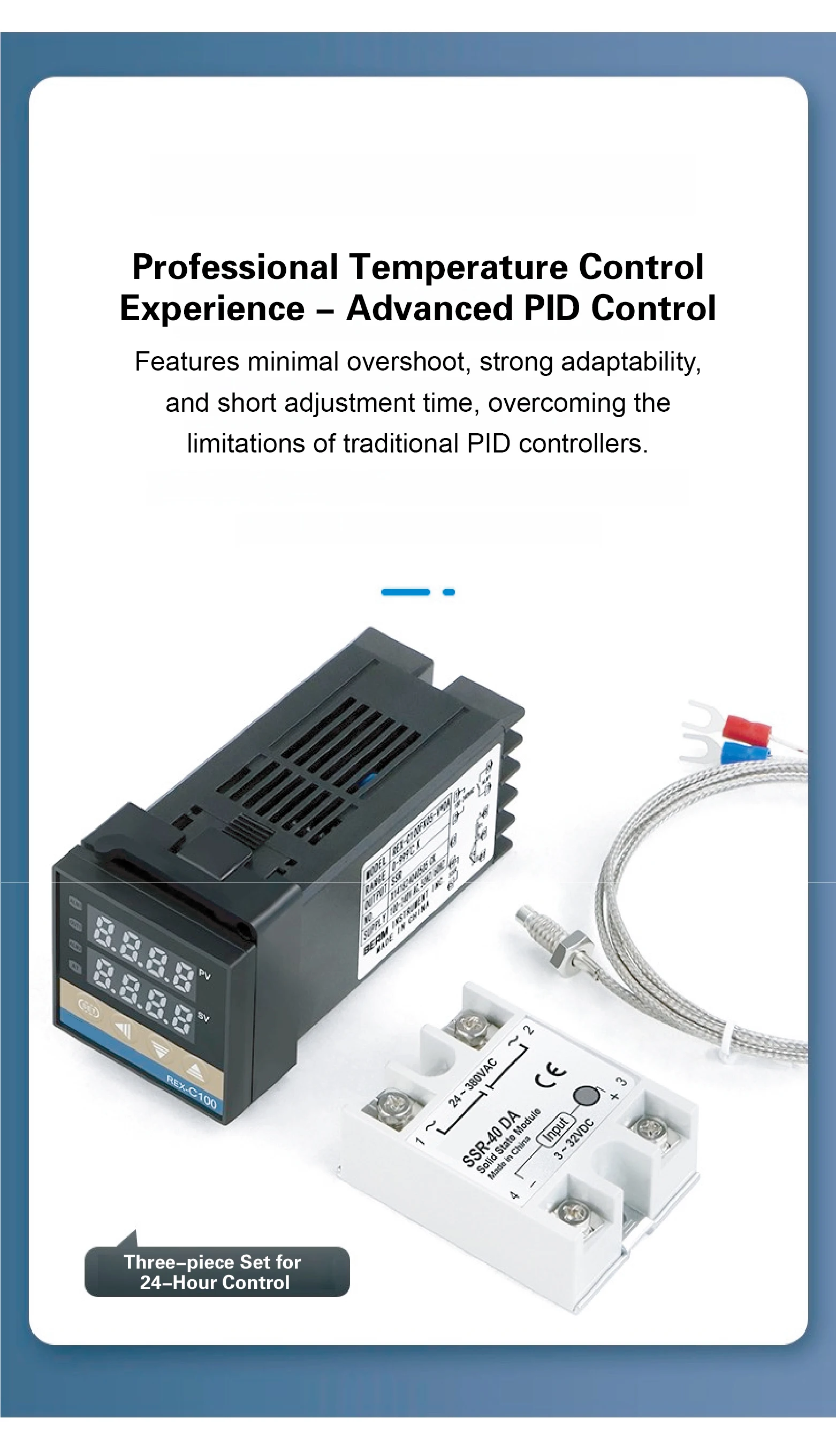

REX-C100V*DN Temperature Controller

Compact, no-alarm design; easy to install with precise control for industrial-grade applications.

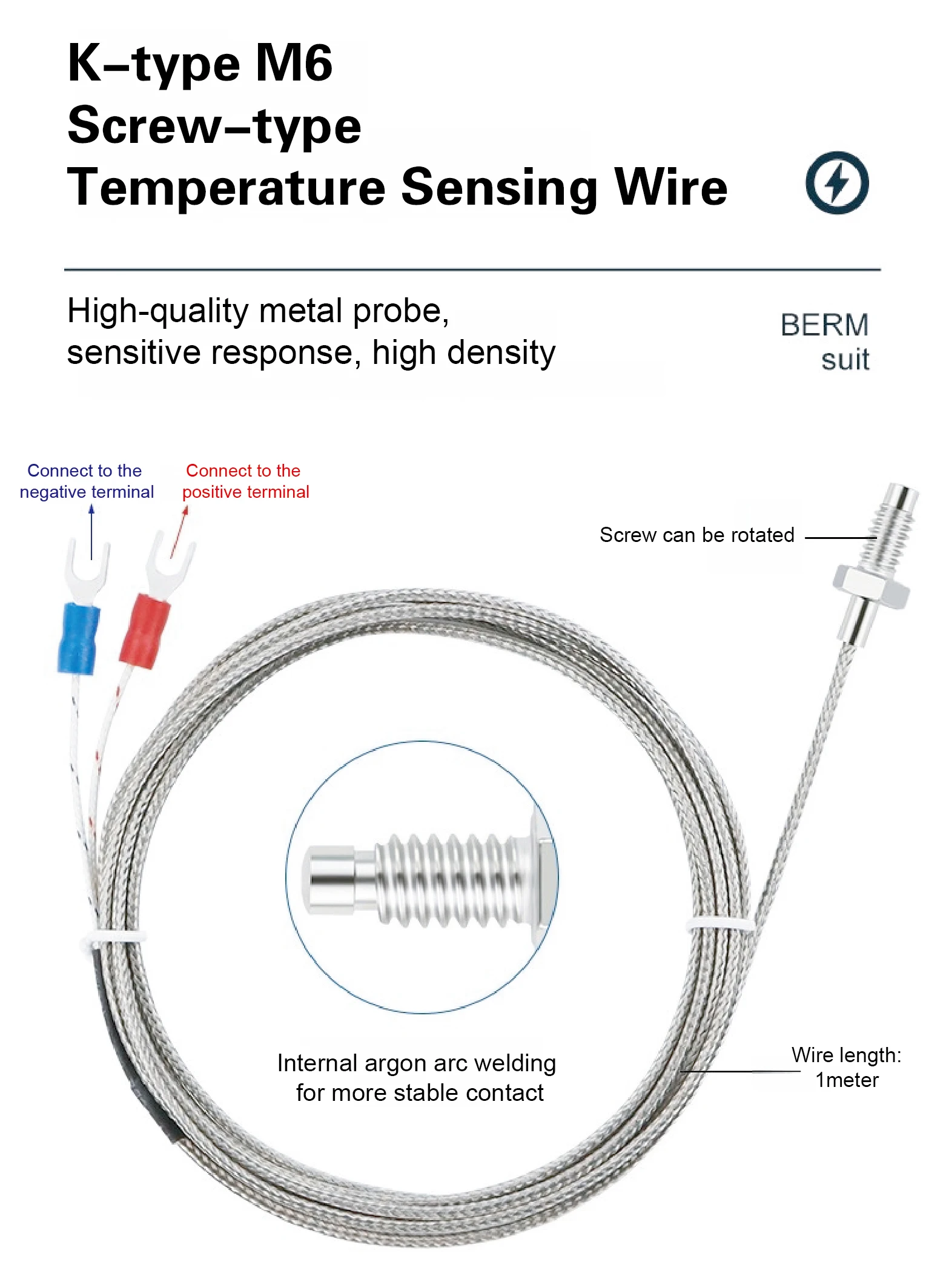

Screw-Type Thermocouple

High-quality M6 metal probe with stainless steel braided shielding ensures long-lasting, stable signal transmission and fast response.

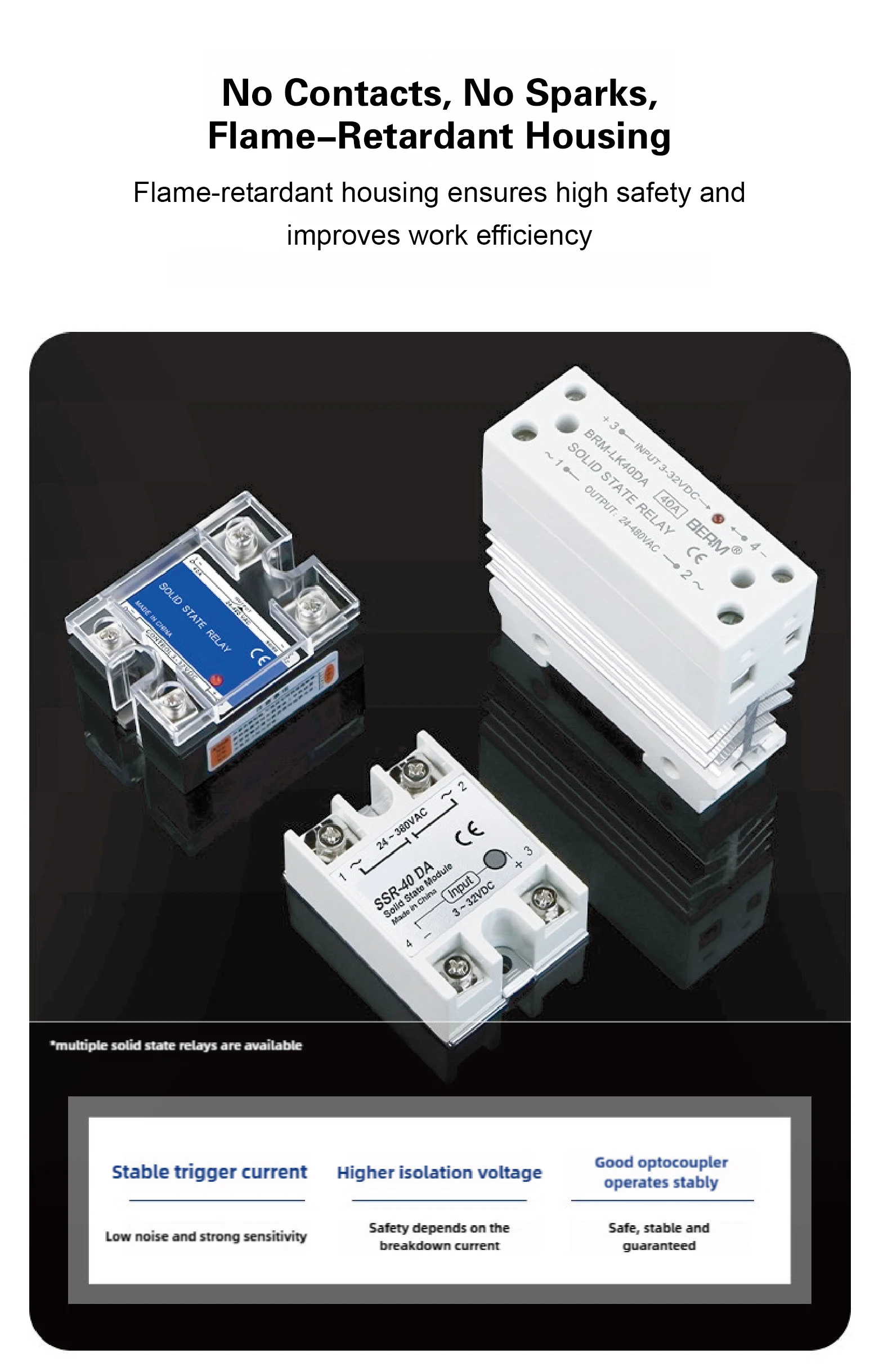

Solid-State Relay (SSR)

Reliable and versatile relay with a wide load voltage range (24–380VAC) for various applications.

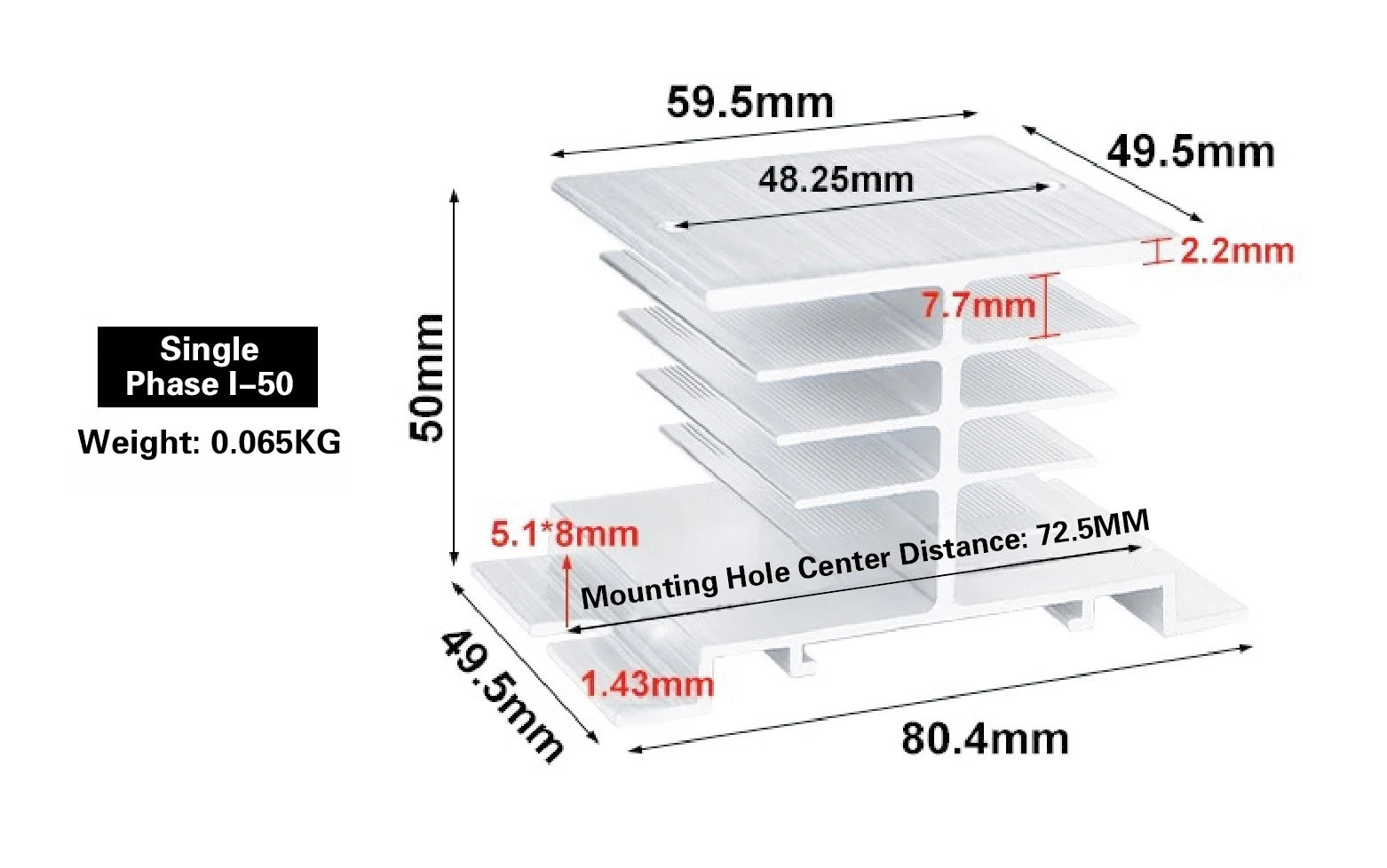

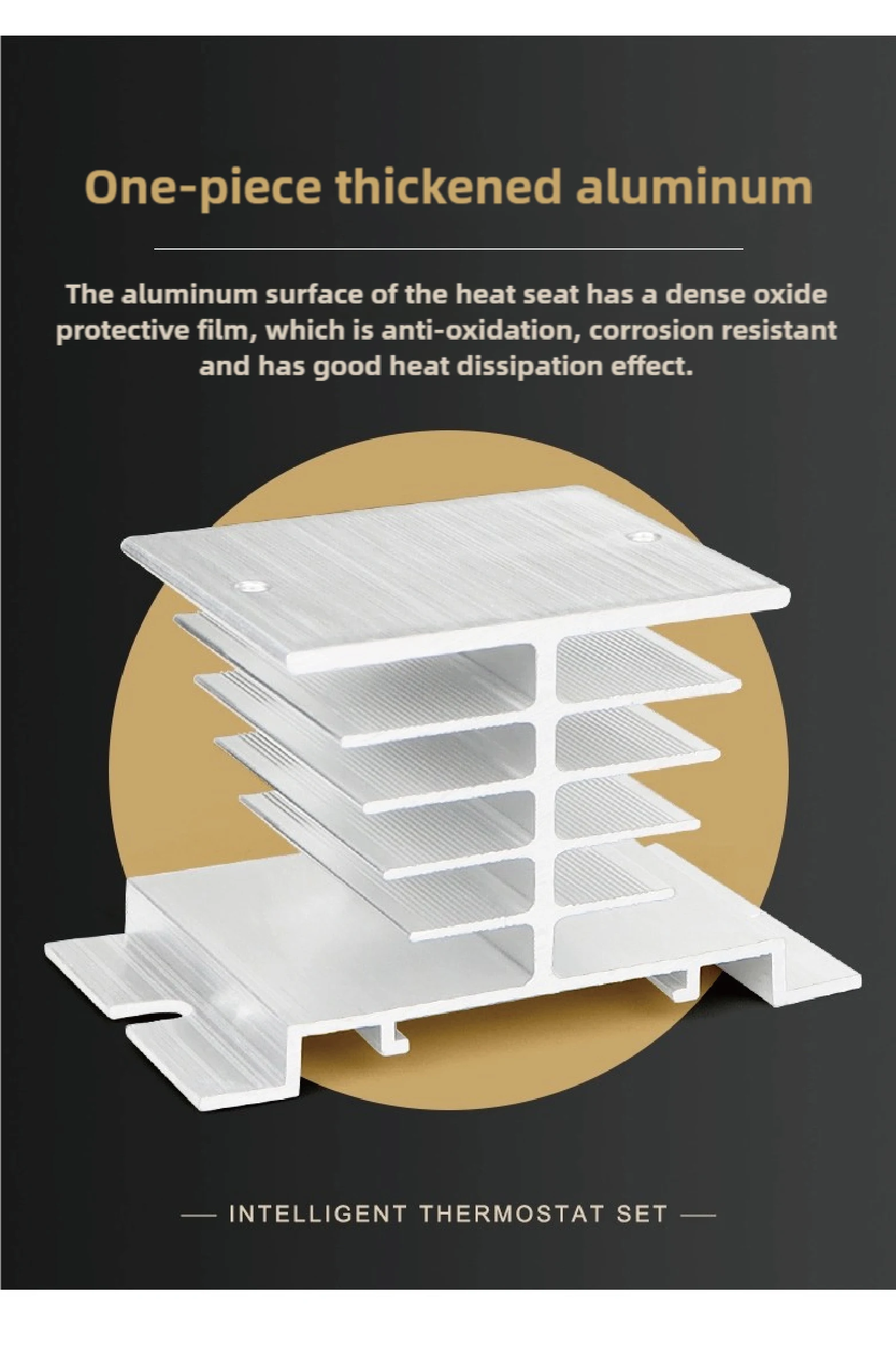

Aluminum Heat Sink

Thickened aluminum material enhances heat dissipation, extending the relay’s lifespan. Features an anti-corrosion, oxidation-resistant surface.

4.Applications

Suitable for ovens, incubators, heating systems, and other temperature-sensitive devices in industrial, laboratory, or DIY settings.

5.FAQs

Q1: What is the maximum temperature range for this setup?

A1: The system supports up to 400°C with the included K-type thermocouple.

Q2: Can the relay handle inductive loads?

A2: Yes, but the recommended maximum current is 3A for inductive loads.

Q3: Is the heat sink necessary for SSR operation?

Q3: Yes, it improves heat dissipation and prolongs the SSR's lifespan, especially under high loads.
